As electric vehicles (EVs) gain popularity, understanding their key components becomes crucial. One such essential component is the On-Board Charger (OBC). While much focus is placed on battery technology, the OBC ensures the battery is charged efficiently and safely. In this article, we will explain what an OBC is, how it works, and its role in the future of EV charging.

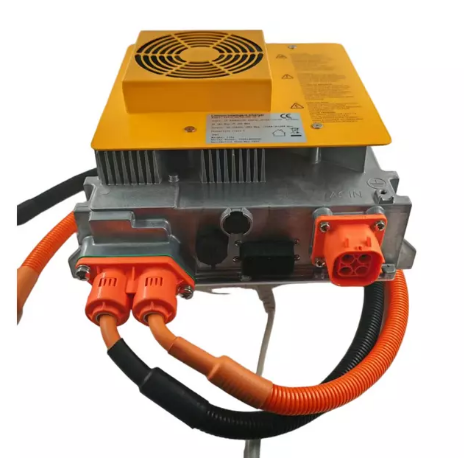

An On-Board Charger (OBC) is a device integrated into an electric vehicle (EV) that converts alternating current (AC) from a charging source into direct current (DC) that the vehicle’s battery can store. This conversion is necessary because most EV batteries require DC power, but the electricity supplied from standard home outlets or public charging stations is typically AC. The OBC acts as the intermediary, ensuring that the power supplied is safe and suitable for the battery’s charging needs. It is an integral part of the vehicle's charging system, converting AC power to the DC voltage that charges the battery.
The OBC plays a crucial role in the EV charging system by ensuring that the correct power is delivered to the vehicle’s battery. It enables EVs to charge from a wide variety of sources, including home chargers and public charging stations. When plugged into an AC source, the OBC steps in to handle the conversion process, ensuring that the vehicle's battery receives the correct voltage and current. The vehicle's battery management system (BMS) works in conjunction with the OBC to monitor the state of charge and adjust the charging parameters accordingly, ensuring the battery is charged in a controlled and efficient manner.
It is important to differentiate between the OBC and external charging equipment (EVSE). While both are part of the vehicle’s charging process, the OBC is built into the vehicle itself and is responsible for the conversion process. On the other hand, the EVSE, often referred to as the charging station, delivers the electrical power to the OBC.
The OBC is crucial for both Battery Electric Vehicles (BEVs) and Plug-in Hybrid Electric Vehicles (PHEVs). In BEVs, the OBC ensures the vehicle’s battery is charged from an AC outlet, while in PHEVs, it manages the charging of both the electric and internal combustion systems. As the EV market continues to grow, the role of OBCs becomes even more significant, especially as manufacturers push for faster charging times and improved battery life. The OBC’s ability to manage the charging process efficiently allows for a smoother transition to electric mobility, making EVs a more practical and accessible option for consumers.
Feature | Details |
Function | Converts AC power into DC power to charge the vehicle’s battery. |
Location | Built into the electric vehicle. |
Charging Source | Works with home outlets and public charging stations. |
Power Capacity | Ranges from 3.6 kW to 22 kW, depending on the OBC type. |
Importance | Vital for the safe and efficient charging of electric vehicles. |
The OBC works by first converting the incoming AC power from a charging station into DC power that is required by the EV battery. This process begins when the vehicle is plugged into an AC outlet or public charging station. The OBC first takes the AC power and rectifies it using a full-wave rectifier circuit, which converts the alternating current into direct current. The DC power is then filtered and regulated to ensure it matches the battery’s requirements for charging.
The OBC does not simply provide a constant flow of power; it adjusts the voltage and current based on the specific needs of the vehicle’s battery, ensuring that the battery is charged safely and efficiently. This is why OBCs are crucial to the overall health of an EV’s battery, as improper charging can result in battery degradation or reduced lifespan.
One of the key components of the OBC is the Power Factor Correction (PFC) circuit. This circuit ensures that the OBC operates efficiently by minimizing the phase difference between the input current and voltage. By correcting the power factor, the OBC reduces energy losses during the conversion process, making the charging process more efficient. After the AC power is rectified, the second phase of the conversion process occurs in the DC/DC conversion circuit. This stage adjusts the voltage and current to the appropriate levels required by the vehicle’s battery. The PFC and DC/DC conversion stages are essential for minimizing energy loss and ensuring the battery receives the proper charge.
The OBC also communicates with the vehicle controller and charging station to determine the optimal charging parameters. This communication ensures that the correct amount of power is delivered to the battery, preventing overcharging or overheating. Through this interaction, the OBC can adjust the charging voltage and current in real time, ensuring that the charging process is as efficient as possible. This communication also allows the OBC to respond to different types of charging stations, adapting to various voltage levels and charging standards across different regions.
There are two primary types of OBCs: single-phase and three-phase. Single-phase OBCs are typically used in residential settings where the power supply is limited to a single phase. These chargers usually have a power output ranging from 3.6 kW to 7.2 kW, making them suitable for slow, overnight charging. On the other hand, three-phase OBCs are used in commercial or industrial settings where higher power levels are available. Three-phase OBCs can deliver power outputs ranging from 11 kW to 22 kW, enabling faster charging. These chargers are ideal for public charging stations or locations that require rapid charging solutions.

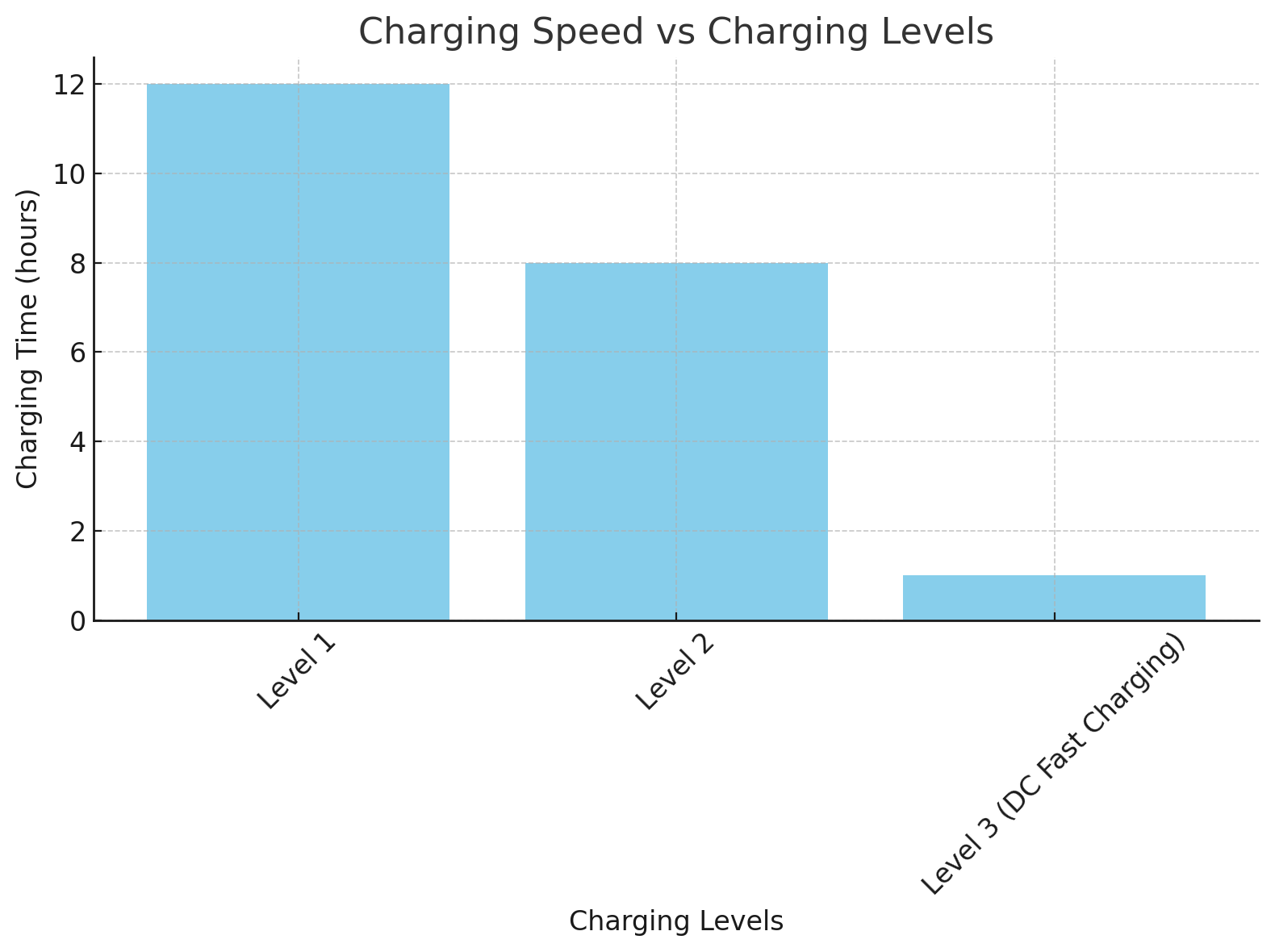

Charging stations are classified into three levels, with each level offering different charging speeds. Level 1 chargers use standard 120V outlets and provide the slowest charging speeds, typically requiring up to 12 hours for a full charge. Level 2 chargers, which operate at 240V, are much faster, reducing charging times to 4-8 hours. Level 3 chargers, also known as DC fast chargers, bypass the OBC altogether, providing DC power directly to the battery and drastically reducing charging times to as little as 30 minutes to 1 hour. These chargers are typically used in public locations, such as highway rest areas or commercial centers.
Some modern OBCs support both AC and DC charging modes, allowing the vehicle to switch between different types of charging sources. This flexibility is important as it ensures that the vehicle can charge at any available station, whether it’s a standard AC outlet, a Level 2 AC charger, or a Level 3 DC fast charger. This capability provides EV owners with a wider range of charging options, ensuring that they are not limited to specific charging infrastructures.
Aspect | Single-Phase OBC | Three-Phase OBC |
Power Output | 3.6 kW to 7.2 kW | 11 kW to 22 kW |
Usage | Residential (home charging) | Commercial or industrial (faster charging) |
Charging Speed | Slower | Faster |
Common Location | Home outlets, Level 1 chargers | Public chargers, Level 2/3 chargers |
One of the key benefits of the OBC is its ability to optimize the charging process. By regulating the power delivered to the battery, the OBC helps ensure that the battery is charged in a controlled manner, minimizing the risk of overcharging or overheating. This not only improves charging efficiency but also protects the battery, extending its lifespan and reducing the need for costly replacements.
The OBC also provides convenience for EV owners by enabling them to charge their vehicles from a variety of power sources. Whether using a home outlet or a public charging station, the OBC ensures that the vehicle is charged safely and efficiently. This versatility makes EVs more accessible and practical for everyday use, as owners can easily charge their vehicles without needing specialized infrastructure.
Using the OBC for charging offers significant cost savings compared to relying solely on DC fast chargers. Charging with AC power is generally less expensive than using DC fast chargers, which are often found in commercial locations and may charge higher fees for their services. By using the OBC for regular charging, EV owners can reduce their charging costs while also benefiting from a more sustainable charging method that places less strain on the vehicle’s battery.
Benefit | Description |
Efficiency | Ensures energy is converted efficiently from AC to DC. |
Convenience | Charges at home or public stations without needing specialized infrastructure. |
Battery Health Management | Protects the battery by controlling the charging process. |
As electric vehicle battery capacities continue to grow, the demand for higher power OBCs is increasing. Manufacturers are now focusing on developing OBCs that can deliver greater power outputs to accommodate larger batteries and faster charging times. The future of OBC technology will see more powerful systems that can charge vehicles more quickly without sacrificing battery health.
One of the most exciting trends in OBC technology is the move toward 800V systems. These systems enable faster charging times by delivering higher voltage to the battery, reducing the time required to fully charge an EV. Additionally, some OBCs are being designed to support bidirectional charging, allowing energy to flow both ways. This capability could enable Vehicle-to-Grid (V2G), Vehicle-to-Load (V2L), and Vehicle-to-Vehicle (V2V) functions, further enhancing the vehicle’s role in the energy ecosystem.
Looking ahead, OBCs will become more integrated with smart grid technology, enabling vehicles to interact with the grid and other devices in a more seamless way. This integration will allow EVs to contribute to energy storage solutions, providing power back to the grid during peak demand periods. As the adoption of renewable energy sources increases, OBCs will play a critical role in optimizing energy distribution and supporting sustainable energy systems.
The On-Board Charger (OBC) is essential for electric vehicles, converting AC power into DC to charge the battery safely. As the EV market expands, OBCs are becoming more crucial, especially with the demand for faster charging. The development of high-power OBCs, 800V systems, and bidirectional charging will drive more efficient and sustainable solutions. Companies like Keller are leading the way in delivering innovative OBC technologies, offering consumers faster, more efficient, and reliable charging solutions.
A: An On-Board Charger (OBC) is a device in electric vehicles that converts AC power into DC power to safely charge the vehicle’s battery.
A: The On-Board Charger takes AC power from a charging station and converts it into DC power that the battery can store, ensuring safe and efficient charging.
A: The On-Board Charger is essential for converting AC to DC, allowing EVs to charge from various sources like home outlets or public stations.
A: The cost of an On-Board Charger varies depending on the vehicle and its power capacity, typically ranging from $500 to $2,000.
A: The On-Board Charger provides efficient, safe, and convenient charging, allowing EVs to charge at home or public stations without requiring special infrastructure.
A: Yes, higher power On-Board Chargers support faster charging, with newer models capable of handling up to 22 kW or more.
