Views: 0 Author: Site Editor Publish Time: 2025-12-10 Origin: Site
As electric vehicles (EVs) and marine systems become more prevalent, efficient battery charging is crucial. On-Board Battery Chargers (OBC) ensure that batteries remain charged and ready for use. This article explains how OBCs work, their types, benefits, and common troubleshooting tips. You’ll learn how to maximize the efficiency and longevity of your OBC for optimal performance.

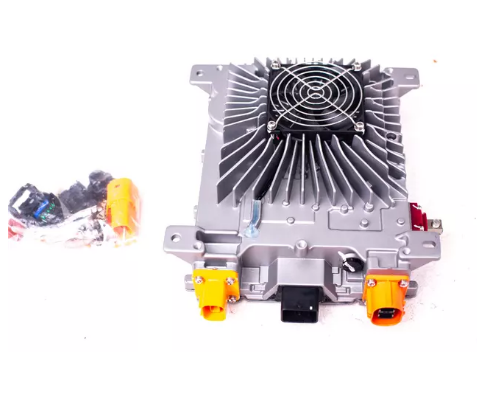

An On-Board Charger (OBC) is a device designed to convert alternating current (AC) from an external power source, such as a shore power outlet or a generator, into direct current (DC) that is suitable for charging the battery. In electric vehicles and marine vessels, it ensures that the battery is charged efficiently and safely. OBCs play a crucial role in maintaining battery health by preventing overcharging or undercharging, which can degrade battery performance.
In electric vehicles, the OBC is a critical component of the vehicle's charging system. It ensures that the battery receives the correct voltage and current to charge properly, while managing the power flow to prevent damage to the battery. In marine systems, OBCs serve the same purpose but are built to withstand harsh environmental conditions such as saltwater, moisture, and temperature fluctuations. Both electric vehicles and boats rely on OBCs to maintain reliable and efficient power systems, which are essential for safe operation.
On-board chargers are used in a variety of applications. In marine systems, they are primarily used to maintain and charge the boat’s batteries, which power the engine, navigation systems, and other on-board electronics. Similarly, in electric vehicles, the OBC charges the battery pack, ensuring that the car is ready for use at all times. These chargers are designed for permanent installation and can be connected to external power sources when the vehicle or vessel is parked or docked.
The primary function of an OBC is to convert AC power from an external source into DC power, which is required to charge a battery. The process begins when the OBC is plugged into an AC outlet, and the charger begins converting the incoming power. The AC current flows through the OBC, where it is transformed into a suitable DC voltage for the battery. This ensures that the battery is charged in a controlled manner, preventing potential damage caused by incorrect voltage levels.
Modern OBCs typically use a multi-stage charging process to optimize the charging efficiency and extend the lifespan of the battery. The stages include:
● Bulk Charging: In this phase, the OBC delivers the maximum allowable current to charge the battery up to about 80% of its capacity. This phase is the fastest and most energy-efficient.
● Absorption Charging: Once the battery reaches 80%, the charger switches to absorption mode. It reduces the current and maintains a steady voltage to bring the battery to a full charge without overheating.
● Float Charging: When the battery is fully charged, the charger enters float mode. Here, it delivers just enough current to maintain the charge and prevent the battery from discharging, ensuring its longevity.
This multi-stage process is essential for battery health and ensures that the charging process is both safe and efficient.
Power Factor Correction (PFC) is a technique used by OBCs to enhance energy efficiency. PFC ensures that the power supply to the charger is as efficient as possible, reducing the loss of energy during the conversion process. PFC also helps improve the overall performance of the OBC by ensuring that it delivers the appropriate current and voltage to the battery.
In addition to PFC, the OBC also uses DC/DC conversion to regulate the voltage sent to the battery. Different battery chemistries require different voltage levels for optimal charging, and the DC/DC converter ensures that the output voltage is precisely adjusted to meet these requirements. This precise control of voltage ensures that the battery is charged safely and effectively.
The OBC is designed to communicate with the battery management system (BMS) of the vehicle or boat. The BMS monitors the battery's state of charge and health, sending signals to the OBC to adjust the charging parameters accordingly. For example, if the BMS detects that the battery is nearing full charge, it can instruct the OBC to reduce the current or switch to float mode. This dynamic communication between the OBC and BMS ensures that the battery is always charged optimally.

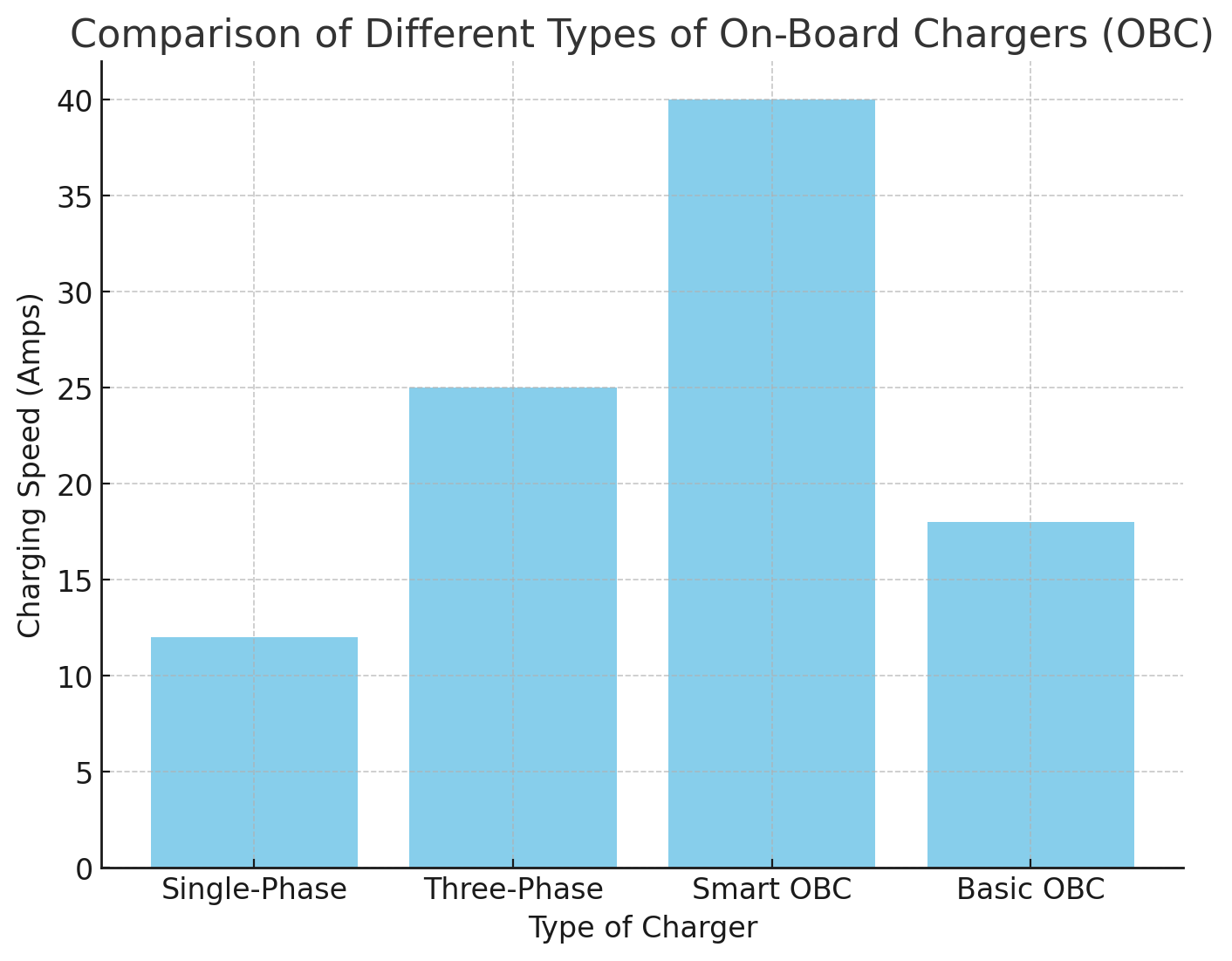

On-board chargers come in single-phase and three-phase configurations. Single-phase OBCs are commonly used in residential settings and are suitable for vehicles and boats with moderate charging needs. These chargers are typically less expensive and can handle lower power outputs. Three-phase OBCs, on the other hand, are designed for faster charging and higher power output, making them ideal for commercial or industrial applications where faster turnaround times are necessary. The choice between single-phase and three-phase chargers depends on the charging speed and power requirements of the vehicle or boat.
While both marine and electric vehicle chargers serve the same basic purpose, there are key differences in their design. Marine OBCs are built to be more rugged and resistant to the elements, such as moisture and saltwater. They also often feature multi-bank charging capabilities, allowing multiple batteries to be charged simultaneously. Electric vehicle OBCs, on the other hand, are designed to handle the specific charging needs of EV batteries, which typically require higher voltage and more complex charging profiles. Both types of OBCs use similar technology but are optimized for their respective environments.
Smart OBCs are equipped with advanced features such as automatic battery type detection, temperature compensation, and real-time monitoring of charging status. These features help ensure that the battery is charged in the most efficient and safe manner possible. Basic OBCs, while simpler, may lack these features and are generally used for basic charging needs. For most modern electric vehicles and boats, a smart OBC is recommended due to its enhanced functionality and ability to optimize battery life.
Charger Type | Application | Key Features | Best For |
Single-Phase OBC | Electric Vehicles (EVs) | Lower power output, more affordable, slower charging | Smaller EVs or personal vehicles |
Three-Phase OBC | Electric Vehicles (EVs), Marine Systems | Higher power output, faster charging | Commercial EVs, larger boats |
Marine OBC | Boats & Marine Systems | Waterproof, resistant to marine conditions | Boats with multiple battery types |
One of the main benefits of OBCs is their convenience. They allow the batteries of electric vehicles and boats to be charged without needing to remove them from the vehicle or vessel. Once the OBC is connected to an external power source, it provides continuous power and keeps the battery charged, ensuring that the vehicle or boat is always ready for use.
OBCs are designed to optimize energy efficiency by controlling the current and voltage delivered to the battery. Many OBCs include safety features such as reverse polarity protection, overvoltage protection, and thermal monitoring to prevent accidents and ensure safe charging. These safety mechanisms protect both the battery and the vehicle or boat from damage, extending the lifespan of both.
OBCs are designed to work with different battery types, including lead-acid, AGM, and lithium-ion batteries. This compatibility allows the charger to automatically adjust its charging profile to suit the specific needs of the battery. Whether you’re using a traditional lead-acid battery or a modern lithium-ion battery, the OBC will provide the correct charging parameters for optimal performance and safety.
Benefit | Description |
Convenience | Provides continuous power without needing to remove batteries. |
Efficiency | Ensures optimal charging, preventing overcharging and extending battery life. |
Safety Features | Includes reverse polarity protection, overvoltage protection, and thermal monitoring. |
Battery Compatibility | Works with various battery types, such as lead-acid, AGM, and lithium-ion. |
Slow or failed charging is often caused by issues with the power source, faulty wiring, or a malfunctioning OBC. Check the connections and ensure that the power supply is stable. If the issue persists, it may be necessary to inspect the charger for faults or contact a professional for repairs.
Overcharging and undercharging are common problems that can damage the battery and reduce its lifespan. To avoid this, ensure that your OBC has smart charging capabilities that prevent overcharging and provide the correct current and voltage for the battery. Regularly check the battery’s state of charge and health to ensure it is not overcharged or undercharged.
Poor connections or damaged wiring can cause charging issues or prevent the OBC from functioning properly. Always check the wiring and connections for signs of wear, corrosion, or loose connections. Ensure that the wiring is correctly installed according to the manufacturer's instructions.
Issue | Potential Causes | Solutions |
Charging Failure | Faulty connections, wrong charger | Check wiring, ensure compatibility, inspect charger |
Slow Charging | Incompatible charger, insufficient power | Verify power source, check charger settings |
Overcharging | Lack of smart charger, incorrect settings | Use smart chargers with auto shut-off features |
Undercharging | Faulty charger, low power input | Ensure charger settings match battery type |
As battery capacities increase, there is a growing demand for faster charging solutions. Future OBCs are likely to offer higher power outputs to meet these needs, reducing charging times and improving efficiency.
Bidirectional OBCs, which allow energy to flow both to and from the battery, are becoming more popular. This technology enables features like Vehicle-to-Grid (V2G) and Vehicle-to-Load (V2L), where the vehicle’s battery can be used as a power source for the grid or other devices.
In the future, OBCs are expected to integrate with renewable energy systems like solar power, allowing for sustainable, off-grid charging solutions. This will make it easier for vehicles and boats to charge their batteries using clean, renewable energy sources.
On-board battery chargers are crucial for the reliable operation of electric vehicles and marine systems. They provide convenience, efficiency, and safety, ensuring optimal battery health. As technology evolves, OBCs will become faster, smarter, and better integrated with renewable energy systems. Understanding how an OBC works and selecting the right one is key to optimizing battery performance and ensuring the longevity of your vehicle or boat’s power system. Keller’s products are designed to provide value through efficient and reliable charging solutions for various applications.
A: An On-Board Charger (OBC) is a device that converts AC power into DC power to charge the battery of electric vehicles or marine systems. It ensures efficient, safe, and continuous charging.
A: An On-Board Charger works by converting alternating current (AC) to direct current (DC) and delivering the correct voltage to charge the battery while protecting it from overcharging.
A: The On-Board Charger is vital in electric vehicles for converting power from a standard outlet to the specific voltage needed by the vehicle’s battery, ensuring safe and efficient charging.
A: On-Board Chargers offer convenience, continuous power, battery health optimization, and safety features like overvoltage and reverse polarity protection.
A: No, it's important to use a charger compatible with the specific battery type and voltage. Using the wrong charger can damage the battery or reduce performance.
A: Check for faulty connections, ensure the charger is properly connected to the power source, and verify the battery type is compatible with the charger.
