LEV200
TE
| LEV200A4NAA: | |
|---|---|
| LEV200A5NAA: | |
| LEV200A6NAA: | |
| LEV200A8NAA: | |
| Quantity: | |

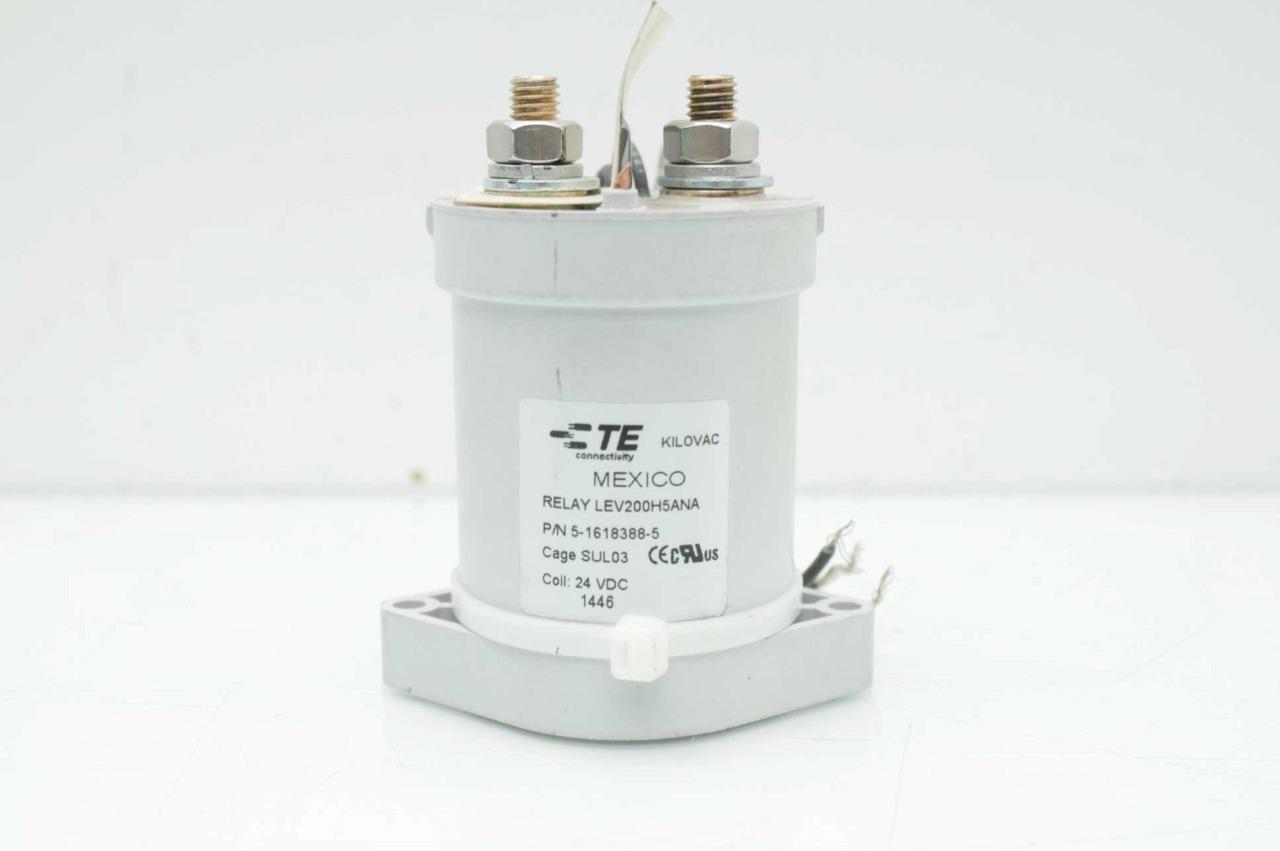

LEV200 Series Contactor With 1 Form X Contacts Rated 500+A 12-900VdcVdc
 | Product Facts |
Designed to be the lowest cost sealed contactor in the industry with its current rating(500A+ carry, 2000A interrupt ar 320Vdc)
Available with bottom or side mounting---not position sensitive
Optional auxiliary contact for easy monitoring of power contact position
Hermetically sealed---intrinsically safe, operates in explosive/harsh environments with no oxidation or contamination of coils or contacts, including long periods of non-operation
Typical applications include battery switching and backup, DC voltage power control, circuit protection and safety
Versatile coil/power connections
RoHS compliant
| Application |
Power/motor control circuit isolation, circuit protection and safety in inustrial machinery
Automotive vattery switching and backup
Solar inverter switching
Automotive pre-charge
Test Equipment
Power Distribution
| Performance Data |
| Coil Operating Voltage (Valid Over Temperture Range) | ||||
| Nominal Voltage | 12VDC | 24VDC | 48VDC | 72VDC |
Pickup Voltage (Will Operate) | 9.0VDC | 19.0VDC | 38.0VDC | 57.0 |
| Voltage (Max.) | 15VDC | 30VDC | 60VDC | 90VDC |
| Dropout Voltage | 0.75-2.0VDC | 1.0-5.0VDC | 2.0-8.0VDC | 3.0-12.0VDC |
| Coil Resistance | 11 ohms | 40ohms | 145ohms | 357ohms |

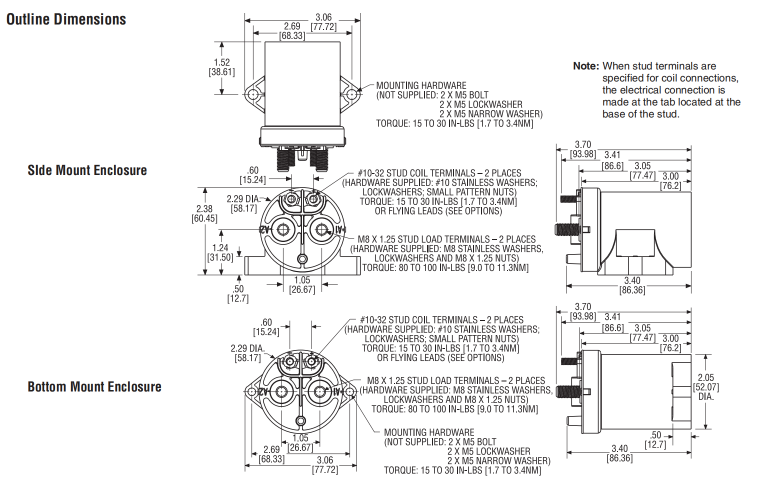

| Outline Dimensions Botton Mount |

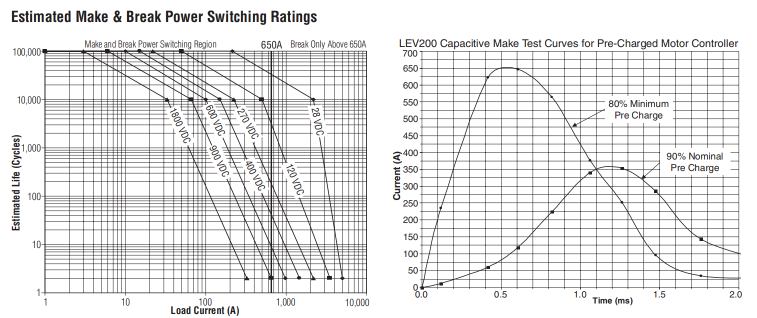

| Curves |
