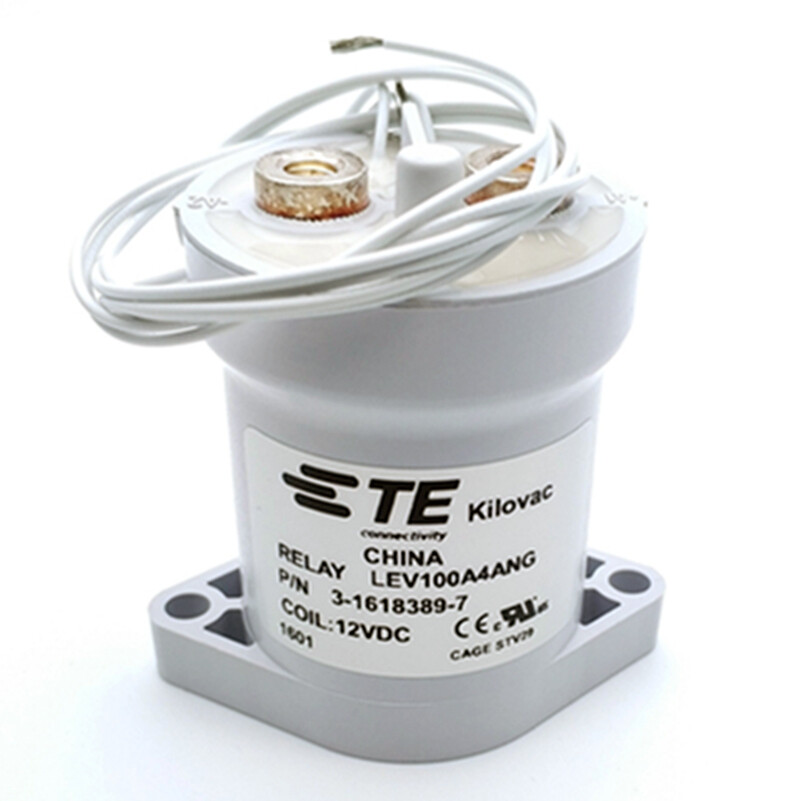

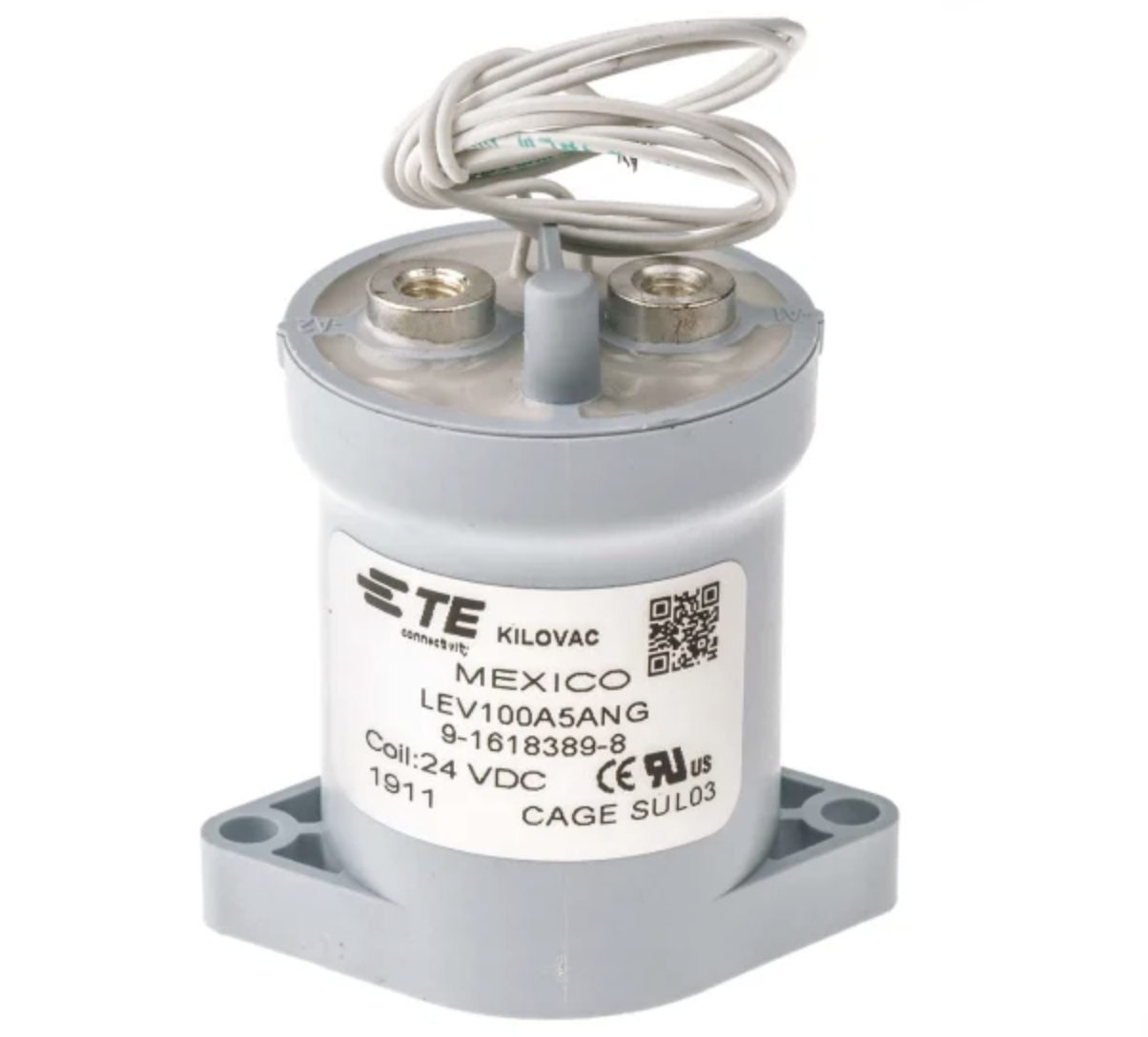

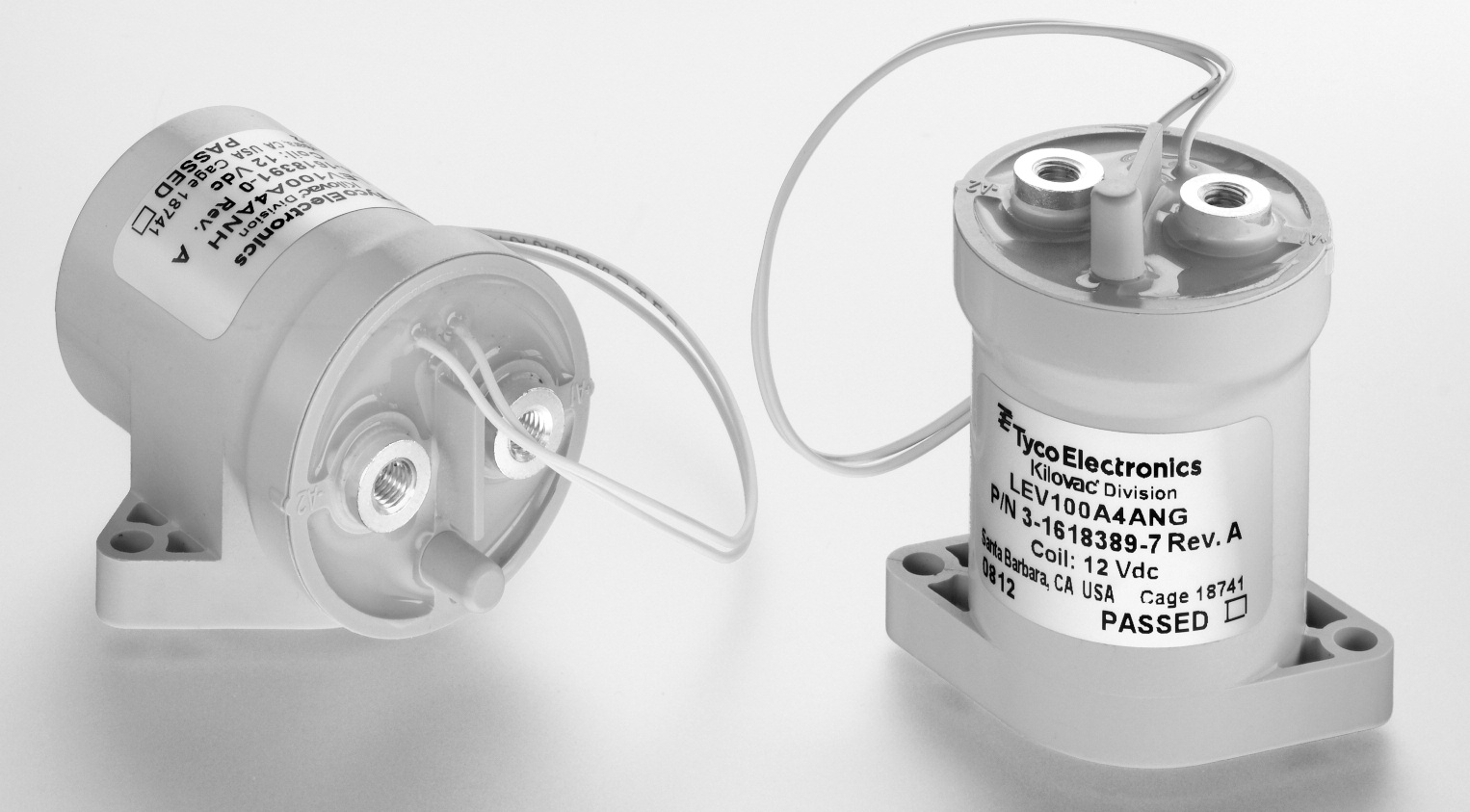

LEV100 Series 900Vdc Contactor With 1 Form X Contacts Rated 100A Continuous, 12,24,48Vdc
 | Product Facts |
Hermetically sealed---intrinsically safe. Operates in explosive/harsh environments or contamination of contacts, including long periods of non-operation
8kV isolation between open contacts premits use for high voltage isolation and carry
12, 24 and 48 Vdc coils
Designed and built-in accordance to AIAG QS9000
Solid copper contacts
UL Recognized for the U.S. and Canda (File E208033). All contact rating & coil versions may not be UL Recognized
RoHS versions available
| Application |
Power/motor control circuit isolation, circuit protection and safety in inustrial machinery
Automotive vattery switching and backup
Solar inverter switching
Automotive pre-charge
Test Equipment
Power Distribution
| Performance Data |
| Coil Operating Voltage (Valid Over Temperture Range) | |||
| Voltage (Will Operate) | 12VDC | 24VDC | 48VDC |
| Voltage (Max.) | 16VDC | 28VDC | 52VDC |
| Pickup (20℃) Voltage | 8VDC | 16VDC | 33VDC |
| Dropout (Open) Voltage | ≤1.2VDC | ≤2.4VDC | ≤4.8VDC |
| Coil Current (Nominal at 20℃，12Vdc) | 461mA | 250mA | 122mA |
Coil Power Nominal@Vnom,+20 ℃ | 5.5W | 6.0W | 6.0W |
| Pickup (Close) Voltage Max. @85℃ | 9.6Vdc | 19.2Vdc | 38.4Vdc |
| Coil Resistance Nominal @ 20℃±5% (ohms) | 26 | 96 | 392 |

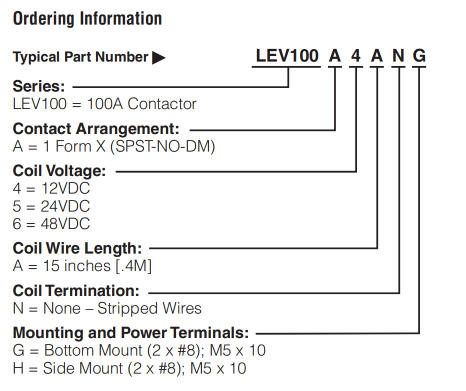

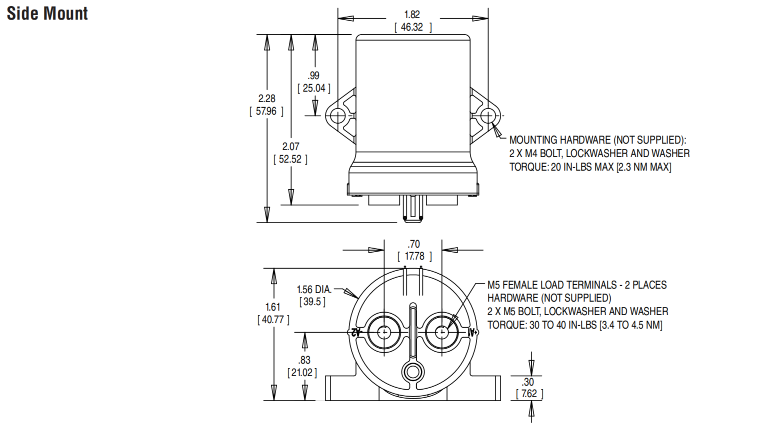

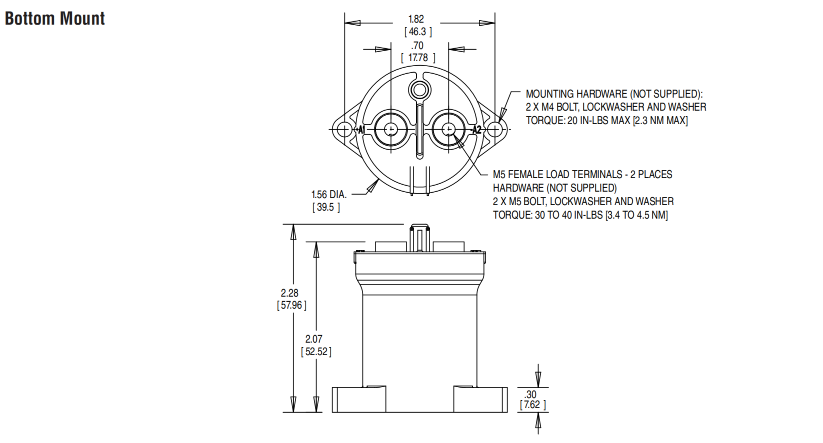

| Outline Dimensions Botton Mount |
