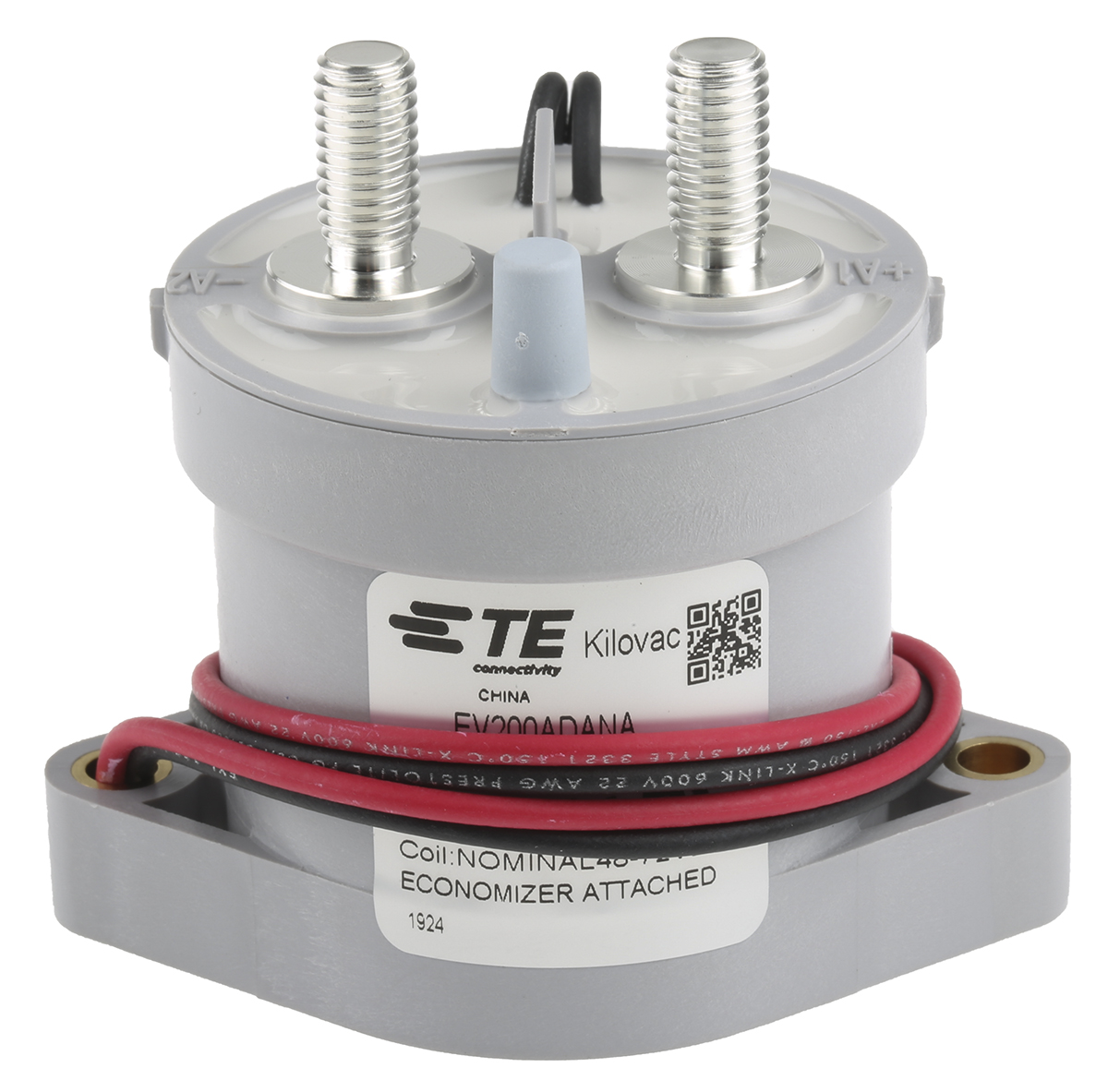

EV200 Series Contactor With 1 Form X Contacts Rated 500+A Continuous, 12-900Vdc
 | Product Facts |
Designed to be the smallest, lighest weight, lowest cost sealed contactor in the industry with its currant rating(500+A carry, 2000A interrupt at 320VDC)
Built-in coil economizer---only 1.7W hold power @12VDC and it limits back EMF to 0V. Models requiring external economizer also available.
Optional auxiliary contact for easy monitor of power contact position.
Hermetically sealed
Versatile coil/power connections
UL recognized for the U.S. and Canda (File E208033) All contact ratings & coil versions may not be UL Recognized
CE marked for EC applications
AIAG QS9000 designed, built and approved
RoHS versions available
| Application |
Power/motor control circuit isolation, circuit protection and safety in inustrial machinery
Automotive vattery switching and backup
Solar inverter switching
Automotive pre-charge
Test Equipment
Power Distribution
| Performance Data |
| Coil Operating Voltage (Valid Over Temperture Range) | |||
| Voltage (Will Operate) | 9-36VDC | 32-95VDC | 48-95VDC |
| Voltage (Max.) | 36VDC | 95VDC | 95VDC |
| Pickup (Close) Voltage Max. | 9VDC | 32VDC | 48VDC |
| Hold Voltage (Min.) | 7.5VDC | 22VDC | 34VDC |
| Dropout (Open) Voltage (Min.) | 6VDC | 18VDC | 27VDC |
| Inrush Current (Max.) | 3.8A | 1.3A | 0.7A |
| Holding Current (Avg.) | 0.13A@12V 0.07A@24V | 0.03A@48V | 0.02A@72V |
| Inrush Time (Max.) | 130 ms | 130 ms | 130 ms |
| Contact Arrangement, Power Contacts | 1 Form A (SPST-NO) |
| Rated Operating Voltage | 12-900 VDC |
| Continuous (Carry) Current, Typical | 500A@85℃, 400mcm conductors |
| Contact Assistance, Typ. (@200A) | 0.2 mohms |
| Mechanical Life | 1 million cycles |
| Contact Arrangement,Auxiliary Contacts | 1 Form A (SPST-NO) |
| Aux. Contact Current, Max. | 2A@30VDC 3A@25VAC |
| Aux. Contact Current, Min. | 100mA@8V |
| Operating Ambient Temperture | -40℃ to +85℃ |
| Weight | 0.43kg |

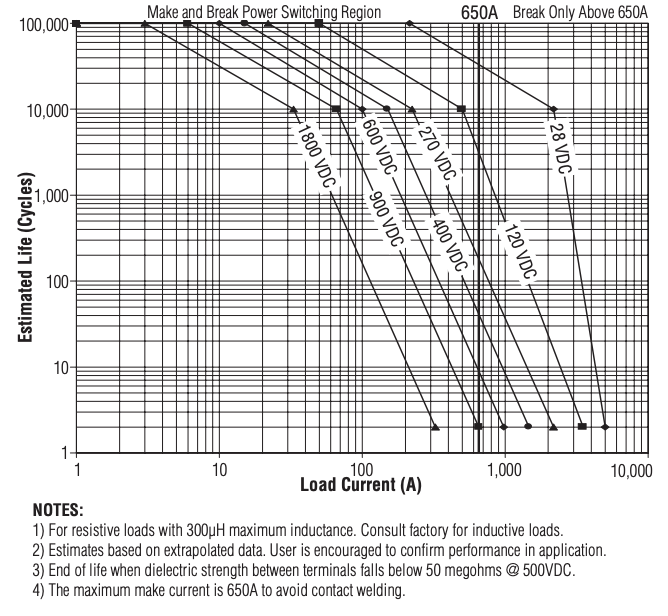

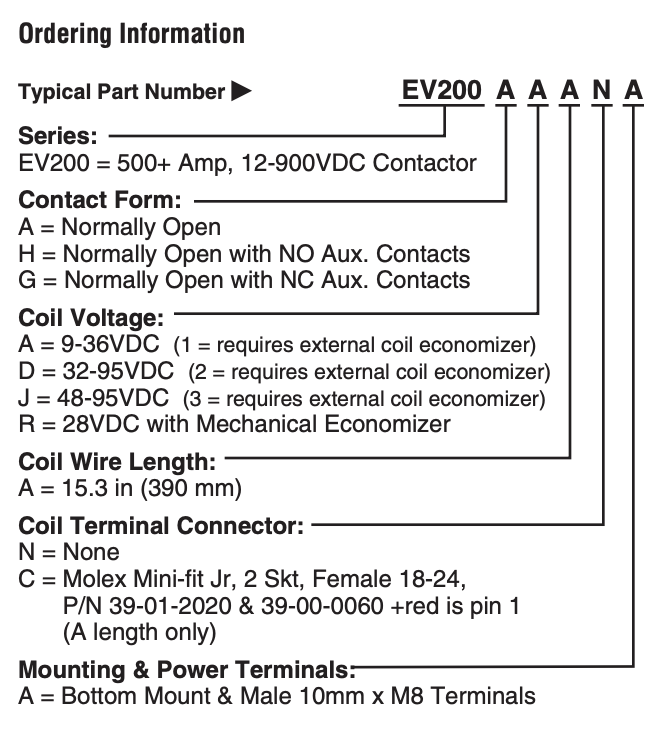

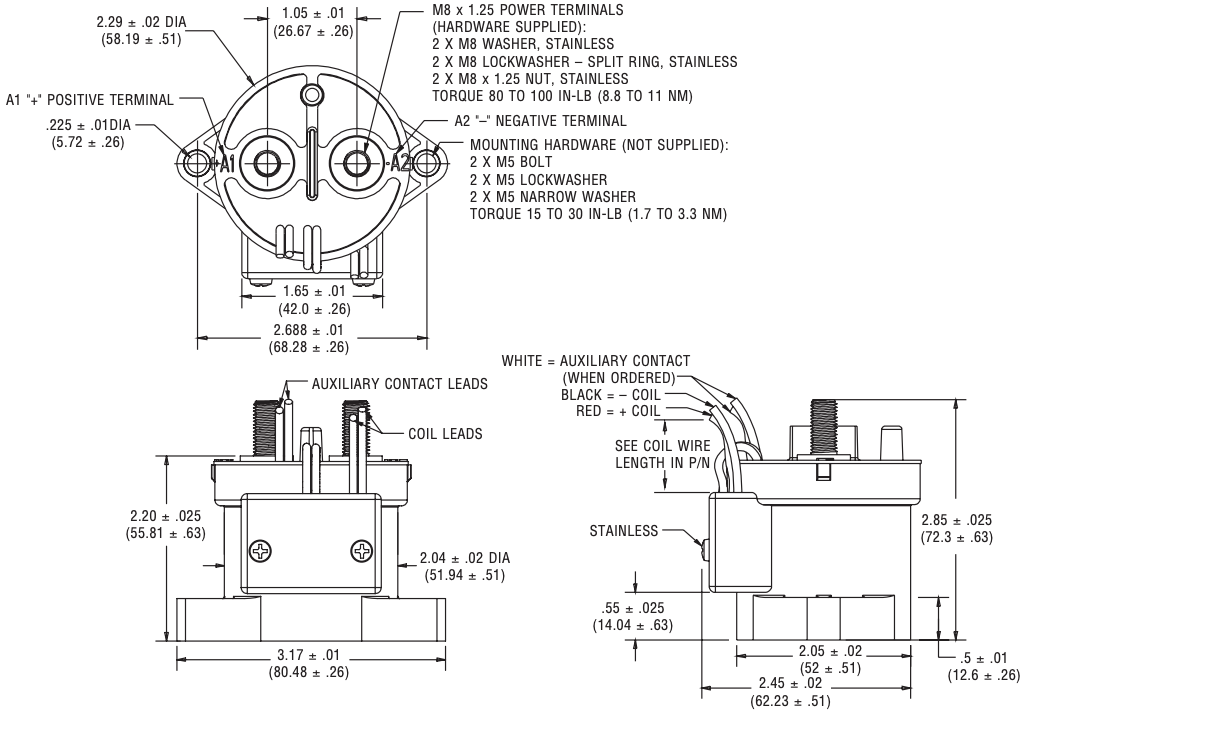

| Outline Dimensions Botton Mount |
