EV100
TE
| Quantity: | |
|---|---|

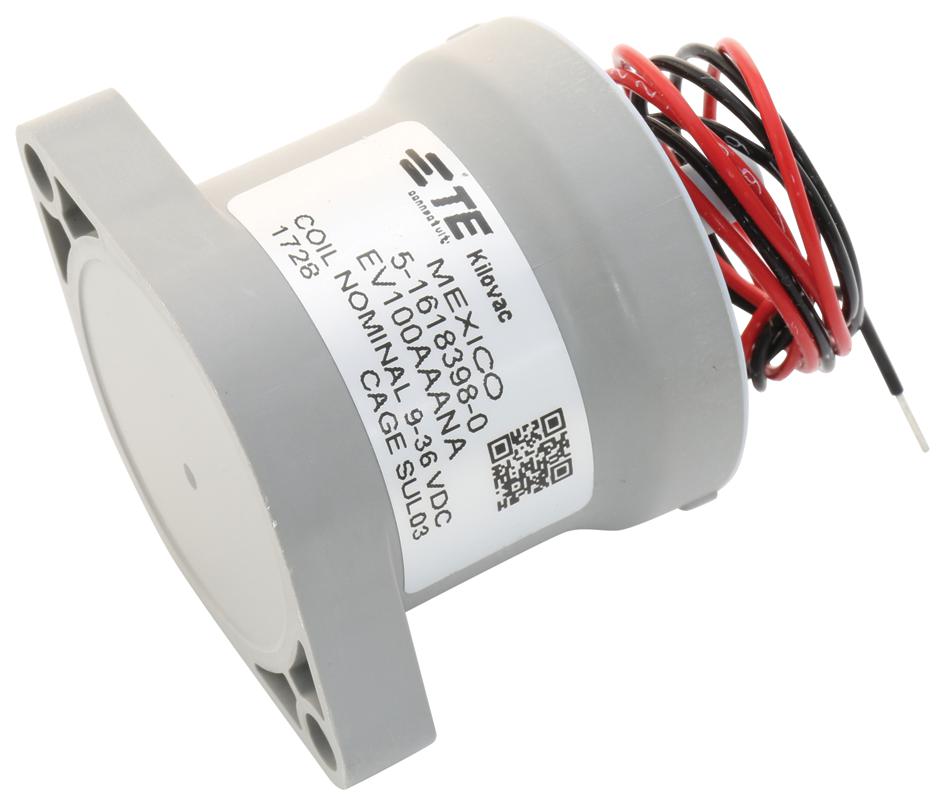

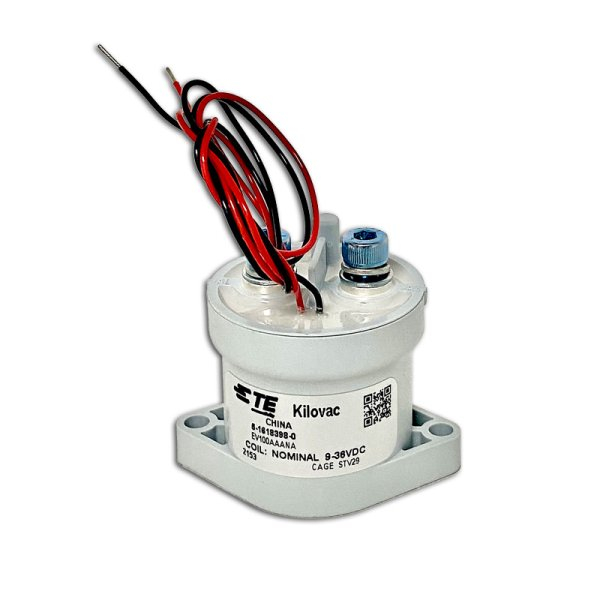

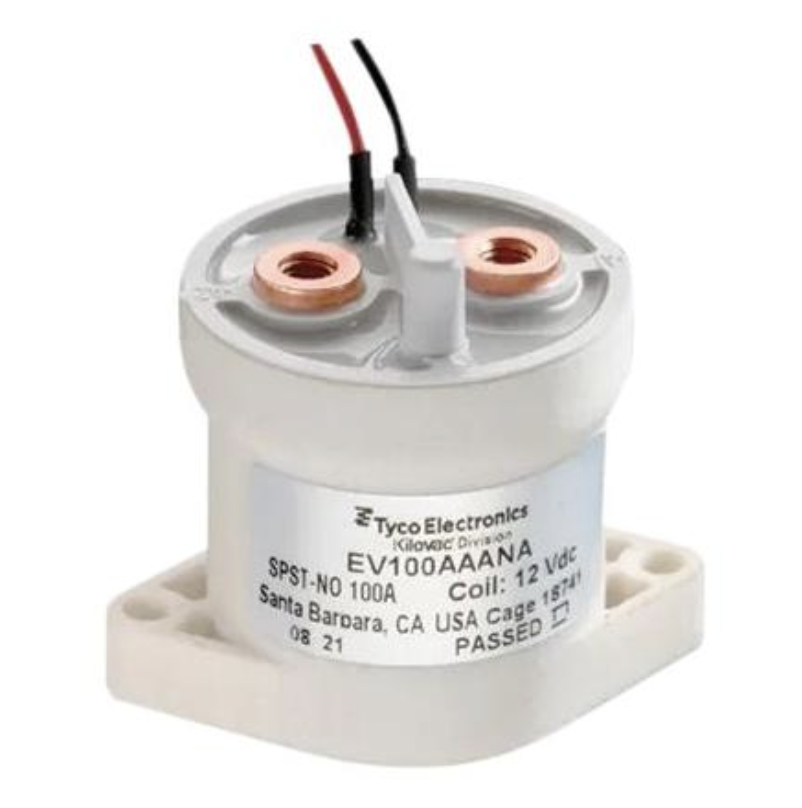

EV100 Series Contactor With 1 Form X Contacts Rated 100A Continuous, 600Vdc
 | Product Facts |
Hermetically sealed
Operates in explosive/harsh environments without oxidation or contamination of contacts, during long periods of non-operation
8kV isolation between open contacts premits use for high voltage isolation and carry
Coil economizer allows for operation between 9-36VDC
Designed and built in accordance with AS 9100.
| Application |
Power/motor control circuit isolation, circuit protection and safety in inustrial machinery
Automotive vattery switching and backup
Solar inverter switching
Automotive pre-charge
Test Equipment
Power Distribution
| Electrical Data |
Contact arrangement: SPST-NO (Form X., Double Make)
Voltage rating: 5-600Vdc at 100A
50K cycles Make/Break: 50A at 400Vdc
25K cycles Make/Break: 50A at 600Vdc
Holding current: 0.15A at 24Vdc
Operate time: 30 ms max.
| Coil Data (Internal Coil Economizer) | |
| Coil Voltage Range | 9-36 Vdc |
| Maximum Pickup Current(20℃) | 1.5A |
| Average Holding Current(20℃) | 0.25A@12Vdc/0.15A@24Vdc |
| Pickup Voltage(20℃) | ≥ 9Vdc |
| Dropout Voltage | ≤ 8Vdc |
| Pickup Pulse (max.) | 100 ms |
| Coil Resistance ±5% (20℃) | 8.0 Ω |
| Coil Economizer Frequency | 19.6 kHz |
| Coil Power Typ. (over temp range) | 3-4W |

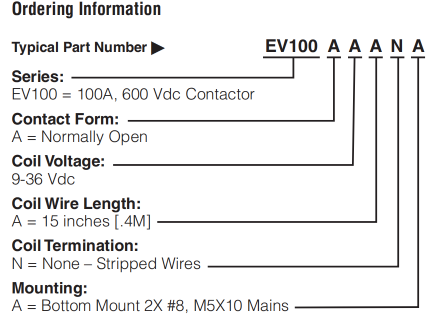

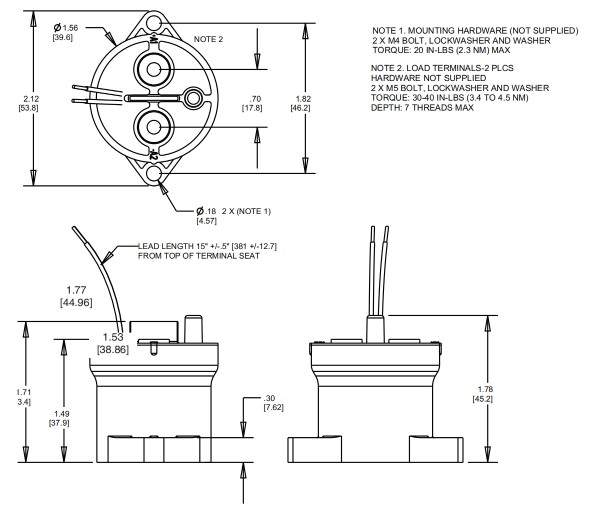

| Outline Dimensions Botton Mount |
