PCON21 2POS 90DEG 180DEG
TE Connectiviry
| Quantity: | |
|---|---|
Key Features
The PCON21 connector is available for 4 different keying or polarizing configurations with a lever for low mating / unmating forces. The connector system incorporates the 21mm power contacts and an integrated High Voltage Interlock (HVIL) System. The housings are molded in orange to denote a high voltage system;
The PCON21 connector is designed to meet LV215-1 specifications and for a metric wire size range of 50mm² up to 95mm² (acc. to LV216-2). The connector incorporates conductive EMI shields to reduce radiated emissions in the application.
Model List

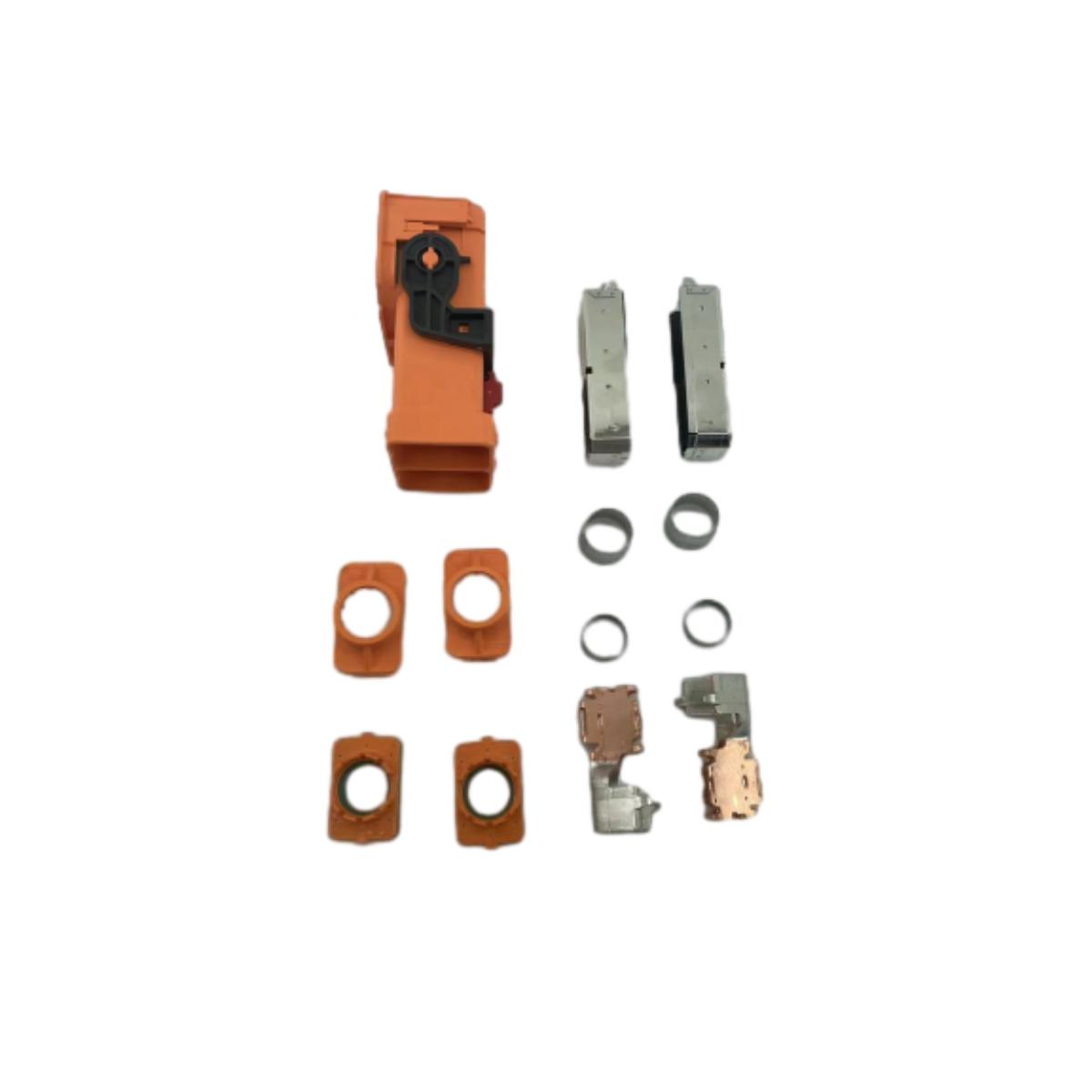

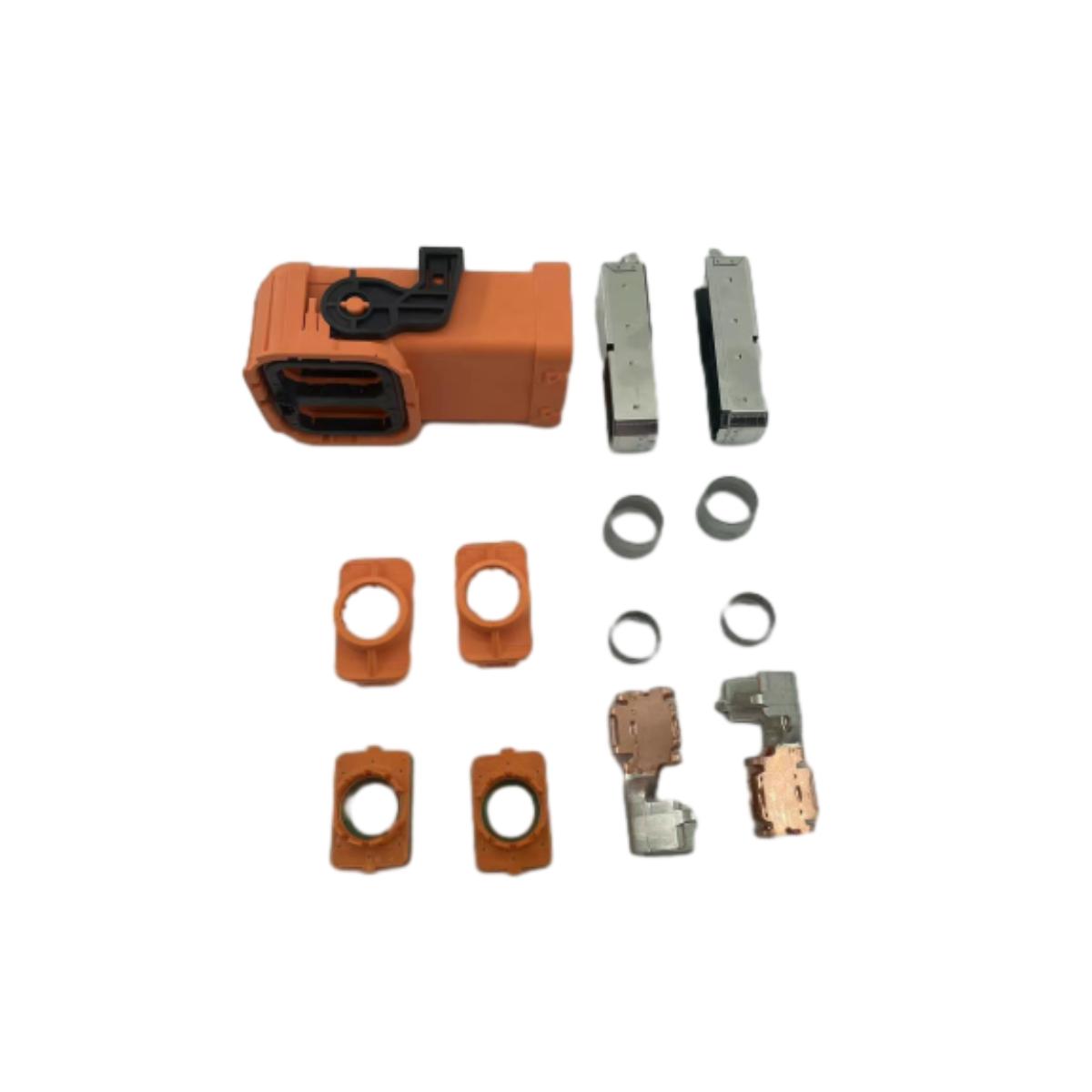

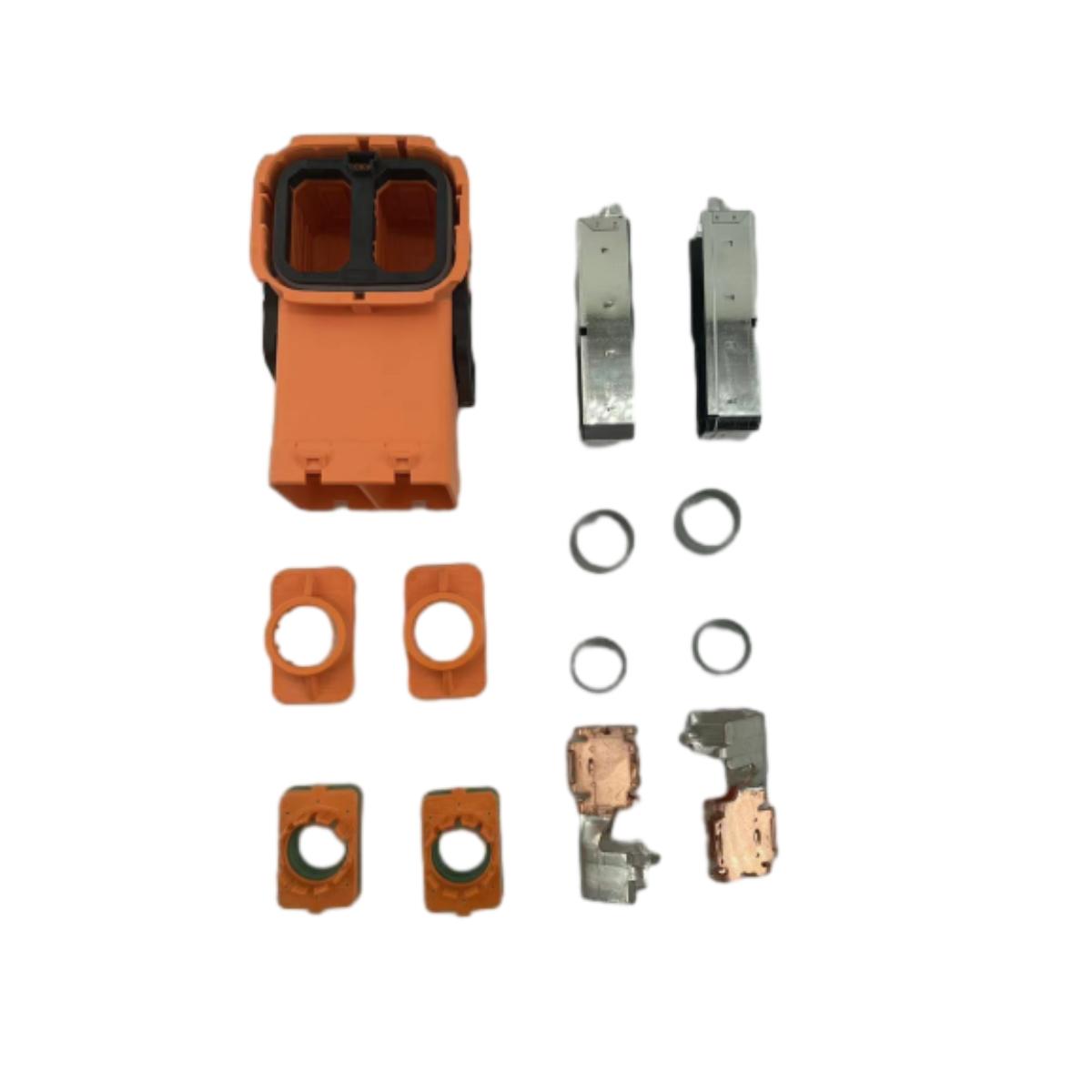

| HVP2100 90° Parts Model List | ||||
| Description | Ratio | PN 50mm² | PN 70mm² | PN 95mm² |
| Plug Hsg Assy 90° cod A | 1 | 2344520-1 | 2344520-1 | 2344520-1 |
| Gasket Ring | 2 | 2344532-1 | 2344532-1 | 2344532-1 |
| Shield Crimp Ferrule | 2 | 5-2344533-1 | 2344533-1 | 2-2344533-1 |
| Cable Seal Assy | 2 | 5-2367292-1 | 2367292-1 | 2-2367292-1 |
| Cable Seal Cover | 2 | 5-2367295-1 | 2367295-1 | 2-2367295-1 |
| Upper Housing Assy | 2 | 5-2344525-1 | 2344525-1 | 2-2344525-1 |
| Lower Housing Assy | 2 | 5-2344529-1 | 2344529-1 | 2-2344529-1 |
| PCON 21 90° crimped | 2 | 2317017-1 | 2317017-2 | 2317017-2 |
| Cable Seal Cover | 1 | 2344512-1 | 2344512-1 | 2344512-1 |
