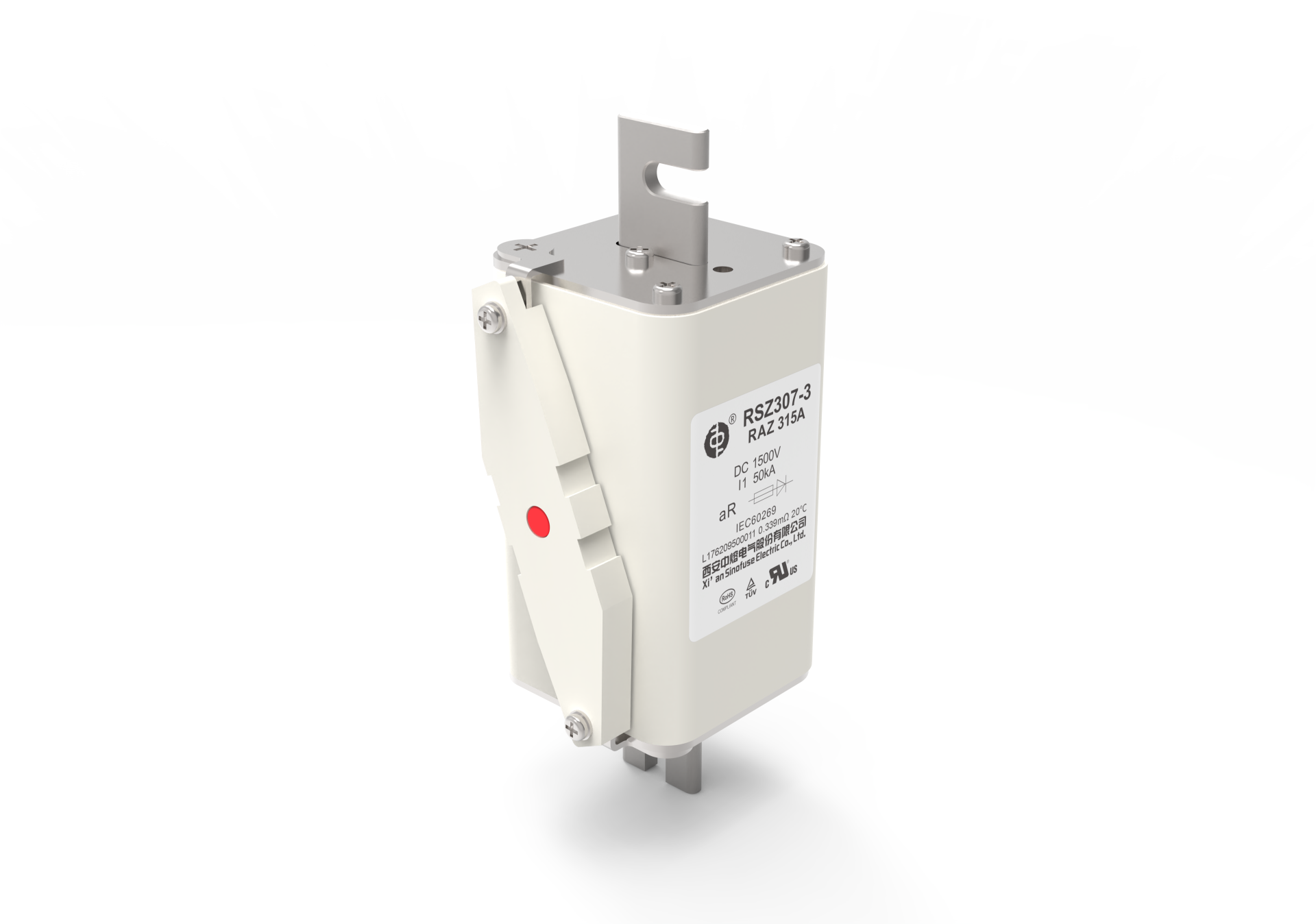

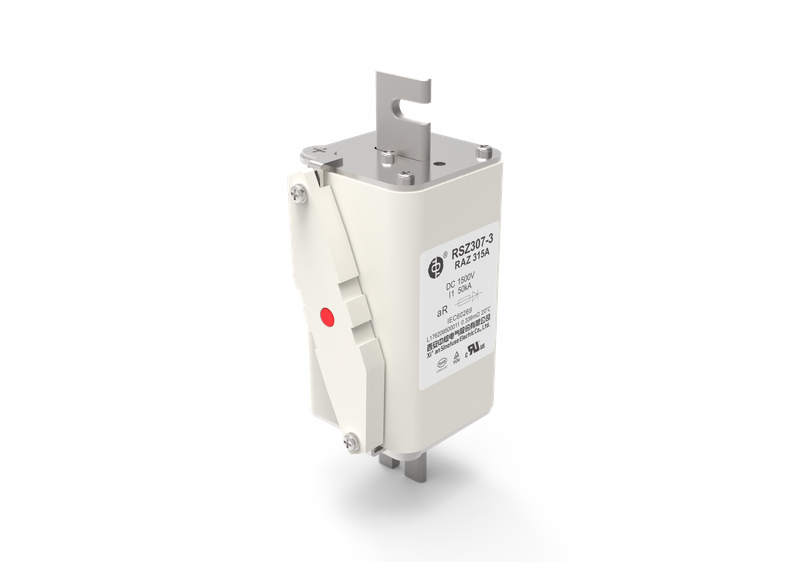

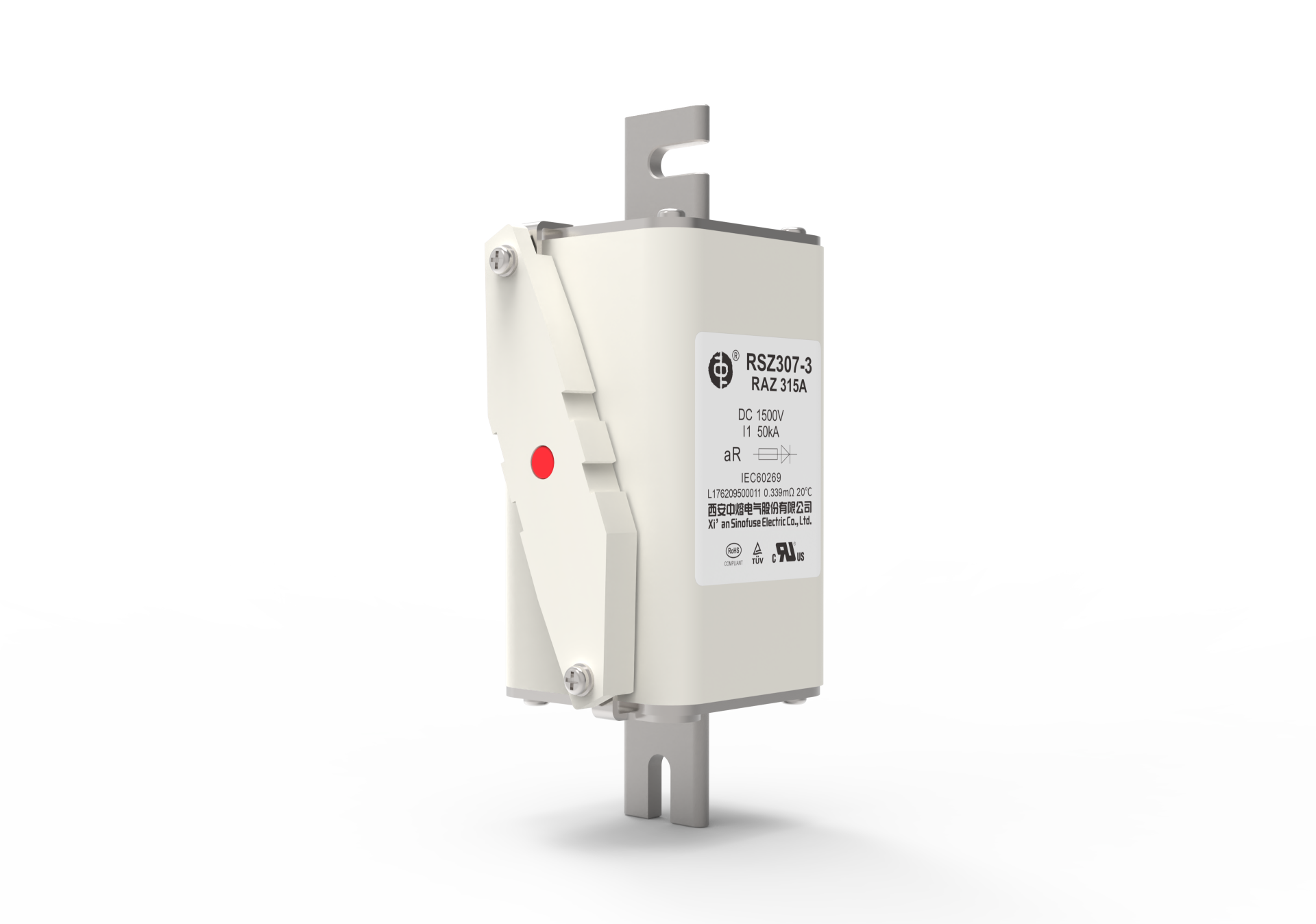

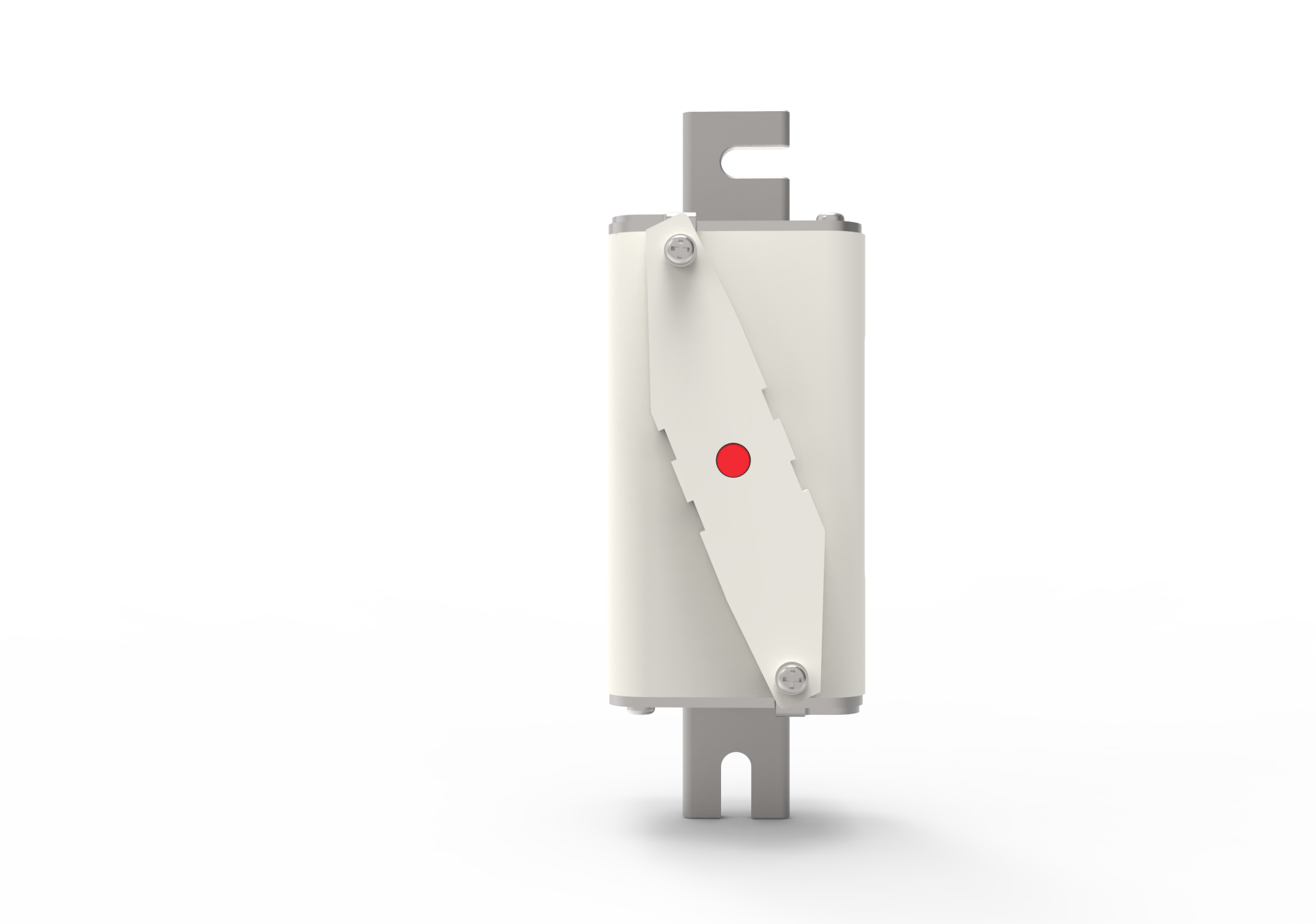

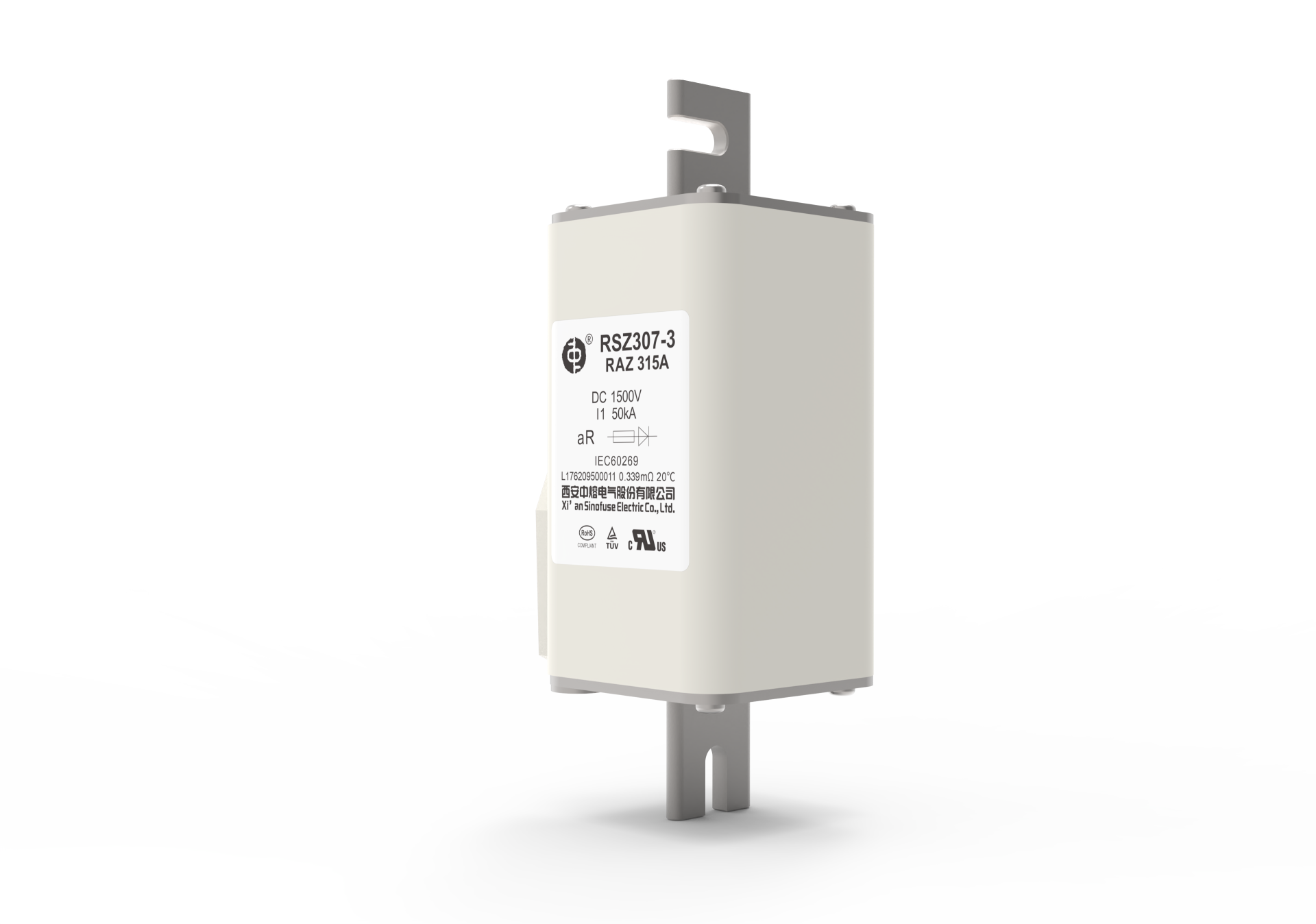

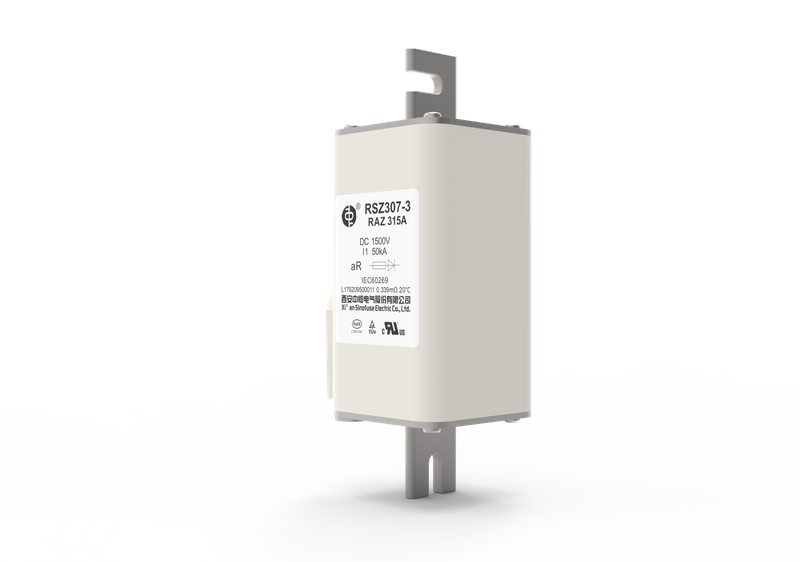

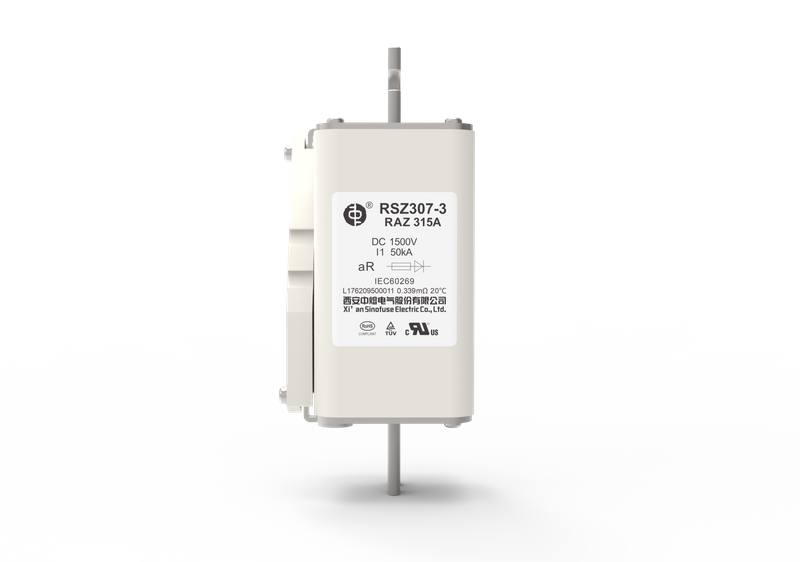

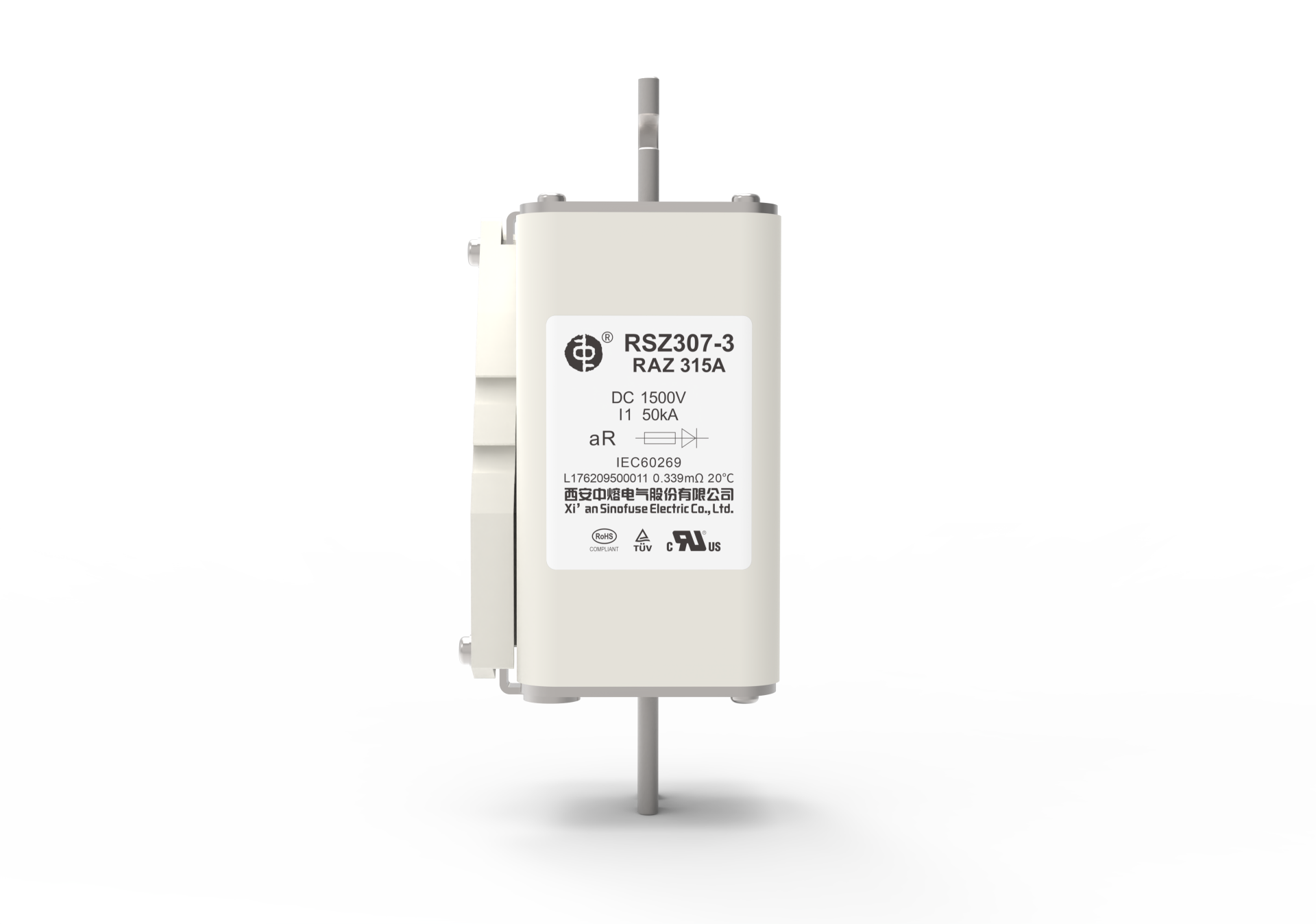

Sinofuse RSZ307-3-RAZ 1500V 100A-450A Square High Voltage Fuse

  • Rated Voltage: 1500VDC
  • Rated Current: 100A - 450A
  • Interrupt Current: 250kA
  • Certification: UL, TUV

  • RSZ307-3-RAZ

  • Sinofuse

RSZ307-3-RAZ:
RSZ307-3-RAZ-100A1500V
RSZ307-3-RAZ-125A1500V
RSZ307-3-RAZ-160A1500V
RSZ307-3-RAZ-200A1500V
RSZ307-3-RAZ-250A1500V
RSZ307-3-RAZ-315A1500V
RSZ307-3-RAZ-350A1500V
RSZ307-3-RAZ-400A1500V
RSZ307-3-RAZ-450A1500V
Availability:
Quantity:
Inquire Add to Basket

Sinofuse RSZ307-3-RAZ 1500V 100A-450A Square High Voltage Fuse
Sinofuse RSZ307-3-RAZ 1500V 100A-450A Square High Voltage Fuse
Sinofuse RSZ307-3-RAZ 1500V 100A-450A Square High Voltage Fuse
Sinofuse RSZ307-3-RAZ 1500V 100A-450A Square High Voltage Fuse
Sinofuse RSZ307-3-RAZ 1500V 100A-450A Square High Voltage Fuse

Sinofuse RSZ307-3-RAZ 1500V Series High Voltage DC Fuse Detail

Specifications

Model Rated Current Rated Voltage Power
RSZ307-3-RAZ-100A1500V 100A 1500VDC 55W
RSZ307-3-RAZ-125A1500V 125A 65W
RSZ307-3-RAZ-160A1500V 160A 83W
RSZ307-3-RAZ-200A1500V 200A 100W
RSZ307-3-RAZ-250A1500V 250A 115W
RSZ307-3-RAZ-315A1500V 315A 133W
RSZ307-3-RAZ-350A1500V 350A 142W
RSZ307-3-RAZ-400A1500V 400A 155W
RSZ307-3-RAZ-450A1500V 450A 160W

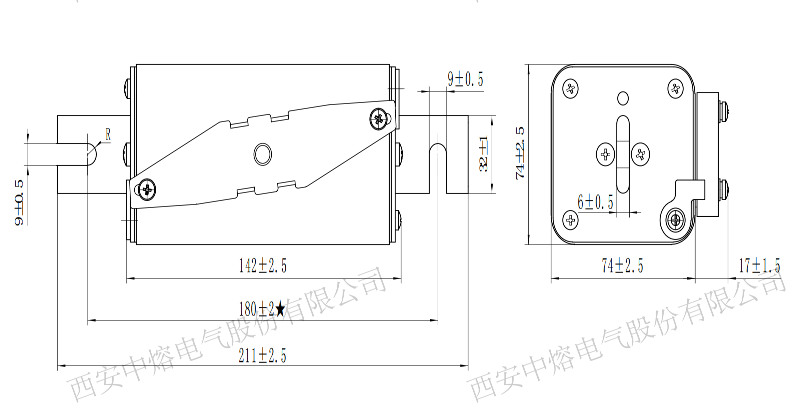

Dimensions

WX20250911-151615
