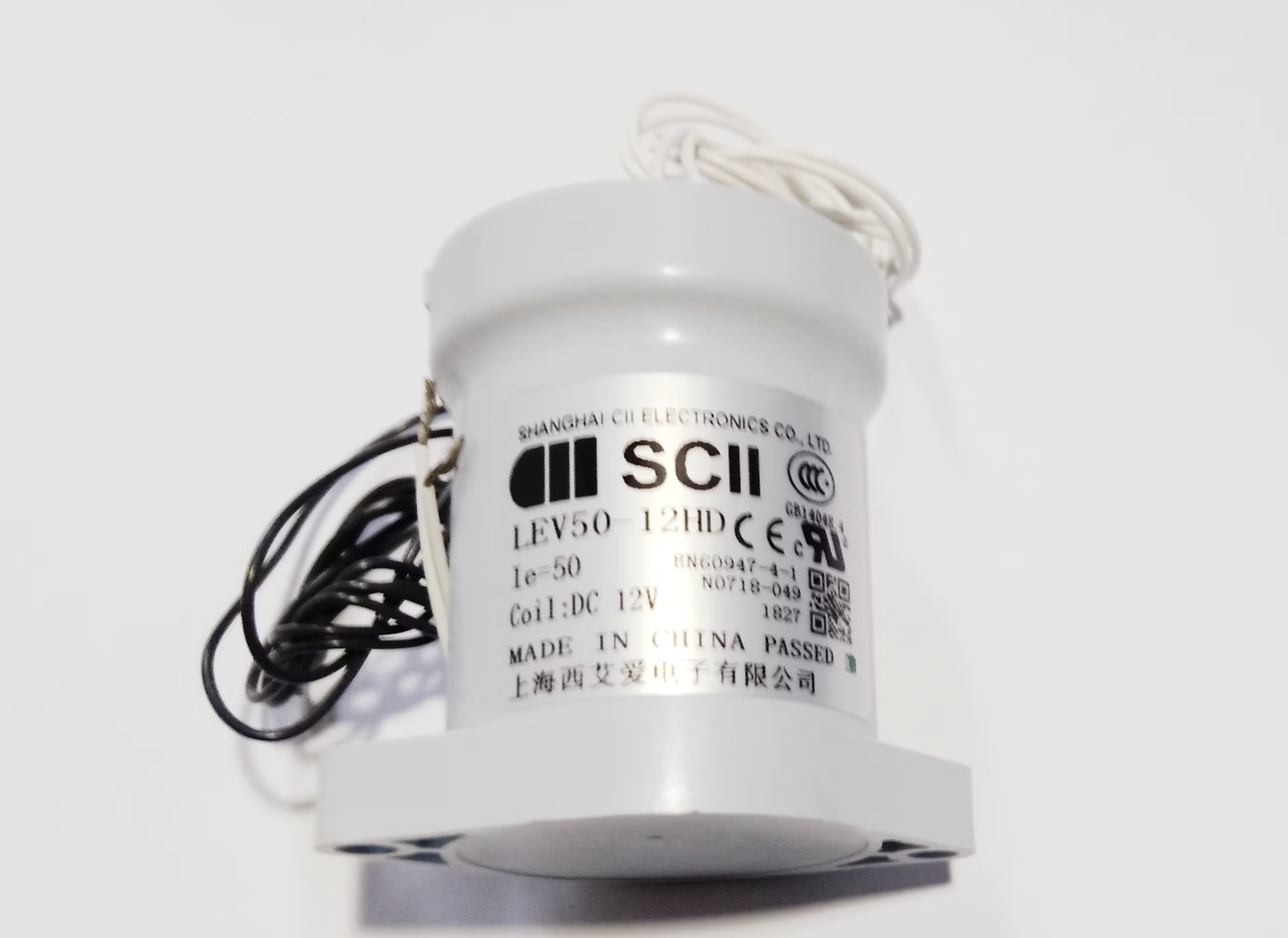

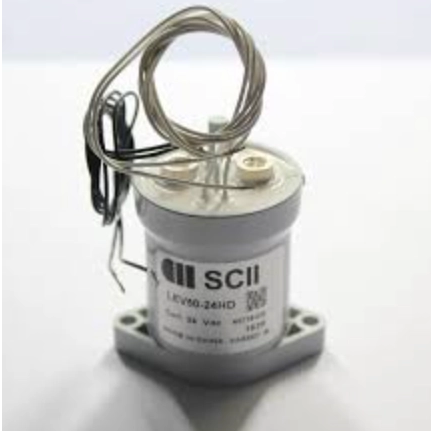

SCII LEV50 Series DC Contactor Detail
 | Certification Information |
Meet RoHS (2011/65/EU)
| Nomenclauture |
| Typical Part Number | LEV50- | A | AD | -XX | |
| Series: LEV50=50A Contactor | |||||
| Contact Form: A=Normal Open without Aux. Contacts H=Normal Open with Aux. Contacts | |||||
| Mounting: AD=Bottom Mount | |||||
| 20= 1000V | |||||
| Performance Data |
| Main Contacts Data | Expected Life | |||
| Contact Arrangement | 1 Form A (SPST-NO) | Electrical Endurance (Make/Break) | Check the table below | |
| Max. Switching Voltage | 1000 Vdc | Mechanical Life | 200,000 Cycles | |
| Rated Current | 50A | Aux. Contact | ||
| Max. Short Circuit Current | 2000A@320Vdc (1s) | Aux. Contact Arrangement | 1 Form A | |
| Short Term Current | 300A (5min) | Aux. Contact Current Max. | 2A@30Vdc 3A@125Vdc | |
| Dielectric Withstanding Voltage (Initial) | Between Open Contacts | 4000Vdc 1mA 1min | Aux. Contact Current Min. | 100mA@8V |
| Between Contacts to Coil | 2200Vac 1mA 1min | |||
| Insulation Resistance (Initial) | Terminal to Terminal | Min 1000 mΩ @1000Vdc | Aux. Contact Resistance Max. | 0.417ohms@30Vdc 0.150ohms@125Vac |
| Terminal to Coil | ||||
| Contact Resistance | Max. 10mΩ@6Vdc 1A | |||
| Limit breaking | 1500A@450Vdc, 1 cycle | |||
| Environment Data | Operate & Release Time | |||
| Shock | Functional | 196m/s² Sine half-ware pluse | Operate Time | 30ms, Max. @20℃ |
| Destructive | 490m/s² Sine half-ware plus | Release Time | 12ms, Max. @20℃ | |
| Operating Temperature | -40℃ - +85℃ | |||
| Humidity | 5% - 85% RH | |||
| Weight | 0.95Lb (0.43kg) | |||
| Coil Data | |
| Nominal Voltage | 9-36Vdc |
| Pick-up Voltage | Max. 9Vdc |
| Min. Holding Voltage | 9Vdc |
| Drop-out Voltage | Min. 6Vdc |
| Max. Inrush Current | 3.8A |
| Average Holding Current | 0.13A@12Vdc 0.07A@24Vdc |

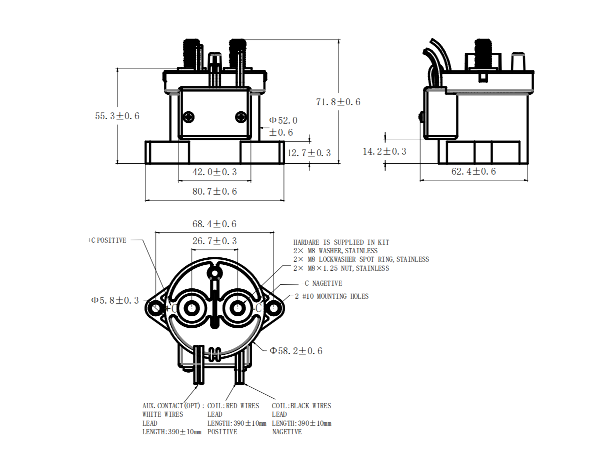

| Outline Dimensions |
