SCII LEV100 Series DC Contactor Detail
 | Certification Information |
Meet RoHS (2011/65/EU)
| Nomenclauture |
| Typical Part Number | LEV100- | XX | A | D | F | -01 |
| Series: LEV100=100A Contactor | ||||||
Coil Voltage: 12=12Vdc 24=24Vdc 48=48Vdc | ||||||
| Contact Form: A=Normal Open without Aux. Contacts H=Normal Open with Aux. Contact | ||||||
Mounting: D=Bottom Mount C=Side Mount | ||||||
Load Polarity: F=Non-Polar Load Nil=Polar Load | ||||||
| XX= Special customization | ||||||
| Performance Data |
| Main Contacts Data | Expected Life | |||
| Contact Arrangement | 1 Form A (SPST-NO) | Electrical Endurance (Make/Break) | Check the table below | |
| Max. Switching Voltage | 900 Vdc | Mechanical Life | 200,000 Cycles | |
| Rated Current | 100A | Aux. Contact | ||
| Max. Short Circuit Current | 1250A (1s) | Aux. Contact Arrangement | 1 Form A | |
| Short Term Current | 200A (3min) | Aux. Contact Current Max. | 2A@30Vdc 3A@125Vdc | |
| Dielectric Withstanding Voltage (Initial) | Between Open Contacts | 4000Vdc 1mA 1min | Aux. Contact Current Min. | 100mA@8V |
| Between Contacts to Coil | 2200Vac 1mA 1min | |||
| Insulation Resistance (Initial) | Terminal to Terminal | Min 1000 mΩ @1000Vdc | Aux. Contact Resistance Max. | 0.417ohms@30Vdc 0.150ohms@125Vac |
| Terminal to Coil | ||||
| Contact Resistance | Max. 10mΩ@6Vdc 1A | |||
| Limit breaking | 1500A@450Vdc, 1 cycle | |||
| Environment Data | Operate & Release Time | |||
| Shock | Functional | 196m/s² Sine half-ware pluse | Operate Time | 25ms, Max. @20℃ |
| Destructive | 490m/s² Sine half-ware plus | Release Time | 12ms, Max. @20℃ | |
| Operating Temperature | -40℃ - +85℃ | |||
| Humidity | 5% - 85% RH | |||
| Weight | 0.42Lb (0.19kg) | |||
| Coil Data | |||
| Nominal Voltage | 12Vdc | 24Vdc | 48Vdc |
| Pick-up Voltage | 9.6Vdc | 19.2Vdc | 38.4Vdc |
| Drop-out Voltage | Min. 0.8Vdc | Min. 1.6Vdc | Min. 3.3Vdc |
| Coil Current | 481mA | 250mA | 122mA |
| Coil Power | 5.5W | 6.0W | 6.0W |
| Rated Coil Resistance | 25Ω | 95Ω | 392Ω |

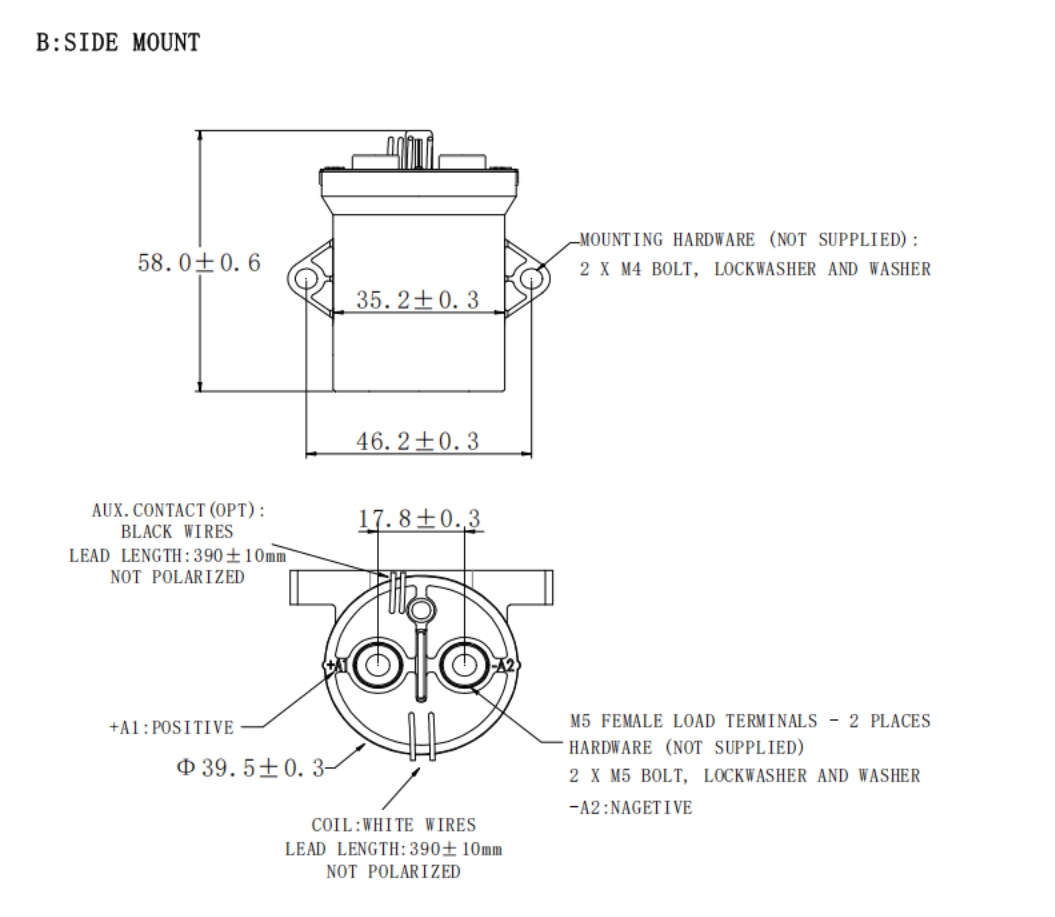

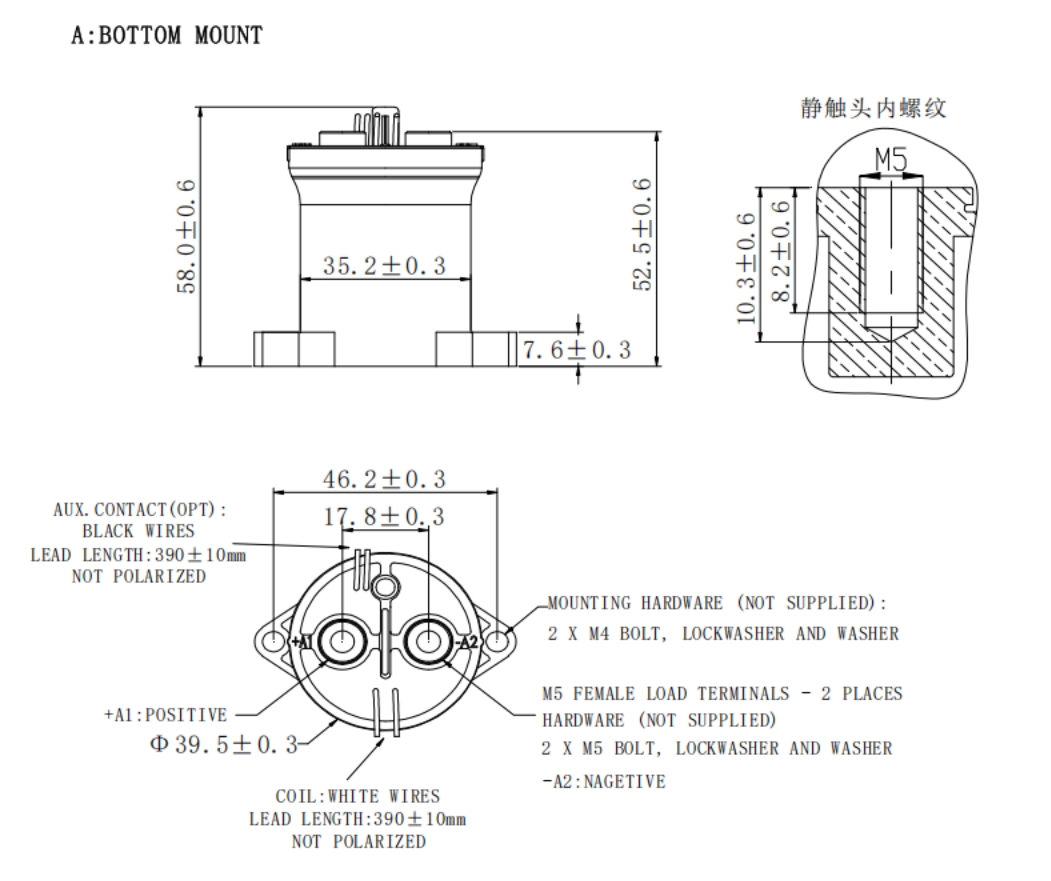

| Outline Dimensions |
