PDU-XXX
Keller
| Availability: | |
|---|---|
| Quantity: | |
|
Product Details

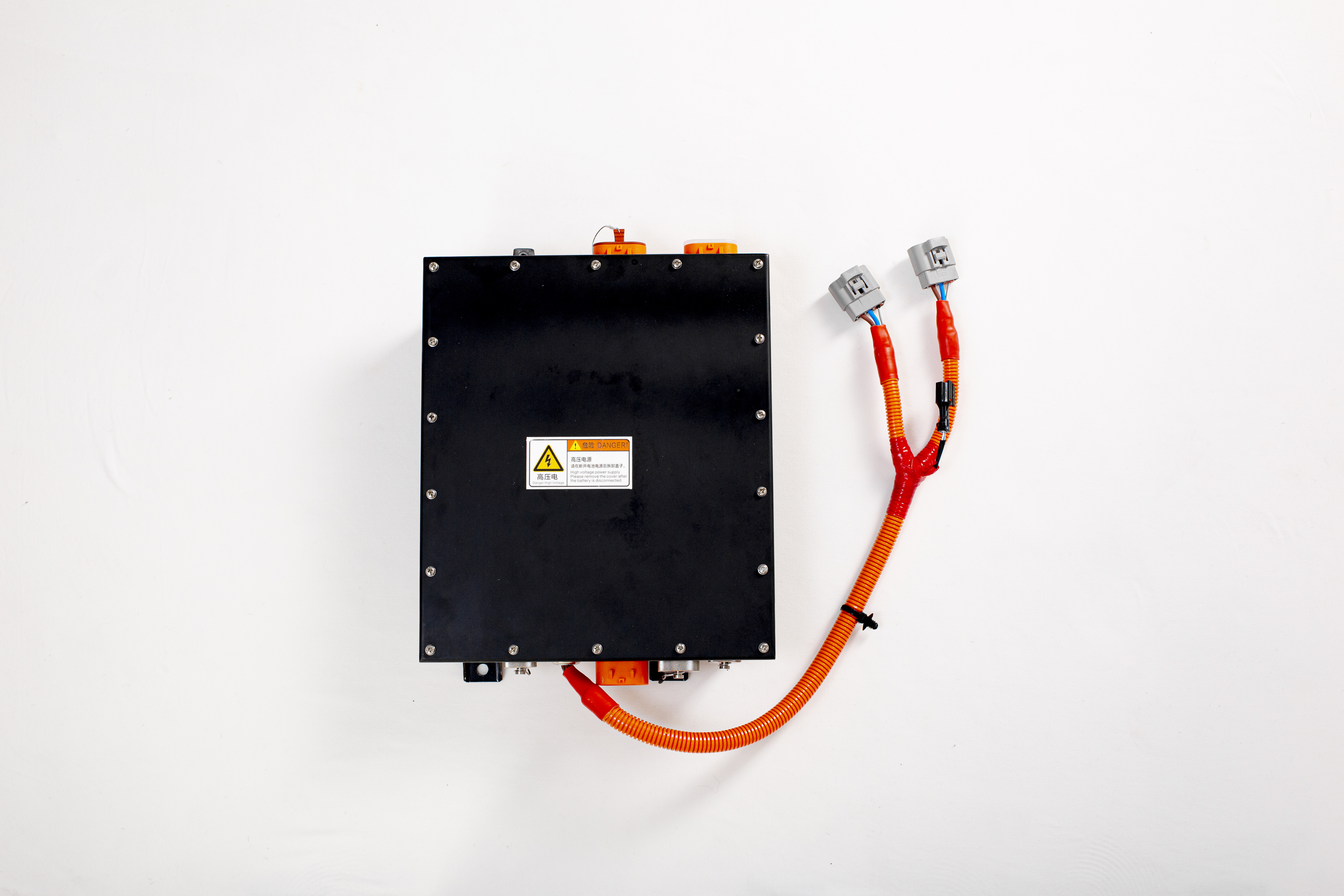

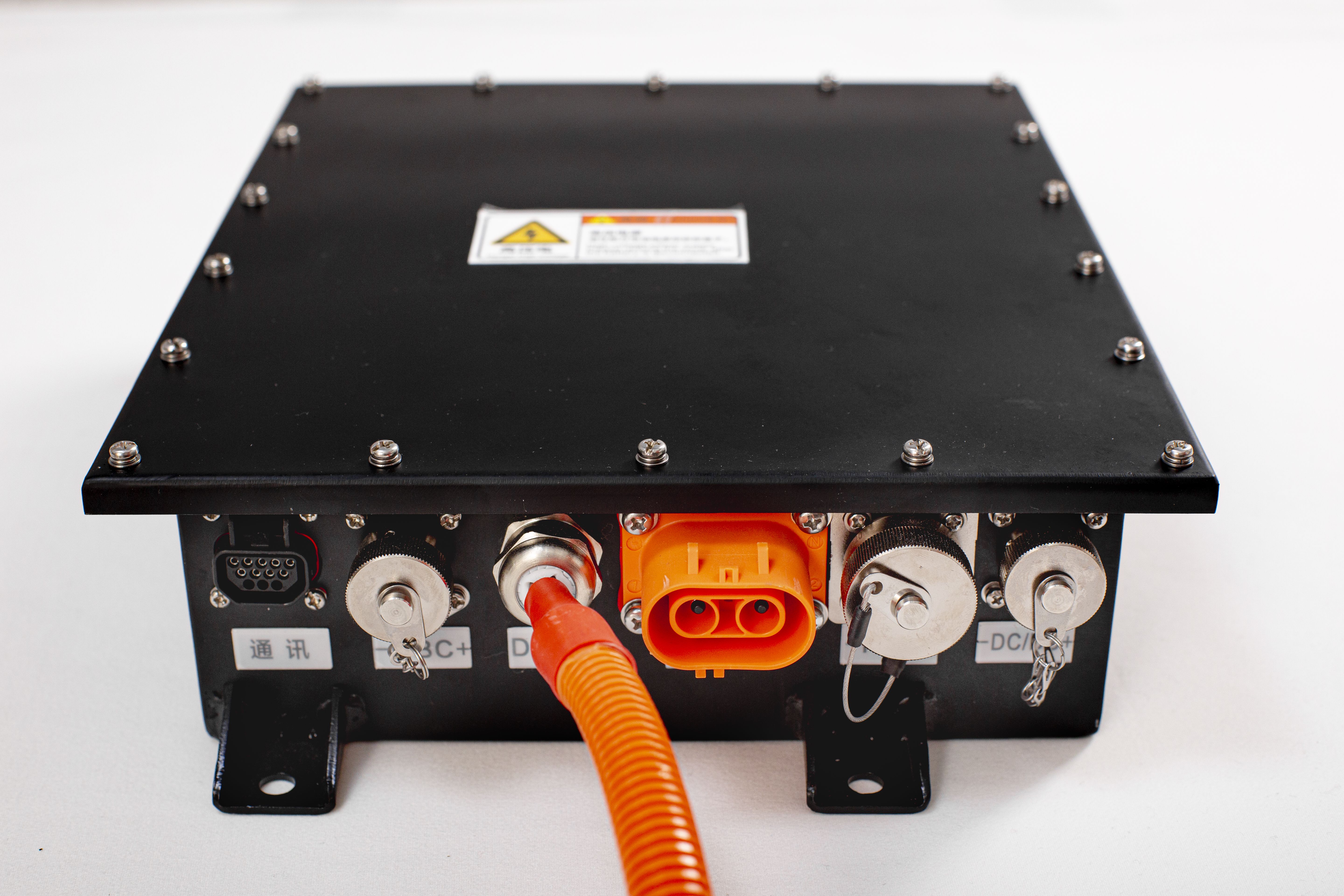

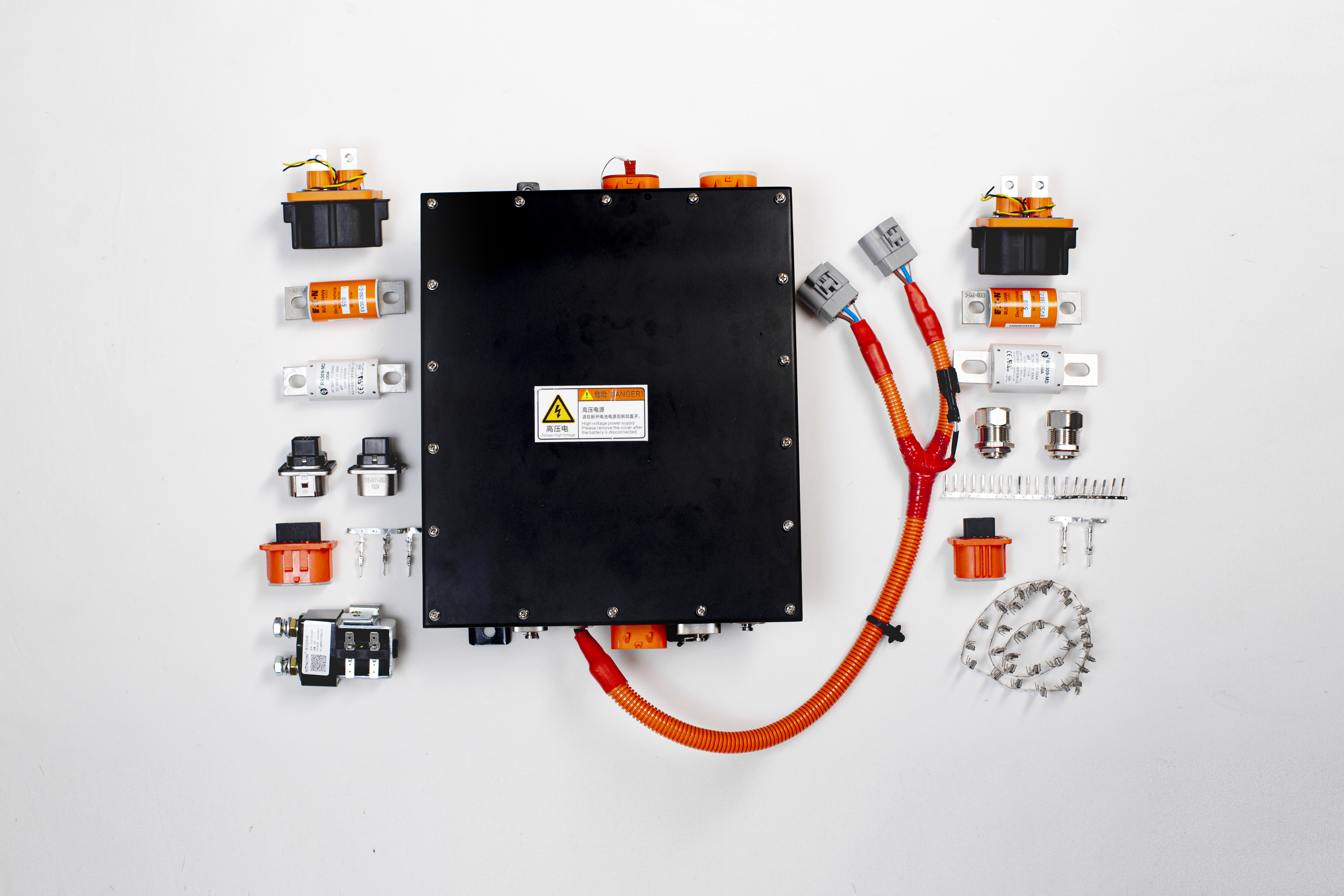

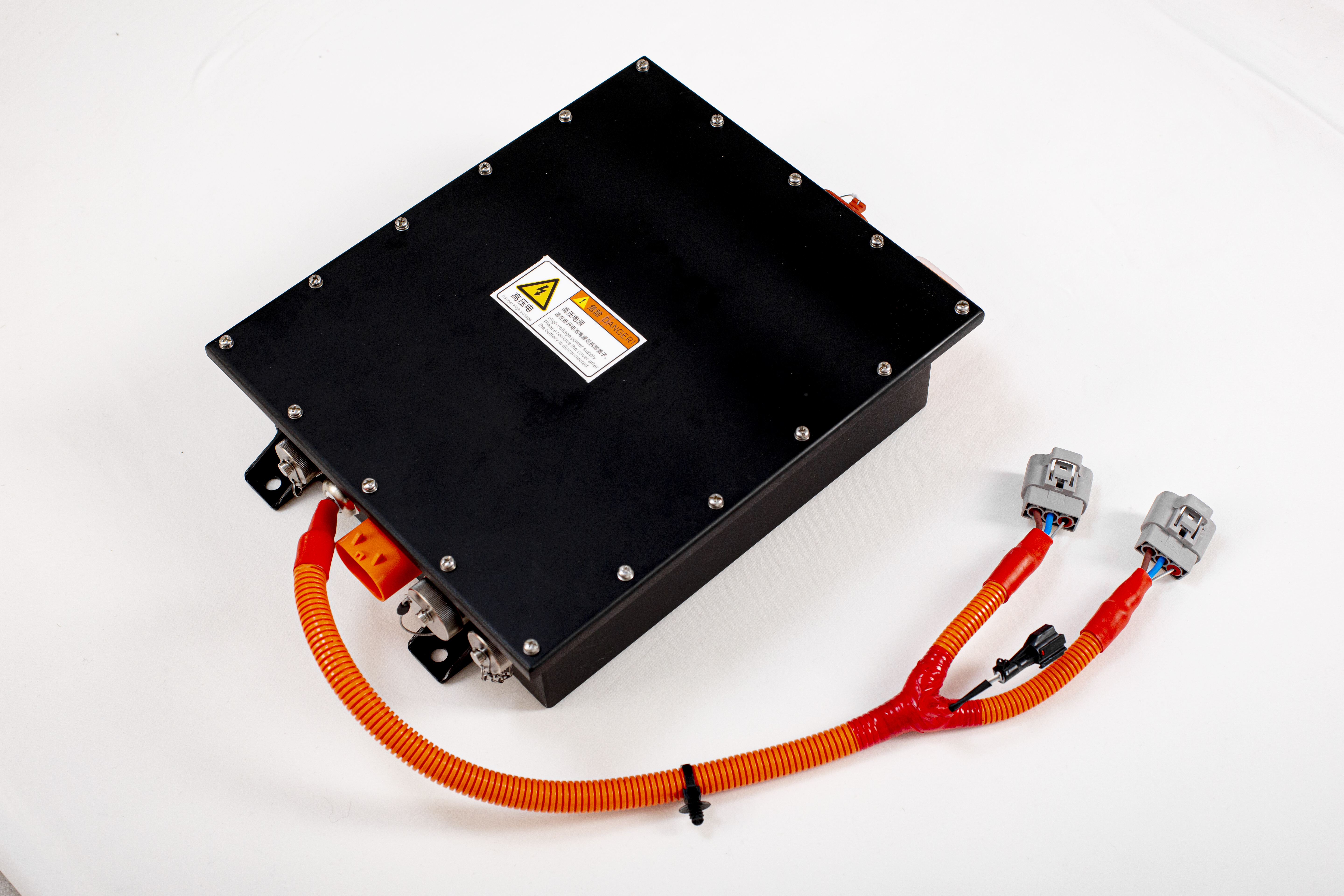

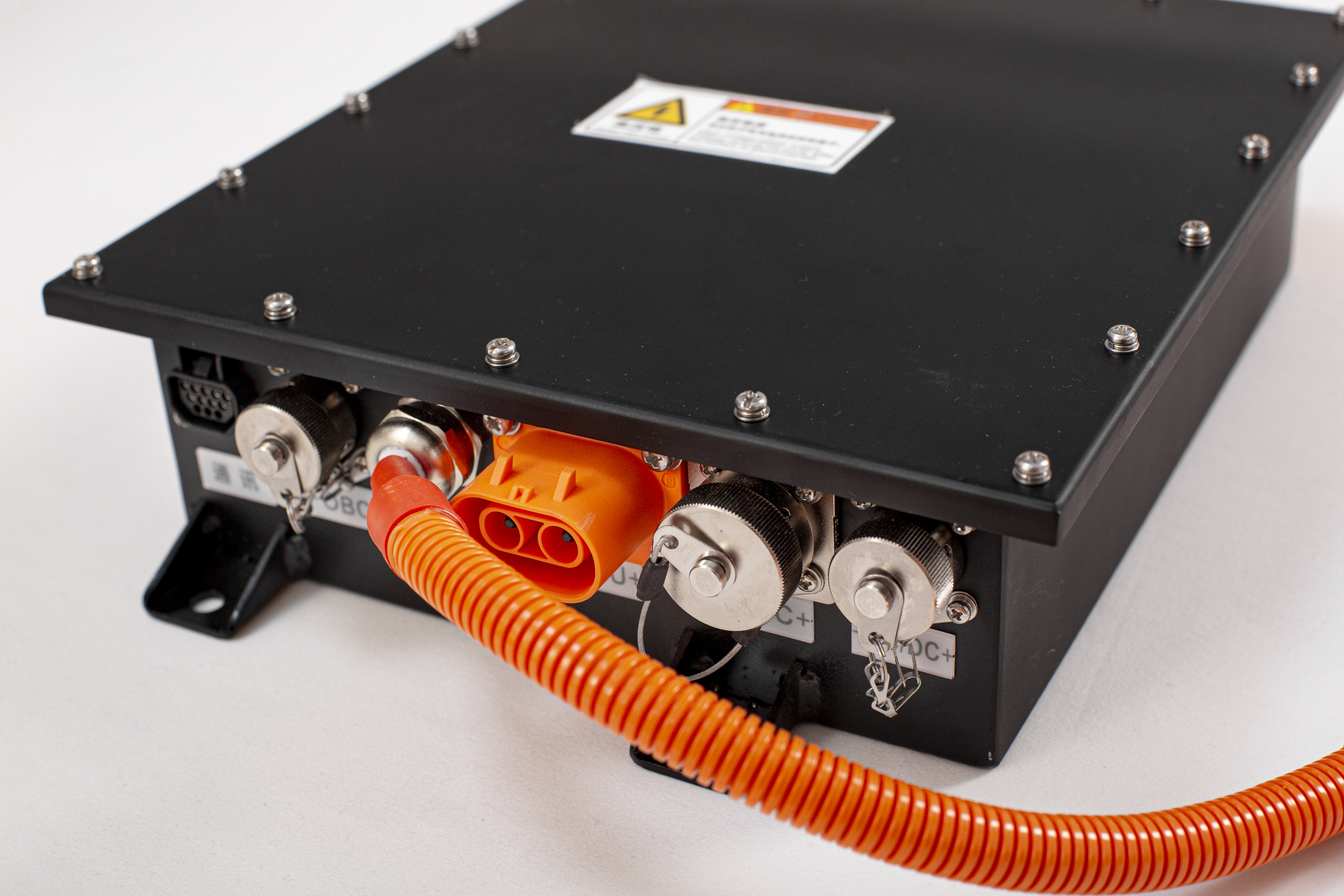

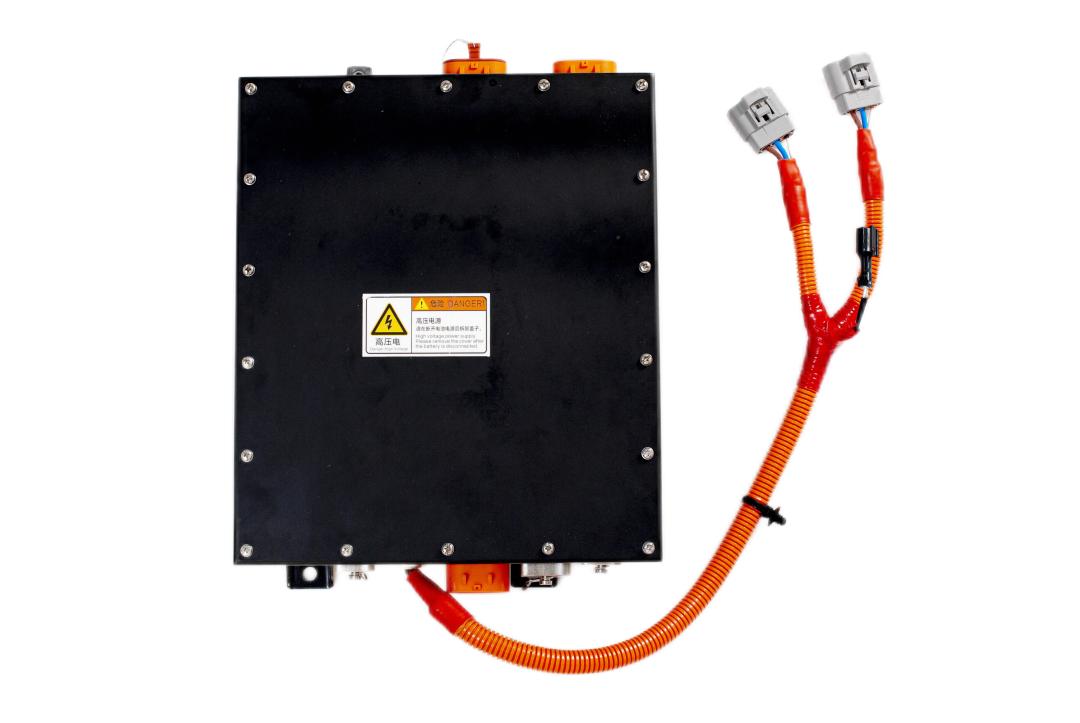

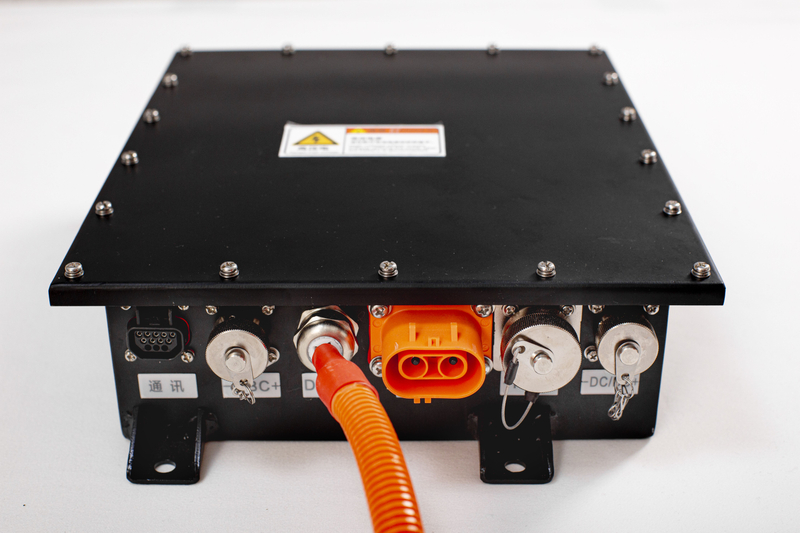

PDU is designed and produced according to clients' high-voltage schematics. Connected to battery pack, on board charger, motor and so on.
| Parameter | Specification |
| Product Name | PDU |
| Rated Voltage | DC 48V / DC 72V / DC 96V / DC 144V (Customizable) |
| Rated Current | 50A / 100A / 150A / 200A (Customizable) |
| Input Type | High-voltage connector with cable harness(Customizable) |
| Output Type | Multiple DC output channels(Customizable) |
| Protection Functions | Overload, Short Circuit, Overvoltage, Undervoltage, Leakage, Surge |
| Monitoring | Real-time voltage and current monitoring (Optional) |
| Installation | Vertical / Horizontal / Custom mounting |
| Housing Material | High-strength metal, fire-resistant |
| Cooling Method | Natural cooling / Forced air cooling |
| Operating Temperature | -20ºC to +60ºC |
| Storage Temperature | -40ºC to +85ºC |
| Application Fields | Energy Storage System, Electric Vehicle, Industrial Equipment, Telecom Cabinet |
| Customization | Voltage, current, connectors, monitoring function |

|
Product Show
