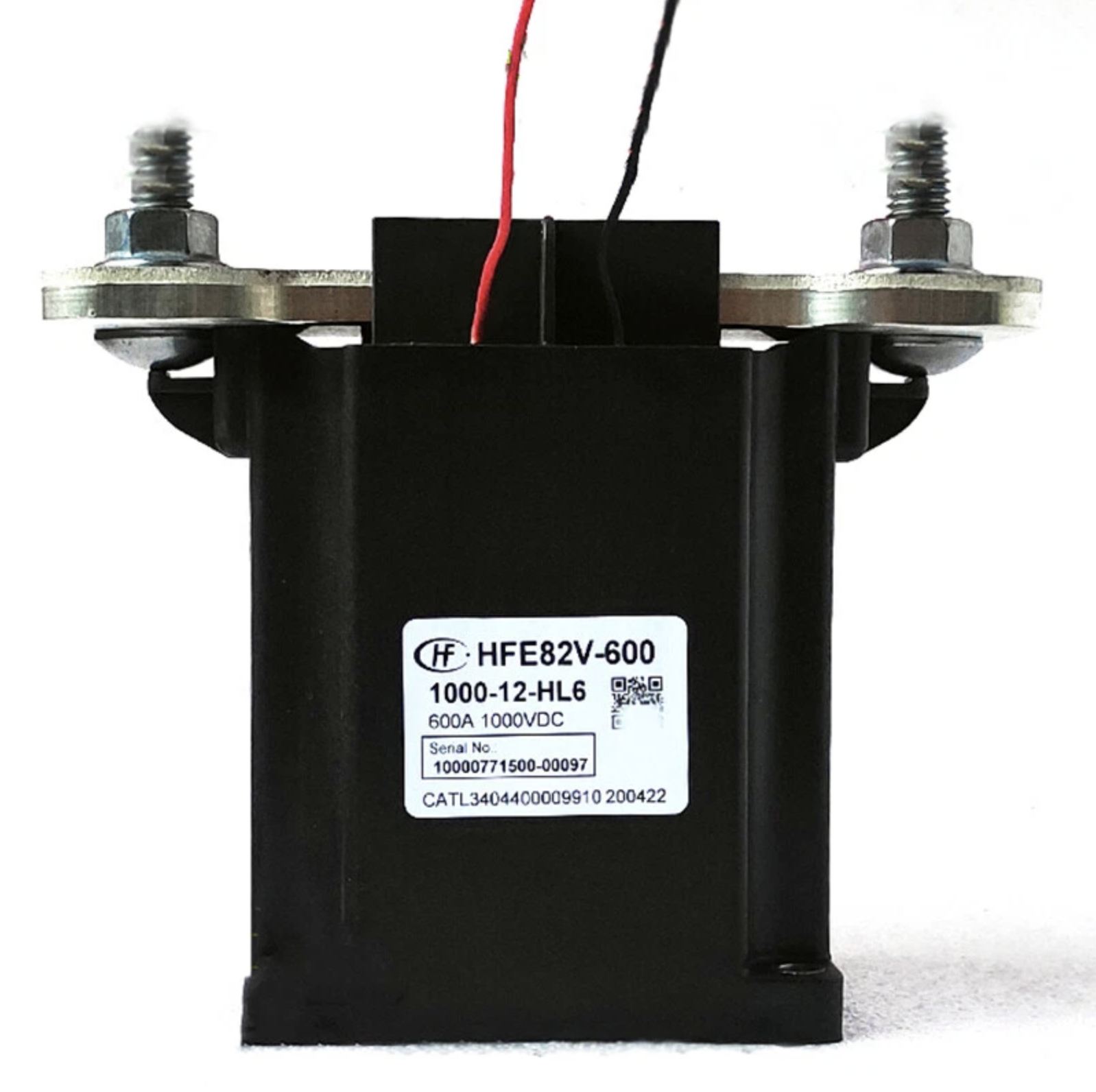

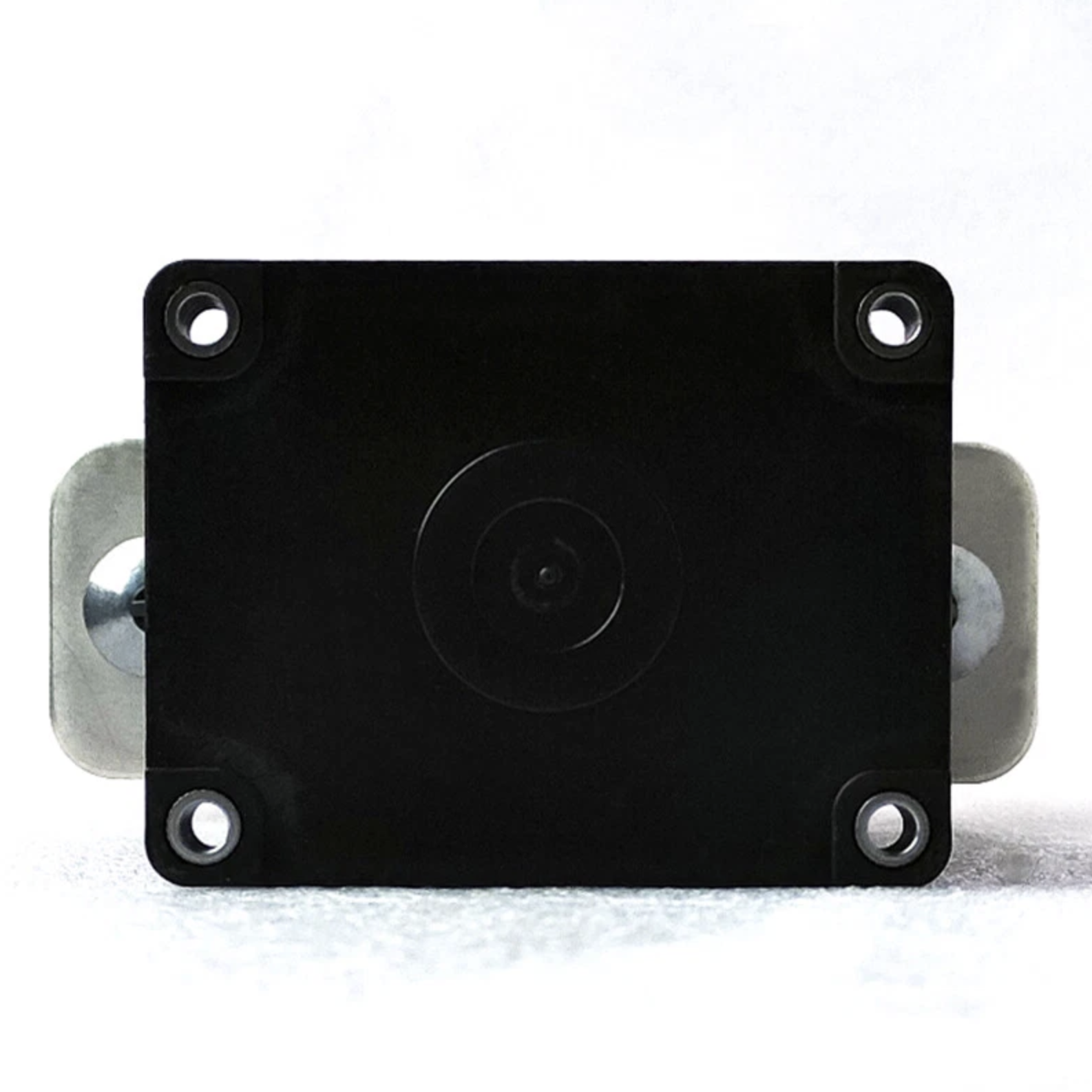

HFE82V-600
Hongfa
| HFE82V-600/xxx-12-HL6: | |
|---|---|
| HFE82V-600/xxx-24-HL6: | |
| Quantity: | |
Hongfa HFE82V-600 DC Relay Detail
 | Coil Rating |
Nominal Voltage Vd.c | Pick-up Voltage Vd.c | Drop-out Voltage Vd.c | Coil Resistance Ω (@23℃) | Coil Power W (@23℃) Approx. |
| 12 | ≤9 | 1-9 | Driving: 2.88x(1±7%) Holding: 14.4x(1±7%) | Driving Power: 50W Holding Power: 10W |
| 24 | ≤18 | 2-18 | Driving: 11.52x(1±7%) Holding: 57.6x(1±7%) | Driving Power: 50W Holding Power: 10W |
| Contact Data |
| Contact Arrangement | 1 Form A | |
| Contact Resistance | Max. 0.1 mΩ (at 20A) | |
| Contact Rating | 600A | |
| Mechanical Endurance | 2 x 105 ops | |
| Max. Switching Voltage | 1000 VDC | |
| Max. Breaking Current | 2500A (800 VDC) 1op | |
| Min. Application Load | 6Vd.c 1A | |
| Current Carrying Capacity | 600A: Cont. | |
| 800A: 20 min | ||
| 1000A: 5 min | ||
| 3000A: 4 s | ||
| 8000A: 10 ms | ||
| Electrical Endurance |
| Model | Version | Ambient Tempertaure | Contact Rating | ON : OFF | Electrical Endurance |
| HFE80V-600 | 1H | Room Temperature | Making Inrush Current 120A, C=1100uf Contact Voltage 750Vdc | 0.6s : 5.4s | 5x104 ops |
Switching Steady 10A Contact Voltage 800Vdc | 0.05s : 20s | 1x105 ops | |||
Switching Steady 100A Contact Voltage 450Vdc | 0.05s : 20s | 1x104 ops | |||
Switching Steady 300A Contact Voltage 750Vdc | 0.05s : 20s | 2000 ops | |||
Switching Steady 600A Contact Voltage 750Vdc | 0.05s : 20s | 500 ops | |||
Reversed Switching Steady -100A Contact Voltage 750Vdc | 0.05s : 20s | 5x103 ops | |||
Reversed Switching Steady -300A Contact Voltage 750Vdc | 0.05s : 20s | 1000 ops | |||
Reversed Switching Steady -600A Contact Voltage 750Vdc | 0.05s : 20s | 300 ops | |||
Breaking Steady 2500A Contact Voltage 800Vdc | 0.05s on | 1 ops | |||
Breaking Steady 600A Contact Voltage 800Vdc | 0.05s on | 100 ops |
| Mechanical Endurance |
| Version | Contact Rating | Ambient Temperature | ON:OFF | Mechanical Endurance |
| 1H | No Load | Room Temperature | 0.5s : 1.5s | 2x105 ops |
| Ordering Information |
| HFE82 | V | -600 | /XXX | -12 | -H | L | 6 | (XXX) |
Type HFE82 | ||||||||
| Application V: Vehicle | ||||||||
| Series Code 600: 600A | ||||||||
| Load Voltage Nil: 450Vdc 750: 750Vdc 1000: 1000Vdc | ||||||||
| Coil Voltage 12: 12Vdc 24: 24Vdc | ||||||||
| Contact Type H: 1 Form A | ||||||||
| Coil Termination L: Wire | ||||||||
| Load Termination 6: Female + Cu-Bus-Bar terminal | ||||||||
| Special Code Customer demand(Customer demand only for special requirements) | ||||||||

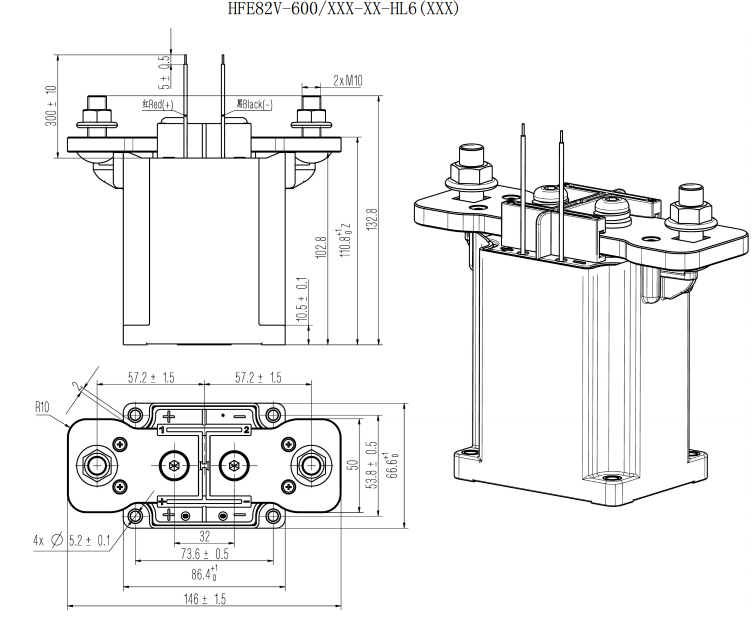

| Outline Dimensions |
