HFE82V-400M
Hongfa
| HFE82V-400M/xxx-12-H-C5-1: | |
|---|---|
| Quantity: | |

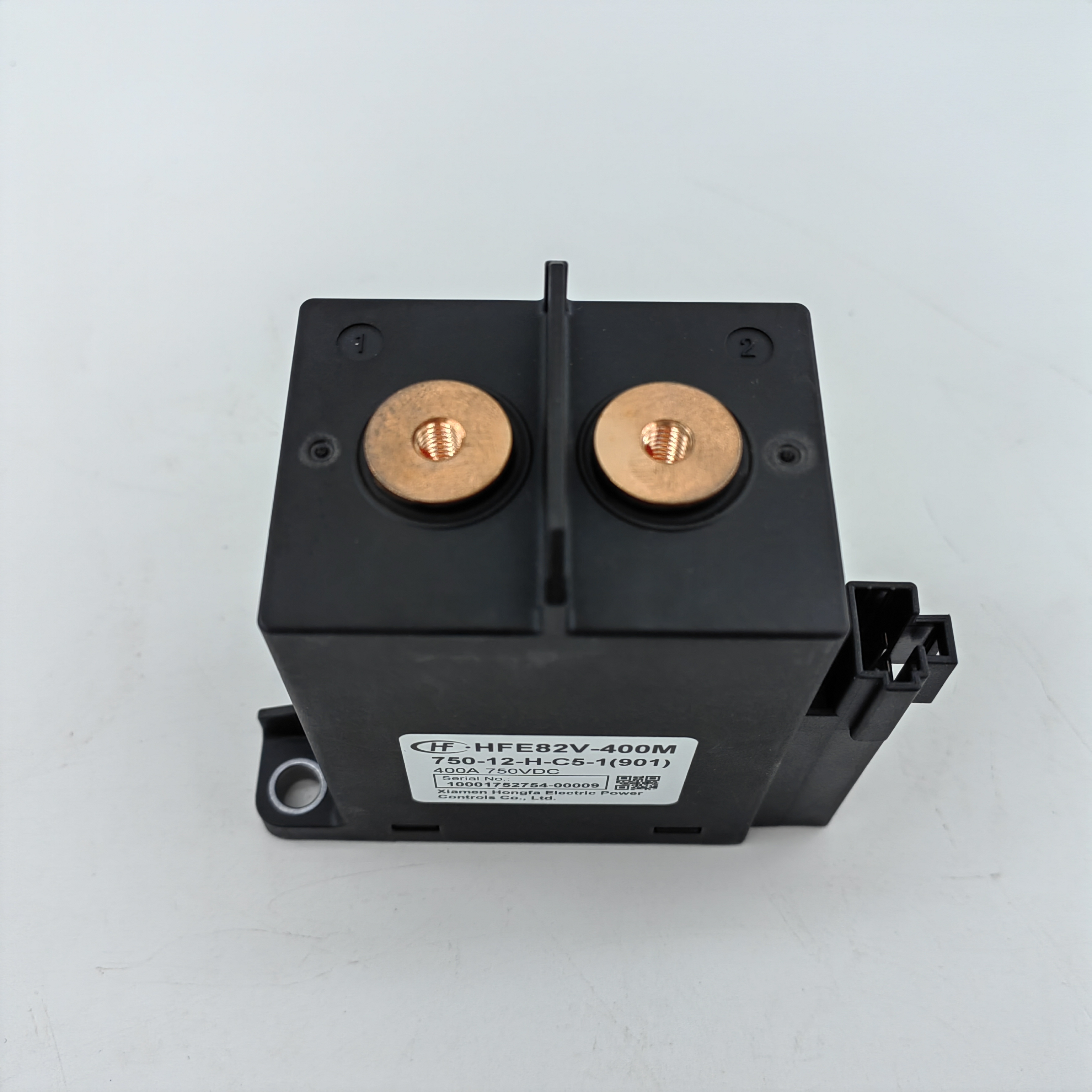

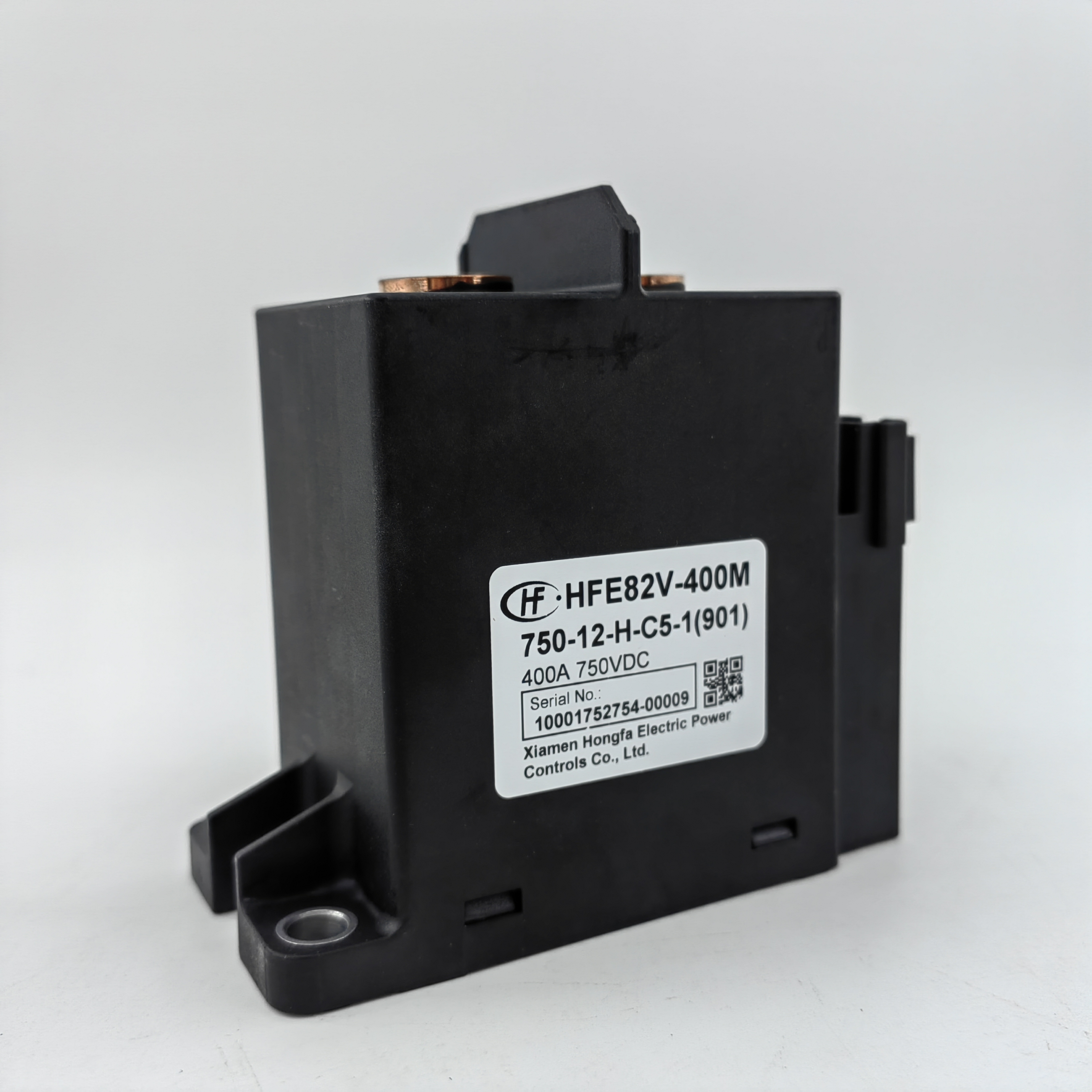

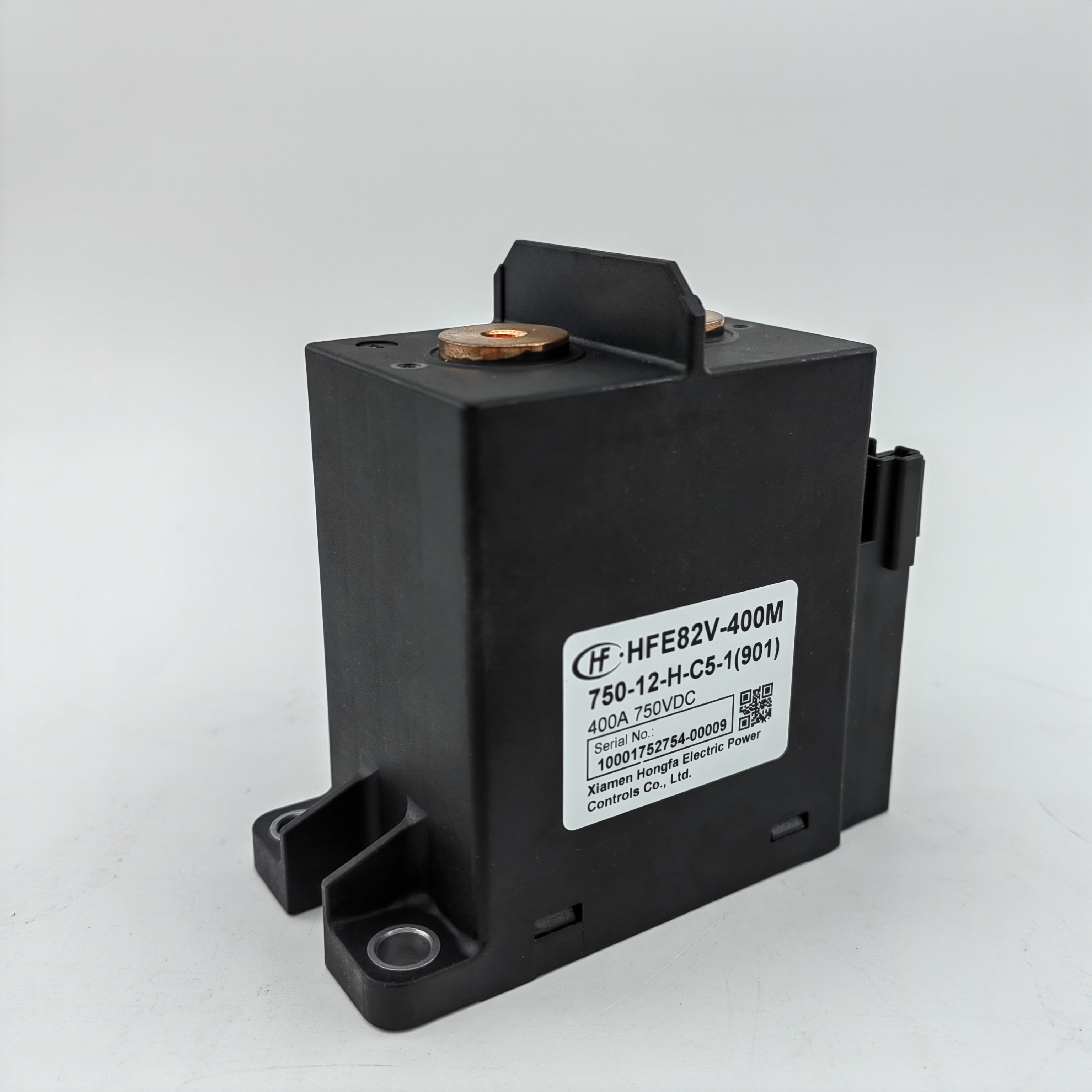

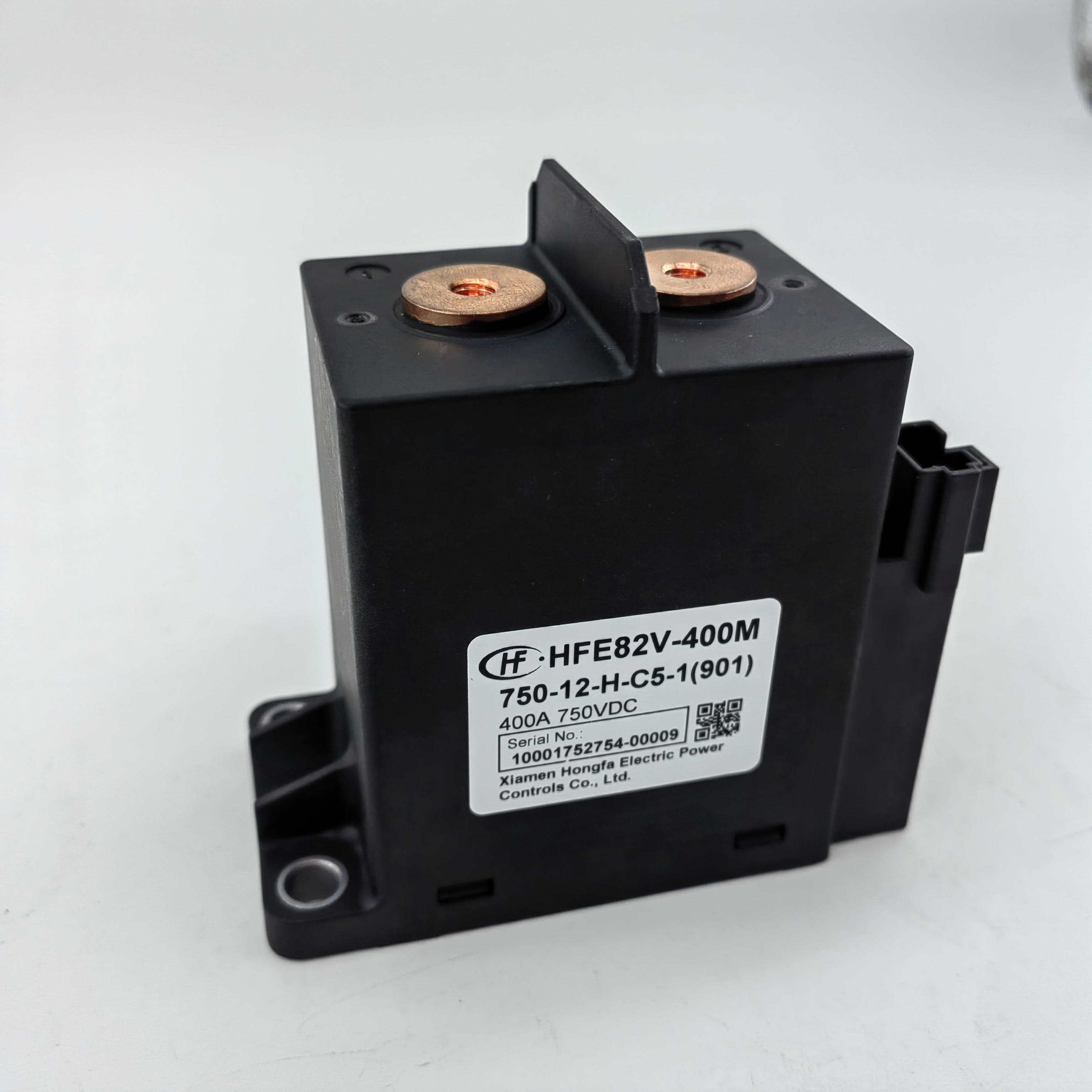

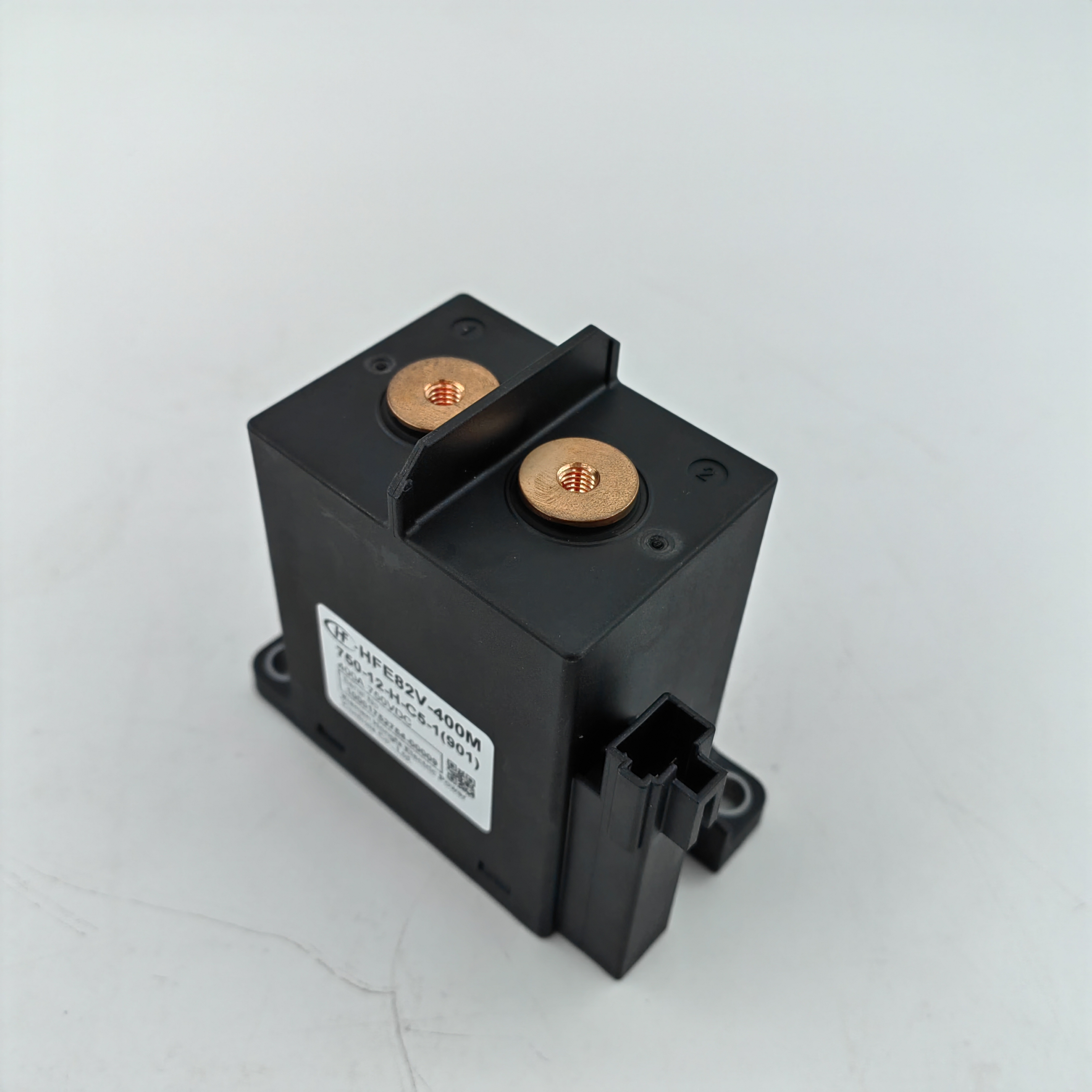

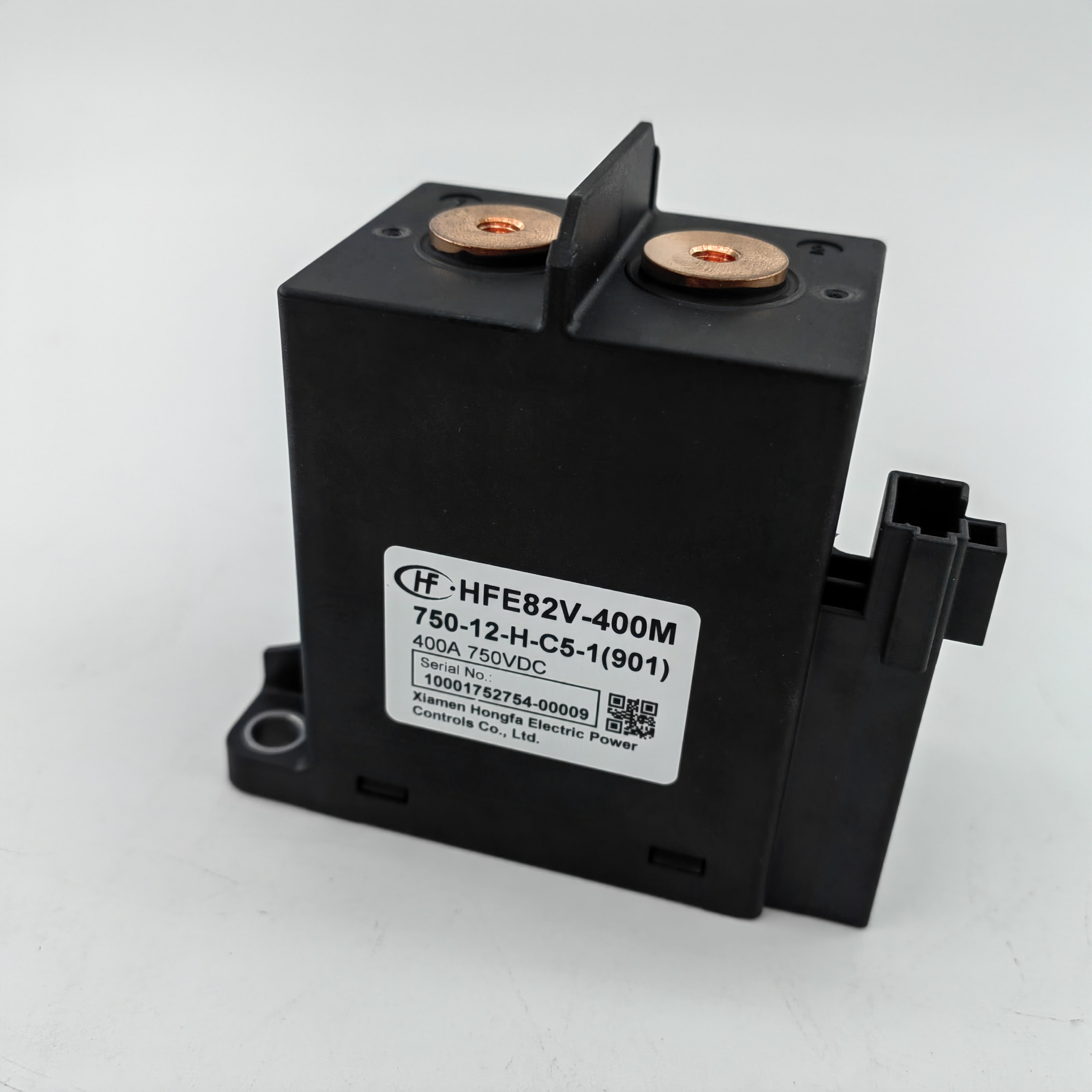

Hongfa HFE82V-400M DC Relay Detail
 | Coil Rating |
Nominal Voltage Vd.c | Pick-up Voltage Vd.c | Drop-out Voltage Vd.c | Coil Resistance Ω (@23℃) | Coil Power W (@23℃) Approx. |
| 12 | ≤9 | ≥1 | 24 x (1 ±7%) | 6 |
| Contact Data |
| Contact Arrangement | 1 Form A | |
| Contact Resistance | Max. 0.3 mΩ, Typical 0.2 mΩ (at 400A) | |
| Contact Rating | 400A | |
| Mechanical Endurance | 2 x 105 ops | |
| Max. Switching Voltage | 800 VDC | |
| Max. Breaking Current | 2000A (450 VDC) 1op | |
| Max. Switching Power | 160kW | |
| Min. Application Load | 6Vd.c 1A | |
| Current Carrying Capacity | 400A:Cont. | |
| 500A: 2000s | ||
| 1350A: 15s | ||
| 2000A: 10s | ||
| 3000A: 5s | ||
| 4000A: 0.6s | ||
| 5000A: 0.01s | ||
| 6000A: 0.005s | ||
| 7000A: 0.005s | ||
| 8000A: 0.005s | ||
| Electrical Endurance |
| Model | Version | Ambient Tempertaure | Contact Rating | ON : OFF | Electrical Endurance |
| HFE80V-400M | 1H | Room Temperature | Making Inrush Current 140A, C=1100uf Contact Voltage 22.5Vdc | 0.6s : 5.4s | 7.5x104 ops |
Making Steady 5A Contact Voltage 450Vdc | 0.6s : 5.4s | 7.5x104 ops | |||
Breaking Steady 10A Contact Voltage 450Vdc | 0.6s : 5.4s | 7.5x104 ops | |||
Breaking Steady 200A Contact Voltage 450Vdc | 0.6s : 5.4s | 3000 ops | |||
Breaking Steady 400A Contact Voltage 450Vdc | 0.6s : 5.4s | 1000 ops | |||
Breaking Steady 400A Contact Voltage 750Vdc | 0.6s : 5.4s | 100 ops | |||
Breaking Steady 2000A Contact Voltage 750Vdc | 0.6s | 1 op |
| Mechanical Endurance |
| Version | Contact Rating | Ambient Temperature | ON:OFF | Mechanical Endurance |
| 1H | No Load | Room Temperature | 0.5s : 0.5s | 2x105 ops |
| Ordering Information |
| HFE82 | V | -400 | M | /XXX | -12 | -H | -C | 5 | -1 | (xxx) |
Type HFE82 | ||||||||||
| Application V: Vehicle | ||||||||||
| Series Code 400: 400A | ||||||||||
| Series Indicator M: M series | ||||||||||
| Load Voltage Nil: 450Vdc 750: 750Vdc | ||||||||||
| Coil Voltage 12: 12Vdc | ||||||||||
| Contact Type H: 1 Form A | ||||||||||
| Coil Termination C: Connector | ||||||||||
| Load Termination 5: Bolt terminal female | ||||||||||
| Coil Characteristics 1: Single coil | ||||||||||
| Special code Nil: MQS Connectors 901: Yazaki Connector | ||||||||||

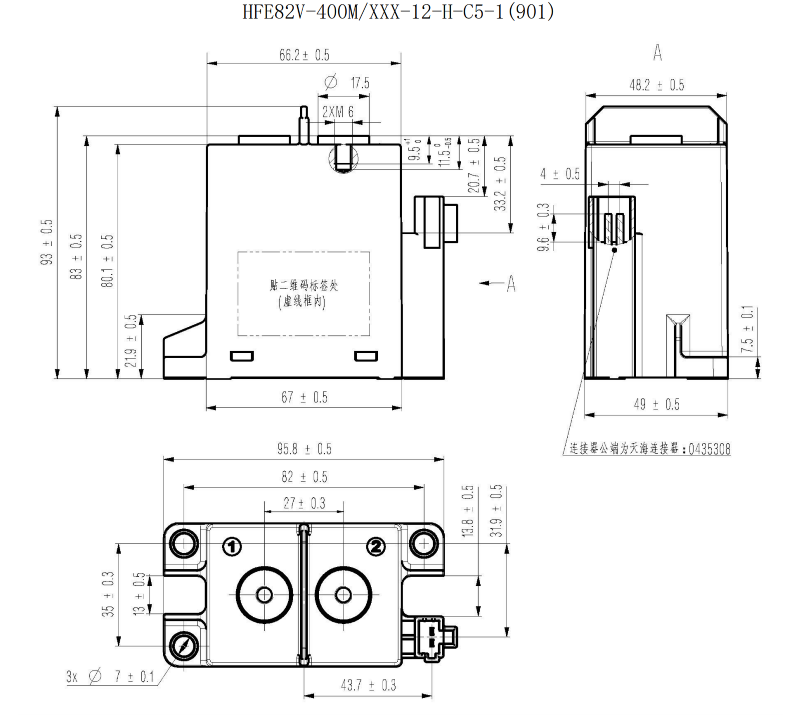

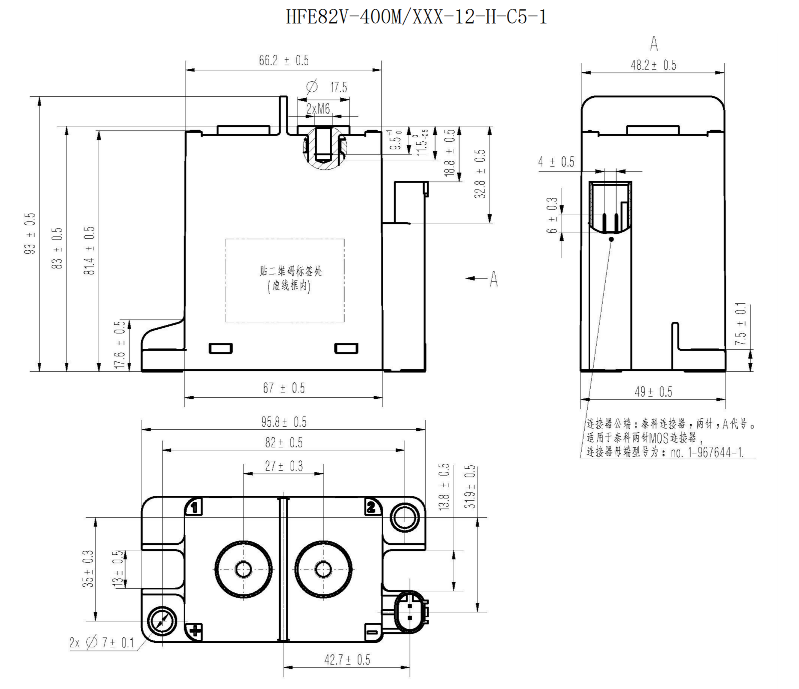

| Outline Dimensions |
