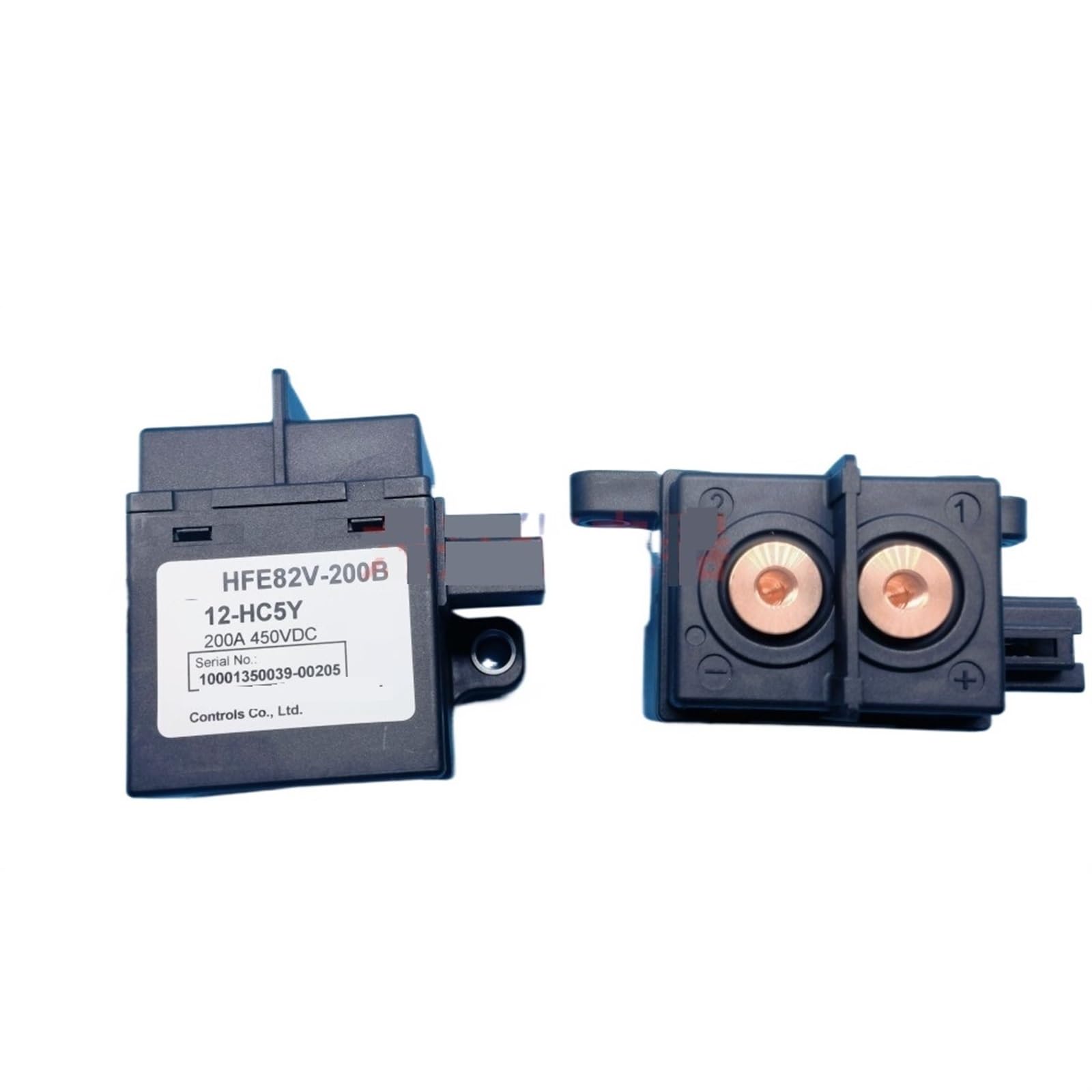

Hongfa DC Relay HFE82V-200B/XXX-XX-HC5X Series Contactors Coil Voltage 12/24 Vdc

High Voltage DC Contactor for Electric Vehicle, Power Distribution, Automotive Pre-charge

  • HFE82V-200B

  • Hongfa

HFE82V-200B/XXX-XX-HC5:
Vertical Mounting
HFE82V-200B/XXX-XX-HC5Y:
Horizontal Mounting
Availability:
Quantity:
Inquire Add to Basket

Hongfa DC Relay HFE82V-200B/XXX-XX-HC5X Series Contactors Coil Voltage 12/24 Vdc
Hongfa DC Relay HFE82V-200B/XXX-XX-HC5X Series Contactors Coil Voltage 12/24 Vdc
Hongfa DC Relay HFE82V-200B/XXX-XX-HC5X Series Contactors Coil Voltage 12/24 Vdc

Hongfa HFE82V-200B DC Relay Detail


Coil Rating

Nominal Voltage

Vd.c

Pick-up Voltage

Vd.c

Drop-out Voltage

Vd.c

Coil Resistance

Ω (@23℃)

Coil Power

W (@23℃) Approx.
12 ≤9 ≥1 24 x (1 ±1 0%) 6
24 ≤18 ≥2 96 x (1 ±1 0%) 6


Contact Specification
Contact Arrangement 1H
Contact Material Copper Alloy
Contact Resistance ≤ 0.5mΩ (@ 200A)
Contact Rating 200A (@60mm² wire)
5Max. Contact Current 2000A (@450Vd.c) (1 ops)
Max. Contact Voltage 750Vd.c (@ 2A)
Min. Applicable Load 6Vd.c 1A


Current Endurance


Current Duration
200A Continue
250A 2h
320A 15min
600A 30s
900A 10s

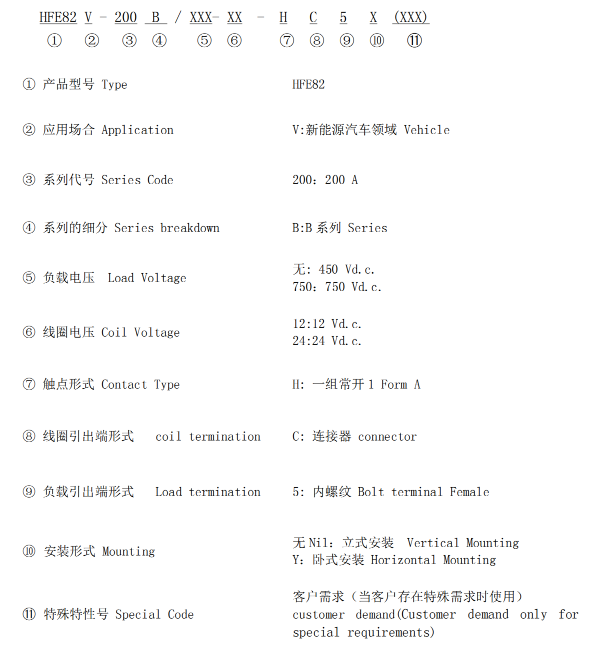

WX20250909-172442

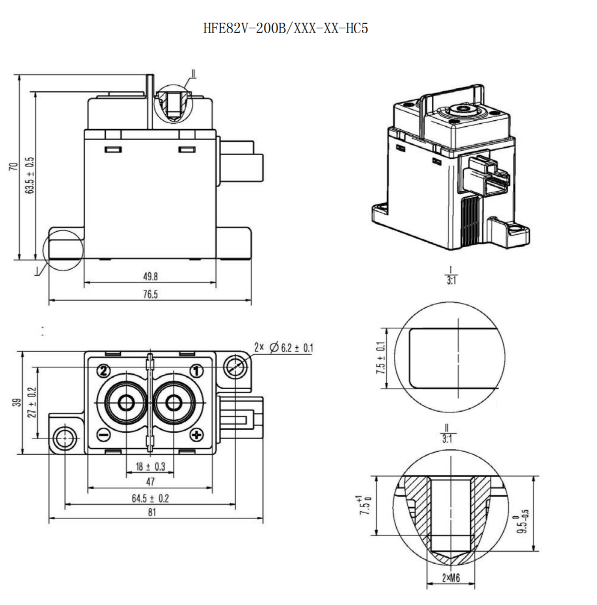

Outline Dimensions Botton Mount

WX20250909-172523

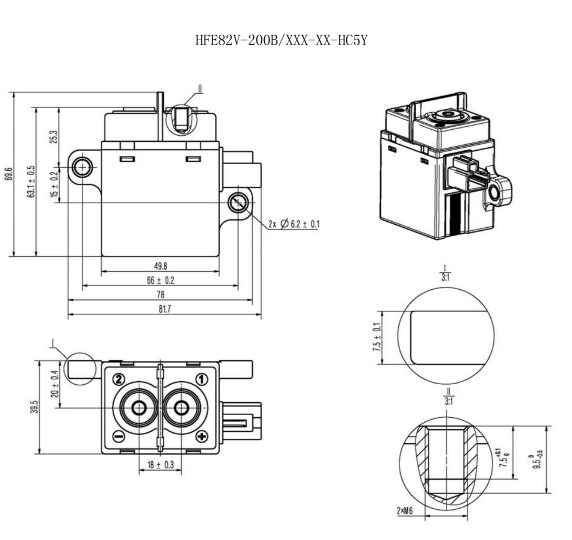

WX20250909-172544
