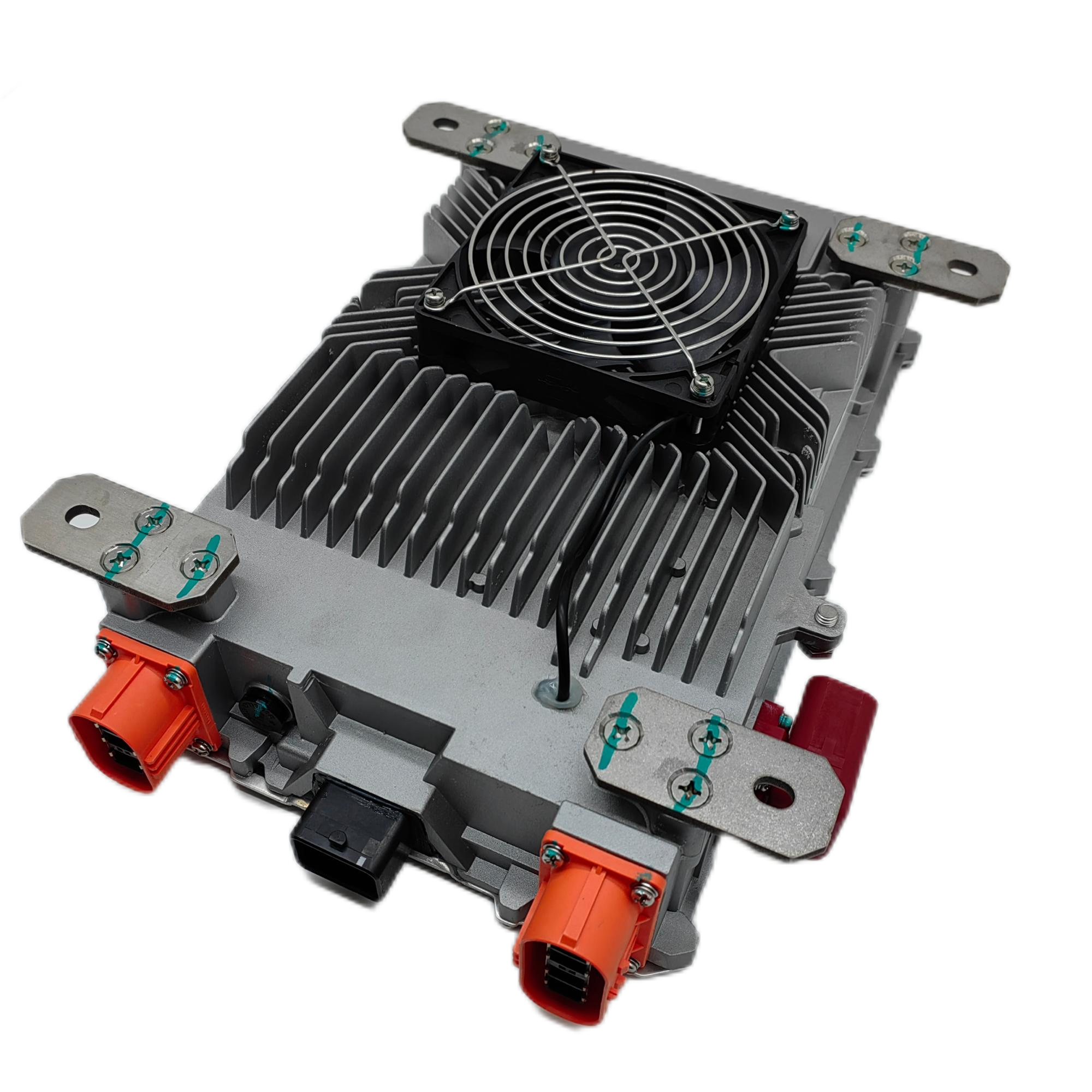

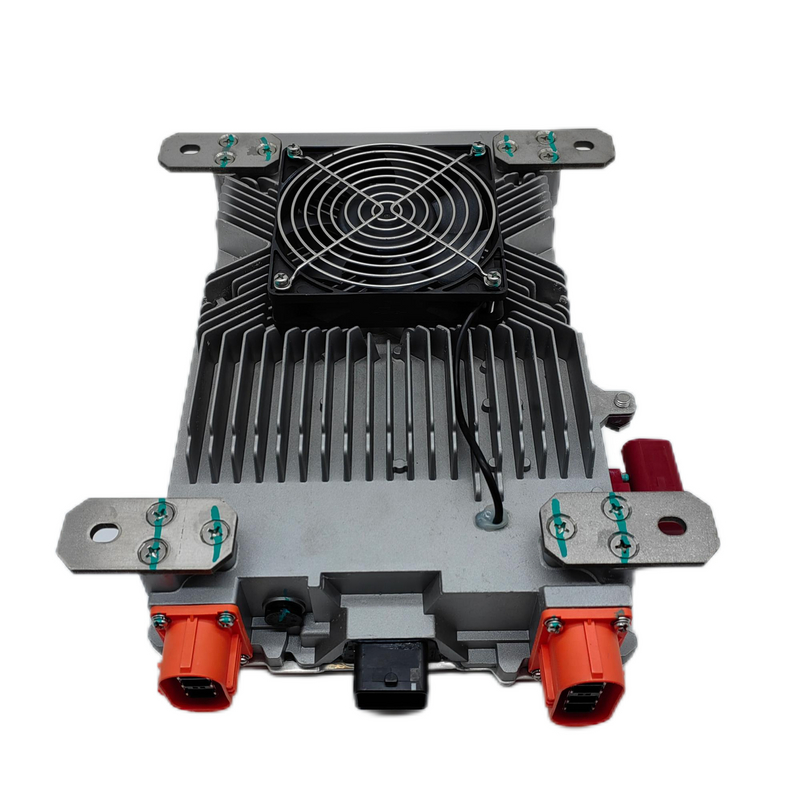

Introduction of 6.6KW OBC +2KW DCDC 2-in-1 Combo Charger Unit
 | Technical Data of 6.6KW OBC +2KW DCDC 2-in-1 Combo Charger Unit |
| OBC Technical Data: | DCDC Technical Data: | |||
| Nominal Voltage: | 144V, 312V; | Nominal Voltage: | 144V, 312V; | |
| AC Input Voltage Range | AC90V~AC265V | Rated Power: | 2KW | |
| AC Input Current: | 32A | Peak Power: | 2.2KW;(Continues Max 6 min) | |
| AC Input Frequency | 45~65 Hz | Max Output Current(@14V): | 143A | |
| AC Power Factor | ≥0.99 | Max Efficiency | ≥93％ | |
| Full Load Efficiency | ≥93％ | Voltage Regulation | ≤1.5% | |
| Standby Power Consumption | ≤5W | IP Standard: | IP67 | |
| Cooling Method | Enforce Air Cooling; Liquid Cooling; | Operating Temperature: | -40℃~+60℃ | |
| Environmental Enclosure | IP67 | Storage Temperature: | －45～105℃ | |
| Operating Temperature | -40℃~+55℃ | Ambient Moisture: | In the environment of (23±2) ℃ and moisture at 80%-90% | |
| Storage Temperature | -40℃~+100℃ | Noisy | Distance in 1.5m,Noisy≤50dB | |
| Auxiliary Output: | 14V 5A | Cooling Method: | Enforce Air Cooling; Liquid Cooling; | |
| Control Method: | With CAN BUS | Control Method: | With CAN BUS; 12V Enable (Optional) |
| Model List of 6.6KW OBC + 2KW DCDC 2-in-1 Combo Charger Unit |
| Nominal Voltage | OBC Vout Range | OBC Iout | DCDC Vin Range | DCDC Output | Cooling Method |
| 144V | 110-200VDC | 46A | 110-200V | 14V 143A | Liquid Cooling |
| 312V | 220-450VDC | 20A | 220-440V | 14V 143A | Liquid Cooling |

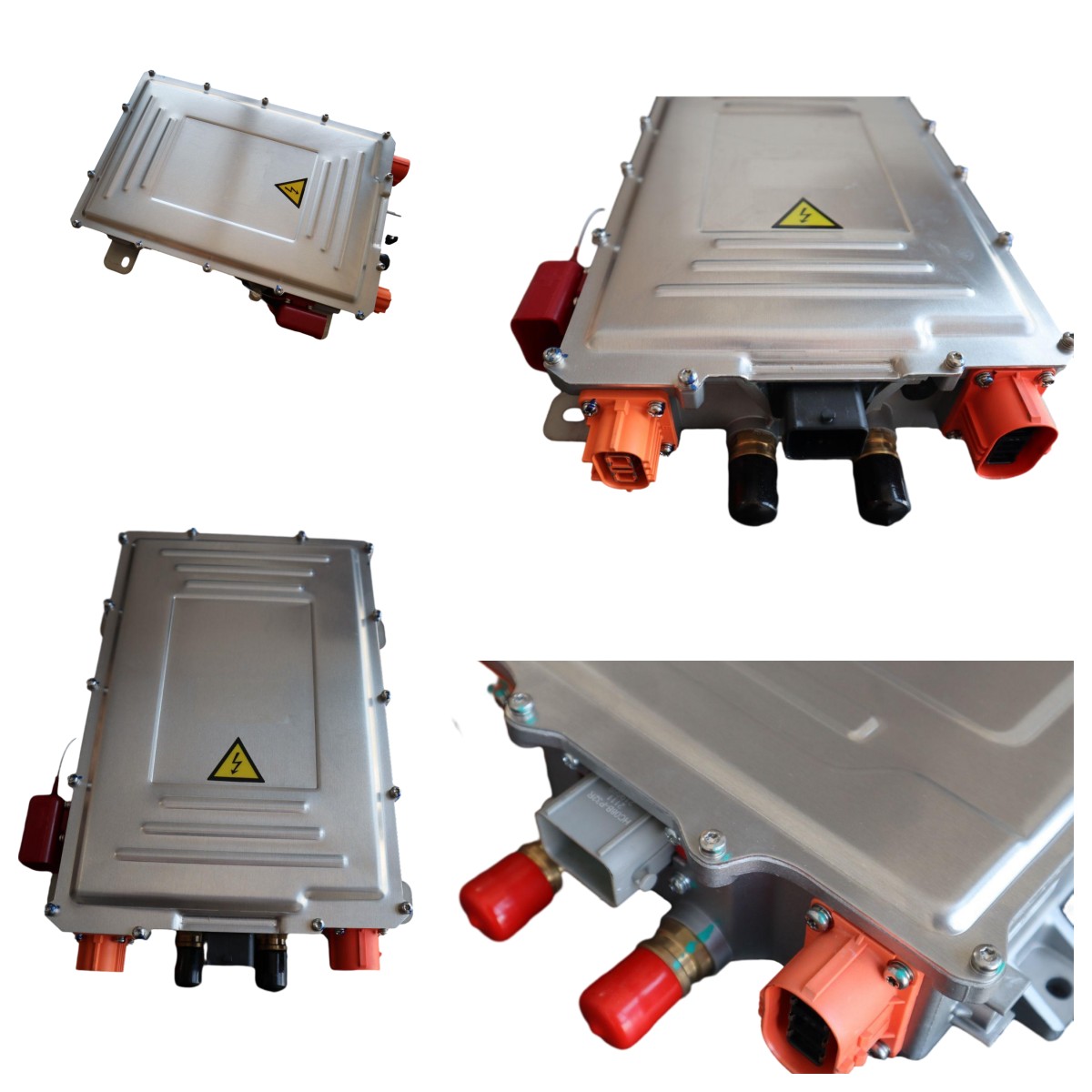

| Description of 6.6KW OBC +2KW DCDC 2-in-1 Combo Charger Unit |

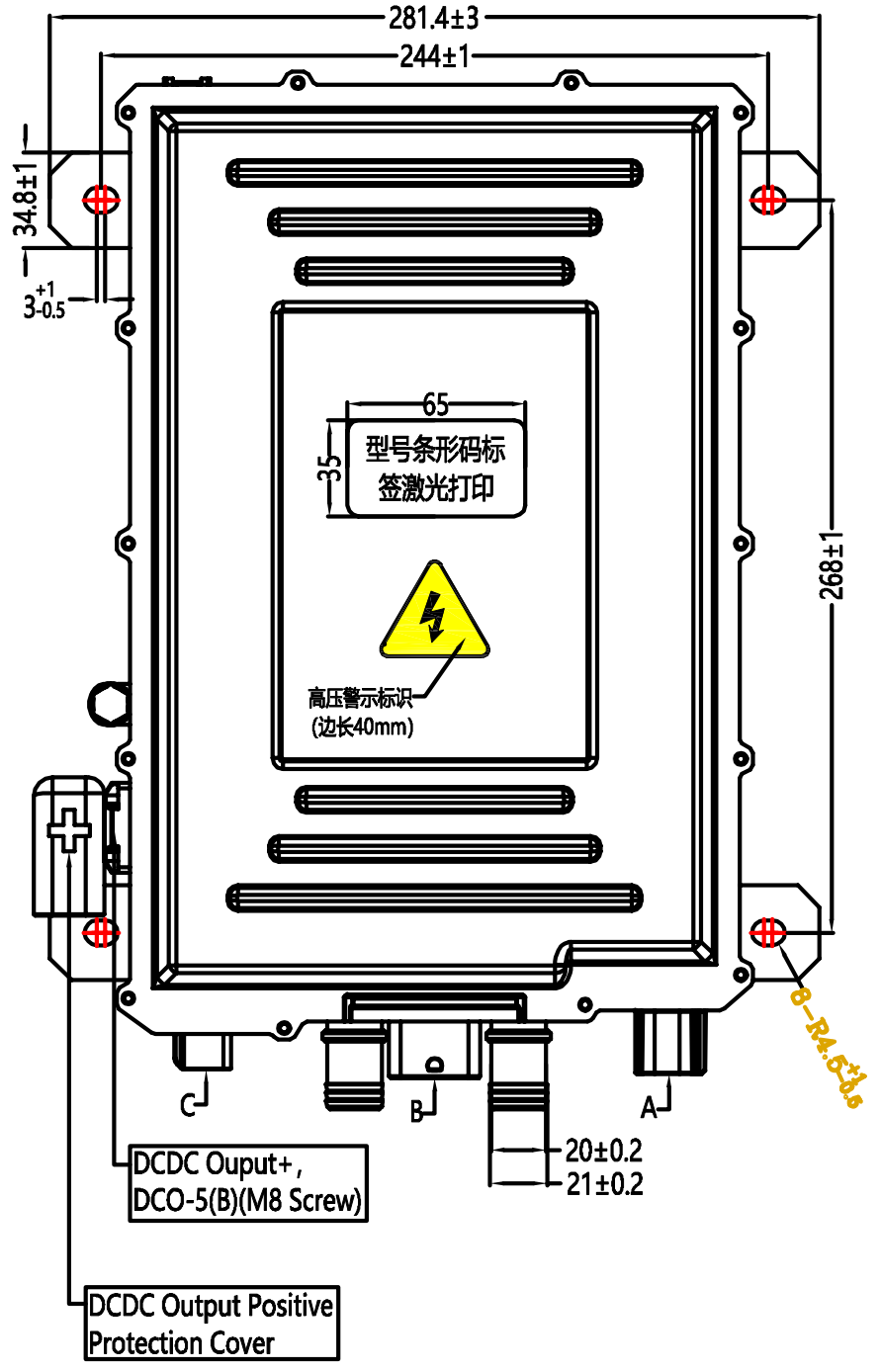

| Installation Dimension of 6.6KW OBC +2KW DCDC 2-in-1 Combo Charger Unit |
