Bussmann SAM16 series 700VDC 80A to 315A HV EV Square Body Fuse

Bussmann SAM16 series 600VDC 350A to 400A HV EV Square Body Fuse

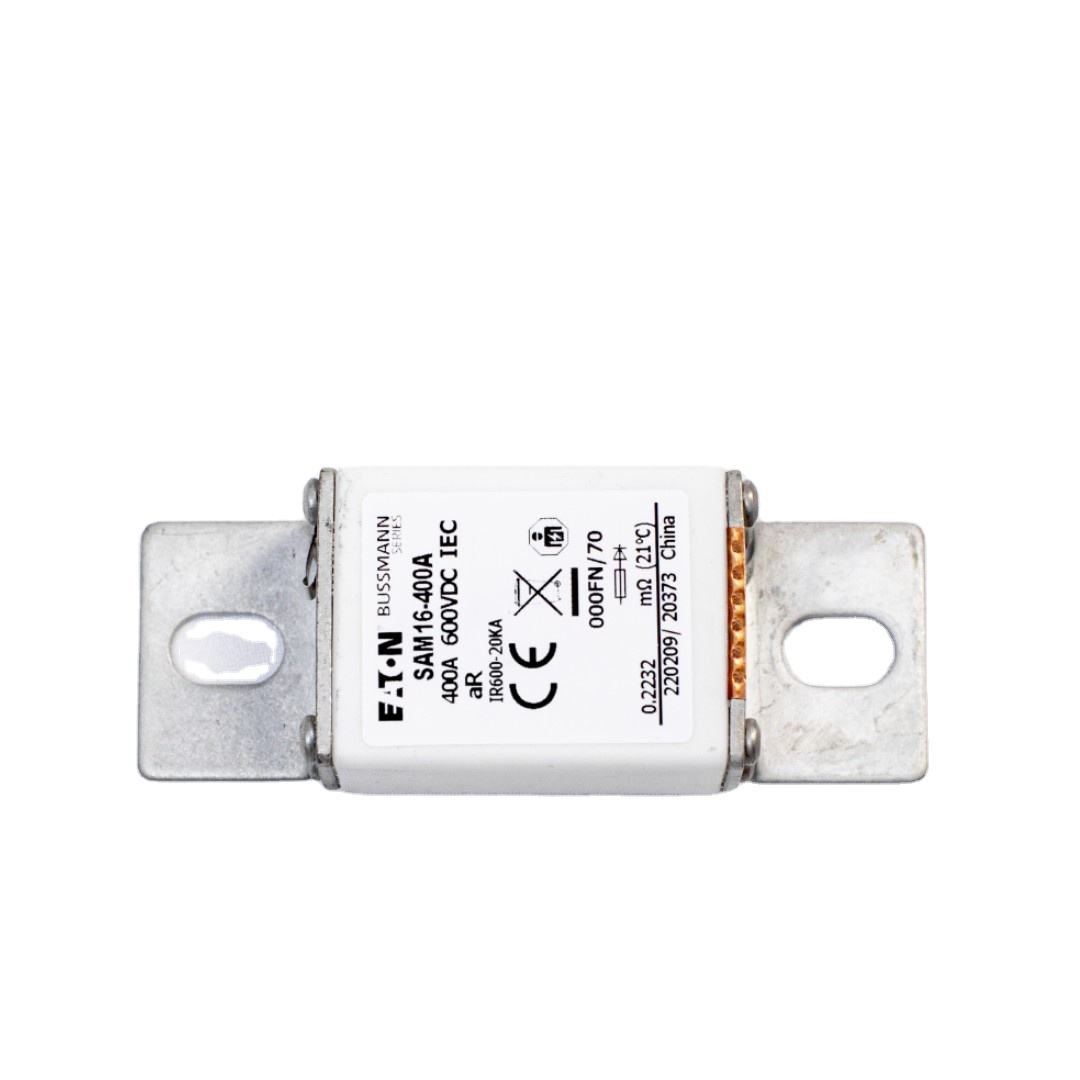

Name: Bussmann SAM16 series 600VDC 350A to 400A HV EV Square Body Fuse
Brand: Bussmann
SKU: 578761907
Rating: 5.0 (86 reviews)

Square body size 000 bladed high speed fuses, for the proection of DC common bus, DC frivers, power converters/rectifiers and reduced voltage starters
Rating:

Volts & Amps: ---700Vdc(80A-315A), 600Vdc(350A-400A)

IR:---20kA/dc RMS(L/R=5ms)

Model:
SAM16
Brand:
Bussmann

SAM16-350:	600V 350A
SAM16-400:	600V 400A
Availability:

Quantity:



Inquire Add to Basket

Product Description

SAM16 series 600V/700V 80A-400A Fuses Details

Specifications Description

Square body size 000 bladed high speed fuses, for the proection of DC common bus, DC frivers, power

converters/rectifiers and reduced voltage starters
Ratings:

Volts & Amps: ---700Vdc(80A-315A), 600Vdc(350A-400A)

IR:---20kA/dc RMS(L/R=5ms)

Opearting Class: aR

Catalogue Numbers

Type	Electrical Characteristics				Catalogue Numbers
SAM16	Rated Current RMS-Amps	I²t(A²Sec)		Watts Loss (W)
	Rated Current RMS-Amps	Pre-arc	Clearing	Watts Loss (W)
	80	380	2700	19	SAM16-80A
	100	695	4950	24	SAM16-100A
	125	1250	9100	28	SAM16-125A
	160	2350	17000	32	SAM16-160A
	200	4200	30000	37	SAM16-120A
	250	7750	55000	42	SAM16-250A
	315	12000	85000	53	SAM16-315A
	350	17000	125000	56	SAM16-350A
	400	25000	150000	60	SAM16-400A

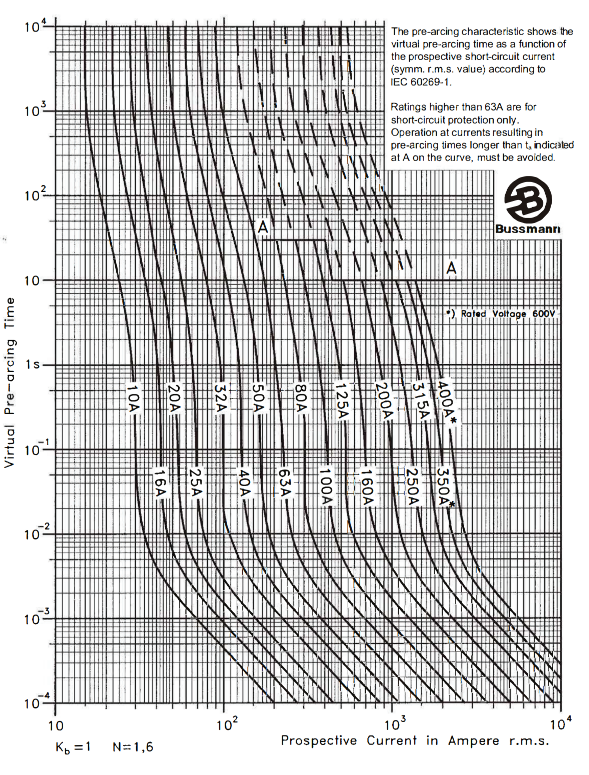

Curve

WX20250905-144921

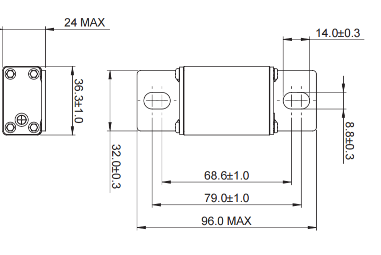

Installtion Size

WX20250905-145004 WX20250905-145020
