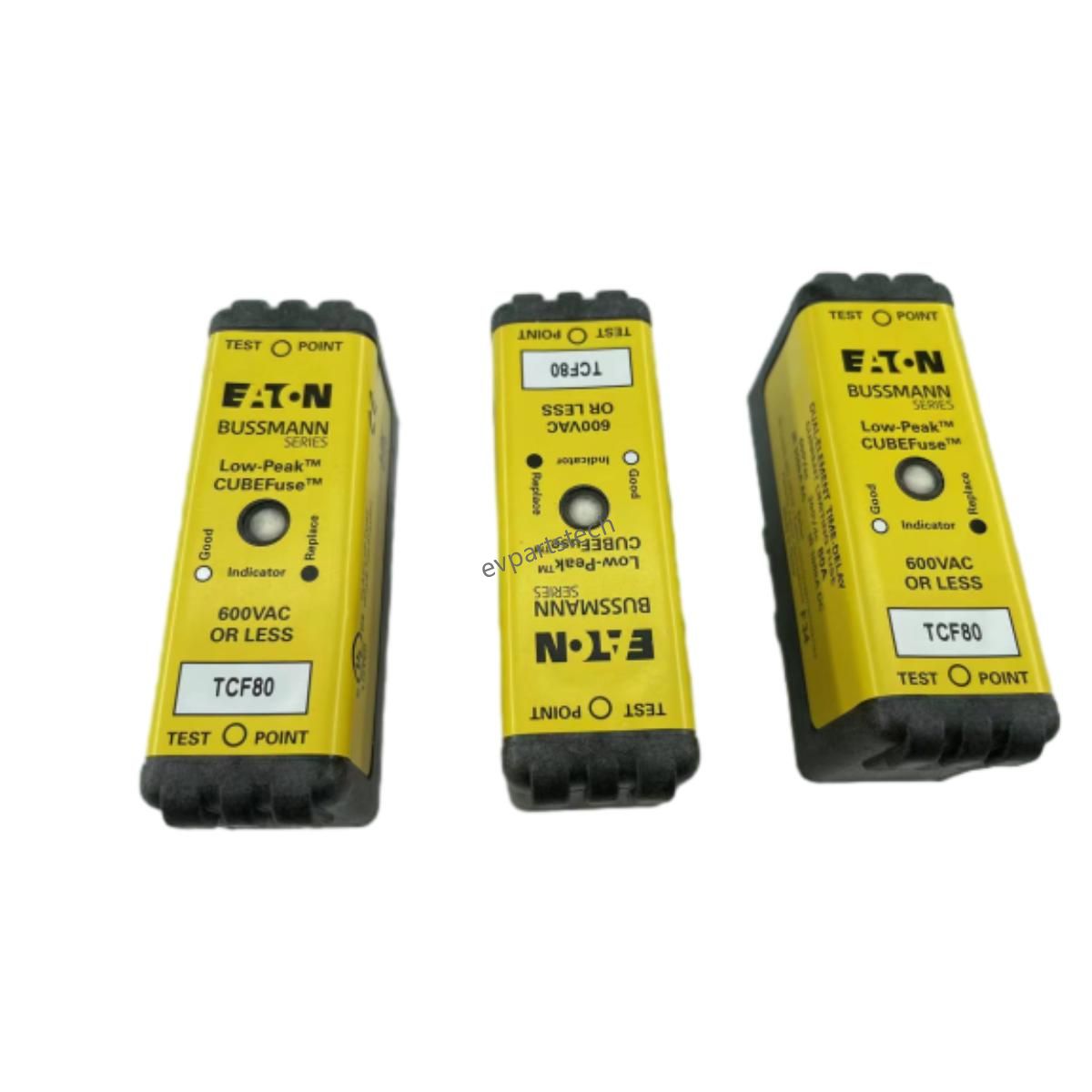

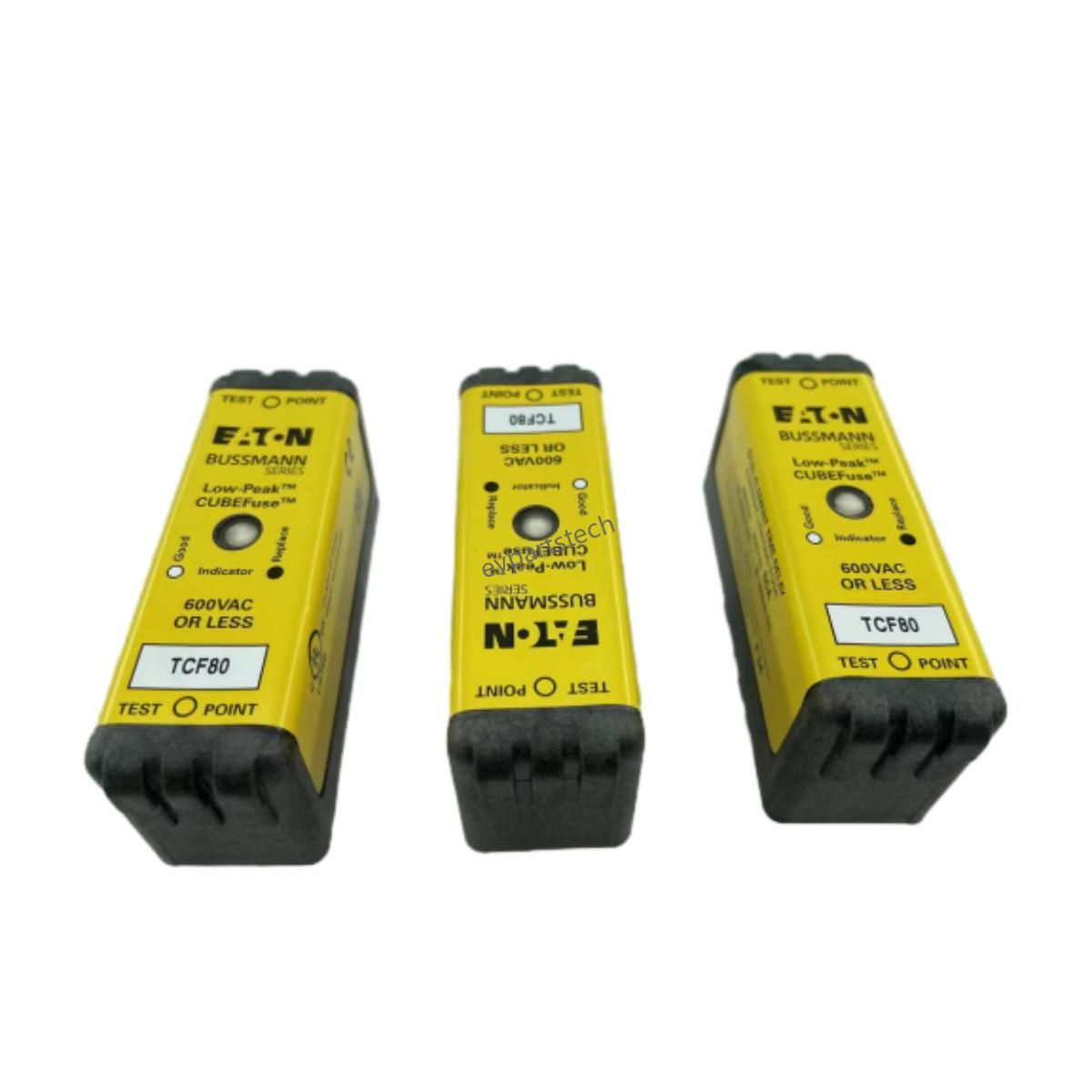

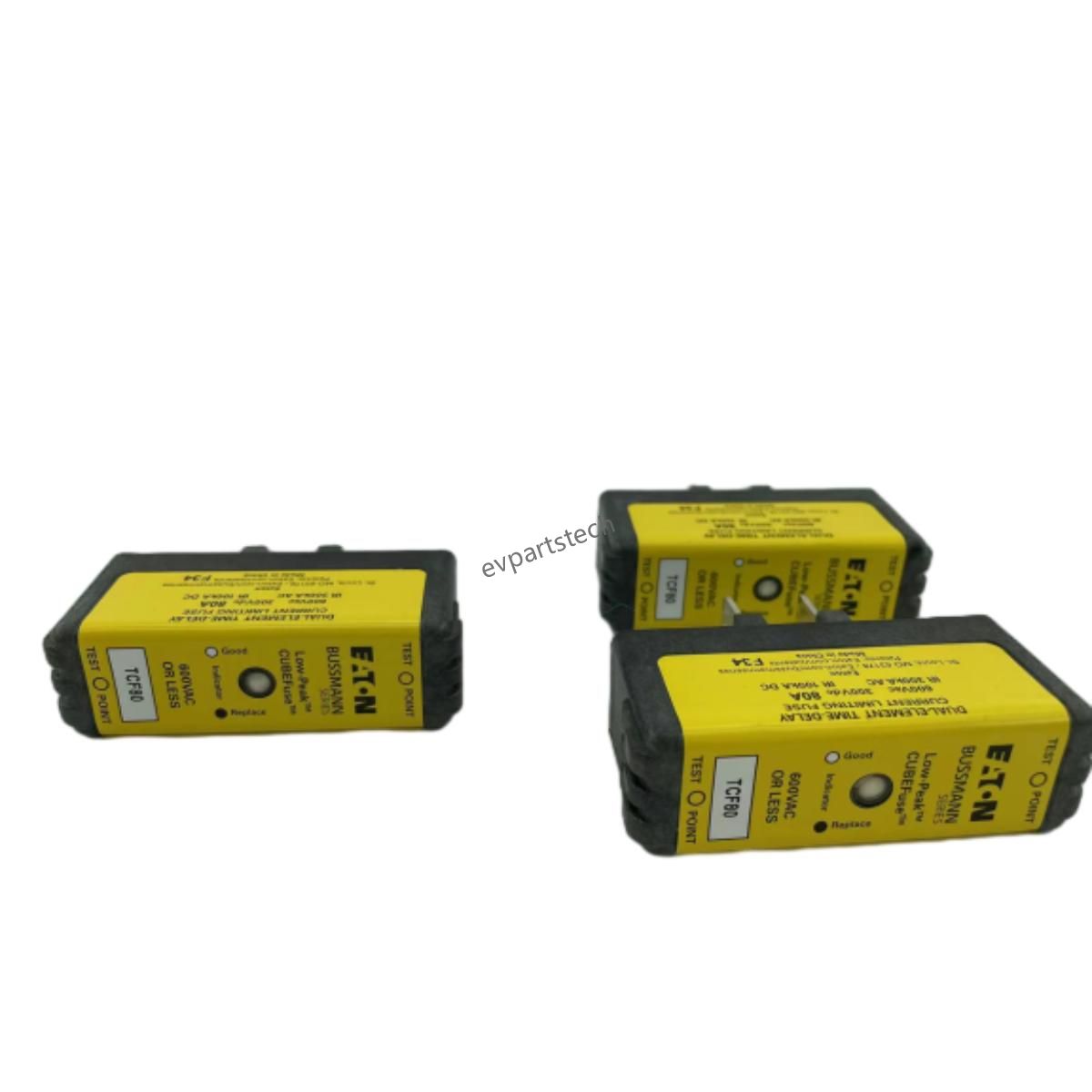

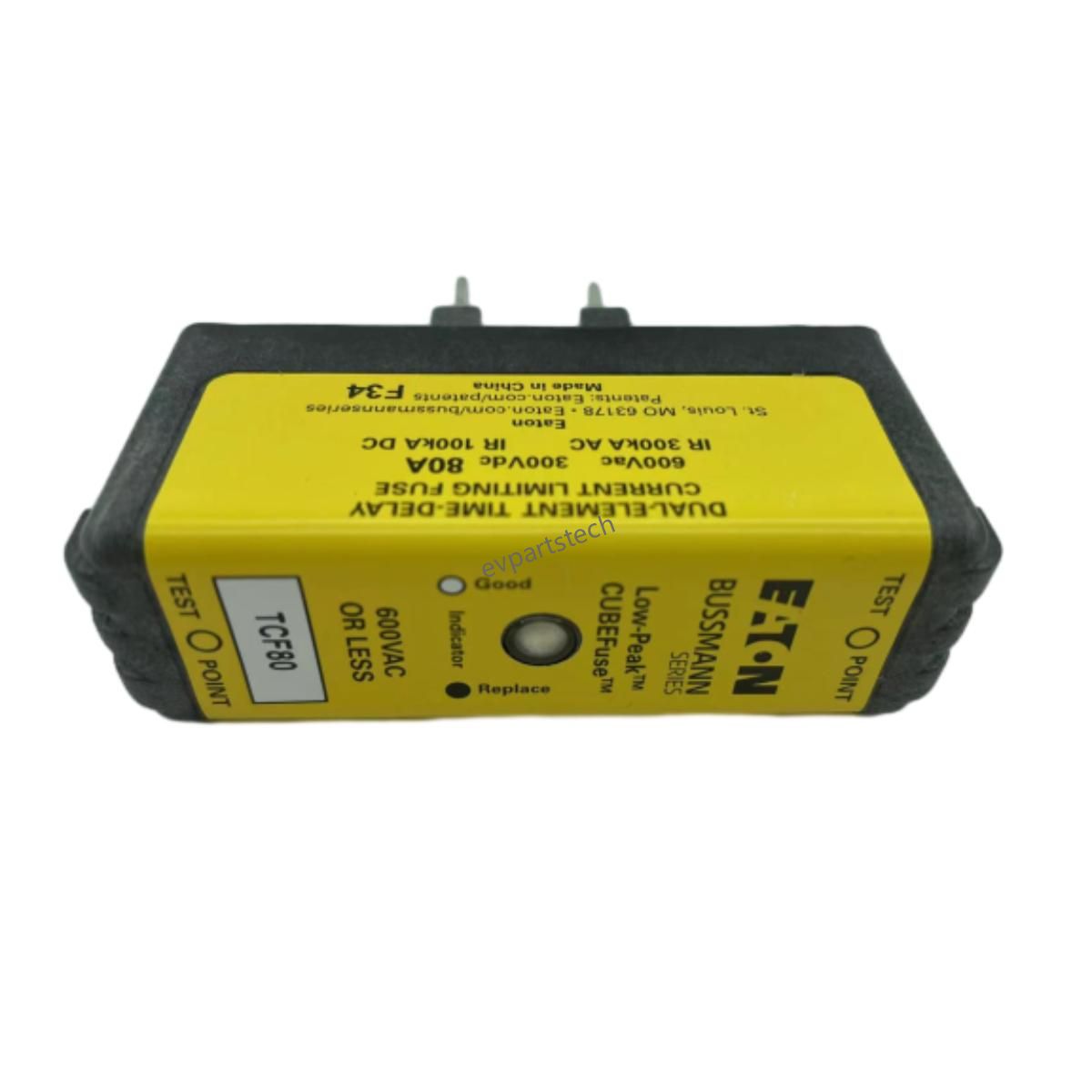

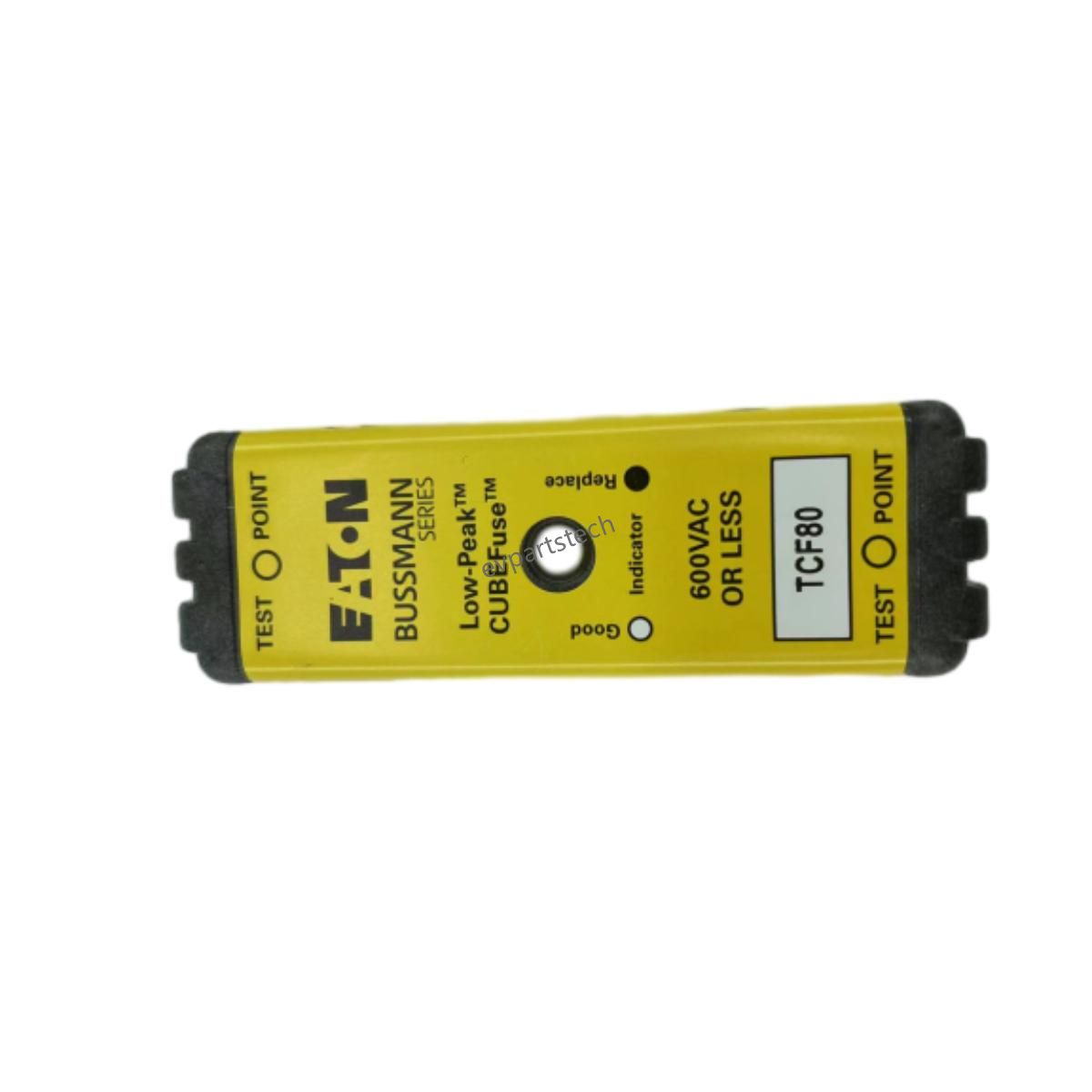

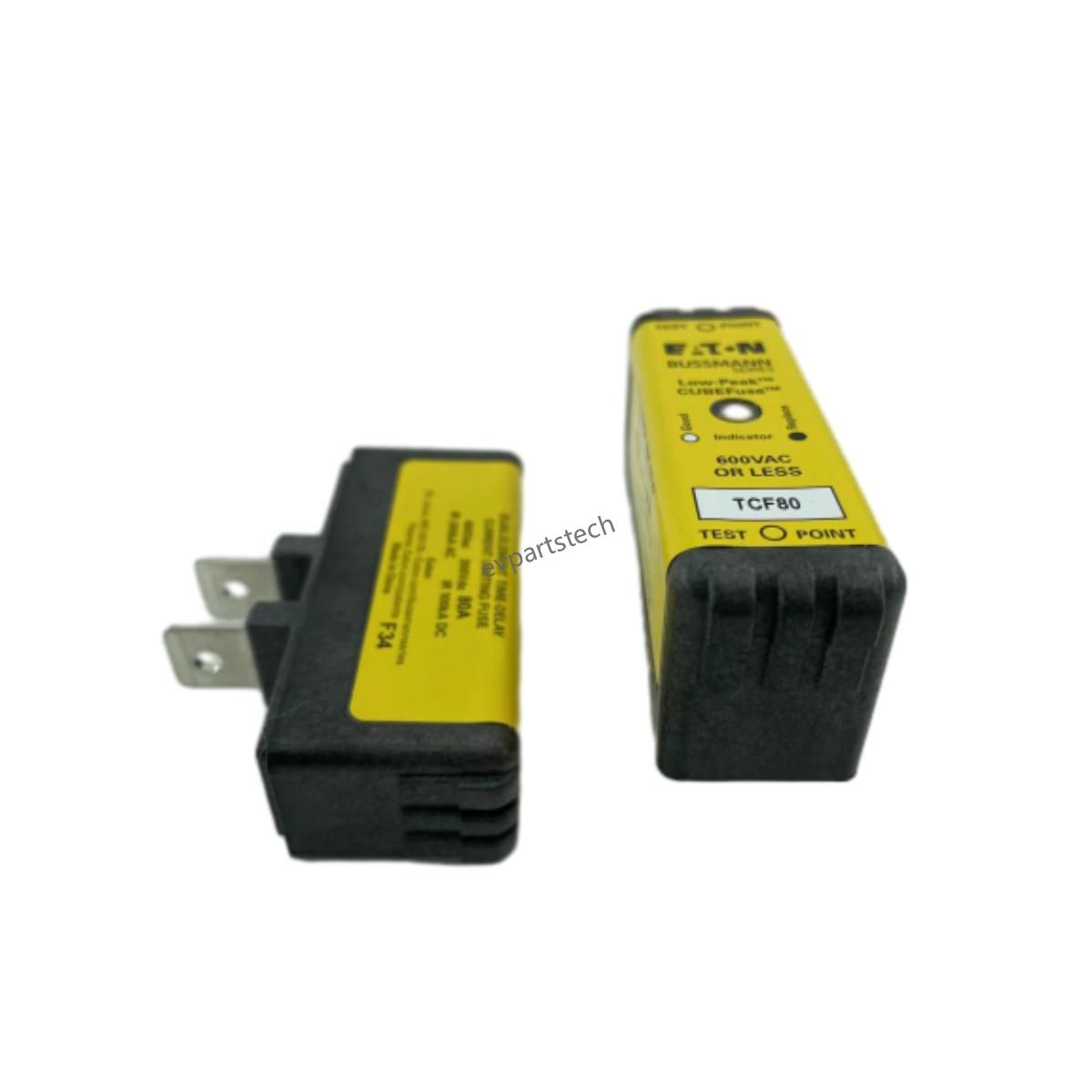

Bussmann Fuse CUBE Fuse 10A-100A With Indication And Without Inditation Time Delay Class J DC Fuse 600Vdc

Parameters

Catalog Symbols: TCF_ Indicating fuse (6-100A)

TCF_RN Non-indicating fuse (1-100A)

Dual-Element, Time-Delay Fuse: 10 Seconds Minimum Operating Time at

500% Rated Current

Ampere Rating: 1 to 100A

Voltage Rating: 600Vac/300Vdc

Interrupting Rating: 300kA RMS Sym. (UL)

200kA RMS Sym. (CSA)

100kA DC (UL & CSA)Agency Information:

• UL Listed Special Purpose Fuse: Guide JFHR, File E56412

• CSA Certified Fuse: Class 1422- 02, File 53787

• CE compliance for the European Union low voltage directive

Other Ratings/Specifications:

Watts Loss at rated current: TCF30: 3.99W

TCF60: 6.23W

TCF100: 9.51W

Operating and Storage Temperature Range: 14 to 149°F(-10 to 65°C)

Material Specifications:

• Case: Glass filled PES (Polyethersulfone)

• Terminals: Copper alloy

• Terminal plating: Electroless tin

• Indicator lens: PES (Polyethersulfone)

(indicating version only)

• Indicator: Energetic chemical

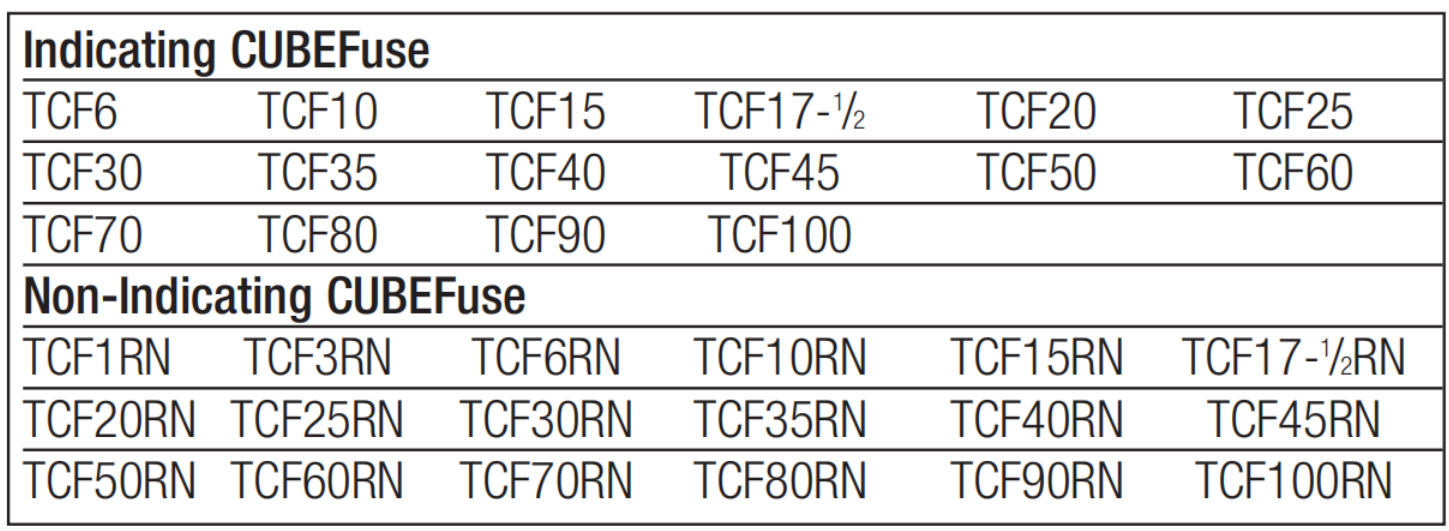

Model List

Features and Product Benefits

• The world’s first finger-safe power fuse system.

• Smallest footprint of any class fuse including Class J, CC, T and RK.

• Meets Class J time-delay electrical performance requirements.

• Available with and without open fuse indication to meet every customer

requirement.

• The indicating version features easyID™ open fuse technology for faster

troubleshooting and reduced downtime.

• Faster response to damaging faults to help reduce destructive thermal and

magnetic forces.

• True dual-element fuse construction with a minimum of 10 seconds time

delay at 500% of rating.

• Long time-delay minimizes nuisance circuit openings due to temporary

overloads and transient surges.

• High interrupting rating to safely interrupt faults up to 300kA.

• No venting of arc or molten metal and gases during opening.

• Robust cycling and inrush current withstand.

• Low let-through currents under fault conditions.

• Provides Type 2 “No Damage” protection for IEC motors starters when

properly sized.

• Easy selective coordination with any other Cooper Bussmann® Low-Peak®

Class L, J and RK1 fuse with simple 2:1 amp ration between upstream and

downstream fuses

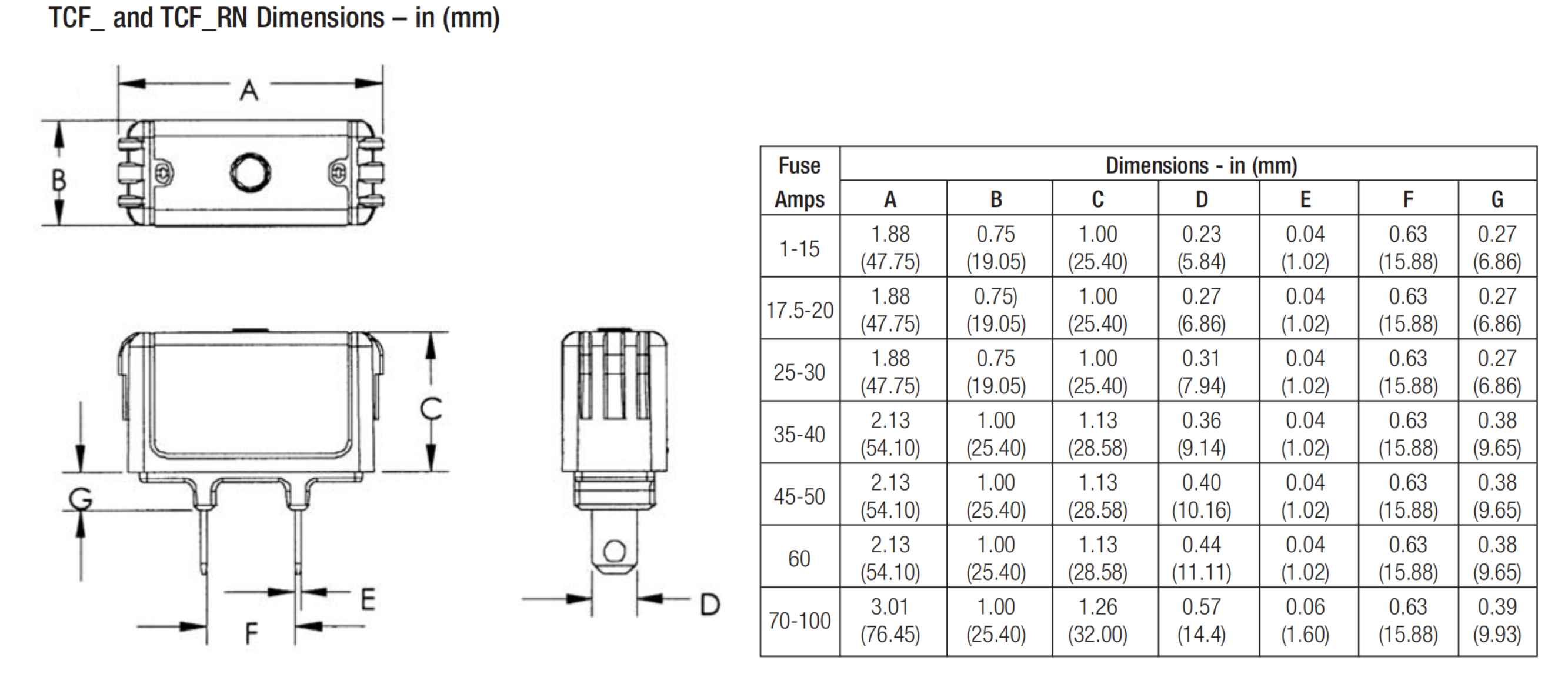

Fuses Dimension Table
