HVSC1P80FV
| Quantity: | |
|---|---|

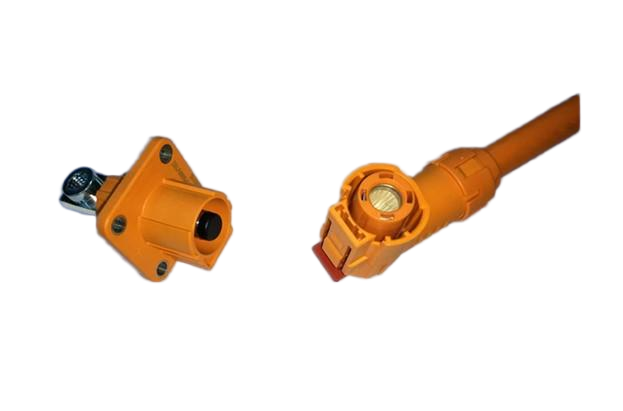

Amphenol HVSC 8 mm 1P High Voltage Connector Detail
 | Part-No. |
Plug:
HVSC1P80FVX16
HVSC1P80FVX25
HVSC1P80FVX35
HVSC1P80FVX50
Socket:
HVSC1P80MVX03 (M6)
"X" indicates code 1/2/3/4
IP67, IP6K9K
HVIL
360 Shield
Extraction Force: ≤ 100N
Working Temperature: -40℃ to + 140℃
Rated Voltage: 1000VDC
Life: ≥ 50 cycles
Rated Current:
25mm² = 150A
35mm² = 180A
50mm² = 220A
Material:
Housing: PA-GF, UL94 V0
Terminal: Copper
Alloy
RFI/EMI Protection: Matel Shield
| HVSC | 1P | 80 | FV | X | 16 | |
| HVSC: HVSC Series | ||||||
| 1P: 1 pin | ||||||
| 80: φ8mm terminal | ||||||
| Connectot Type FV: Plug(90°) MV: Socket | ||||||
| Code: 1/2/3/4 | ||||||
Mating Cable 16=16mm² 25=25mm² 35=35mm² 50=50mm² | ||||||
| Dimensions |

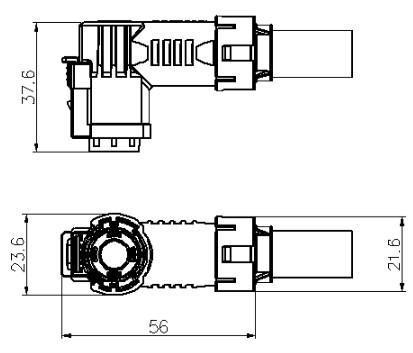

Plug:

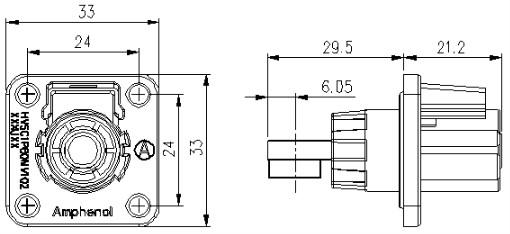

Socket:
Amphenol HVSC 8 mm 1P High Voltage Connector Detail
| Part-No. |
Plug:
HVSC1P80FVX16
HVSC1P80FVX25
HVSC1P80FVX35
HVSC1P80FVX50
Socket:
HVSC1P80MVX03 (M6)
"X" indicates code 1/2/3/4
IP67, IP6K9K
HVIL
360 Shield
Extraction Force: ≤ 100N
Working Temperature: -40℃ to + 140℃
Rated Voltage: 1000VDC
Life: ≥ 50 cycles
Rated Current:
25mm² = 150A
35mm² = 180A
50mm² = 220A
Material:
Housing: PA-GF, UL94 V0
Terminal: Copper
Alloy
RFI/EMI Protection: Matel Shield
| HVSC | 1P | 80 | FV | X | 16 | |
| HVSC: HVSC Series | ||||||
| 1P: 1 pin | ||||||
| 80: φ8mm terminal | ||||||
| Connectot Type FV: Plug(90°) MV: Socket | ||||||
| Code: 1/2/3/4 | ||||||
Mating Cable 16=16mm² 25=25mm² 35=35mm² 50=50mm² | ||||||
| Dimensions |
Plug:
Socket:
