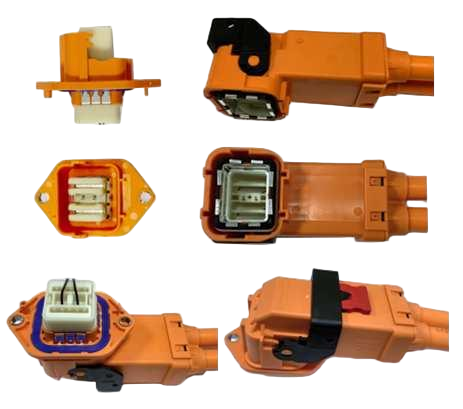

Amphenol HVPC2P16 2 Poles High voltage 1000VDC EV Metal Connectors with HVIL

Amphenol HVPC2P16 16mm 2 Poles High Voltage Plastic Connector Detail

Part-No

• Plug.:
  HVPC2P16MV135 (35mm² Shield)
  HVPC2P16MV150 (50mm² Shield)

• Socket:

  HVPC2P16FV100 (without HVIL)
  HVPC2P16FV1XX (with HVIL)

Specifications

• Mating design:
  Locking assurance by CPA


• Terminal system:
  W=16mm, T-2.5mm, sliver plating
  Wire size 35/50 mm²,shielding
  HVIL contact system

• Termination technology:
  Crimping for female power terminal
  Crimping for female signal terminal

• General:
  IP67, IP6K9K (mated)
  IPXXB (unmated)
  HVIL
  360° shielding
  Coding: A/B/C/D
  Only match with silicone jacket cable

Performance characteristic

• Pull out force: ≥ 500N

• Temperature Range: -40℃ to + 140℃

• Voltage Rnge: 1000VDC

• Withstand Voltage: 2500VAC, 1 Min

• Insul. Resistance: ≥200MΩ, 1kVDC


• Mating Cycles: ≥50 cycles

• Rated Current:
      35mm² Copper cable = 210A
      50mm² Copper cable = 280A
      50mm² Aluminium cable = 210A

• Construction:
  Housing material: PA66-GF V0
  Terminal material: Copper alloy

      RFI/EMI: Metal Shielding

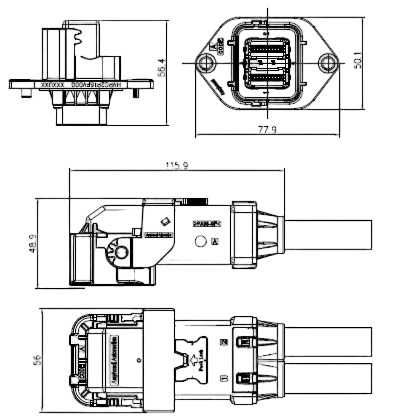

Dimensions
