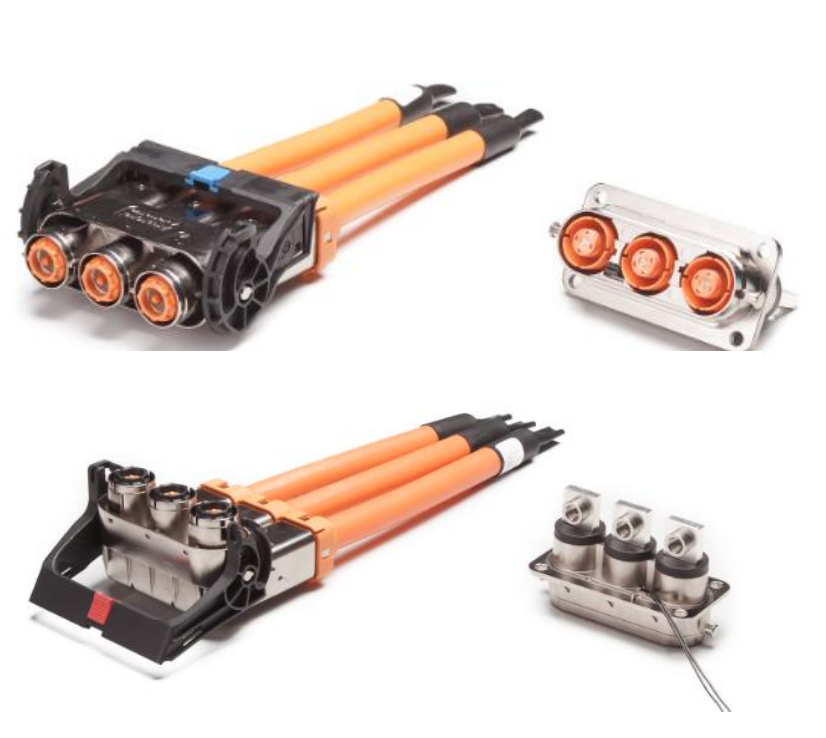

Amphenol HVMC3P12 3 Poles High voltage 1000VDC EV Metal Connectors with HVIL

Amphenol HVMC2P12 12mm 2 Poles High Voltage Metal Connector Detail

Part-No

• Part-No.:
  90°:
  HVMC3P12FVX16 (16mm² Shield)
  HVMC3P12FVX35 (35mm² Shield)

  HVMC3P12FVX50 (50mm² Shield)
  HVMC4P12FVX70 (70mm² Shield)
  180°:


  HVMC3P12FSX16 (16mm² Shield)
  HVMC3P12FSX35 (35mm² Shield)

  HVMC3P12FSX50 (50mm² Shield)
  HVMC3P12FSX70 (70mm² Shield)

• Socket:

  HVMC3P12MVXXX

"X" indicates code 1/2/3/4

Specifications

• Mating design:
  Locking assurance by CPA
  Operation with handle


• Terminal system:
  3 x φ12mm Radsok terminal, sliver plating
  Wire size 16/35/50/70 mm²,shielding(LV216:2016)
  HVIL contact system

• Termination technology:
  Crimping for female power terminal
  Crimping for female signal terminal

• General:
  IP67, IP6K9K (mated)
  IPXXB (unmated)
  HVIL
  360° shielding
  LV215 PG18A

Performance characteristic

• Pull out force: ≤ 75N

• Temperature Range: -40℃ to + 140℃

• Voltage Rnge: 1000VDC

• Withstand Voltage: 2500VAC, 1 Min

• Insul. Resistance: ≥200MΩ, 1kVDC


• Mating Cycles: ≥50 cycles

• Rated Current:
      35mm² = 180A
      50mm² = 250A
      70mm² = 300A

• Construction:
  Housing material: PA66-GF V0
  Terminal material: Copper alloy

      RFI/EMI: Metal Shielding
