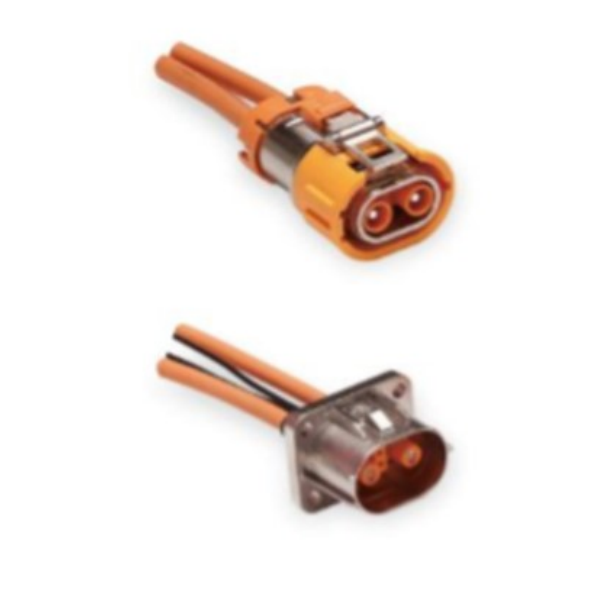

Amphenol HVMC2P24FS 2 Poles High voltage 1000VDC EV Metal Connectors with HVIL

Amphenol HVMC2P24 2.4mm 2 Poles High Voltage Metal Connector Detail

Part-No

• Part-No.:


  180°:


  HVMC2P24FSX02 (2.5mm² Shield)
  HVMC2P24FSX04 (4mm² Shield)

• Socket:

  HVMC2P22MVX02 (2.5mm²)
  HVMC2P22MVX04 (4mm²)


"X" indicates code 1/2/3/4

Specifications

• Mating design:
  Locking assurance by CPA


• Terminal system:
  2 x φ2.4mm Radsok terminal, sliver plating
  Wire size 2.5/4 mm²,shielding
  HVIL contact system

• Termination technology:
  Crimping for female power terminal
  Crimping for female signal terminal

• General:
  IP67, IP6K9K (mated)
  IPXXB (unmated)
  HVIL
  360° shielding
  LV215

Performance characteristic

• Pull out force: ≤ 100N

• Temperature Range: -40℃ to + 140℃

• Voltage Rnge: 1000VDC

• Mating Cycles: ≥50 cycles

• Rated Current:
      2.5mm² = 20A
      4mm² = 32A


• Construction:
  Housing material: PA66-GF V0
  Terminal material: Copper alloy

      RFI/EMI: Metal Shielding

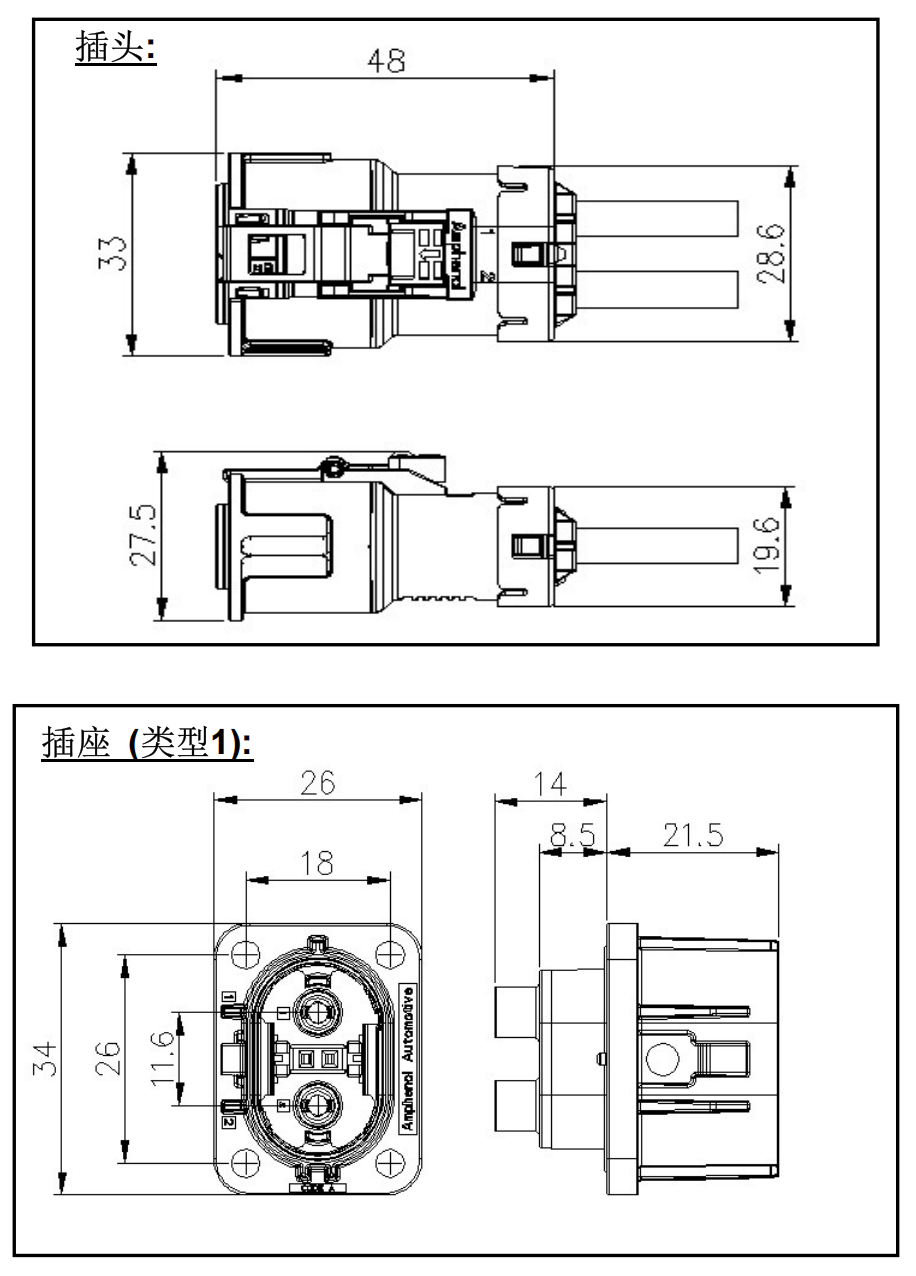

Demensions
