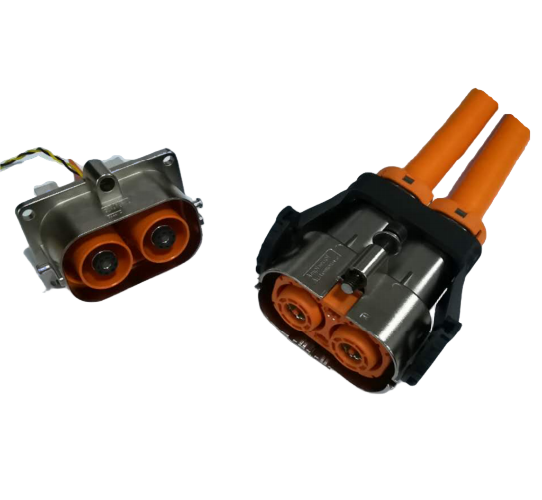

Amphenol HVMC2P14FS 2 Poles High voltage 1000VDC EV Metal Connectors with HVIL

Amphenol HVMC2P14 14mm 2 Poles High Voltage Metal Connector Detail

Part-No

• Part-No.:


  180°:


  HVMC2P14FSX95 (95mm² Shield)
  HVMC2P14FSX12 (120mm² Shield)

• Socket:

  HVMC2P12MVX00 (Type 1, M10)

"X" indicates code 1/2

Specifications

• Mating design:
  Locking assurance by CPA
  Operation with handle


• Terminal system:
  2 x φ12mm Radsok terminal, sliver plating
  Wire size 95/120 mm²,shielding
  HVIL contact system

• Termination technology:
  Crimping for female power terminal
  Crimping for female signal terminal

• General:
  IP67, IP6K9K (mated)
  IPXXB (unmated)
  HVIL
  360° shielding
  LV215

Performance characteristic

• Pull out force: ≤ 100N

• Temperature Range: -40℃ to + 140℃

• Voltage Rnge: 1000VDC

• Mating Cycles: ≥50 cycles

• Rated Current:
      95mm² = 400A
      120mm² = 450A


• Construction:
  Housing material: PA66-GF V0
  Terminal material: Copper alloy

      RFI/EMI: Metal Shielding

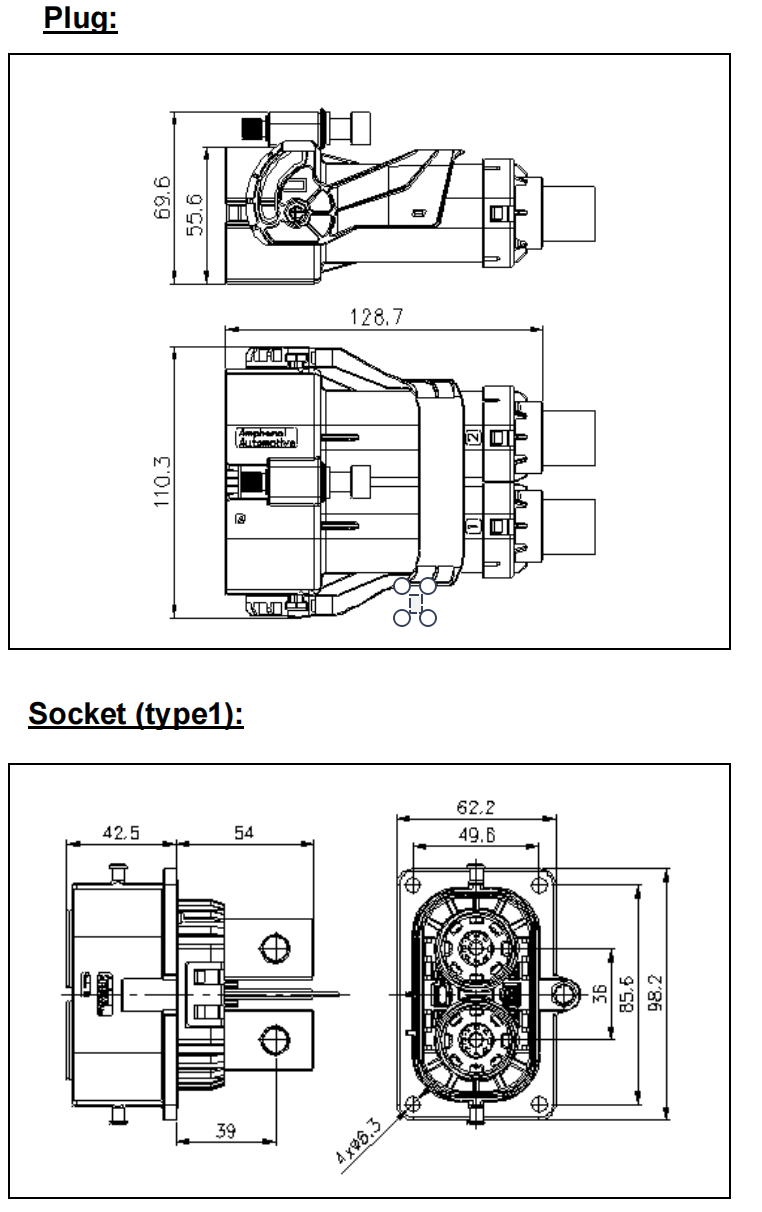

Demensions
