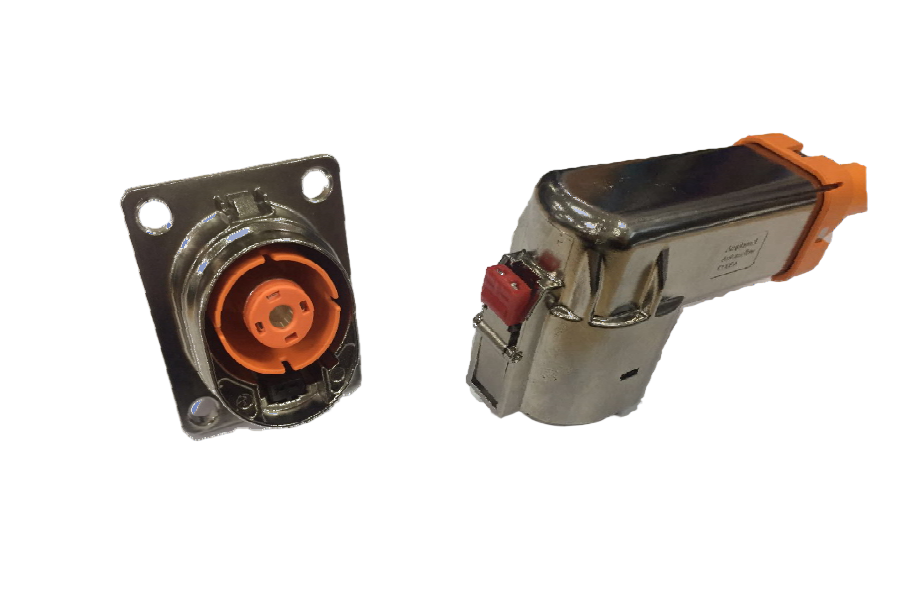

Amphenol HVMC1P12FV 1 Poles High voltage 800VDC EV Metal Connectors with HVIL

Amphenol HVMC1P12 12mm 1 Poles High Voltage Metal Connector Detail

Part-No

• Plug (90°):
  HVMC1P12FVX35 (25mm² Shield)
  HVMC1P12FVX50 (50mm² Shield)

  HVMC1P12FVX70 (70mm² Shield)

• Socket:

  HVMC1P12MVX01 (Type 1, M8)

  HVMC1P12MVX02(Type 2, M6)


   "X" indicates code 1/2

Specifications

• Mating design:
  Serviceable locking leg
  Locking assurance by CPA
  Operation with handle


• Terminal system:
  1 x φ12mm Radsok terminal, sliver plating
  Wire size 35/50/70 mm²,shielding
  HVIL contact system

• Termination technology:
  Crimping for female power terminal
  Crimping for female signal terminal

• General:
  IP67, IP6K9K (mated)
  IPXXB (unmated)
  HVIL
  360° shielding
  LV215

Performance characteristic

• Pull out force: ≤ 100N

• Temperature Range: -40℃ to + 125℃

• Voltage Rnge: 800VDC

• Mating Cycles: ≥50 cycles

• Rated Current:
      35mm² = 180A
      50mm² = 250A
      70mm² = 300A

• Construction:
  Housing material: PA66-GF V0
  Terminal material: Copper alloy

      RFI/EMI: Metal Shielding

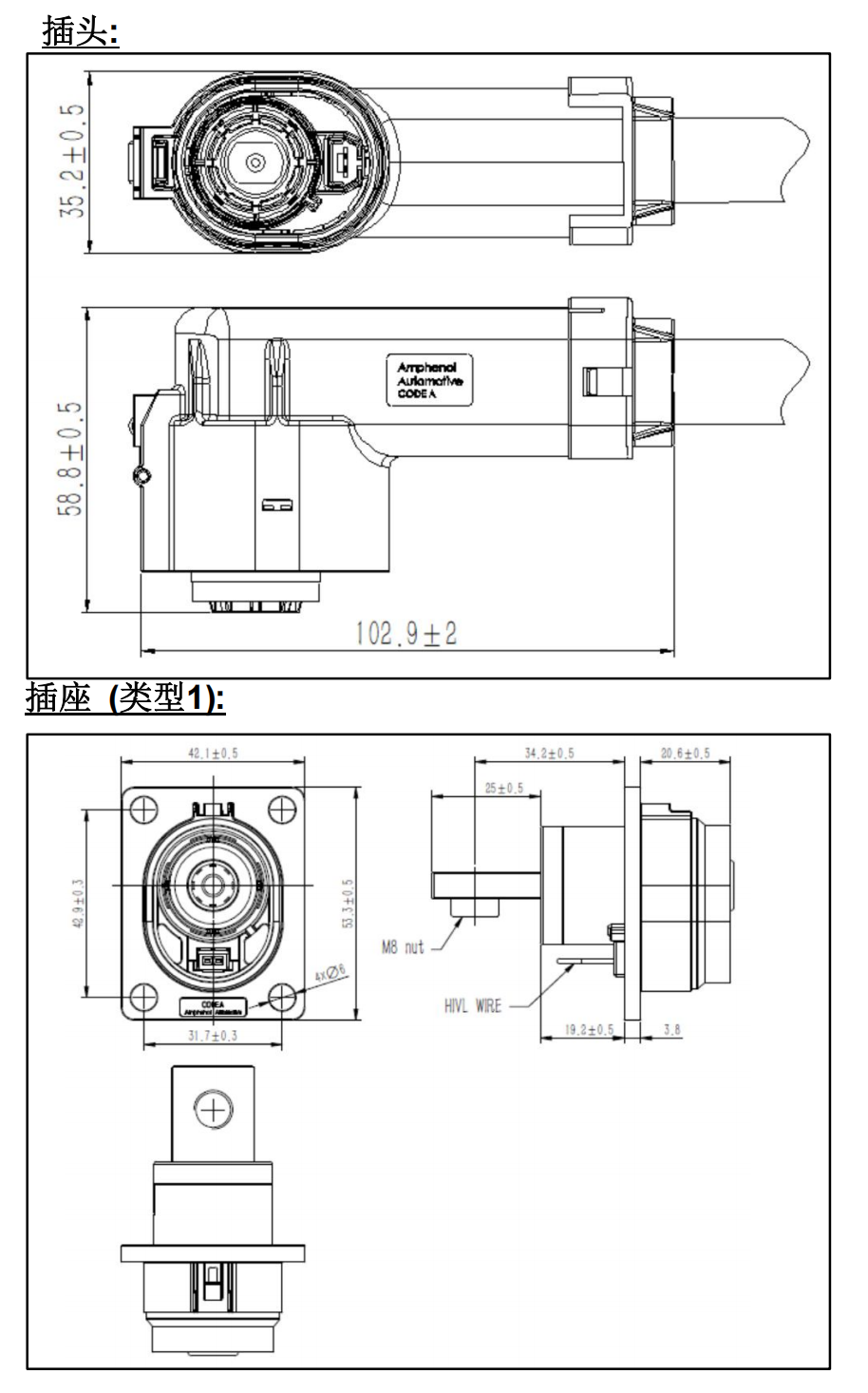

Dimensions
