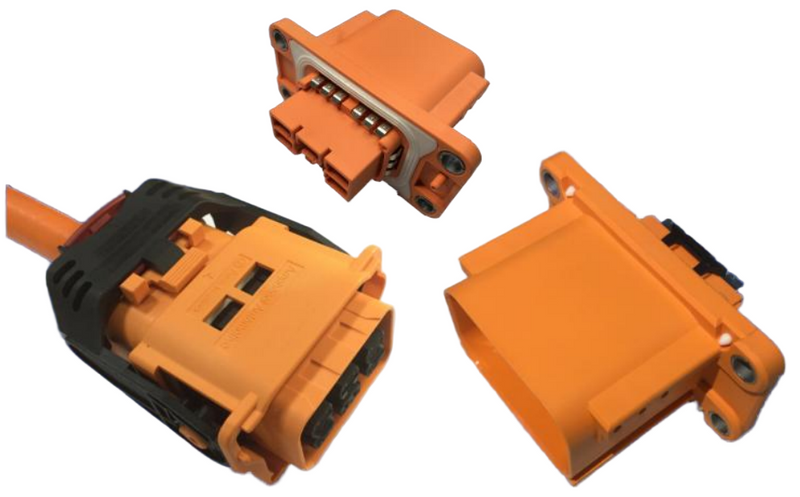

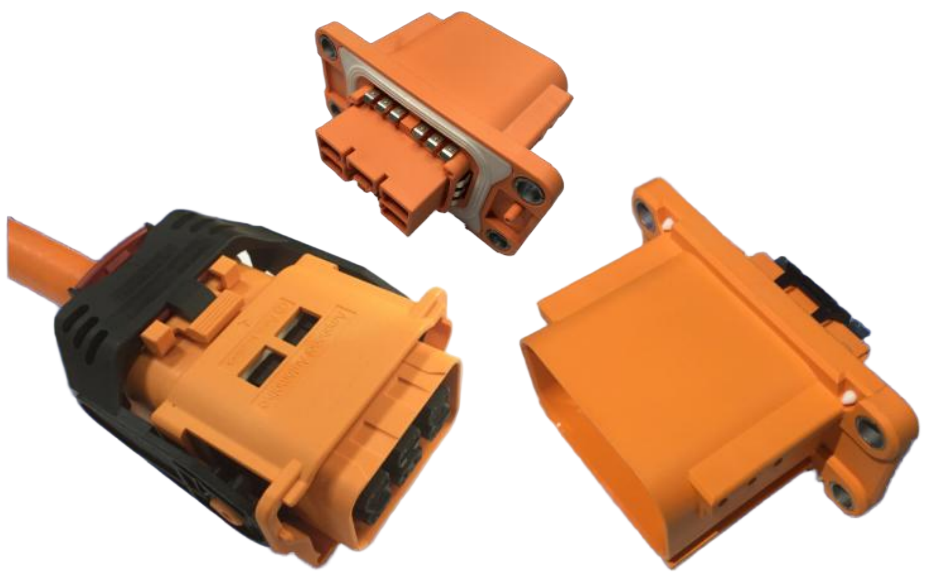

Amphenol HVC5P63FS 5 Poles High voltage 750VDC EV Connector with HVIL

Amphenol HVC 6.3mm 5 Poles High Voltage Connector Detail

Part-No

• Plug (180°):
  HVC5P63FSX06

• Socket:



  P/N.	5 (Power)	2 (HVIL)
  HVC5P63MVX05	Terminal with cable	Terminal with cable
  HVC5P63MVX06	90° Tab	90° Tab

   "X" indicates code 1/2, indicates code A/B

Specifications

• Terminal system:
  Pin Number: 5 (+2 HVIL)
  Terminal 0.8 x 6.3mm,  Sliver plating
  Sheathed cable. Inner layer outer-φ12.6mm, Outer φ15.9±0.3mm, shileding
  HVIL cable 0.35mm²-0.5mm²

• Performance characteristics:

  Max. rated voltage: 750VDC (500VAC)

  Temperature Range: -40℃ to + 140℃
  Current Carrying Capacity: 32A@85℃
  IP67,IP6K9K （mated）
  IPXXB (unmated)
  Bridged in the connector
  CPA: Yes
  TPA: Yes
  Fire Classification: V0
  Vibration Level: V2 (LV215)

• Construction:
  Housing material: PA66-GF V0
  Terminal material: Copper alloy
  Colour: RAL2003

      RFI/EMI: Metal Shielding

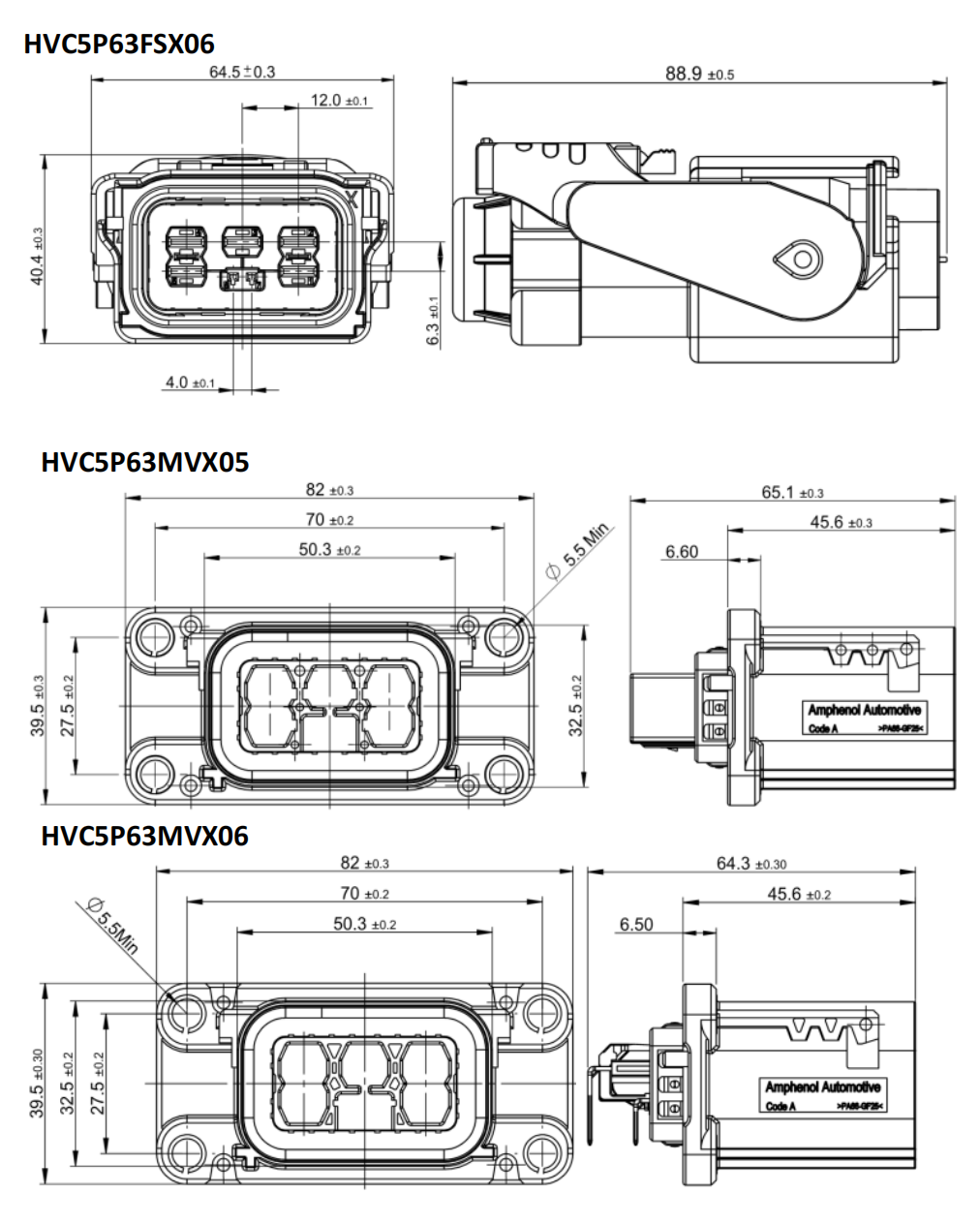

Dimensions
