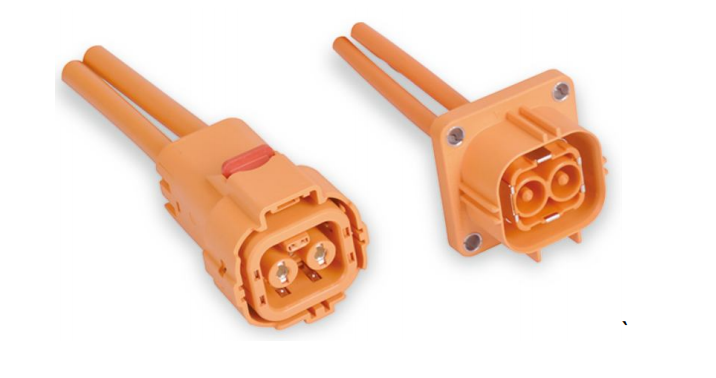

Amphenol HVC2PG36MV High Voltage 800VDC EV Connector Socket mating HVC2PG36FS plug

Amphenol HVC 3.6 mm 2 Poles High Voltage Connector Plug-Welding Socket Detail

Part-No

• Plug:
  HVC2PG36FSX06 (6mm² Shield)
  HVC2PG36FSX10 (10mm² Shield)

• Socket:
  HVC2PG36MVX10-S01 (Welding)
  HVC2PG36MVX06
  HVC2PG36MVX10


   "X" indicates code 1/2/3/4, indicates code A/B/C/D

Specifications

• Mating design:
  Self-locking atructure
  Locking assurance by CPA


• Terminal system:
  φ3.6mm Radsok terminal, sliver plating
  Wire size 6/10 mm²,shielding
  HVIL contact system

• Termination technology:
  Crimping for female power terminal
  Crimping for female signal terminal

• General:
  IP67, IP6K9K (mated)
  IPXXB (unmated)
  HVIL
  360° shielding

Performance characteristic

• Pull out force: ≤ 100N

• Temperature Range: -40℃ to + 125℃

• Voltage Rnge: 1000VDC

• Mating Cycles: ≥50 cycles

• Rated Current:
      6mm² = 55A
      10mm² = 70A


• Construction:
  Housing material: PA66-GF V0
  Terminal material: Copper alloy

      RFI/EMI: Metal Shielding

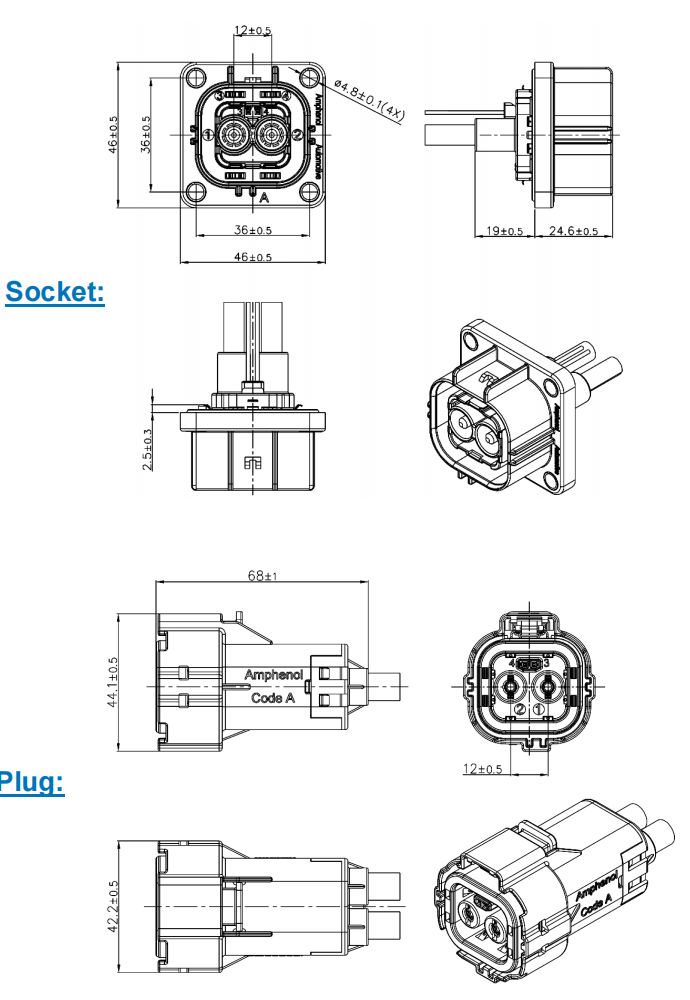

Dimensions
