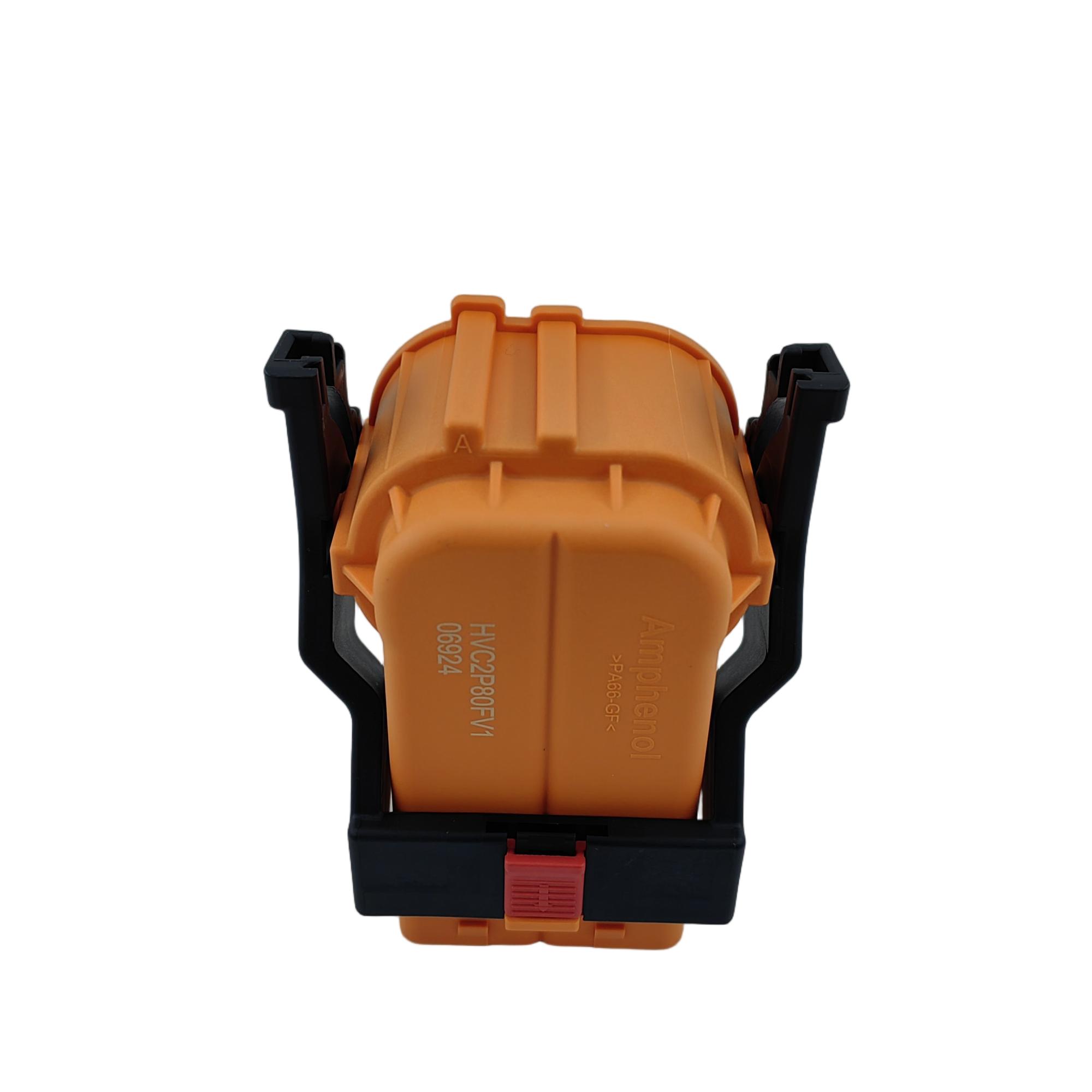

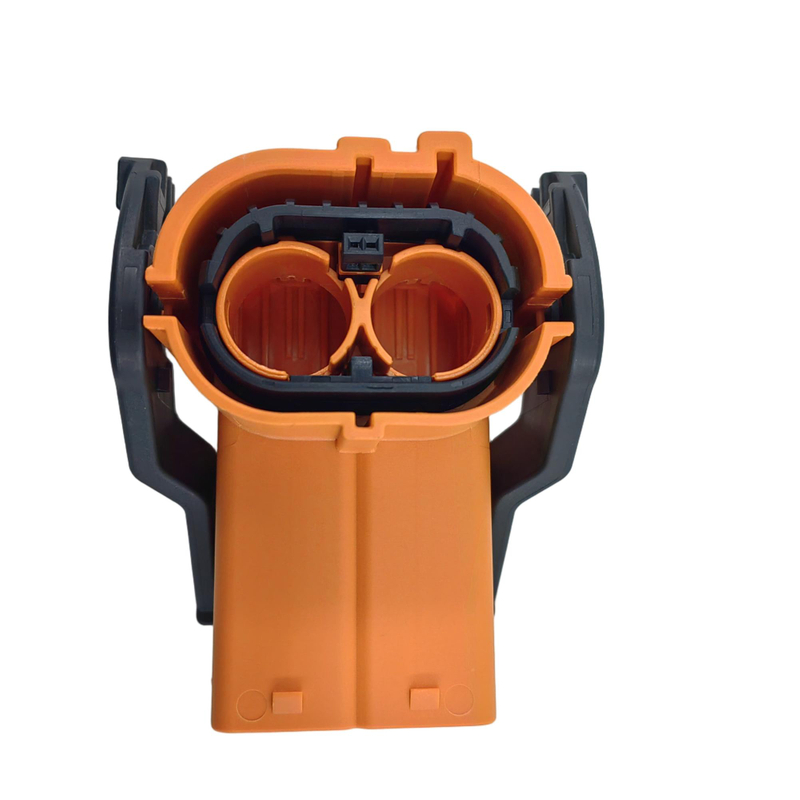

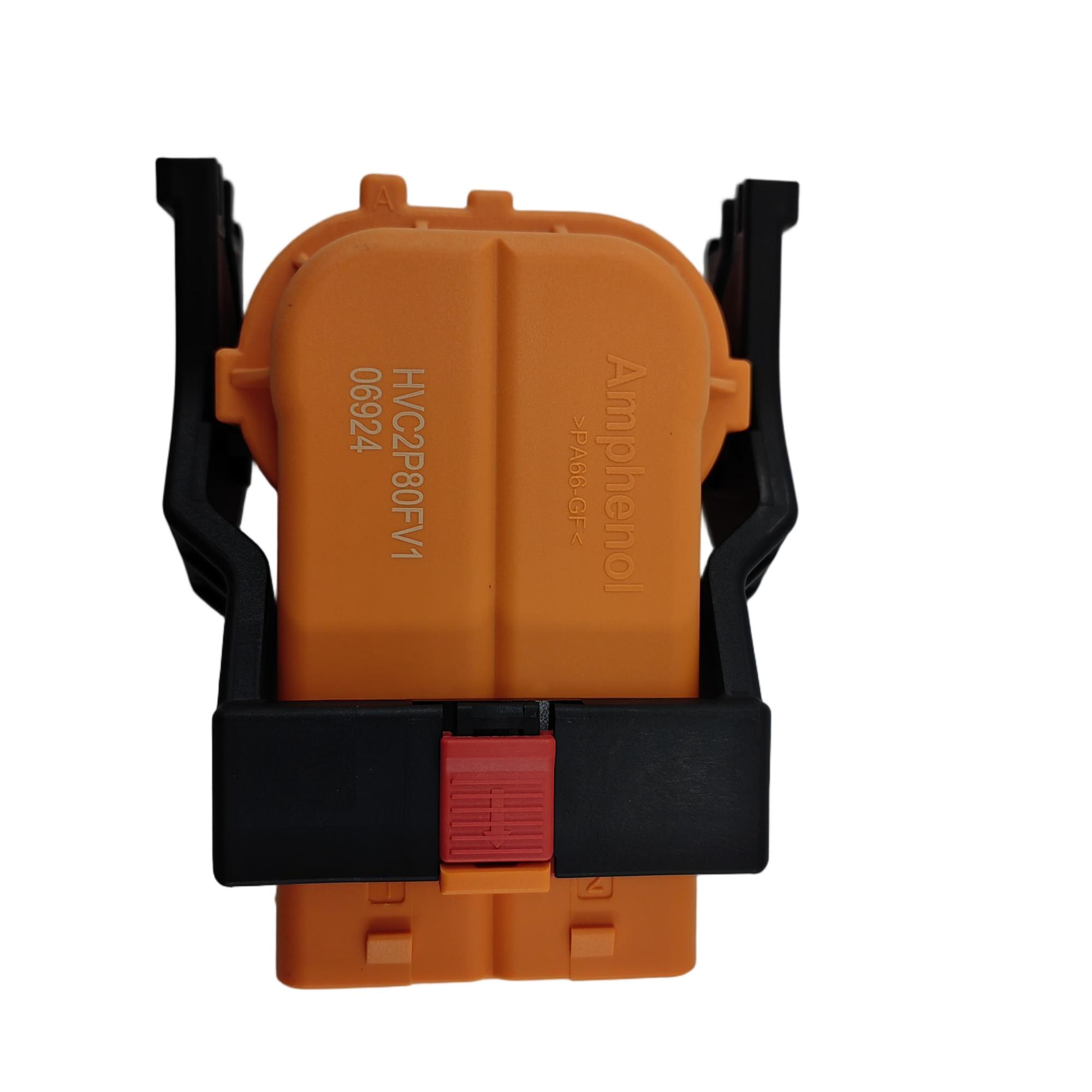

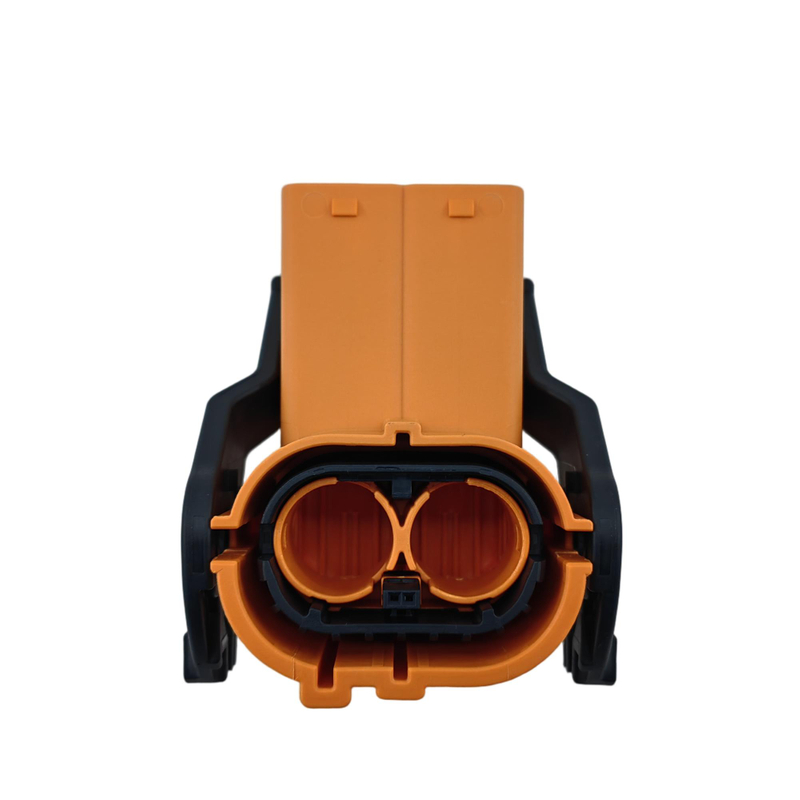

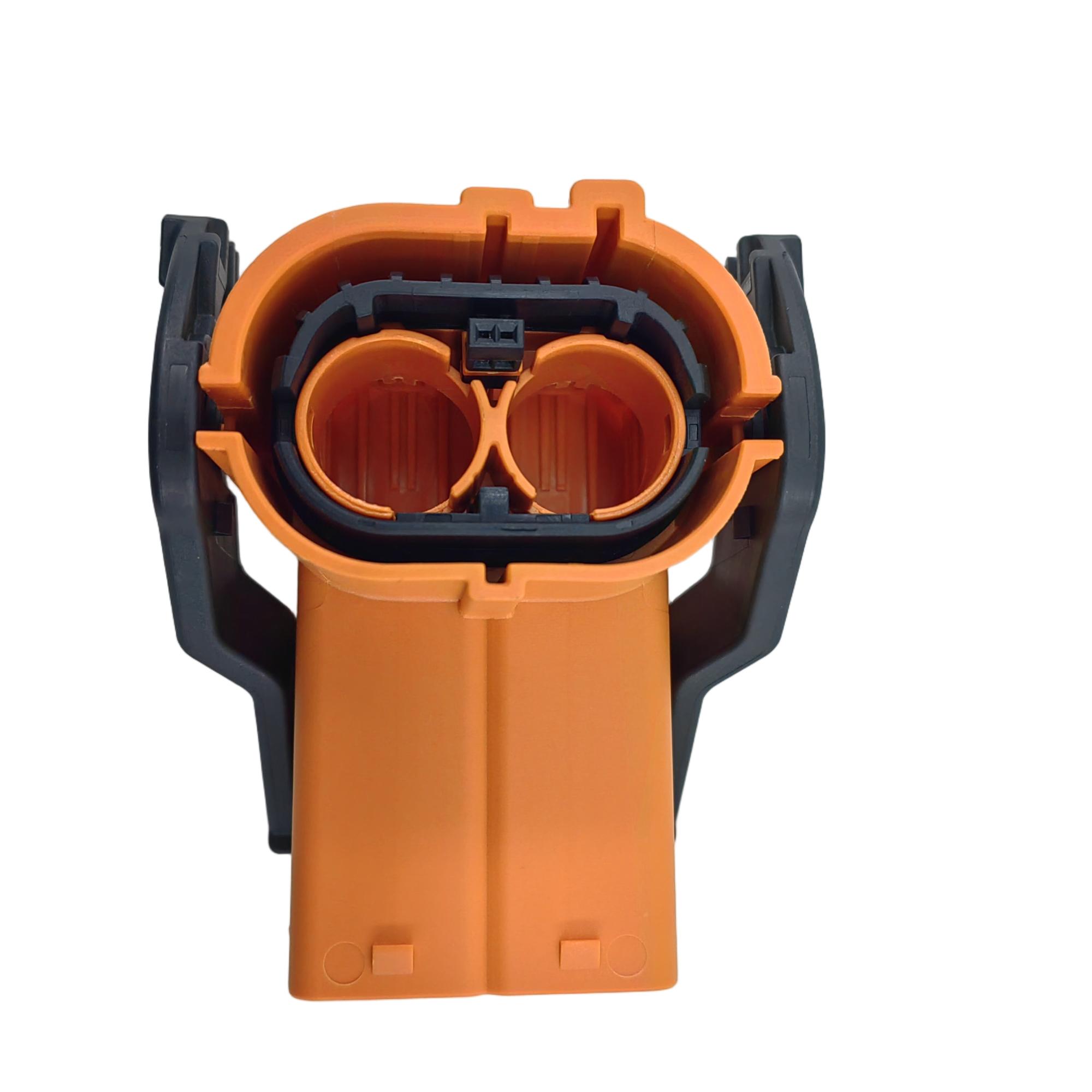

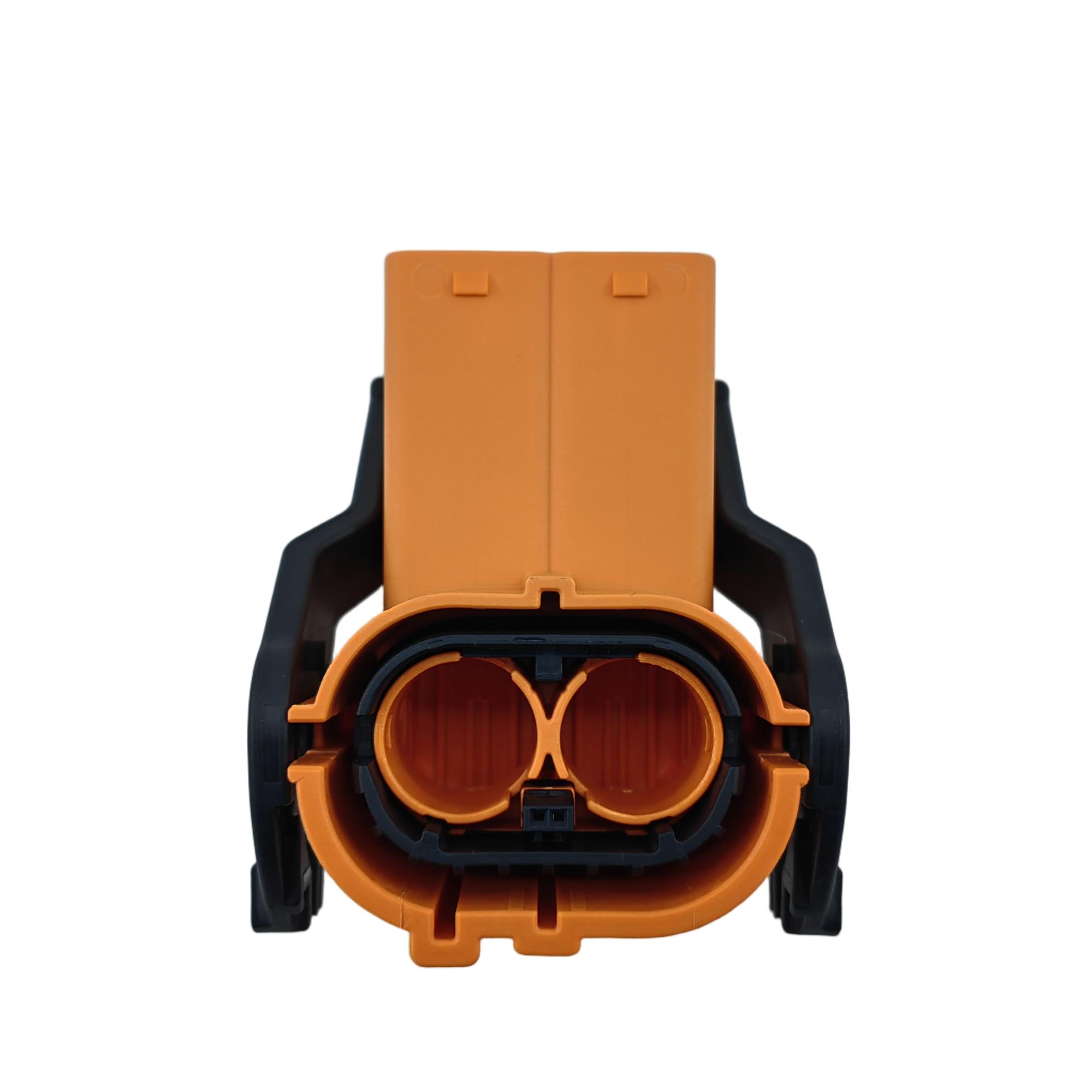

Amphenol HVC2P80MV High voltage 800VDC EV Socket Connectors with HVIL

Amphenol HVC 6.3 mm 2 Poles High Voltage Connector Detail

Part-No

• Plug:
  HVC2P80FSX25 (25mm² Shield)
  HVC2P80FSX35 (35mm² Shield)

  HVC2P80FSX50 (50mm² Shield)


• Socket:
  HVC2P80MVX25

  HVC2P80MVX35
  HVC2P80MVX50


   "X" indicates code 1/2/3/4

Specifications

• Mating design:
  Serviceable locking leg
  Locking assurance by CPA
  Operation with handle


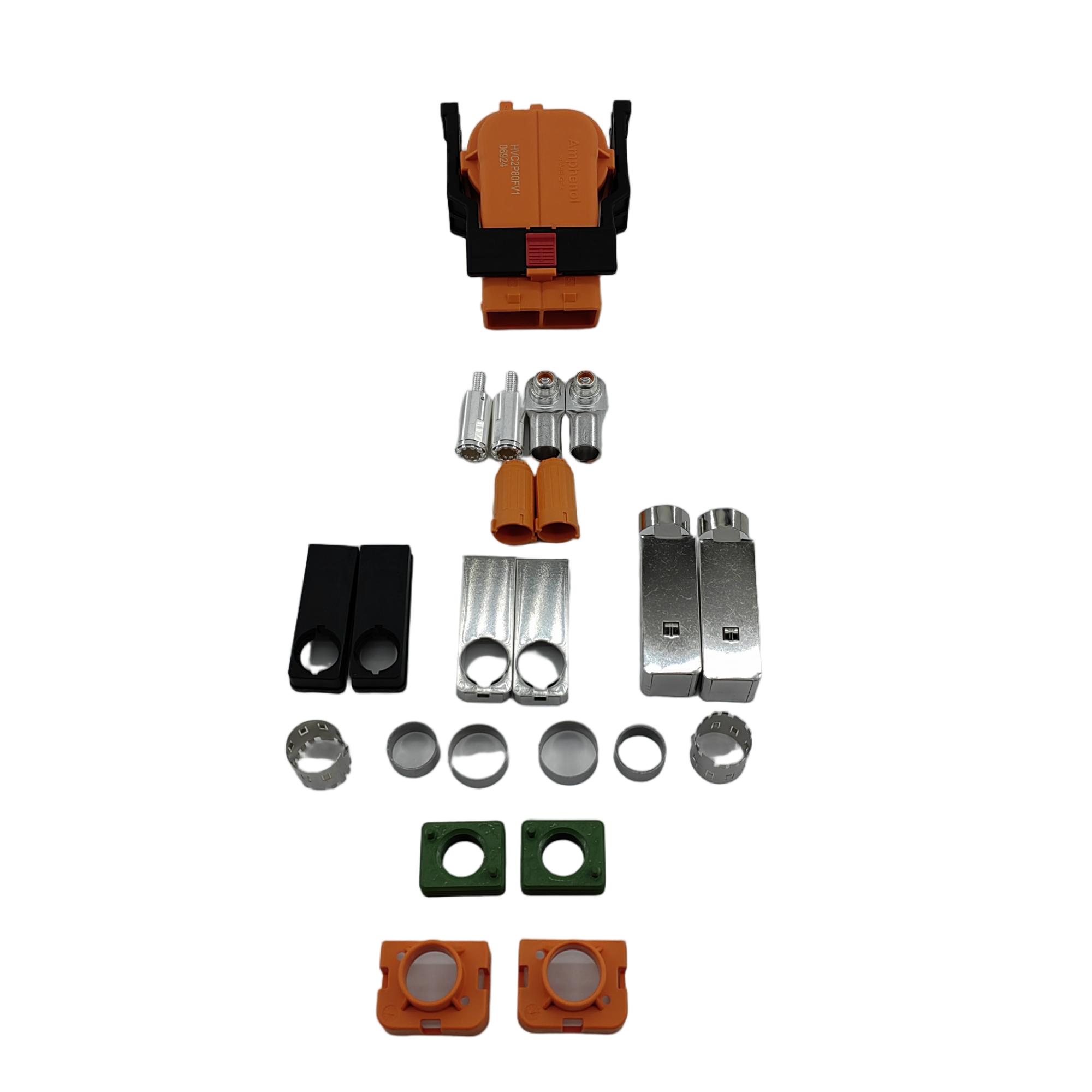

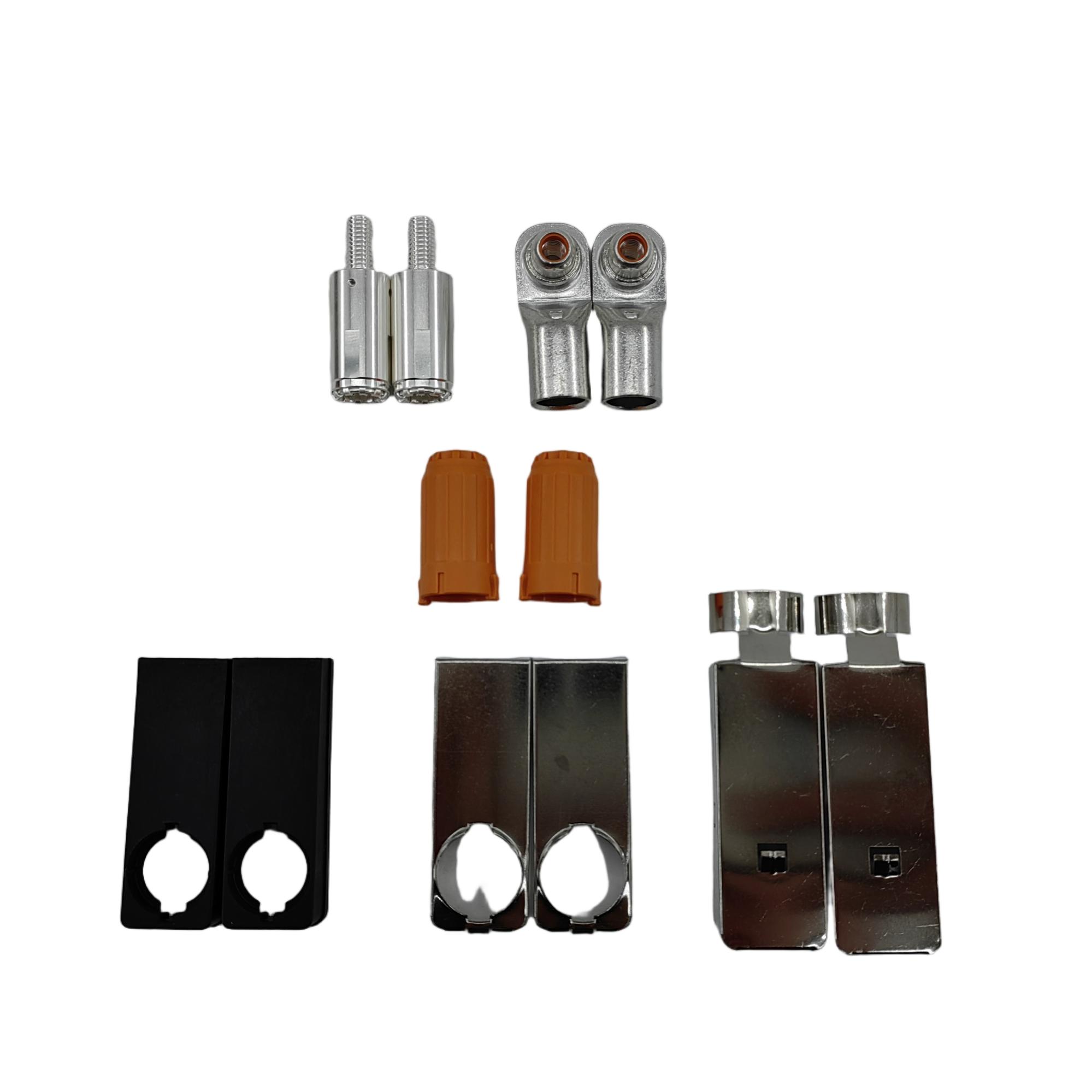

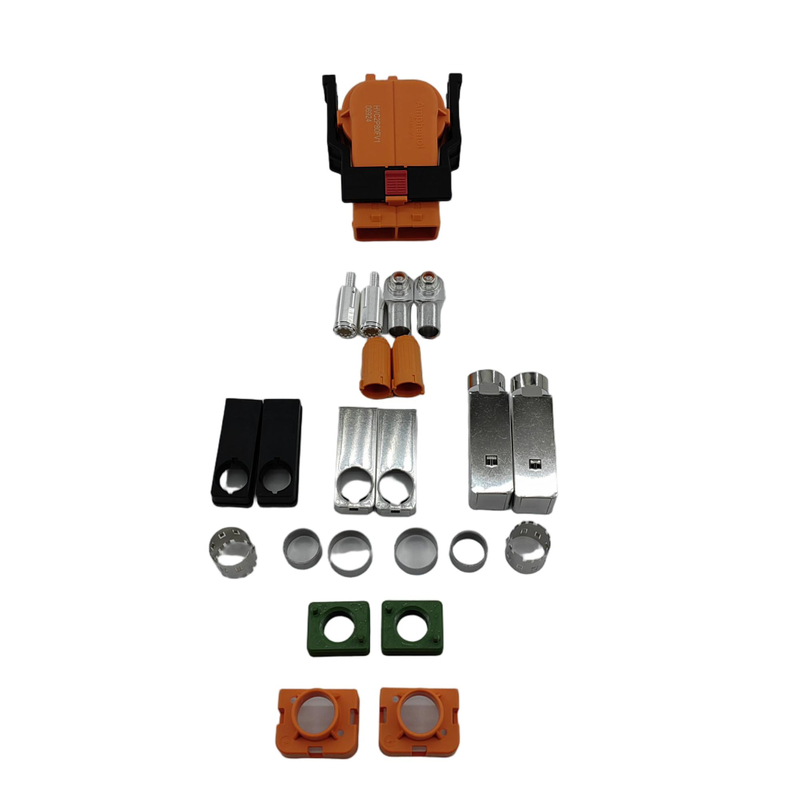

• Terminal system:
  2 x φ8mm Radsok terminal, sliver plating
  Wire size 25/35/50 mm²,shielding
  HVIL contact system

• Termination technology:
  Crimping for female power terminal
  Crimping for female signal terminal

• General:
  IP67, IP6K9K (mated)
  IPXXB (unmated)
  HVIL
  360° shielding

Performance characteristic

• Pull out force: ≤ 100N

• Temperature Range: -40℃ to + 140℃

• Voltage Rnge: 1000VDC

• Mating Cycles: ≥50 cycles

• Rated Current:
      25mm² = 150A
      35mm² = 180A
      50mm² = 220A


• Construction:
  Housing material: PA66-GF V0
  Terminal material: Copper alloy

      RFI/EMI: Metal Shielding

Dimensions
