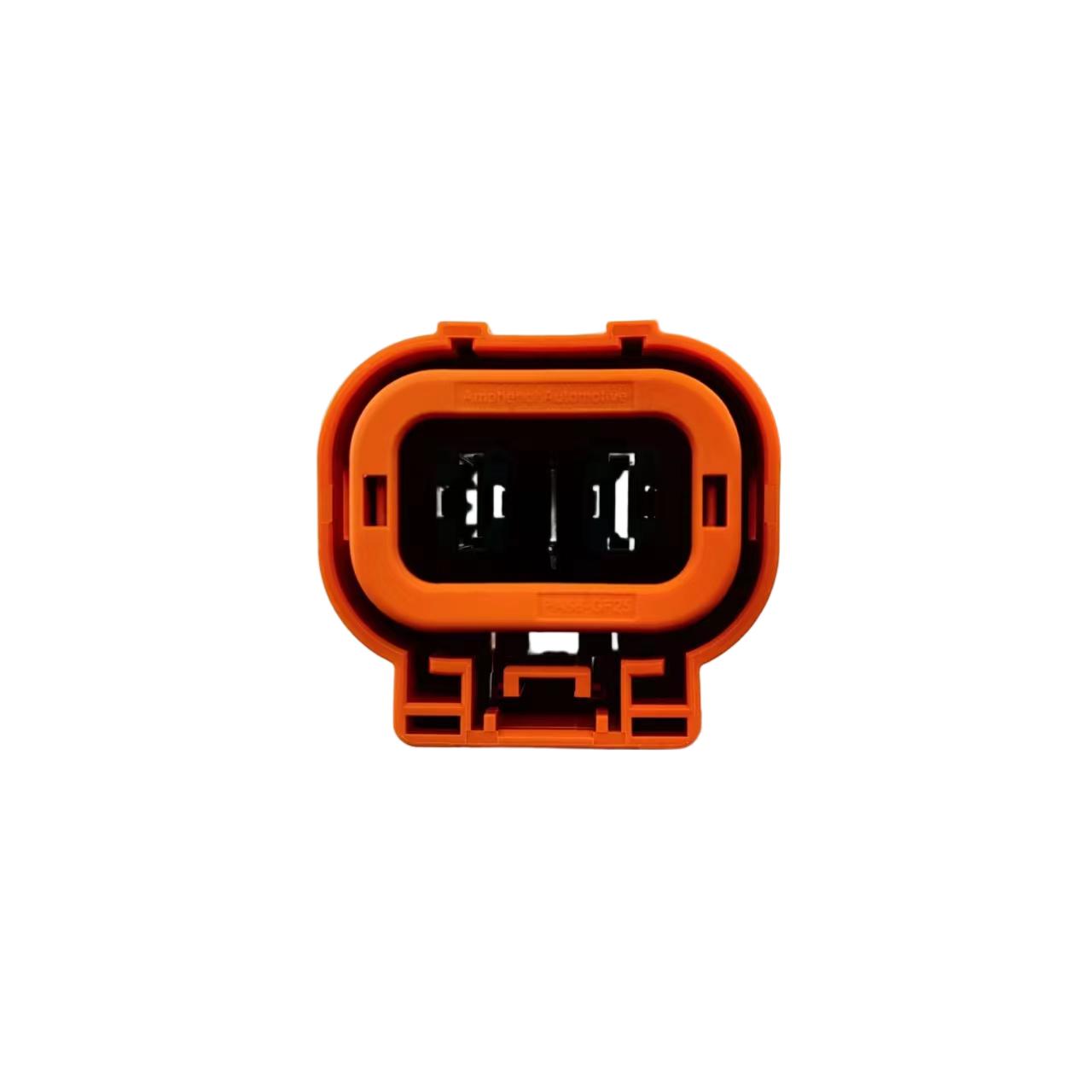

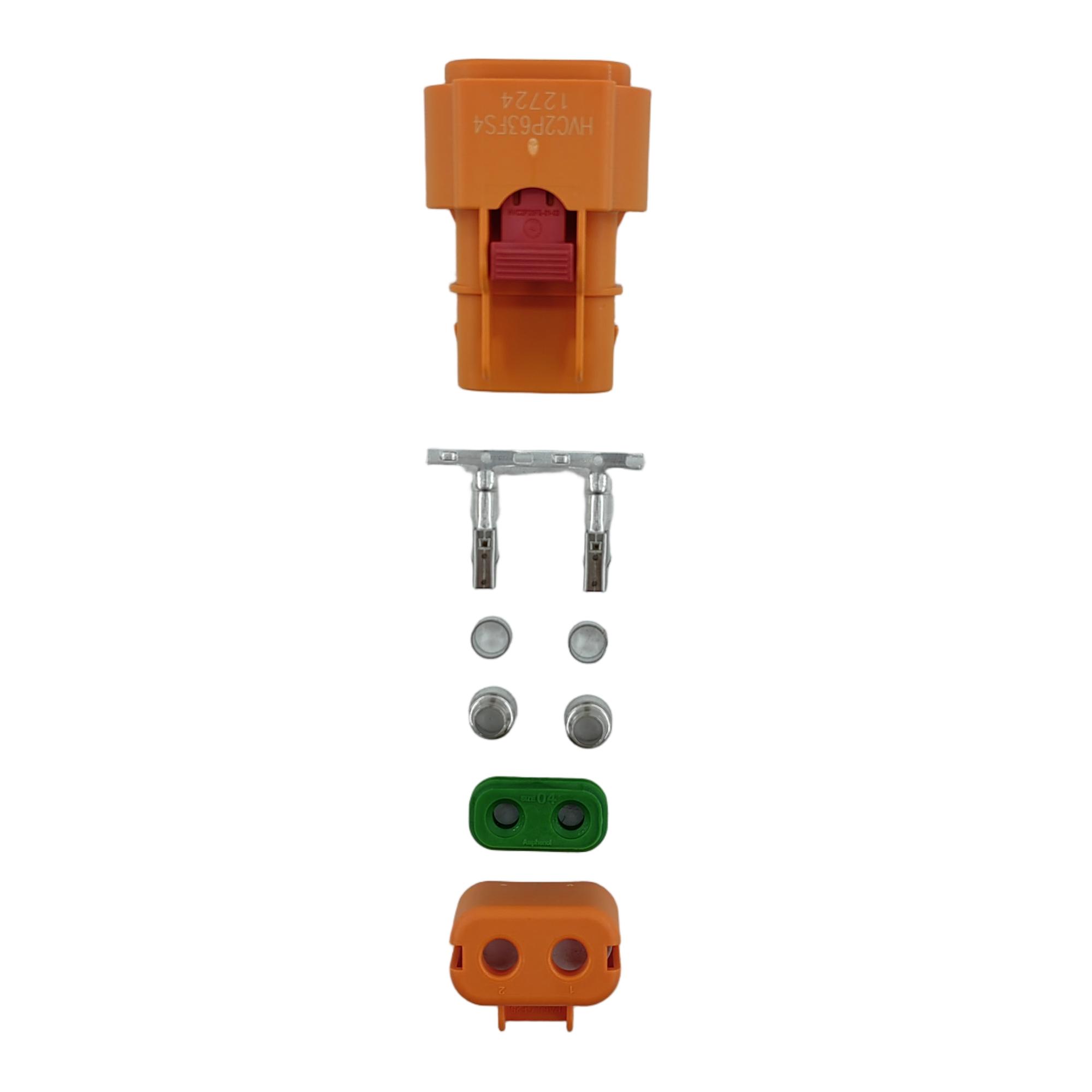

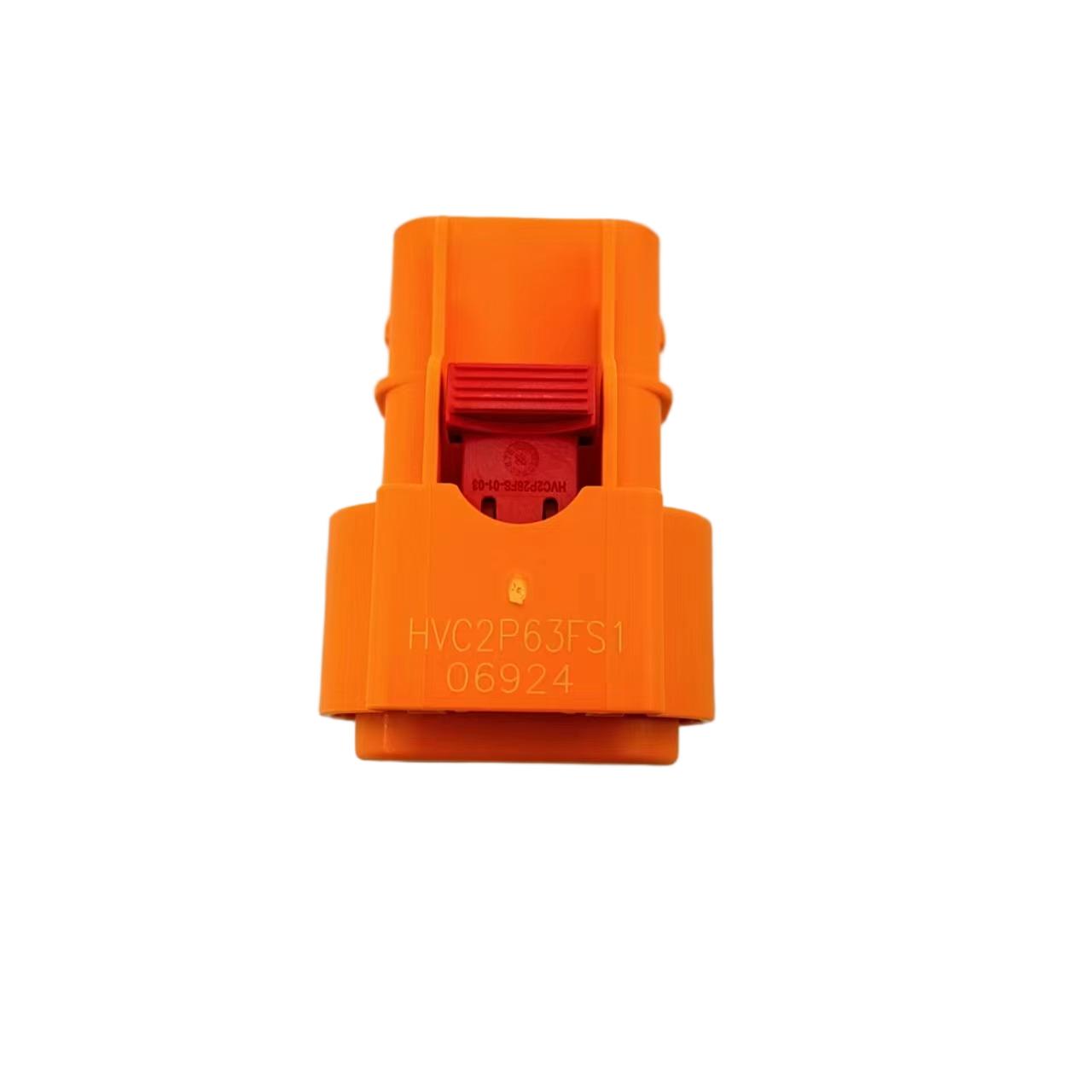

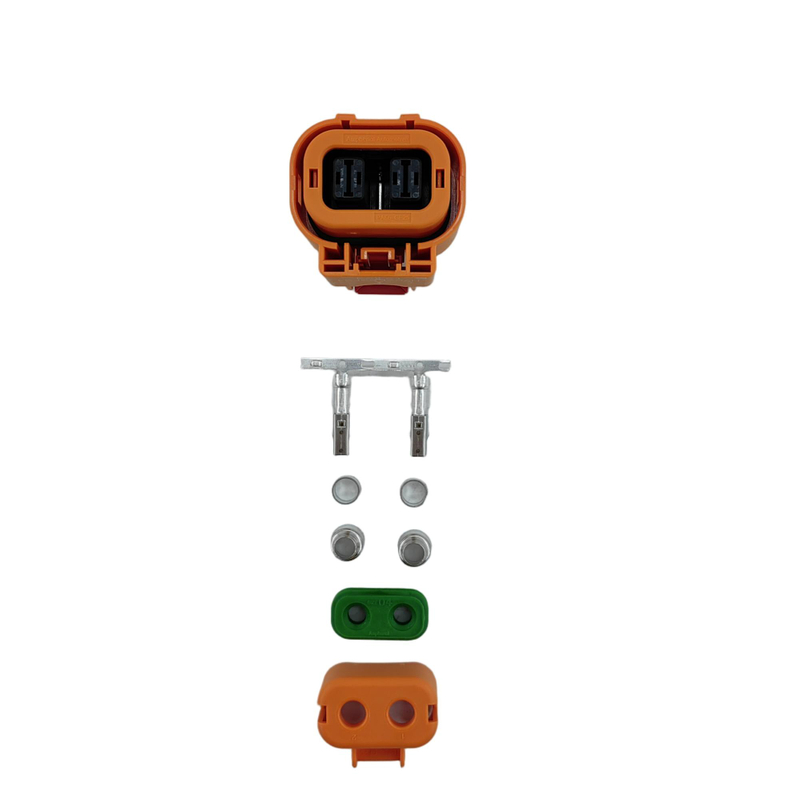

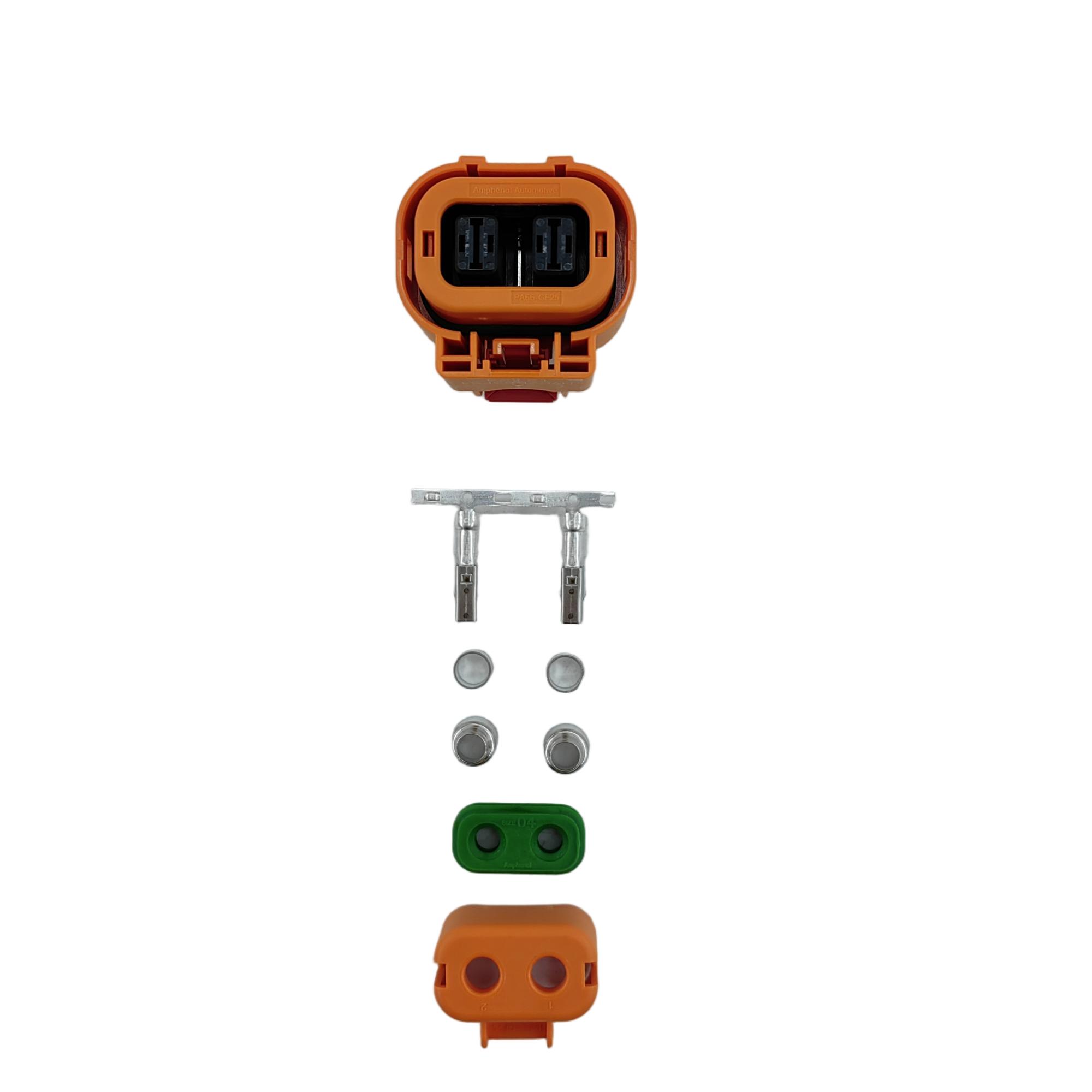

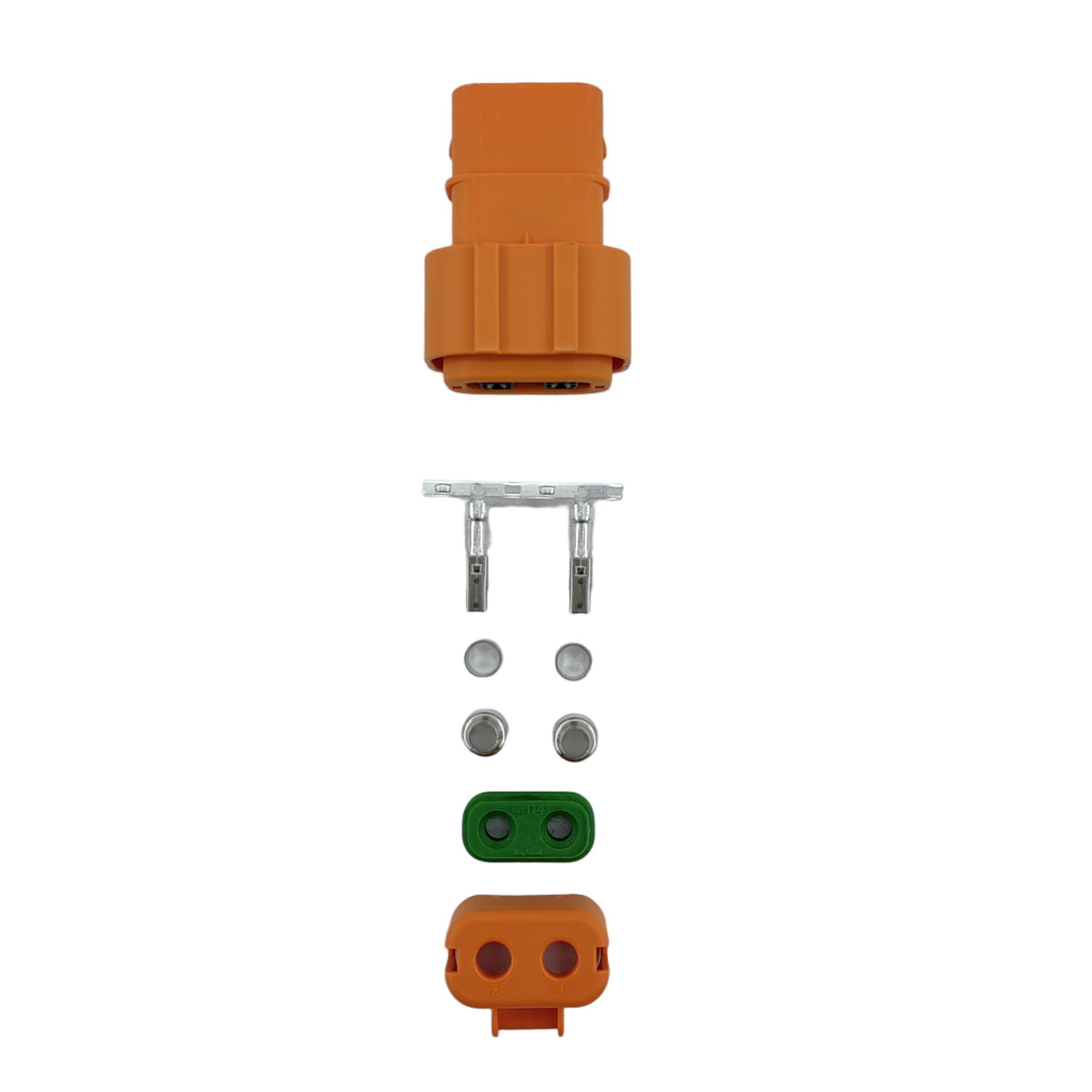

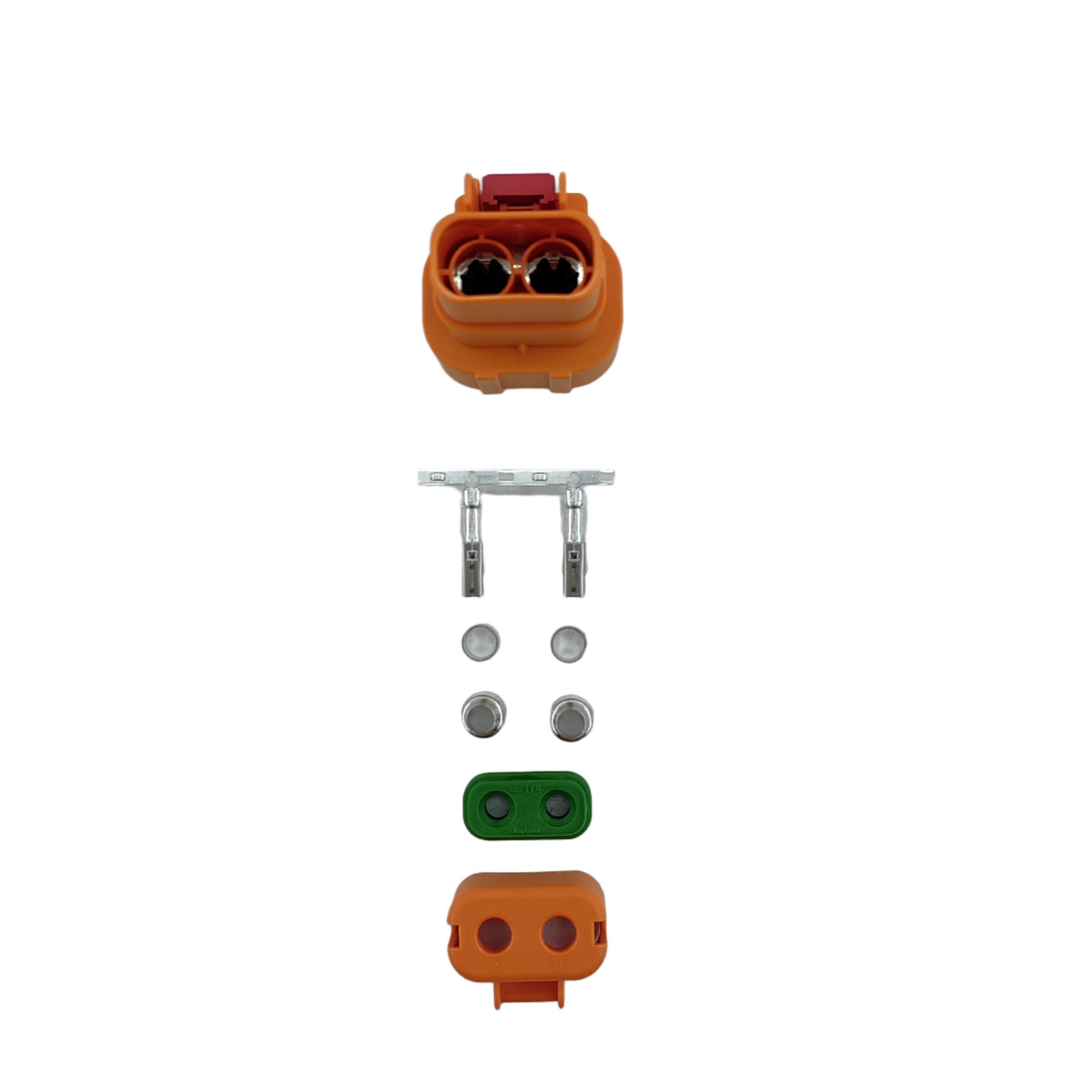

Amphenol HVC2P63 High voltage 800VDC EV Connectors with HVIL

Amphenol HVC 6.3 mm 2 Poles High Voltage Connector Detail

Part-No

• Plug:
  HVC2P63FSX02 (12.5mm² Shield)
  HVC2P63FSX04 (4mm² Shield)

  HVC2P63FSX05 (5mm² Shield)
  HVC2P63FSX06 (6mm² Shield)


• Socket:
  HVC2P63MVX02

  HVC2P63MVX04
  HVC2P63MVX05
  HVC2P63MVX06


   "X" indicates code 1/2/3/4

Specifications

• Mating design:
  Serviceable locking leg
  Locking assurance by CPA
  Operation with handle


• Terminal system:
  0.8 x 6.3mm Radsok terminal, sliver plating
  Wire size 2.5/4/5/6 mm²,shielding
  HVIL contact system, 0.5mm²

• Termination technology:
  Crimping for female power terminal
  Crimping for female signal terminal

• General:
  IP67, IP6K9K (mated)
  IPXXB (unmated)
  HVIL
  360° shielding

Performance characteristic

• Pull out force: ≤ 100N

• Temperature Range: -40℃ to + 125℃

• Voltage Rnge: 1000VDC

• Mating Cycles: ≥50 cycles

• Rated Current:
      2.5mm² = 20A
      4.0mm² = 36A
      5.0mm² = 40A
      6.0mm² = 45A


• Construction:
  Housing material: PA66-GF V0
  Terminal material: Copper alloy

      RFI/EMI: Metal Shielding

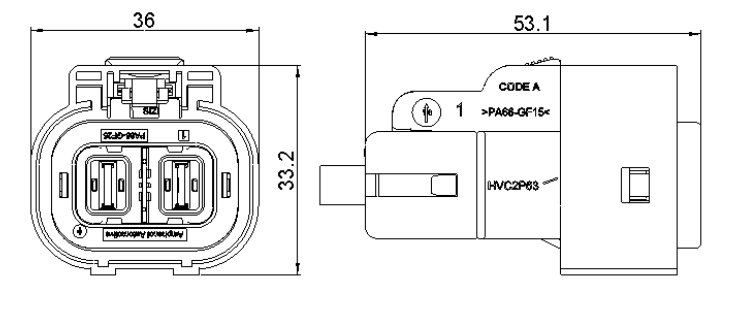

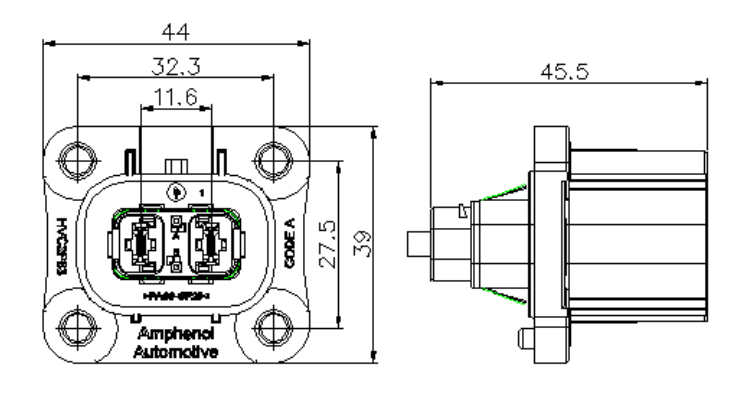

Dimensions
