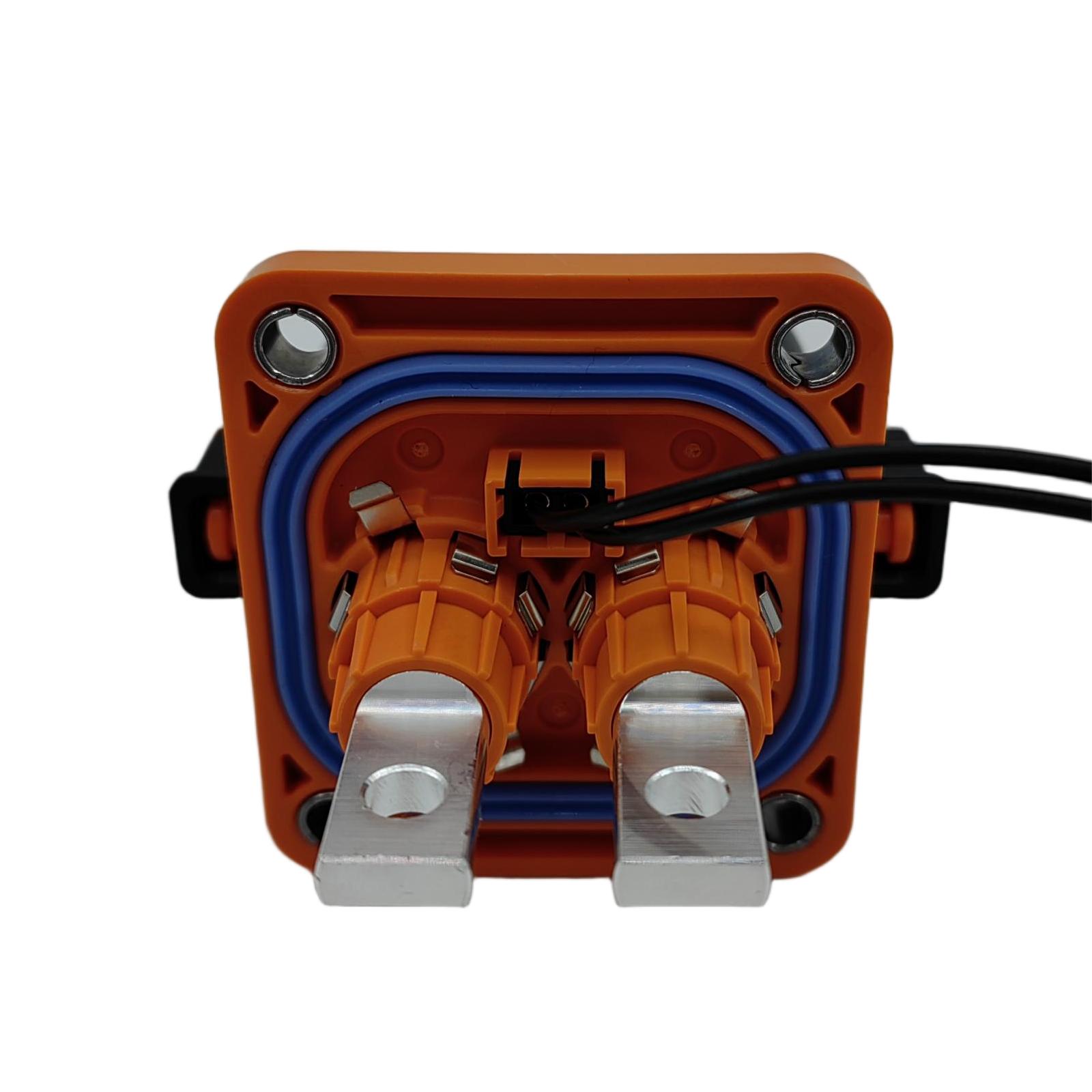

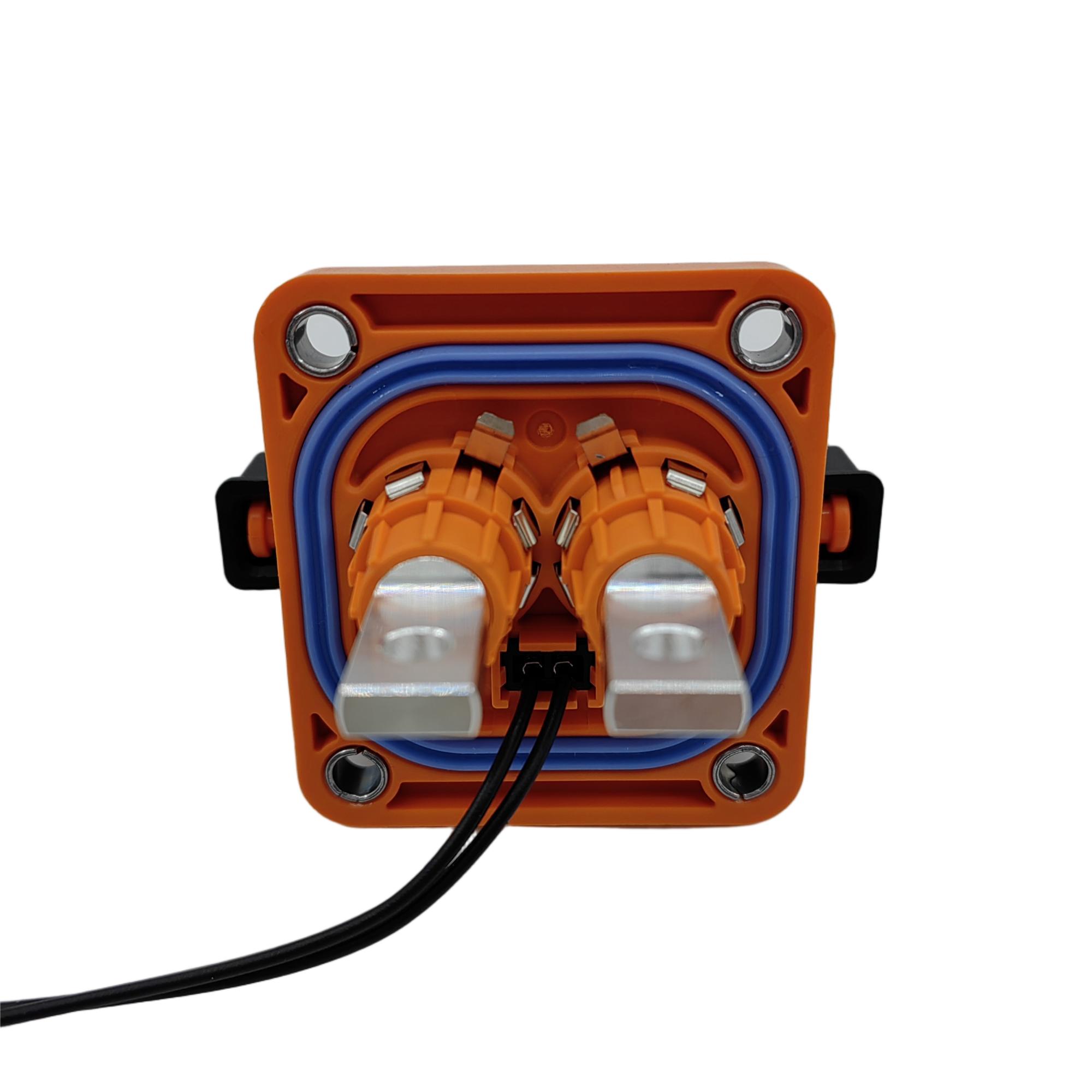

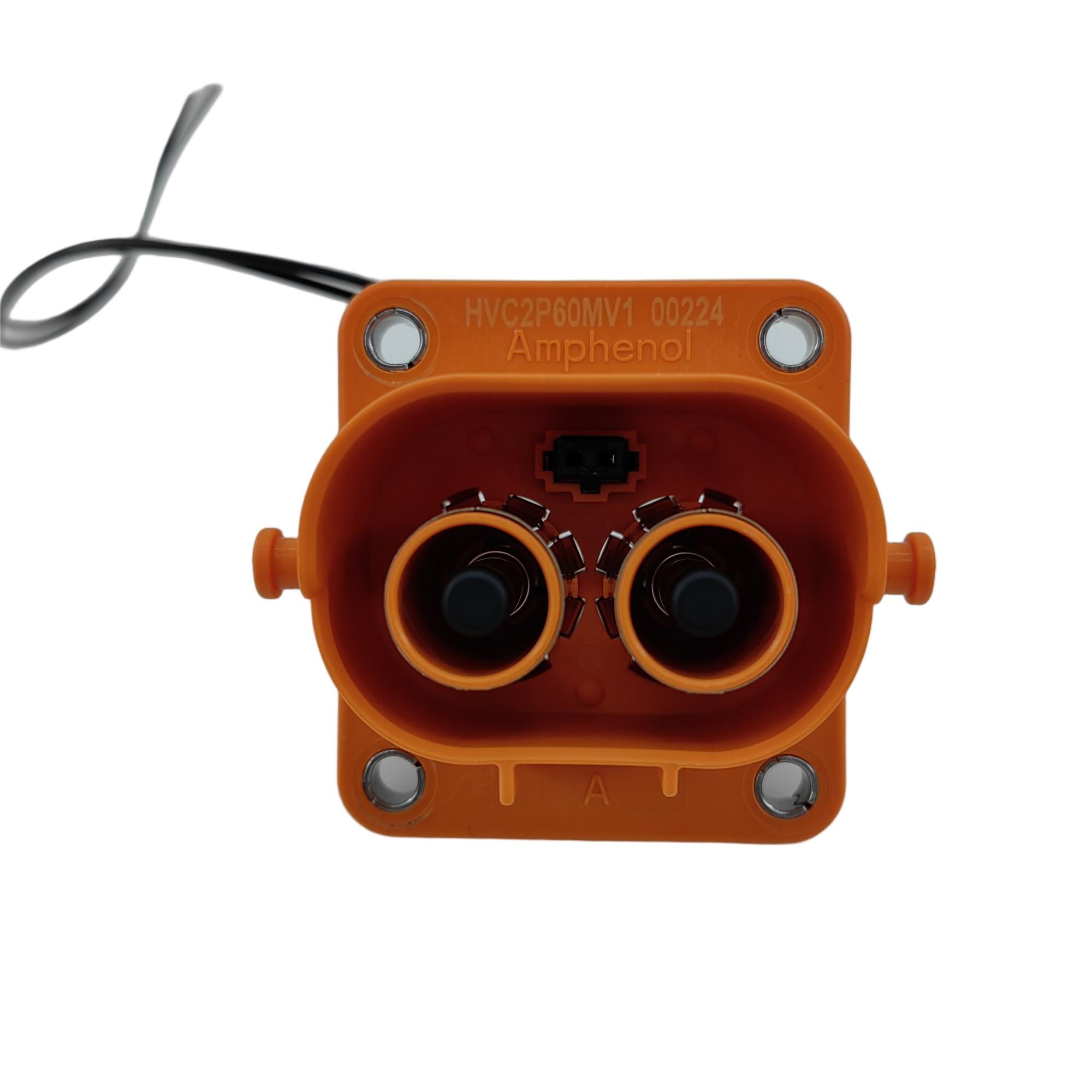

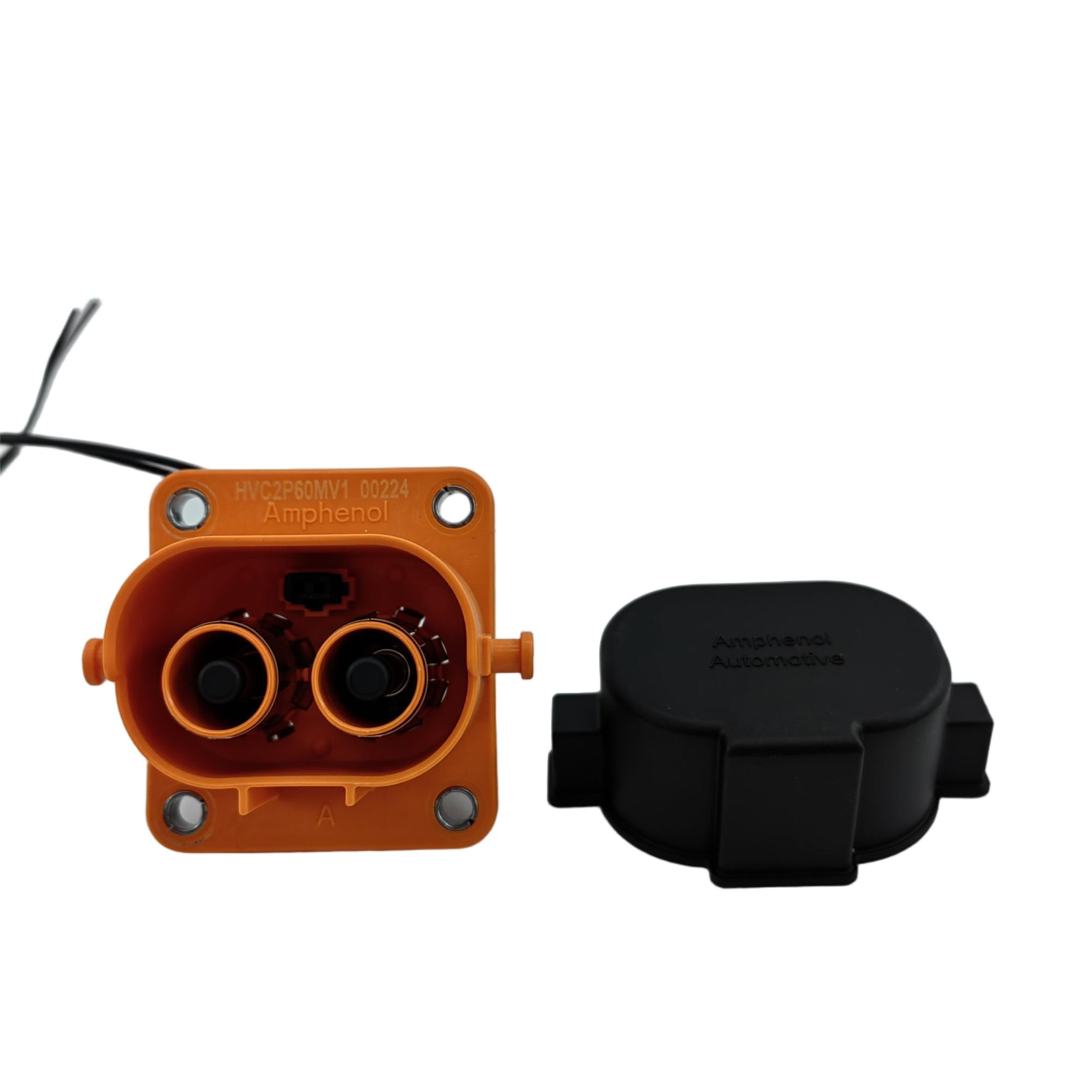

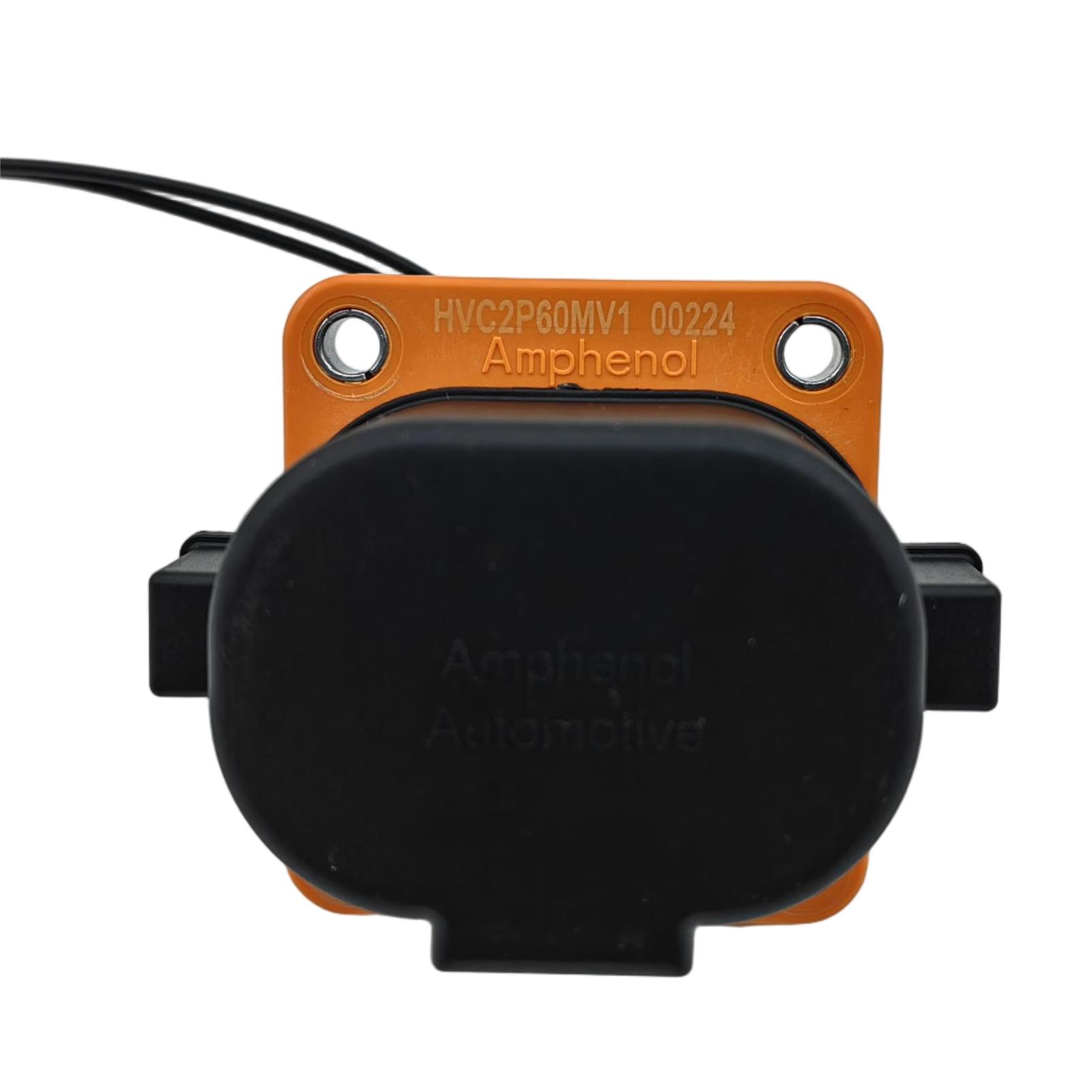

Amphenol HVC2P60MV High voltage 800VDC EV Connectors with HVIL

Amphenol HVC 2.8 mm 2 Poles High Voltage Connector Detail

Part-No

• Plug:
  HVC2P60FSX16 (15mm² Shield)
  HVC2P2824X25 (25mm² Shield)


• Socket:
  HVC2P60MVX00

   "X" indicates code 1/2/3/4

Specifications

• Mating design:
  Serviceable locking leg
  Locking assurance by CPA
  Operation with handle


• Terminal system:
  2 x φ6mm Radsok terminal, sliver plating
  Wire size 16/25 mm²,shielding
  HVIL contact system, 0.5mm²

• Termination technology:
  Crimping for female power terminal
  Crimping for female signal terminal

• General:
  IP67, IP6K9K (mated)
  IPXXB (unmated)
  HVIL
  360° shielding

Performance characteristic

• Pull out force: ≤ 10N

• Temperature Range: -40℃ to + 140℃

• Voltage Rnge: 800VDC

• Mating Cycles: 50 min

• Rated Current:
      16mm² = 100A @85℃
      25mm² = 125A @85℃


• Construction:
  Housing material: PA66-GF V0
  Terminal material: Copper alloy

Dimensions
