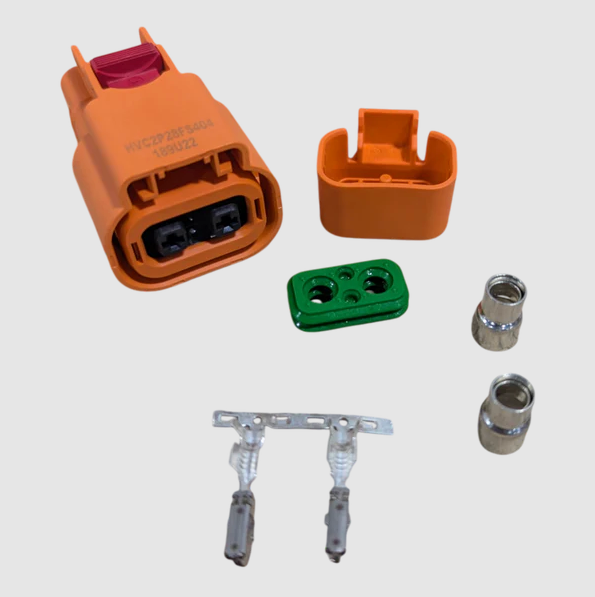

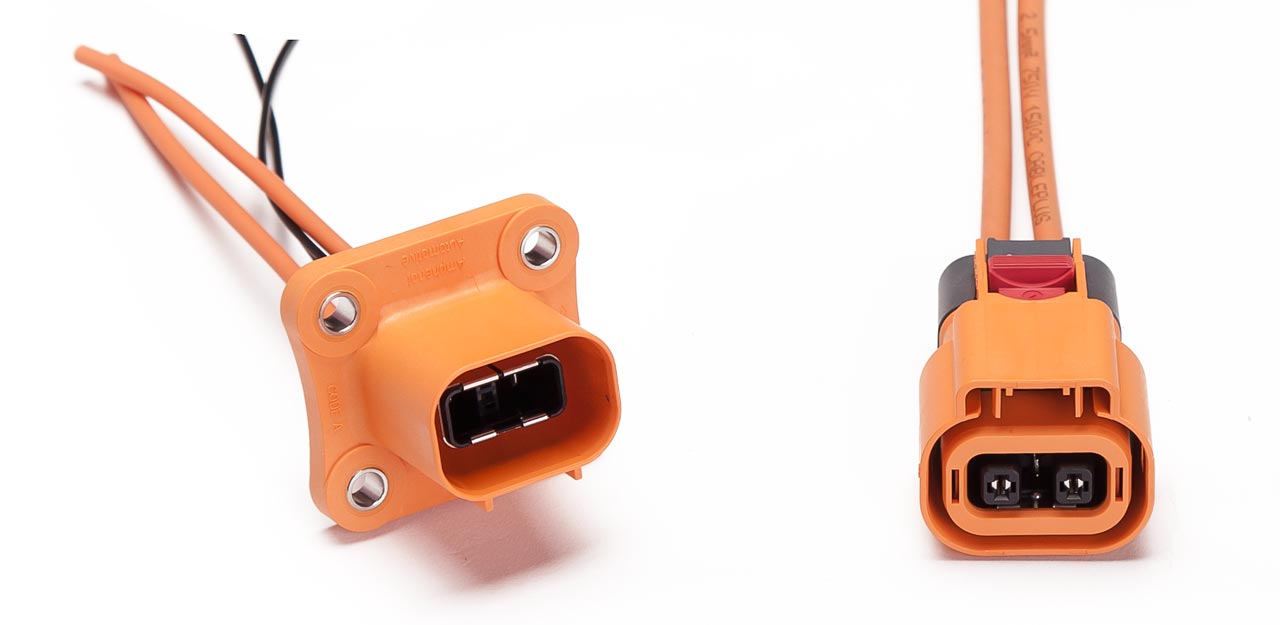

Amphenol HVC2P28FS High voltage 900VDC Connectors with HVIL

Amphenol HVC 2.8 mm 2 Poles High Voltage Connector Detail

Part-No

• Plug:
  HVC2P28FSX02 (2.5mm² Shield)
  HVC2P28FSX04 (4mm² Shield)
  HVC2P28FSX05 (5mm² Shield)

• Inline:
  HVC2P28LSX02 (2.5mm² Shield)
  HVC2P28LSX04 (4mm² Shield)
  HVC2P28LSX05 (5mm² Shield)

   "X" indicates code 1/2/3/4

Specifications

• Mating design:
  Secondary locking

• Terminal system:
  0.8 x 2.8 mm, Sliver plated
  Wire size 2.5/4/5 mm²
  HVIL contact system, 0.5mm²

• Termination technology:
  Crimping for power terminal
  Crimping for HVIL terminal

• General:
  IP67, IP6K9K (mated)
  IPXXB (unmated)
  HVIL
  360° shielding

Performance characteristic

• Pull out force: ≤ 75N

• Temperature Range: -40℃ to + 140℃

• Voltage Rnge: 900VDC

• Mating Cycles: 50 min

• Rated Current:
      2.5mm² = 20A @85℃
      4mm² = 30A @85℃
      5mm² = 40A @85℃

• Construction:
  Housing material: PA66-GF V0
  Terminal material: Cu alloy

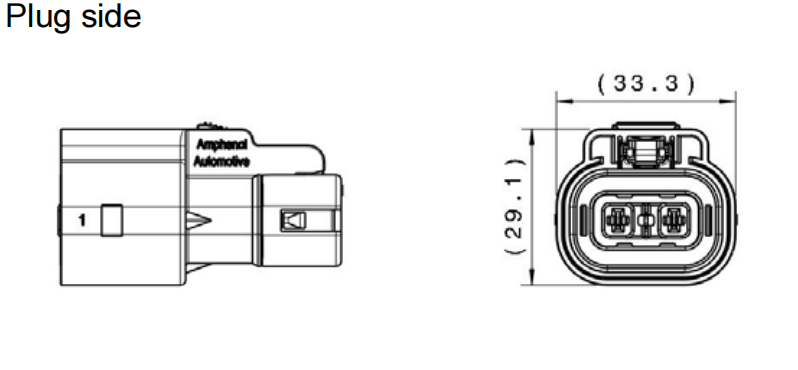

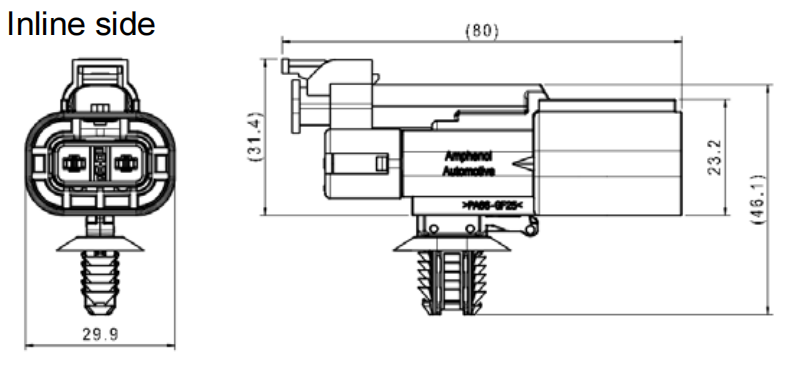

Dimensions
