Amphenol HVC2P10 High voltage 1000VDC Connectors with HVIL

HVC 10mm 1P 90° Connector, Protection Class IP67 IP6K9K, 360 Shield

  • HVC2P10

Availability:
Quantity:
Inquire Add to Basket

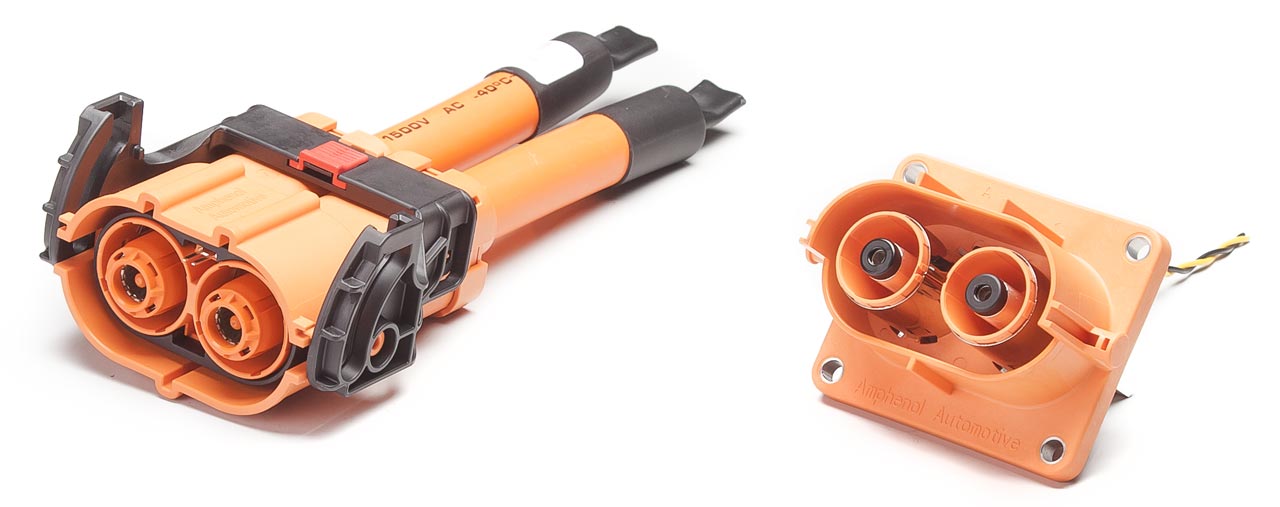

Amphenol HVC2P10 High voltage 1000VDC Connectors with HVIL

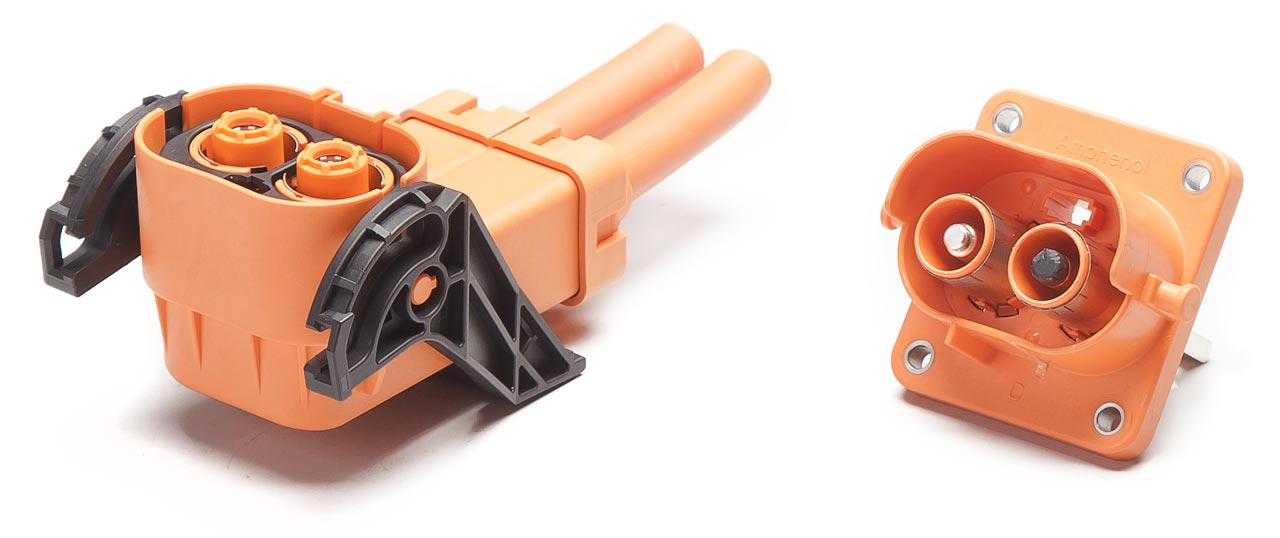

Amphenol HVC2P10 High voltage 1000VDC Connectors with HVIL
Amphenol HVC2P10 High voltage 1000VDC Connectors with HVIL

Amphenol HVC 12 mm 1P High Voltage Connector Detail


Specifications
Plug Cables Max. Rated Voltage
 Max. Current Mating Connector

HVC2P10FV*35 (* = 1,2,3,4) 90°

HVC2P10FS*35 (* = 1,2,3,4) 180°

 35mm² 1000VDC
 180A HVC2P10MV*35 (* = 1,2,3,4)

HVC2P10FV*50 (* = 1,2,3,4) 90°

HVC2P10FS*50 (* = 1,2,3) 180°

 50mm² 1000VDC 220A HVC2P10MV*50 (* = 1,2,3,4)

HVC2P10FV*70 (* = 1,2,3,4) 90°

HVC2P12FS*70 (* = 1,2,3,4) 180°

 70mm² 1000VDC 280A HVC2P10MV*70 (* = 1,2,3,4)


Product Models

  • IP67, IP6K9K

  • HVIL

  • 360 Shield

  • Unmating Force: ≤ 100N

  • Working Temperature: -40℃ to + 140℃

  • Rated Voltage: 1000VDC

  • Life: ≥ 50 cycles

  • Rated Current:
    35mm² = 180A
    50mm² = 220A
    70mm² = 280A

  • Material:
    Housing: PA-GF, UL94 V0
    Terminal: Copper

  • Alloy
    RFI/EMI Protection: Matel Shield



 HVC 2P 10 MV
 X 70
HVC: HVC Series
2P: 2 pins
10: φ10mm terminal

Connectot Type  FV: Plug（90°）  FS: Plug（180°） MV: Socket
Code: 1/2/3/4

Mating Cable 35=35mm² 50=50mm² 70=70mm²

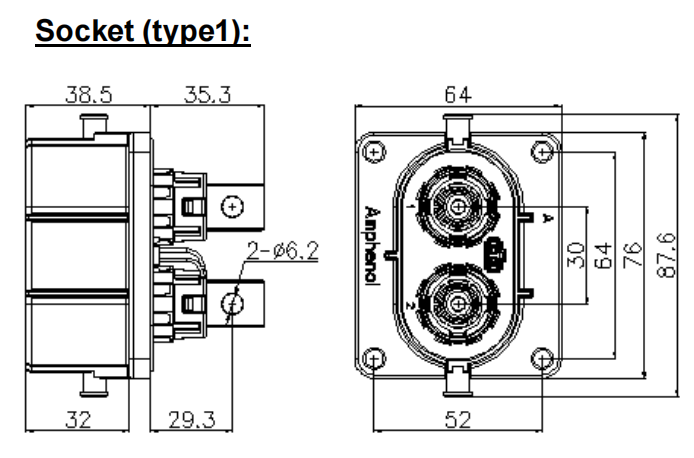

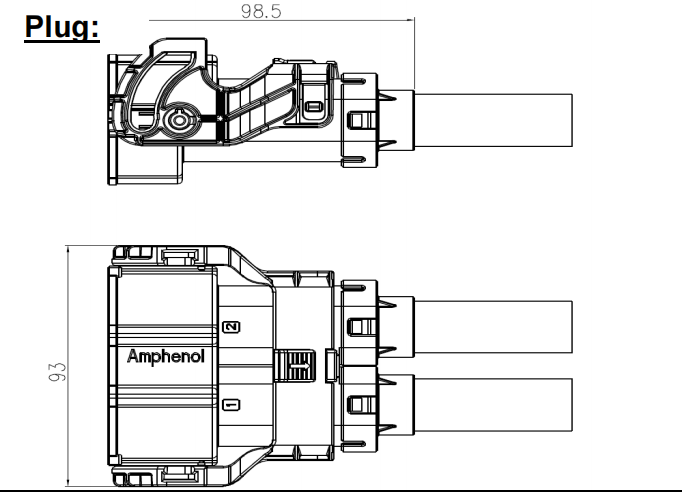

Dimensions
