Amphenol HVC1P80 High voltage 1000VDC Connectors with HVIL

HVC 8mm 1P 90°/180° Connector, Protection Class IP67 IP6K9K, 360° Shielding

  • HVC1P80

HVC1P80FV:
90° Connector
HVC1P80FS:
180° Connector
Availability:
Quantity:
Inquire Add to Basket

Amphenol HVC1P80 High voltage 1000VDC Connectors with HVIL
Amphenol HVC1P80 High voltage 1000VDC Connectors with HVIL
Amphenol HVC1P80 High voltage 1000VDC Connectors with HVIL
Amphenol HVC1P80 High voltage 1000VDC Connectors with HVIL

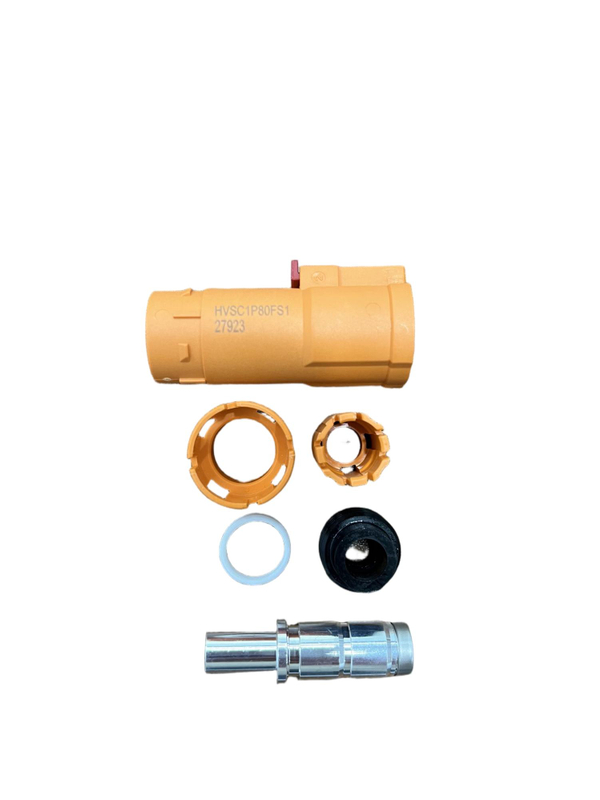

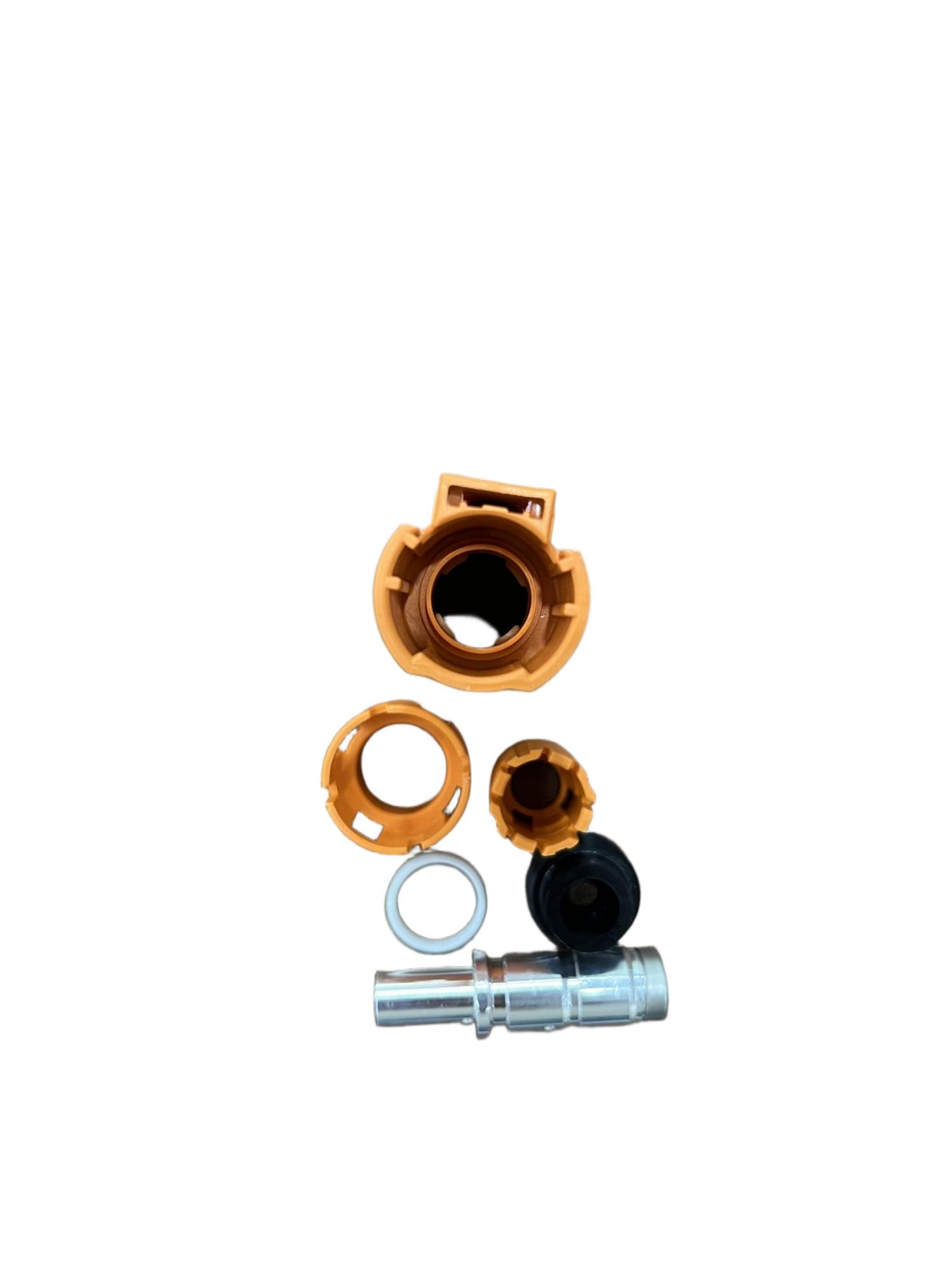

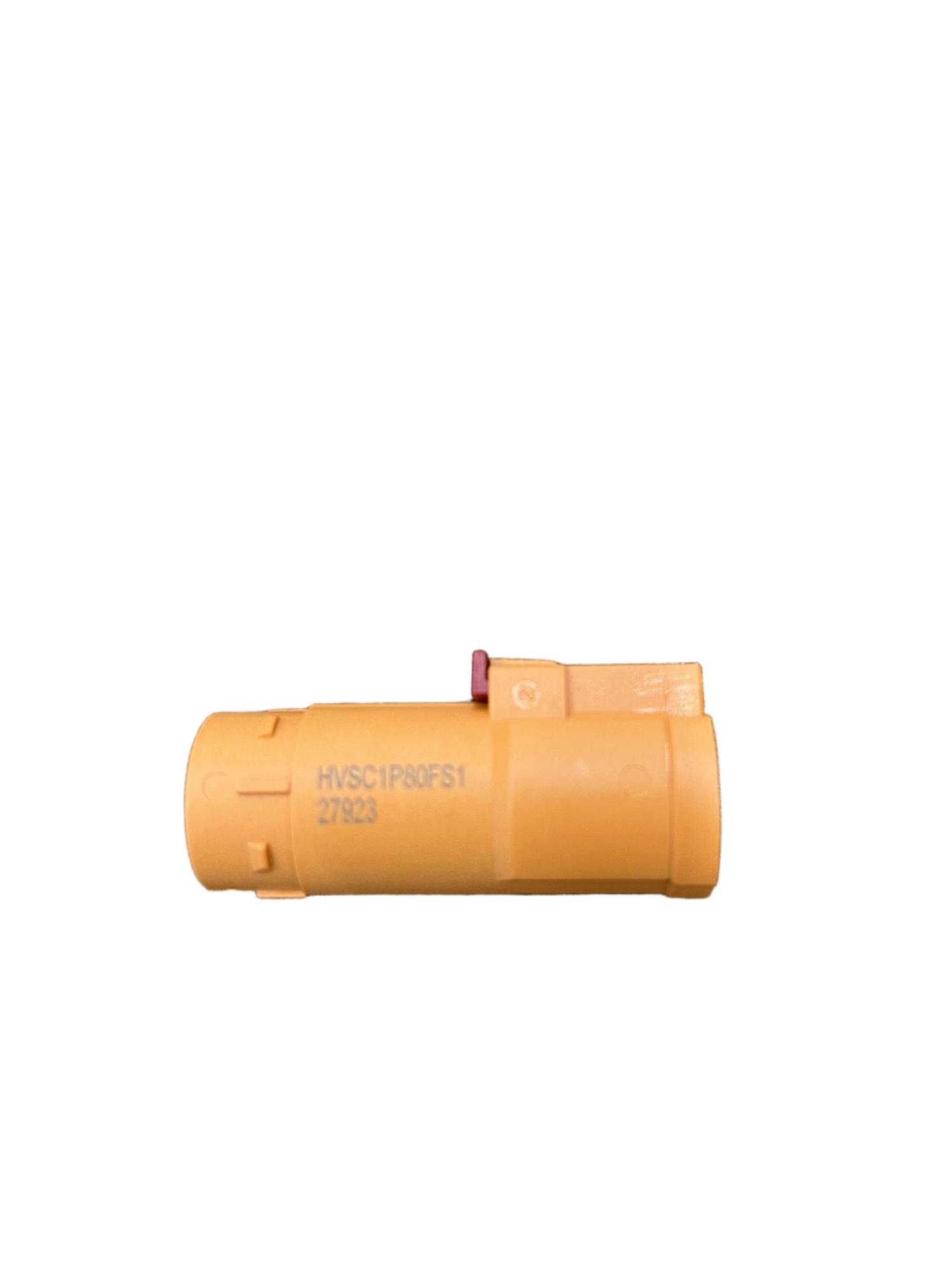

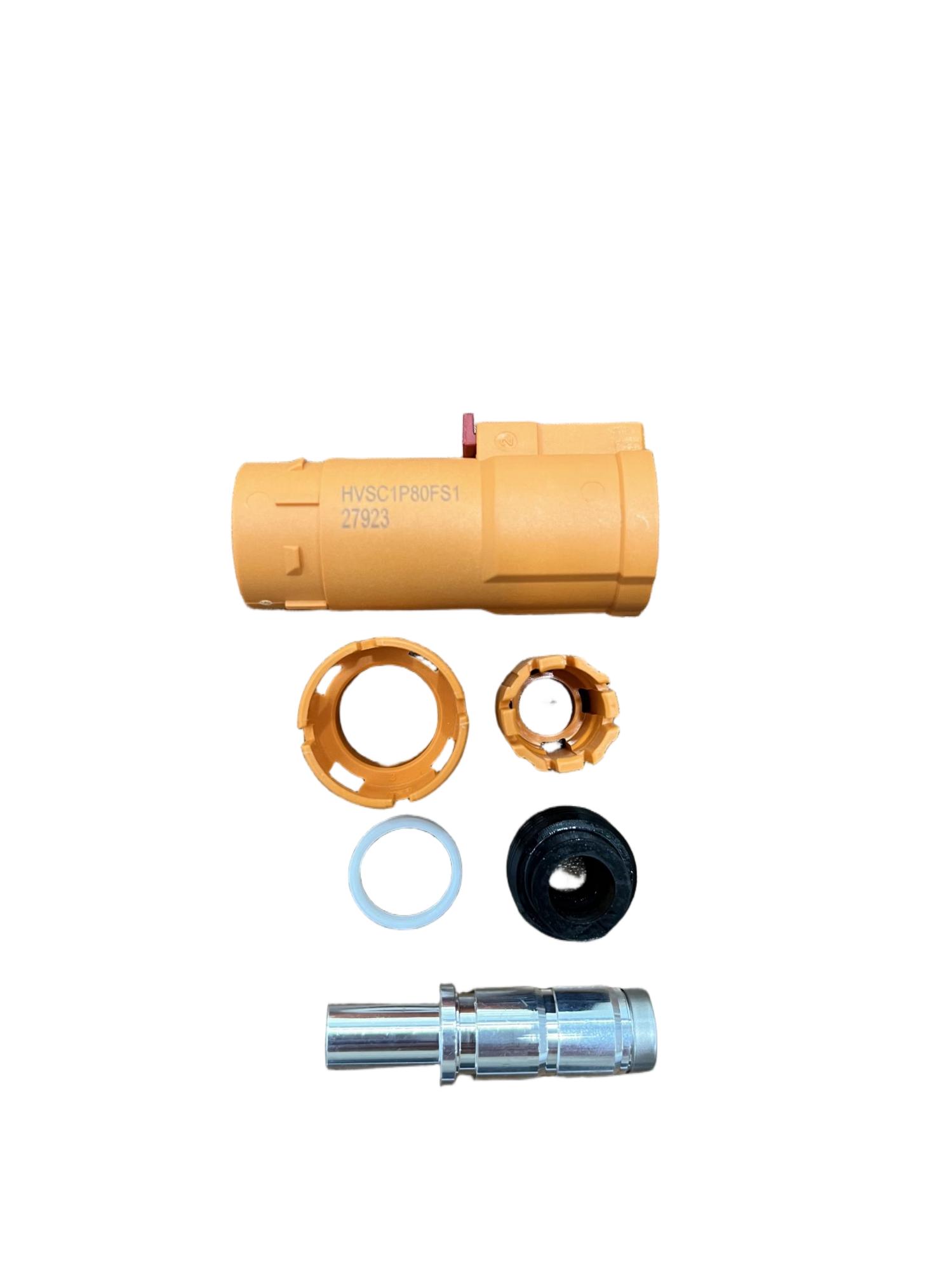

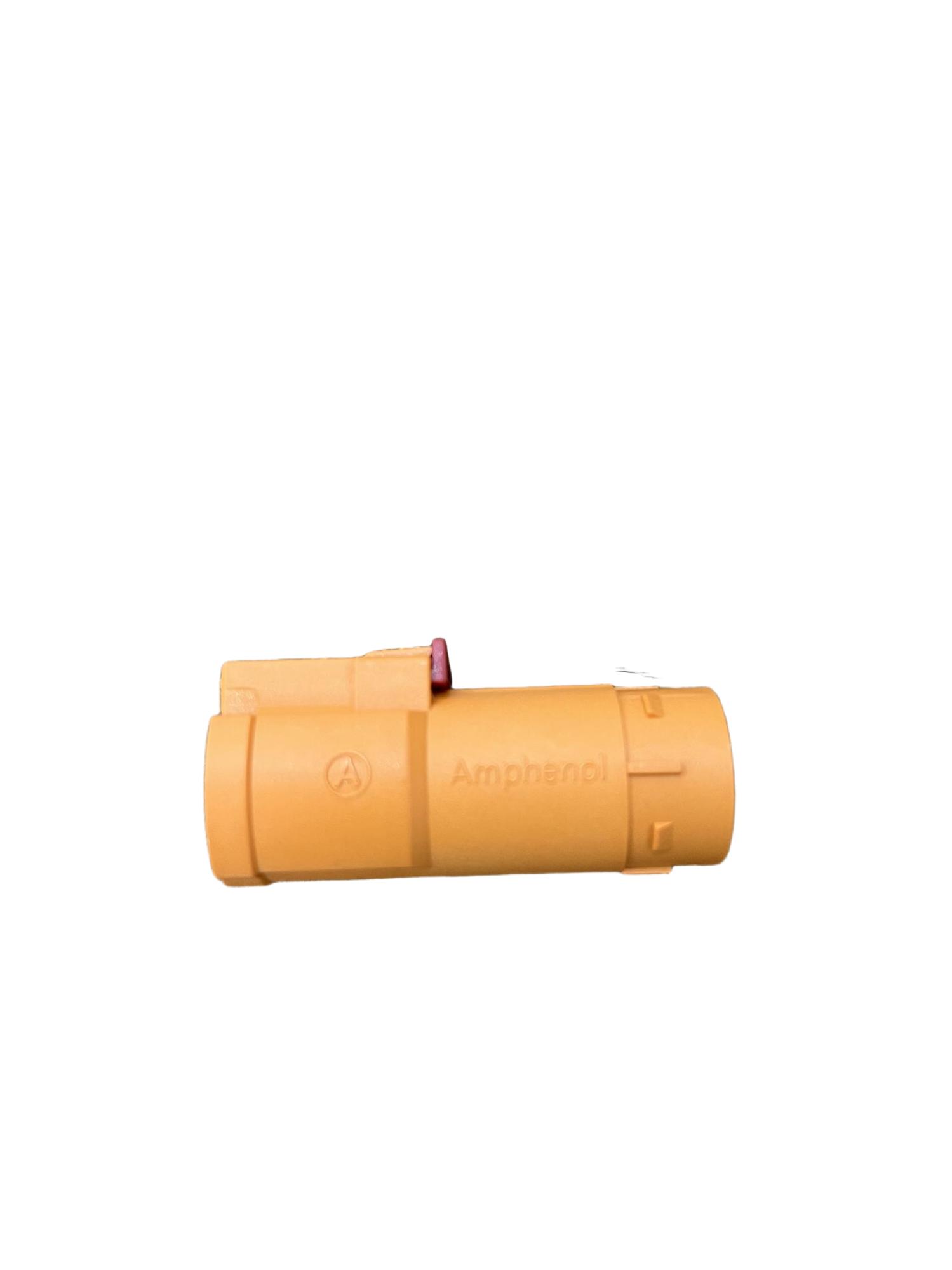

Amphenol HVC 8 mm 1P High Voltage Connector Detail




Specifications
Plug Cables Voltage
 Current Mating Connector

HVC1P80FV*25 (* = 1,2,3,4,5,6) 90°

HVC1P80FS*25 (* = 1,2,3,4,5,6) 180°

 25mm² 1000VDC
 150A HVC1P80MV*25 (* = 1,2,3,4,5,6)

HVC1P80FV*35(* = 1,2,3,4,5,6) 90°

HVC1P80FS*35(* = 1,2,3,4,5,6) 180°

 35mm² 1000VDC 180A HVC1P80MV*35 (* = 1,2,3,4,5,6)

HVC1P80FV*50 (* = 1,2,3,4,5,6) 90°

HVC1P80FS*50 (* = 1,2,3,4,5,6) 180°

 50mm² 1000VDC 220A HVC1P80MV*50 (* = 1,2,3,4,5,6)


Product Models

  • IP67, IP6K9K

  • HVIL

  • 360 Shield

  • Extraction Force: ≤ 100N

  • Working Temperature: -40℃ to + 140℃

  • Rated Voltage: 1000VDC

  • Life: ≥ 50 cycles

  • Rated Current:
    25mm² = 150A
    35mm² = 180A
    50mm² = 220A

  • Material:
    Housing: PA-GF, UL94 V0
    Terminal: Copper

  • Alloy
    RFI/EMI Protection: Matel Shield



 HVC 1P 80 FV
 X 70
HVC: HVC Series
1P: 1 pin
80: φ8mm terminal
Connectot Type  FV: Plug(90°)  FS: Plug(180°) MV: Socket
Code: 1/2/3/4/5/6

Mating Cable 25=25mm² 35=35mm² 50=50mm²



Dimensions

Plug:
Plug_dimensions


Socket:

Socket_Dimensions
