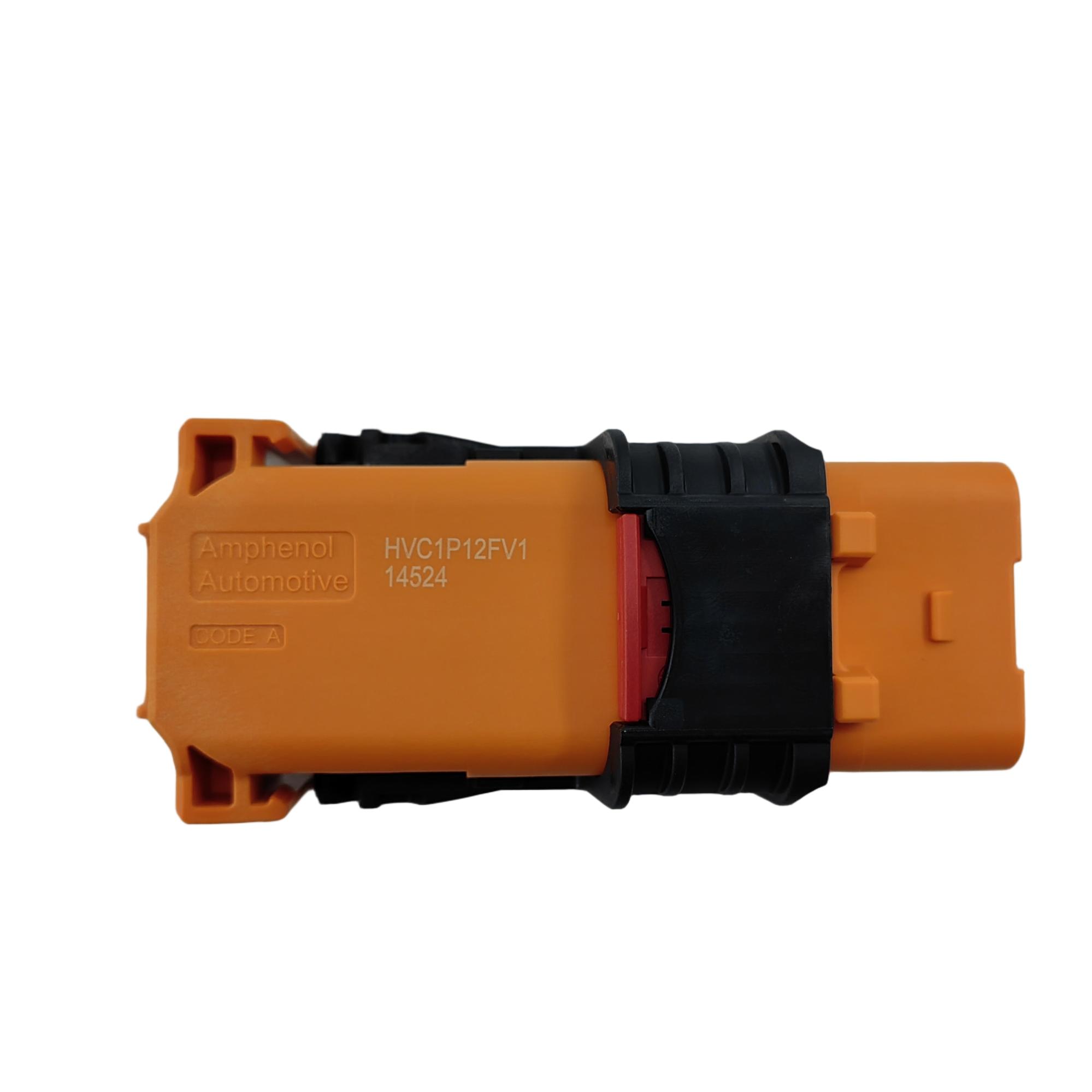

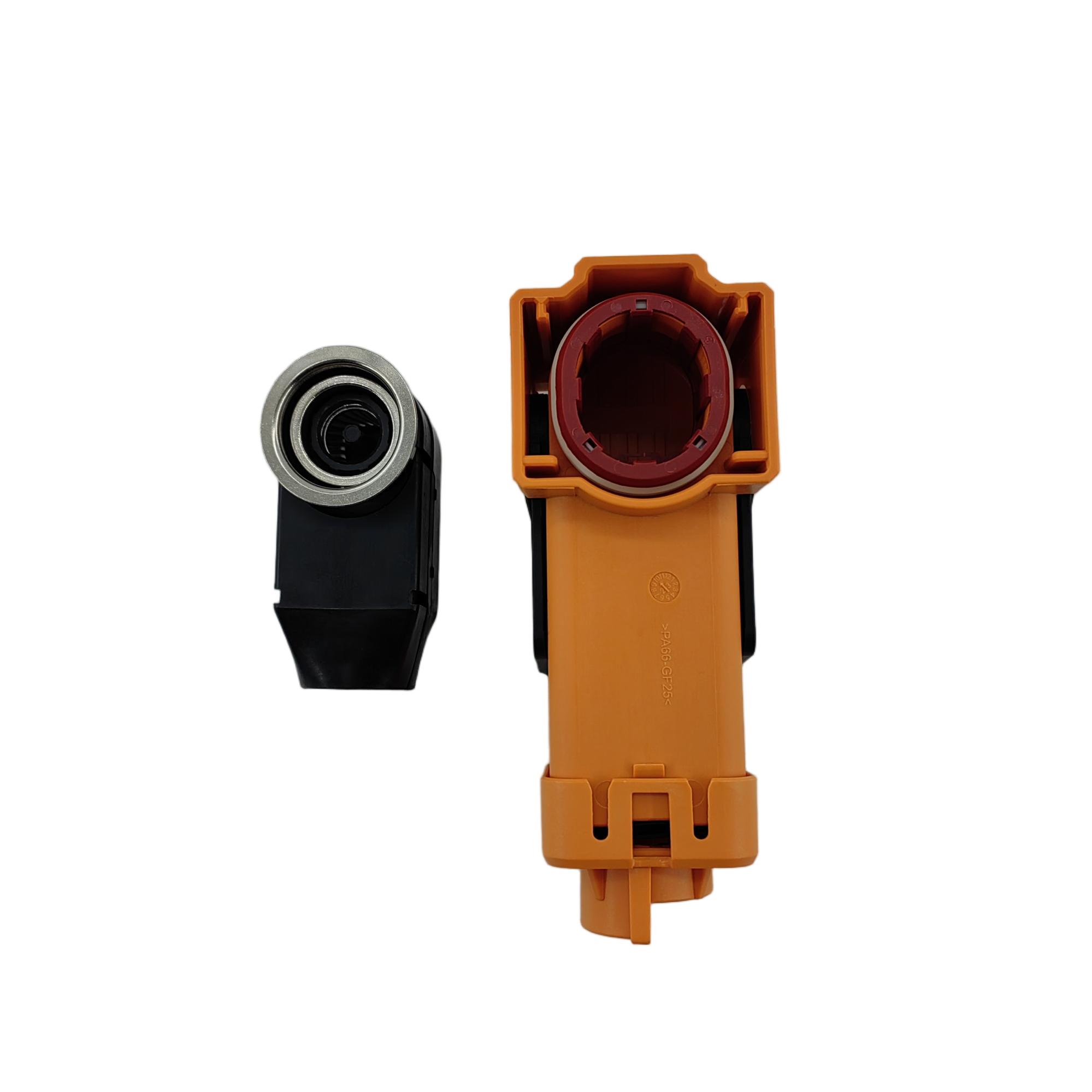

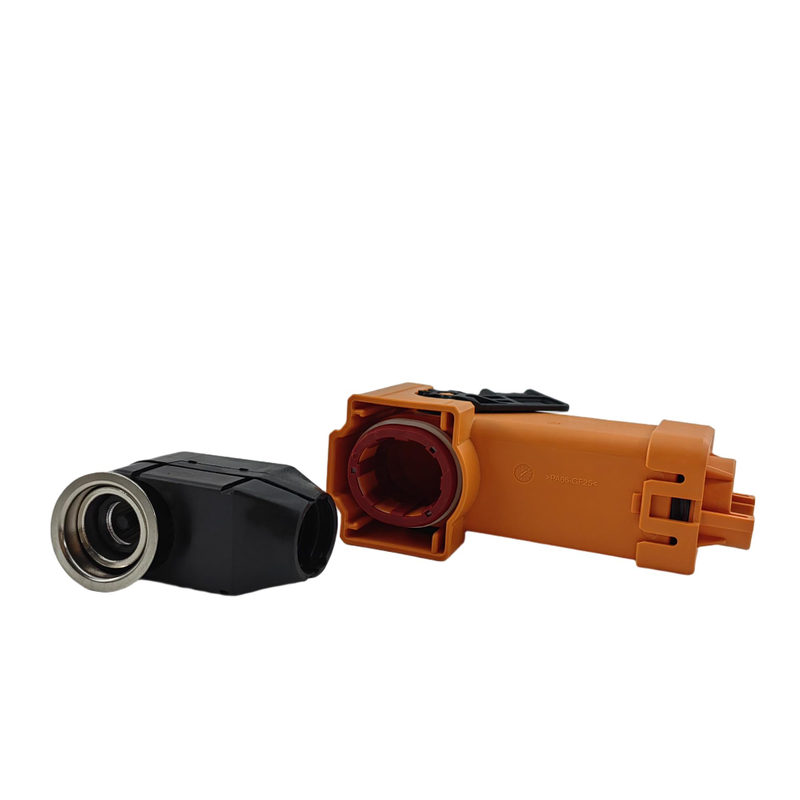

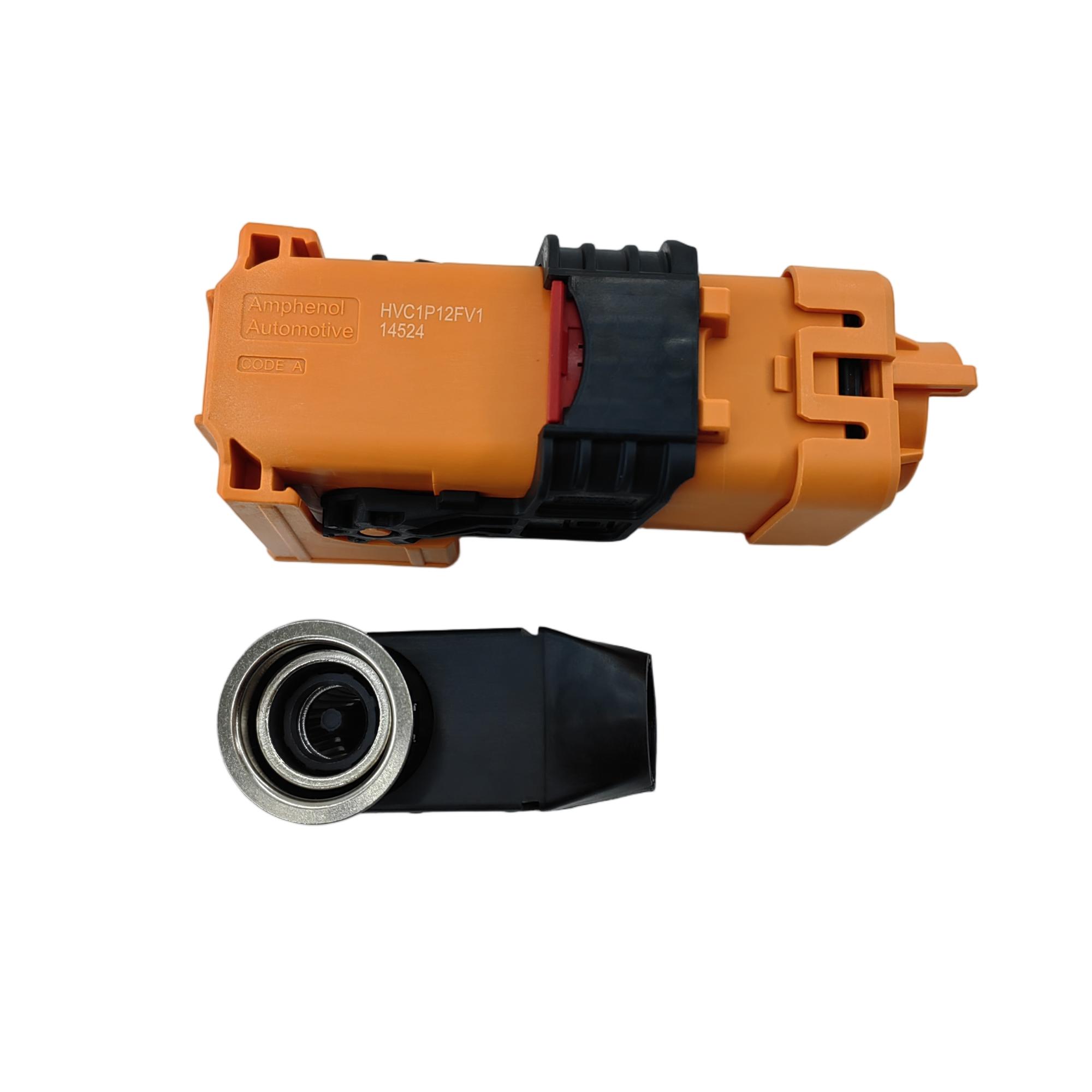

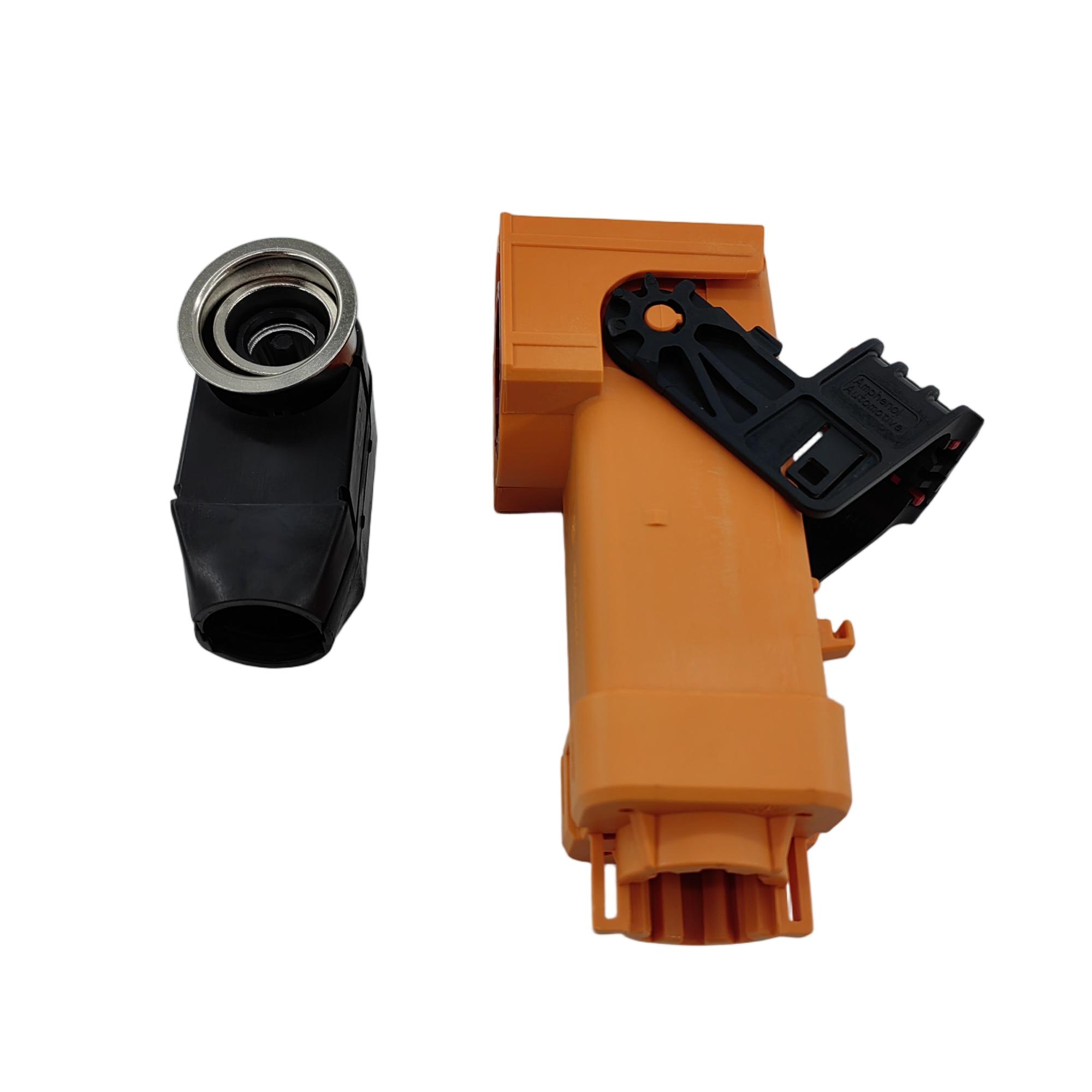

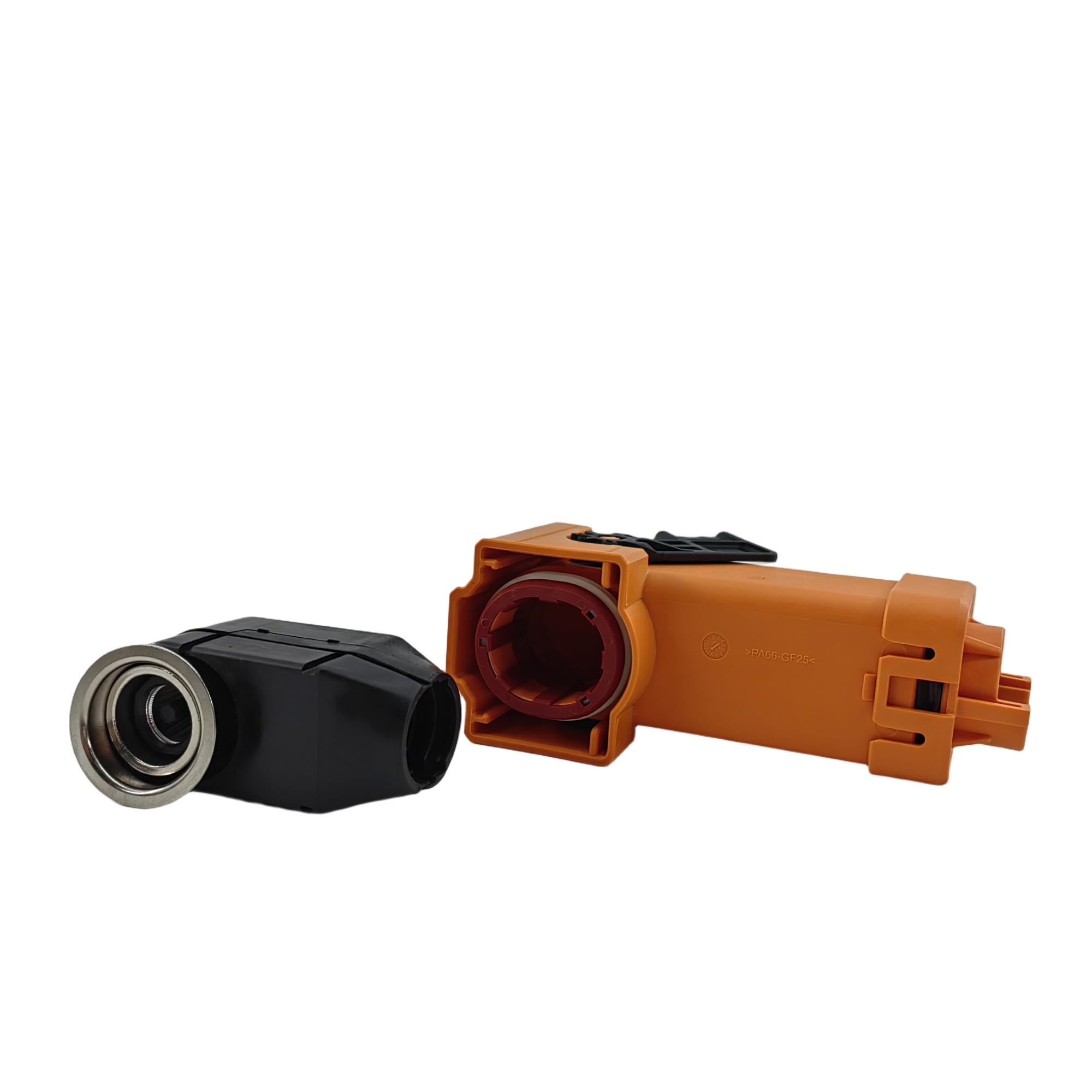

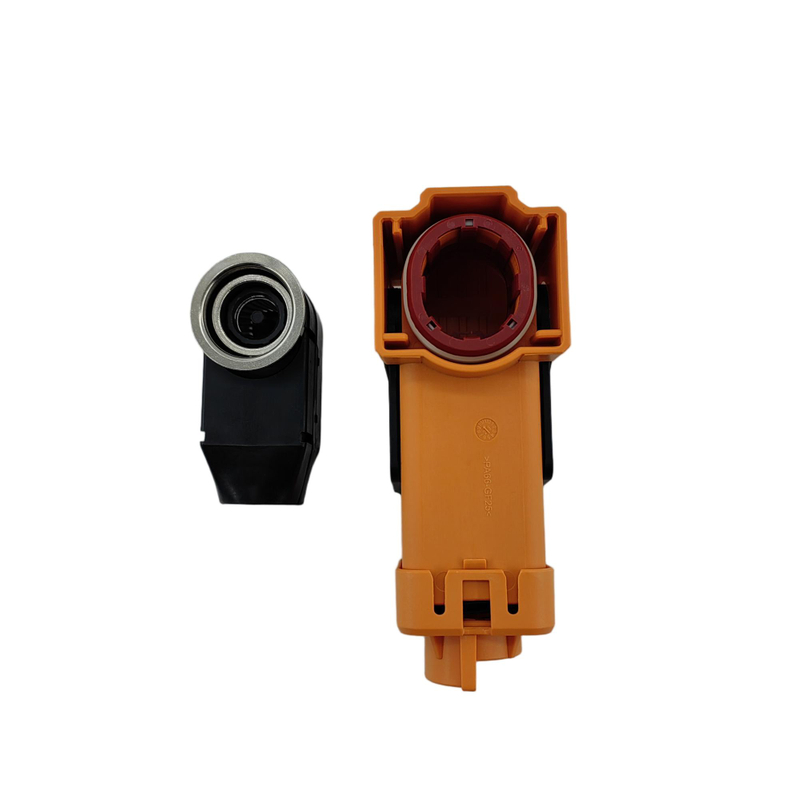

Amphenol HVC1P12FV170EC High voltage 1000VDC Connectors with HVIL

HVC 12mm 1P 90° Connector, Protection Class IP67 IP6K9K, 360 Shield

  • HVC1P12FV

Availability:
Quantity:
Inquire Add to Basket

Amphenol HVC1P12FV170EC High voltage 1000VDC Connectors with HVIL
Amphenol HVC1P12FV170EC High voltage 1000VDC Connectors with HVIL
Amphenol HVC1P12FV170EC High voltage 1000VDC Connectors with HVIL
Amphenol HVC1P12FV170EC High voltage 1000VDC Connectors with HVIL
Amphenol HVC1P12FV170EC High voltage 1000VDC Connectors with HVIL
Amphenol HVC1P12FV170EC High voltage 1000VDC Connectors with HVIL

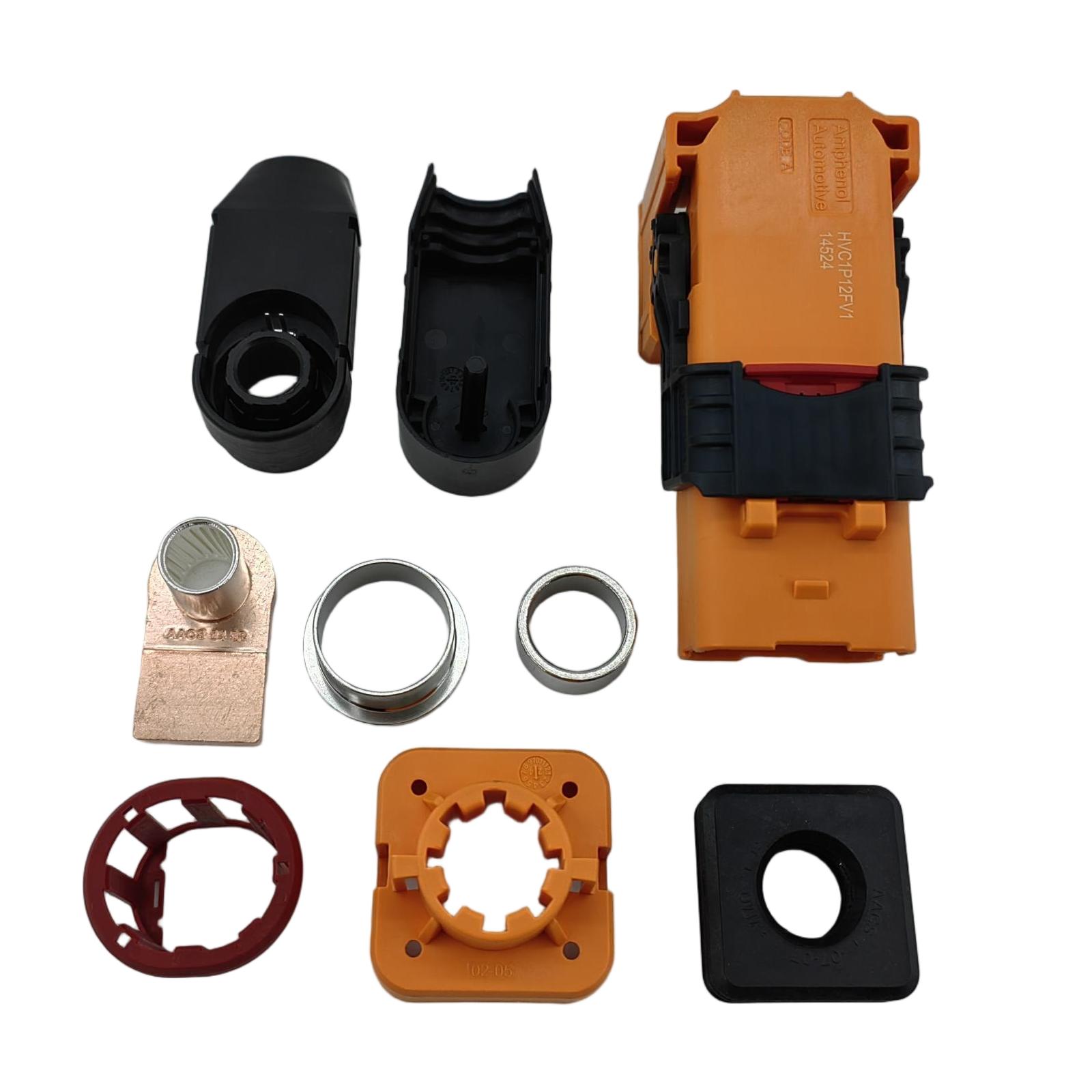

Amphenol HVC 12 mm 1P High Voltage Connector Detail


Specifications
Plug Cables Voltage
 Current Mating Connector

HVC1P12FV*70 (* = 1,2,3) 90°

HVC1P12FS*70 (* = 1,2,3) 180°

 70mm² 1000VDC
 350A HVC1P12MV*70 (* = 1,2,3)

HVC1P12FV*95 (* = 1,2,3) 90°

HVC1P12FV*95 (* = 1,2,3) 180°

 95mm² 1000VDC 400A HVC1P12MV*95 (* = 1,2,3)

HVC1P12FV*12 (* = 1,2,3) 90°

HVC1P12FV*12 (* = 1,2,3) 180°

 120mm² 1000VDC 450A HVC1P12MV*12 (* = 1,2,3)


Product Models

  • IP67, IP6K9K

  • HVIL

  • 360 Shield

  • Extraction Force: ≤ 100N

  • Working Temperature: -40℃ to + 140℃

  • Rated Voltage: 1000VDC

  • Life: ≥ 50 cycles

  • Rated Current:
    70mm² = 350A
    90mm² = 400A
    120mm² = 450A

  • Material:
    Housing: PA-GF, UL94 V0
    Terminal: Copper

  • Alloy
    RFI/EMI Protection: Matel Shield



 HVC 1P 12 MV
 X 70
HVC: HVC Series
1P: 1 pin
12: 12mm
Connectot Type  FV: Plug  MV: Socket
Code: 1/2/3/4

Mating Cable 70=70mm² 90=90mm² 12=120mm²



Dimensions

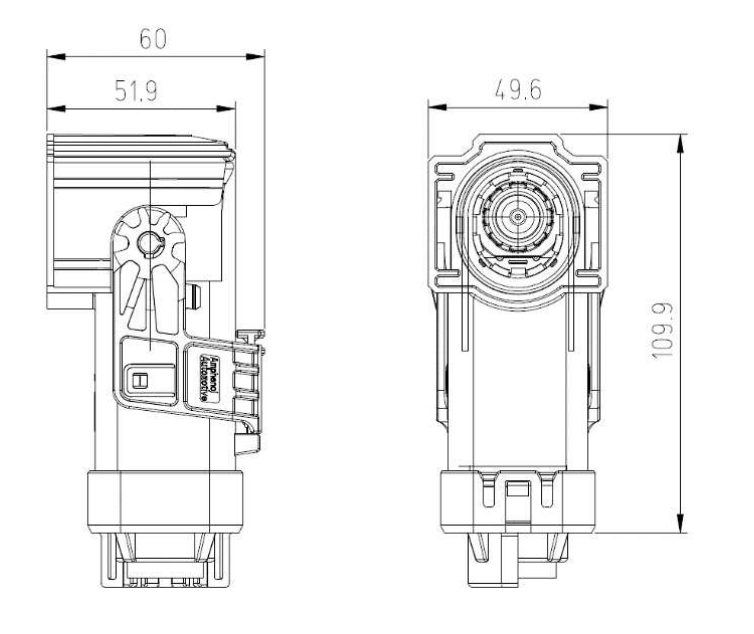

Plug （90°）:
Plug_dimensions

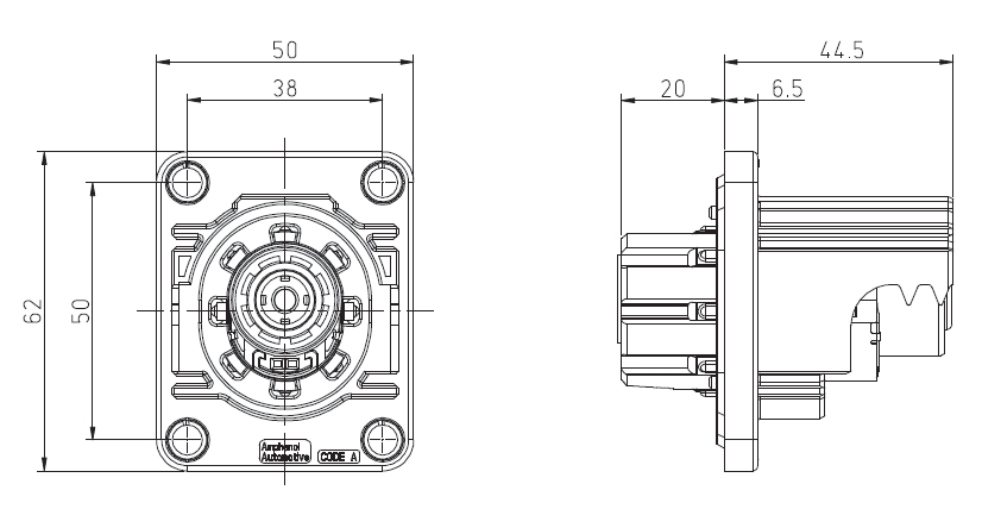

Socket:

Socket_Dimensions
