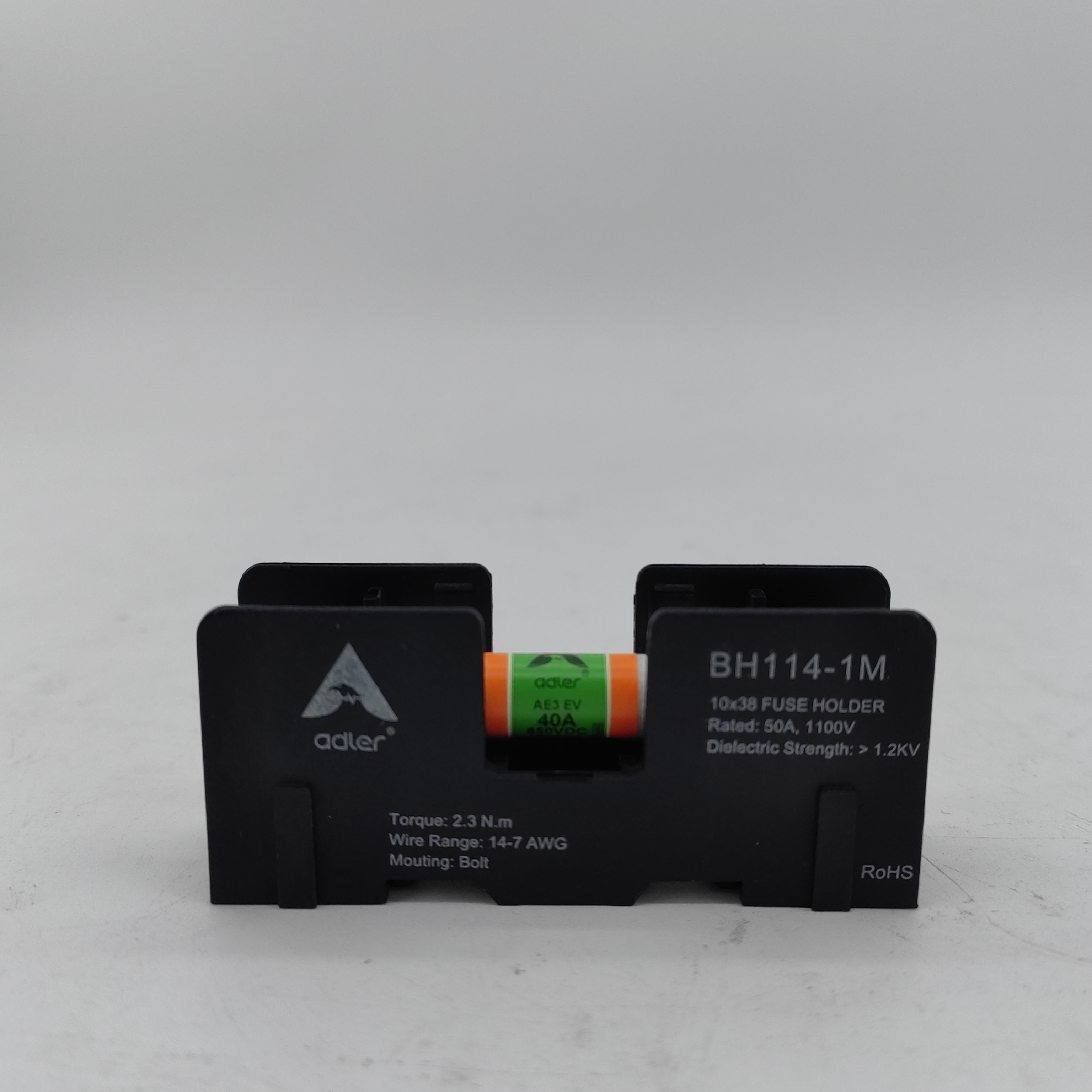

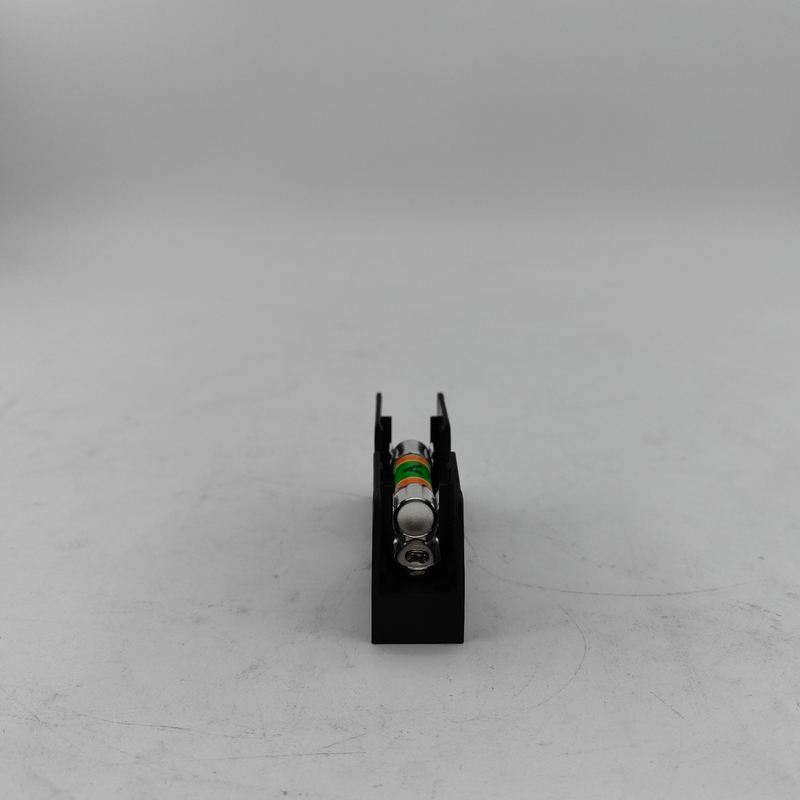

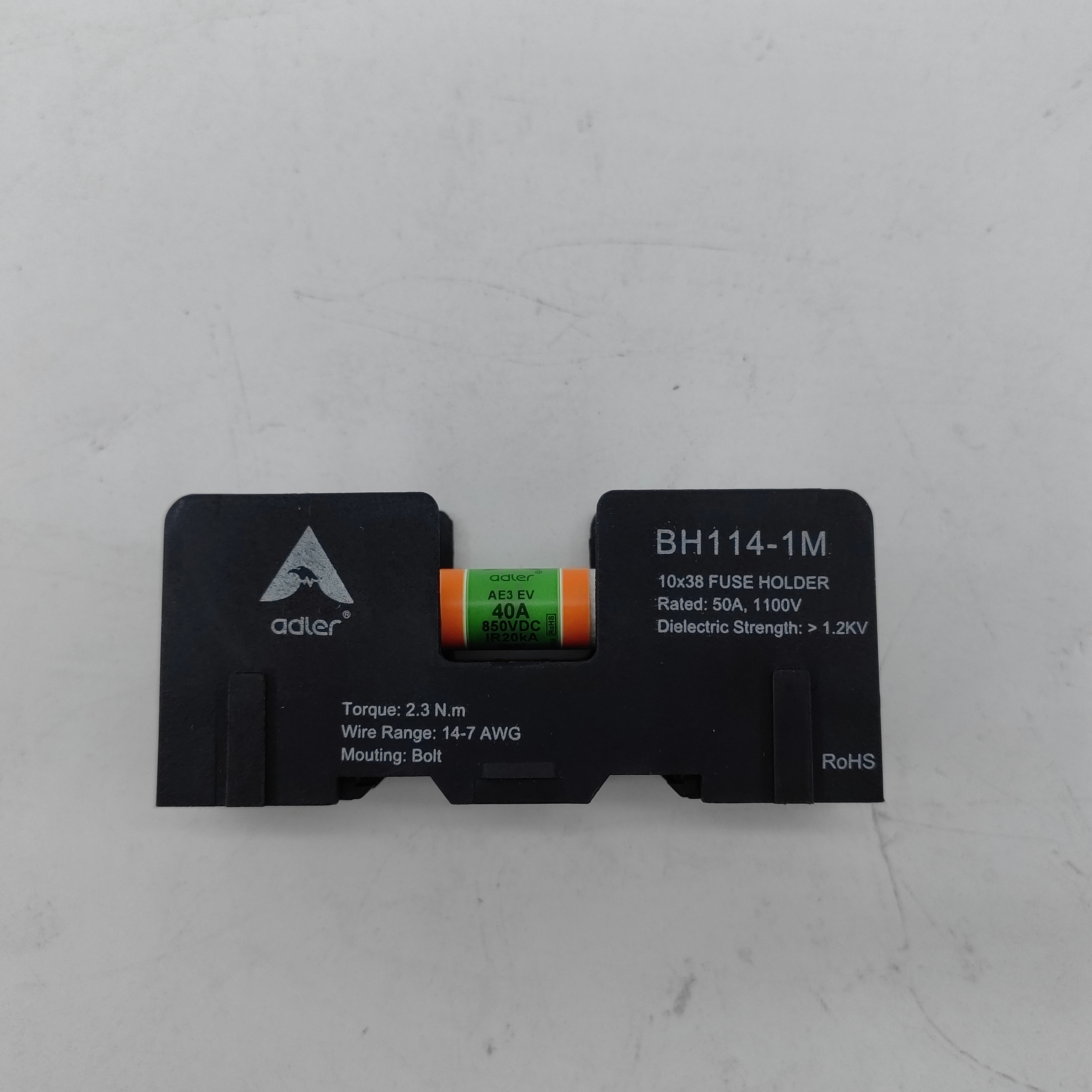

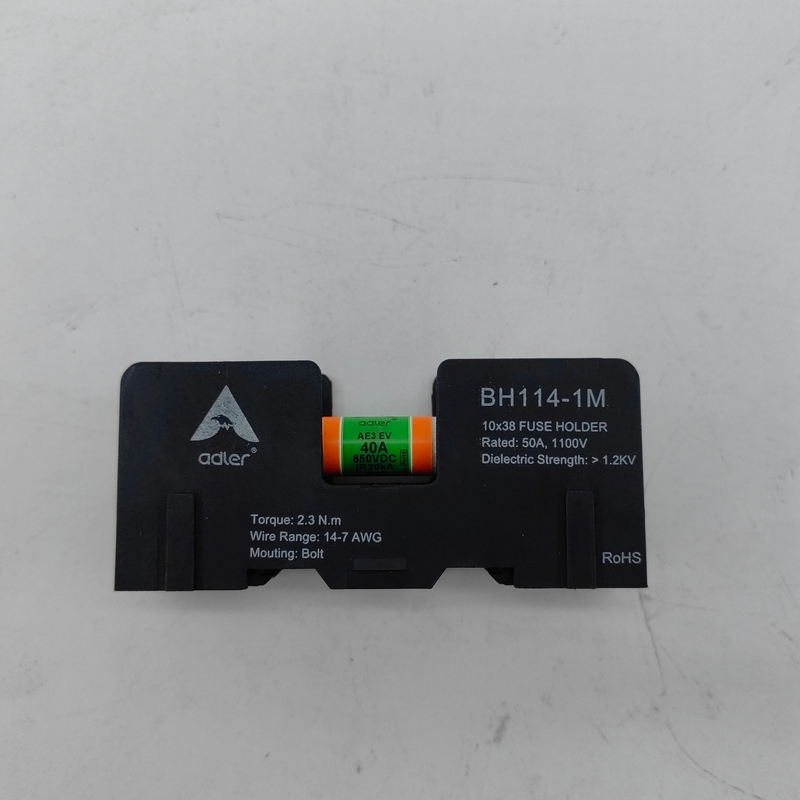

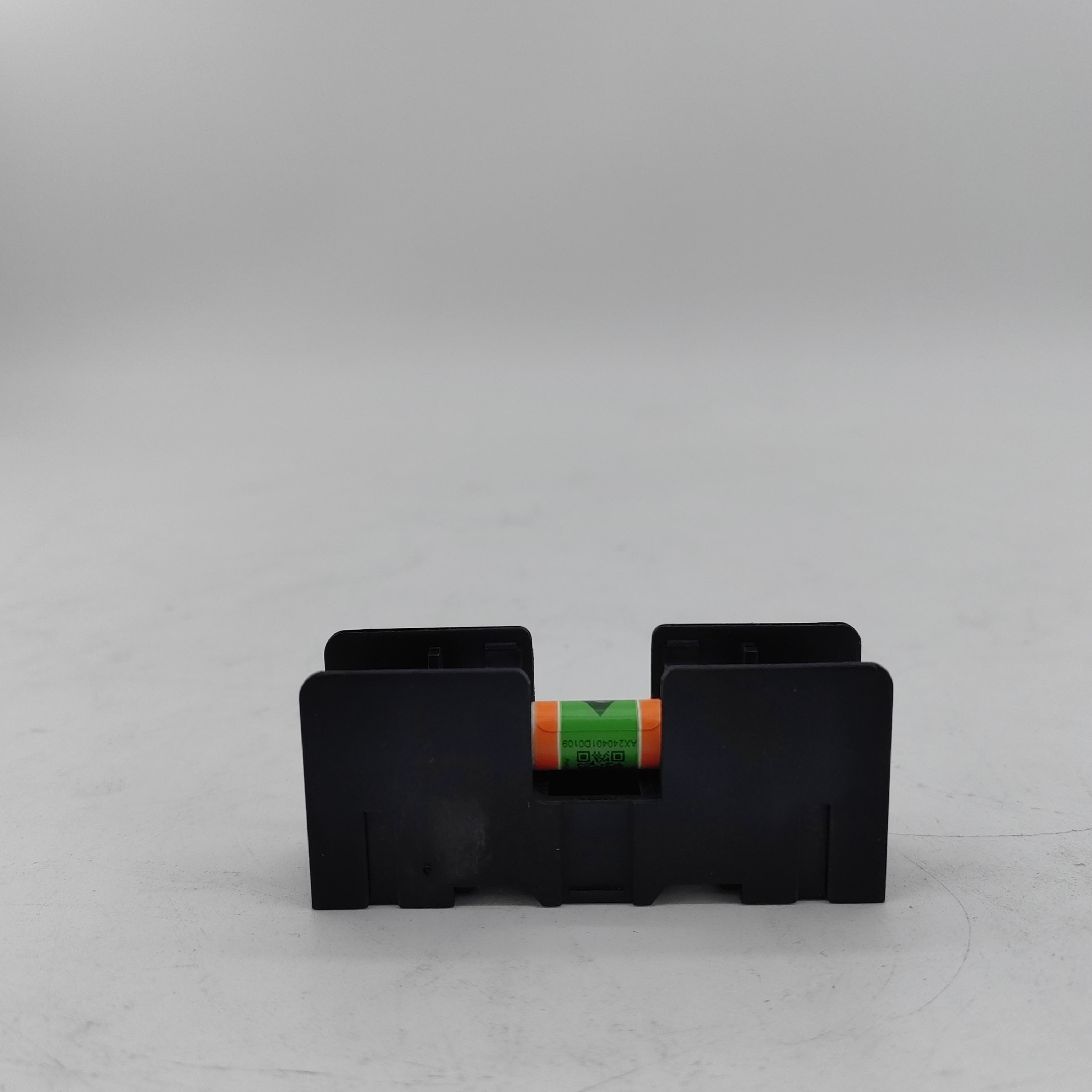

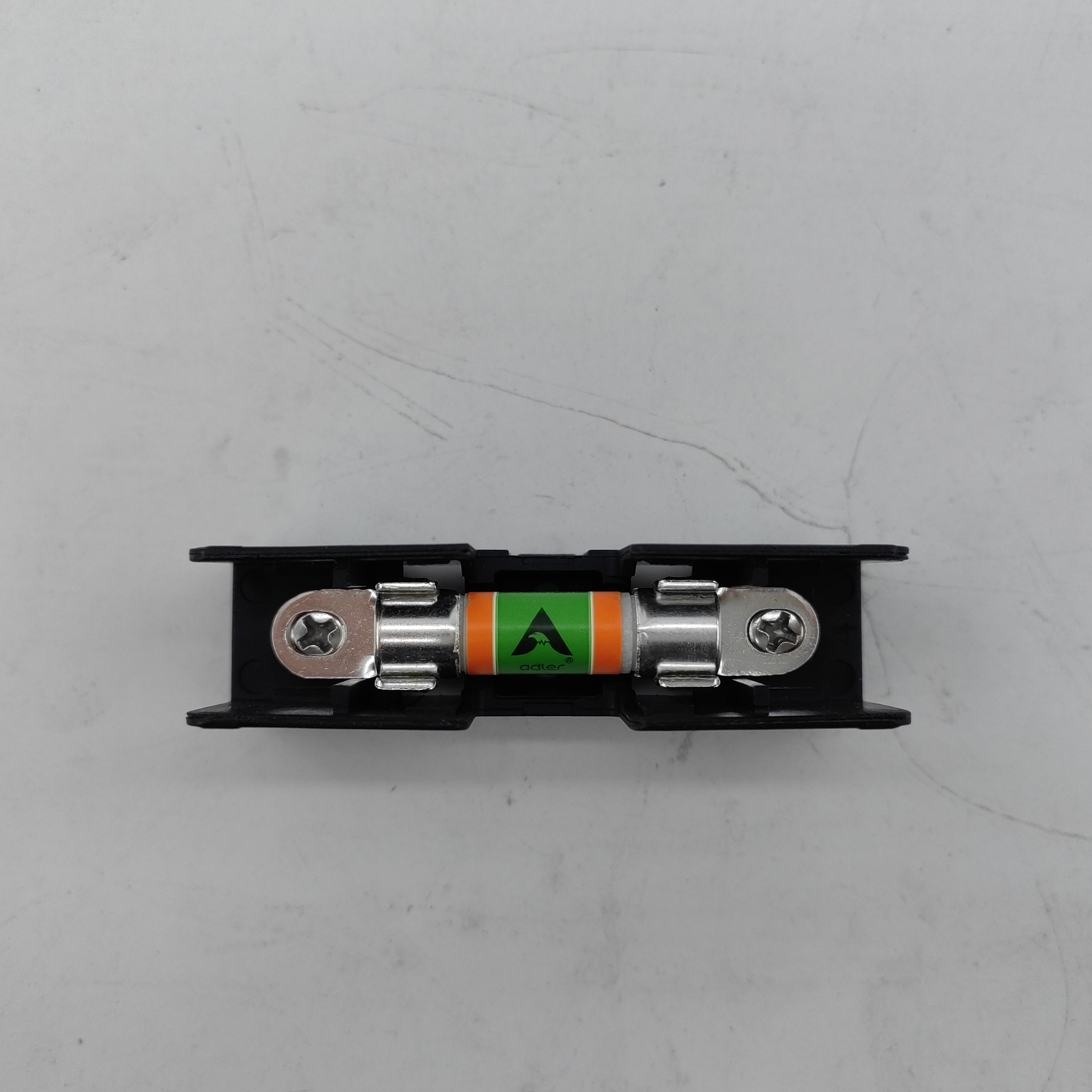

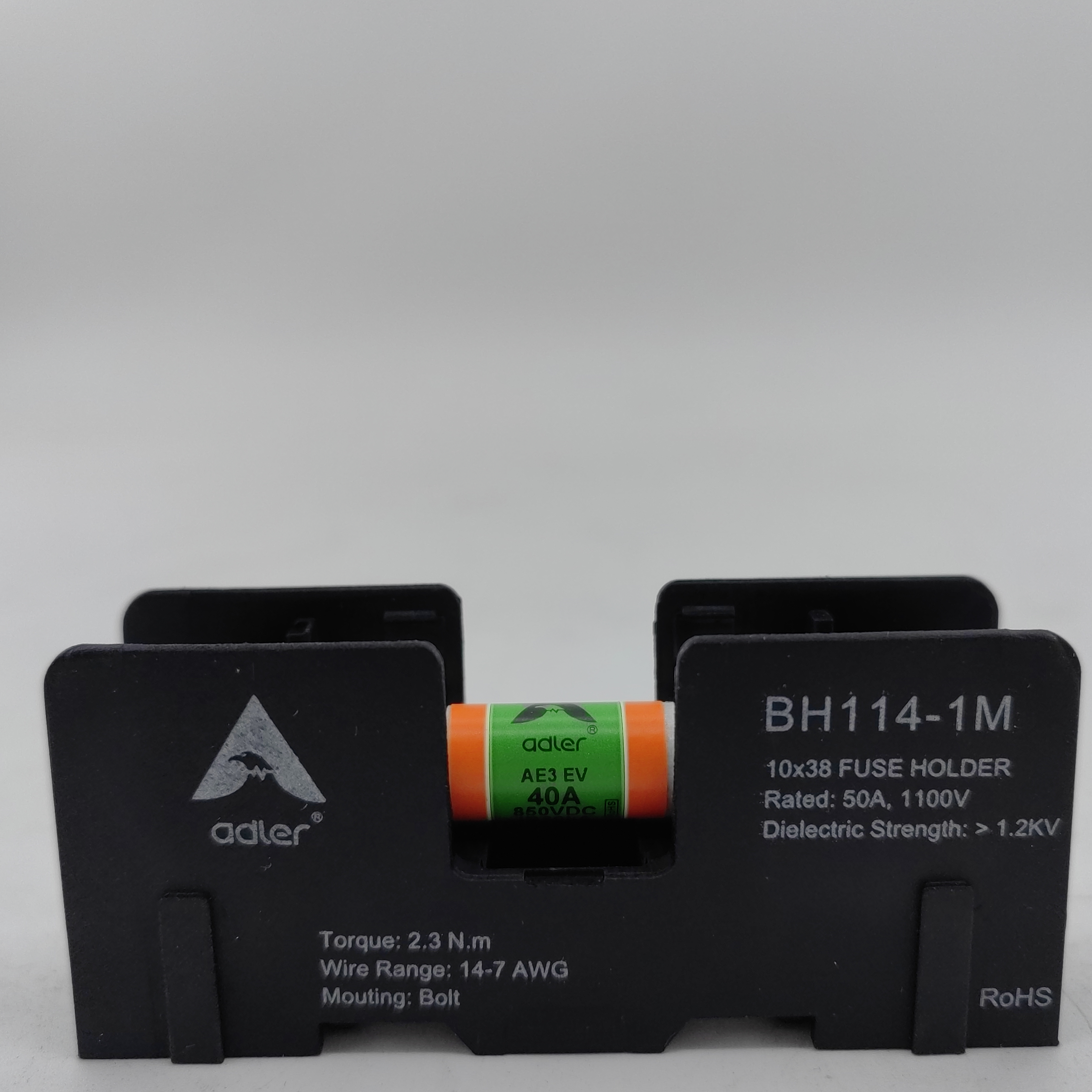

Alder BH114 Series 10x38mm Fuse Holder Detail
 | Features
|
Flexible rail mounting, easy to install with screws or bolts
For multiple pole applications, holders can be combined in series through simple slide-on design
Designed for general purpose fuse
| Specifications
|
| Rated Voltage | 1100 VDC |
| Reated Current | 30A (Clip); 50A (Bolt) |
| Dielectric Strength | >1200V |
| Wire Range | 14-7AWG(1.6-8.4mm²) |
| Torque | 2.3 N.m (20 in-lbs) |
| Material of Clip & Terminals | Tin Plated Copper Alloy |
| Material of Screw & Captive Pressure Plate | Zinc Plated Stell |
| Material of Base | Thermoplastic |
| Material Flammability | UL 94 V0 |
| Operation Temperature | -40℃ to 125℃ |
| Base Part Number |
| Clip Mount P/N | Bolt Mount P/N | Pole |
| BH114-1C | BH114-1M | 1 |
| BH114-2C | BH114-2M | 2 |
| BH114-3C | BH114-3M | 3 |
| Cover Part Number
|
| Cover P/N | Indicater | Matching Base Holder |
| BH114-CC | Yes | Clip Mount |
| BH114-CL | Yes | Bolt Mount |
| BH114-CN | Yes | Clip Mount, Bolt Mount |

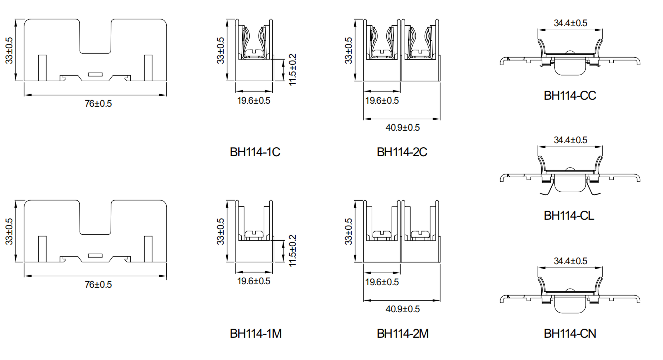

| Dimensions
|
