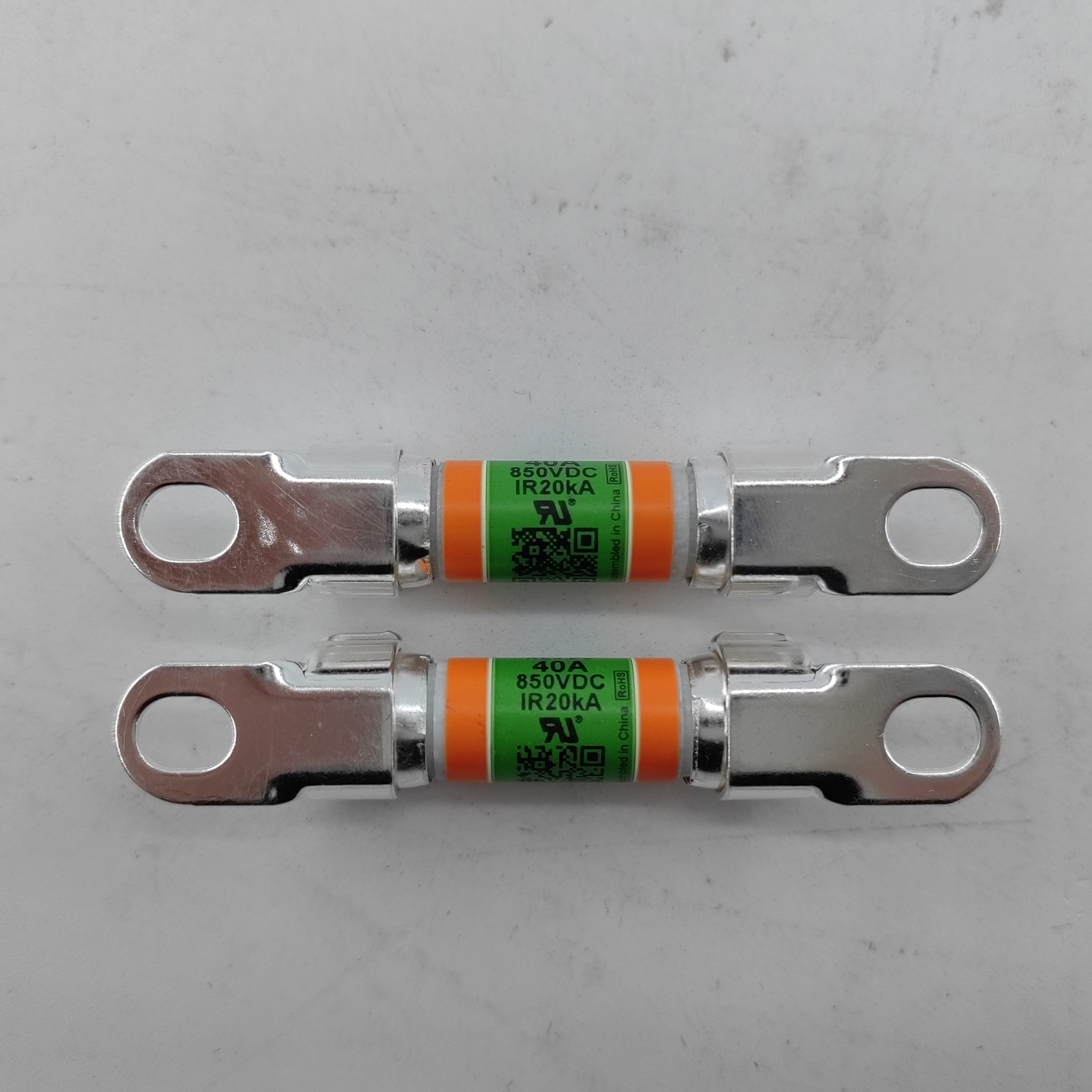

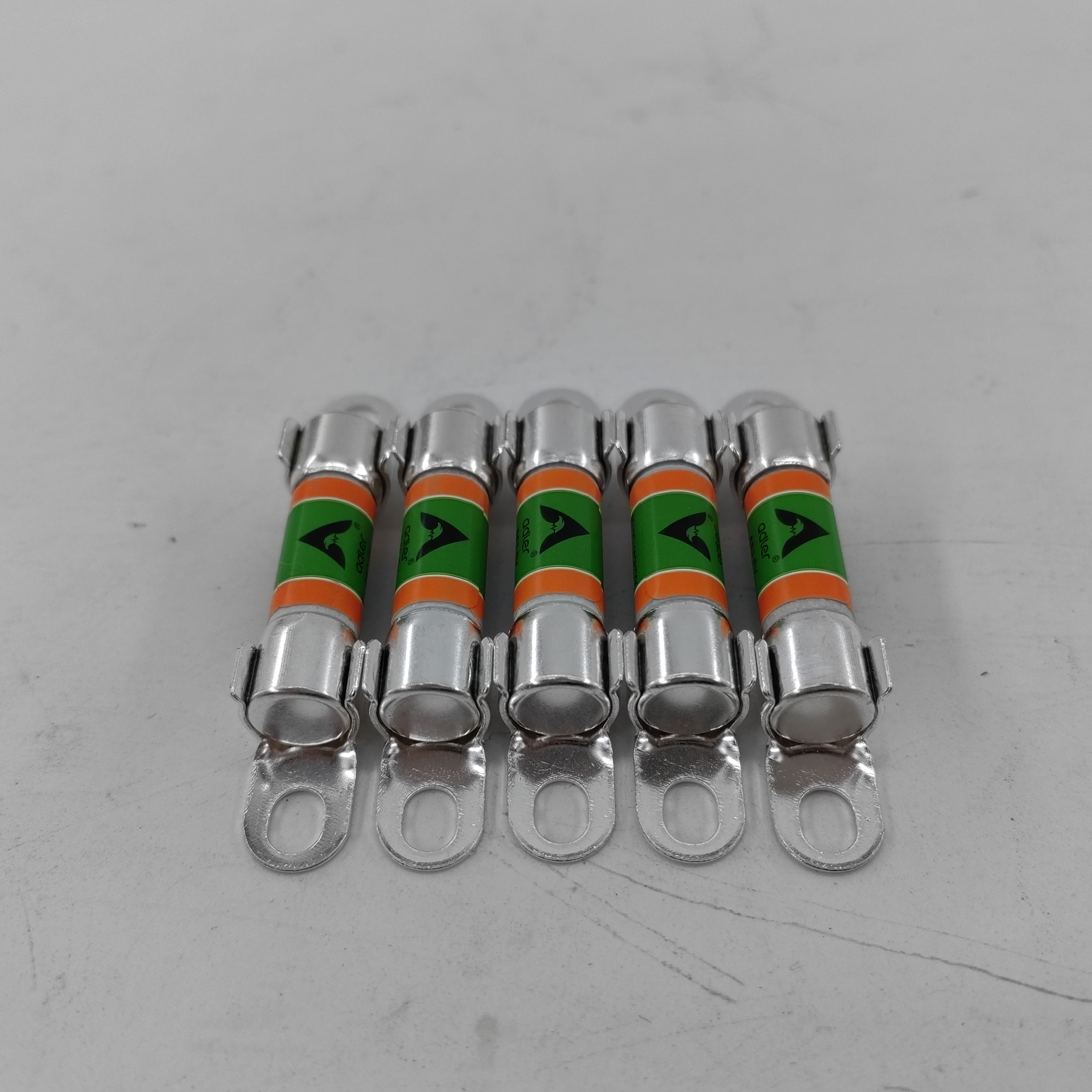

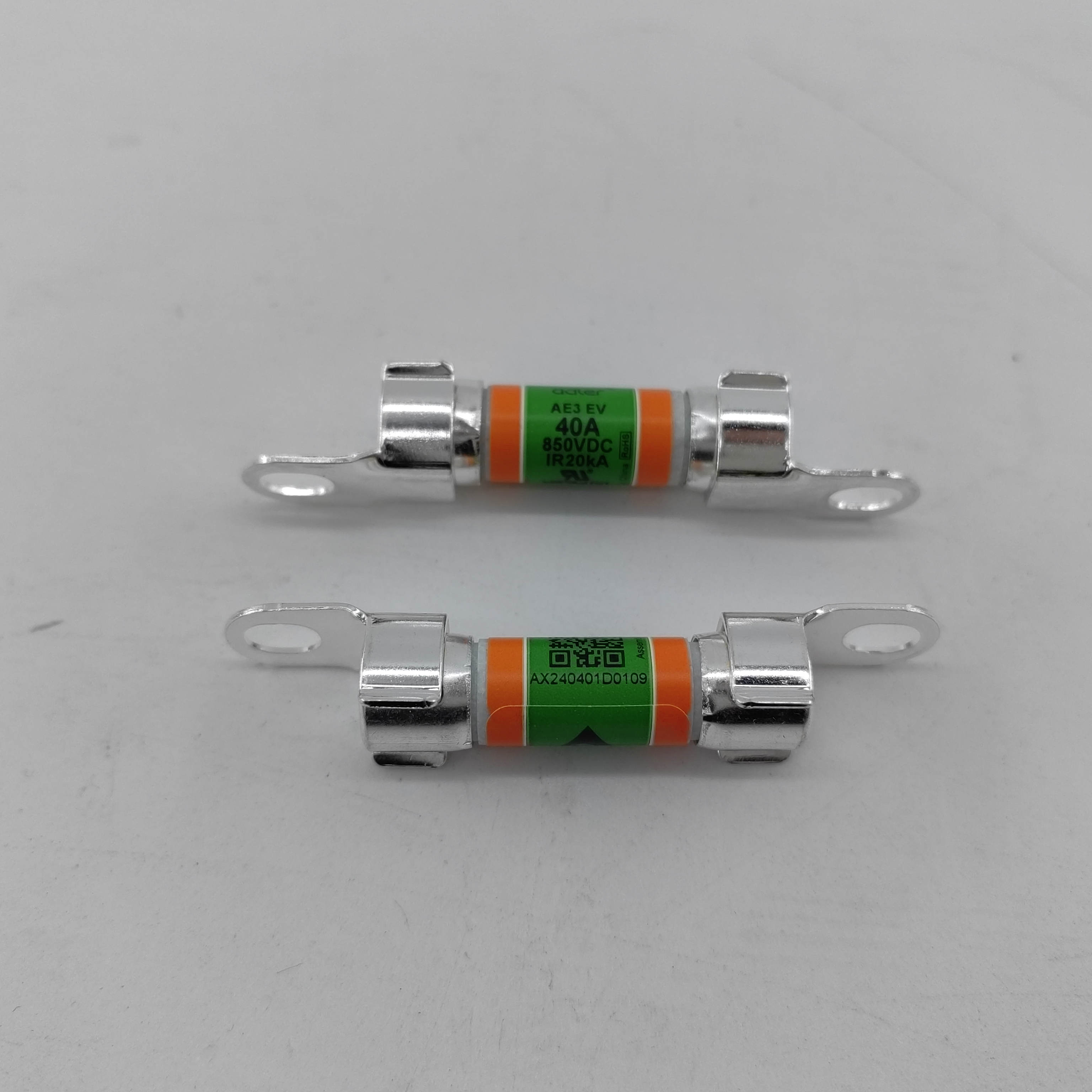

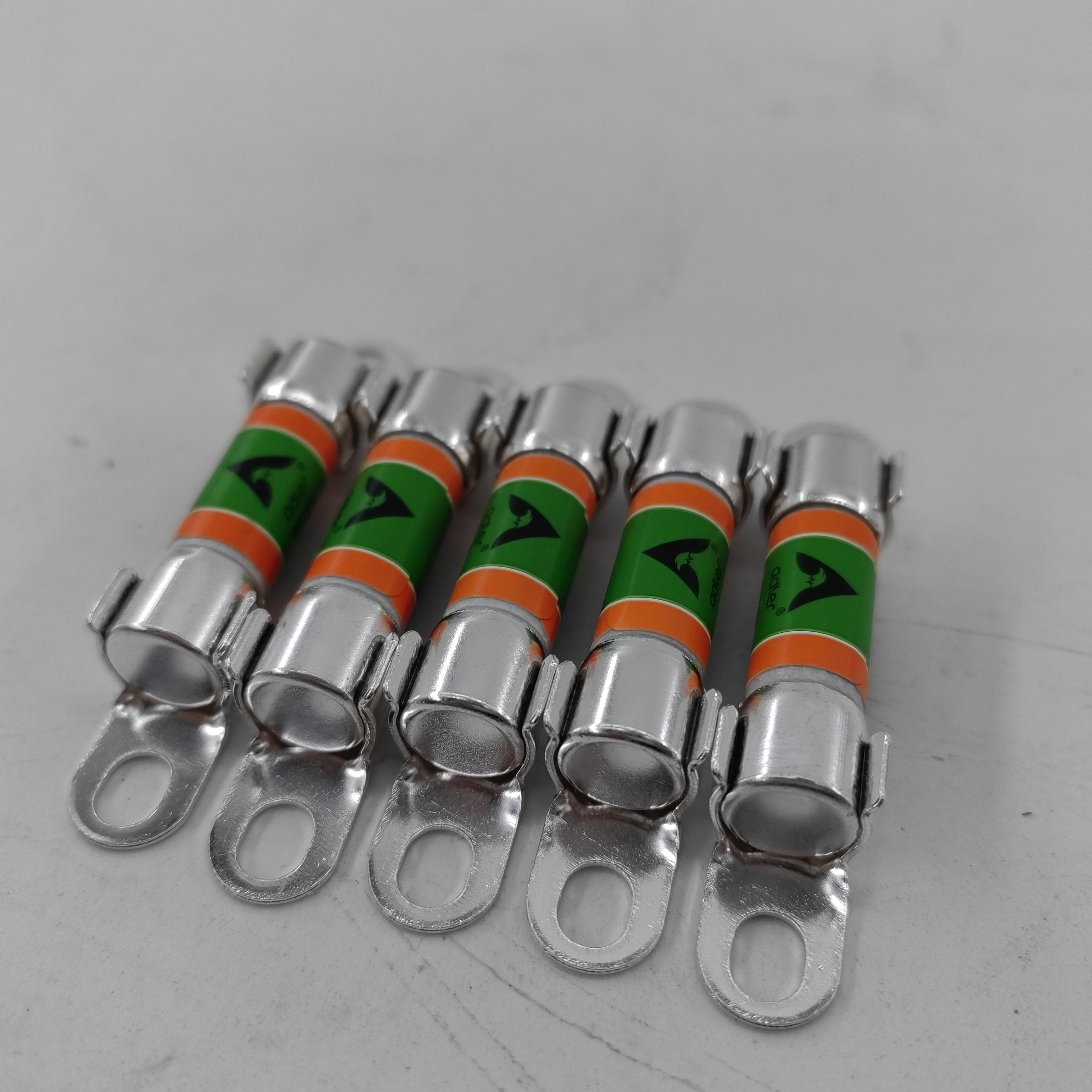

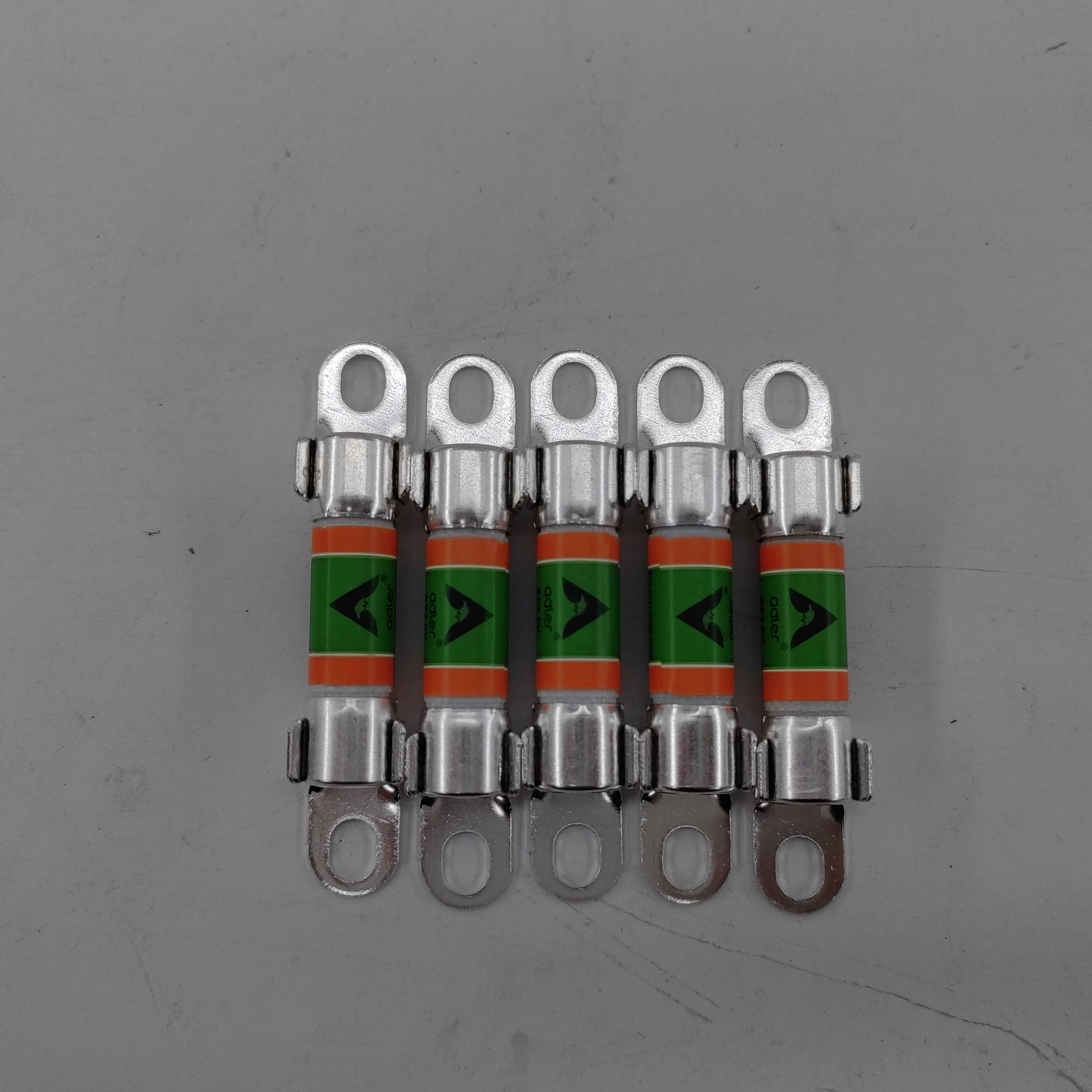

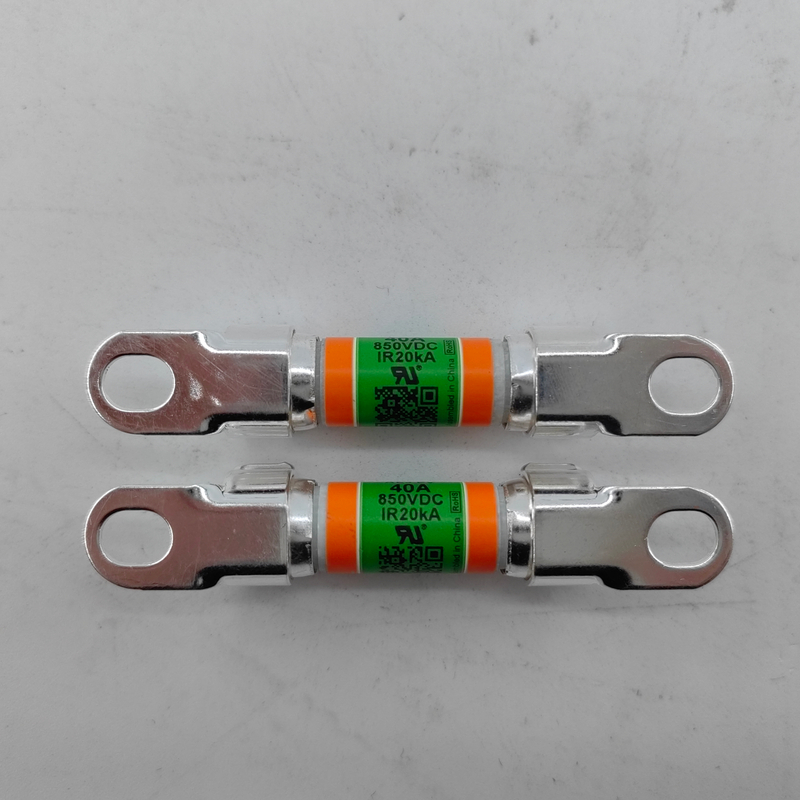

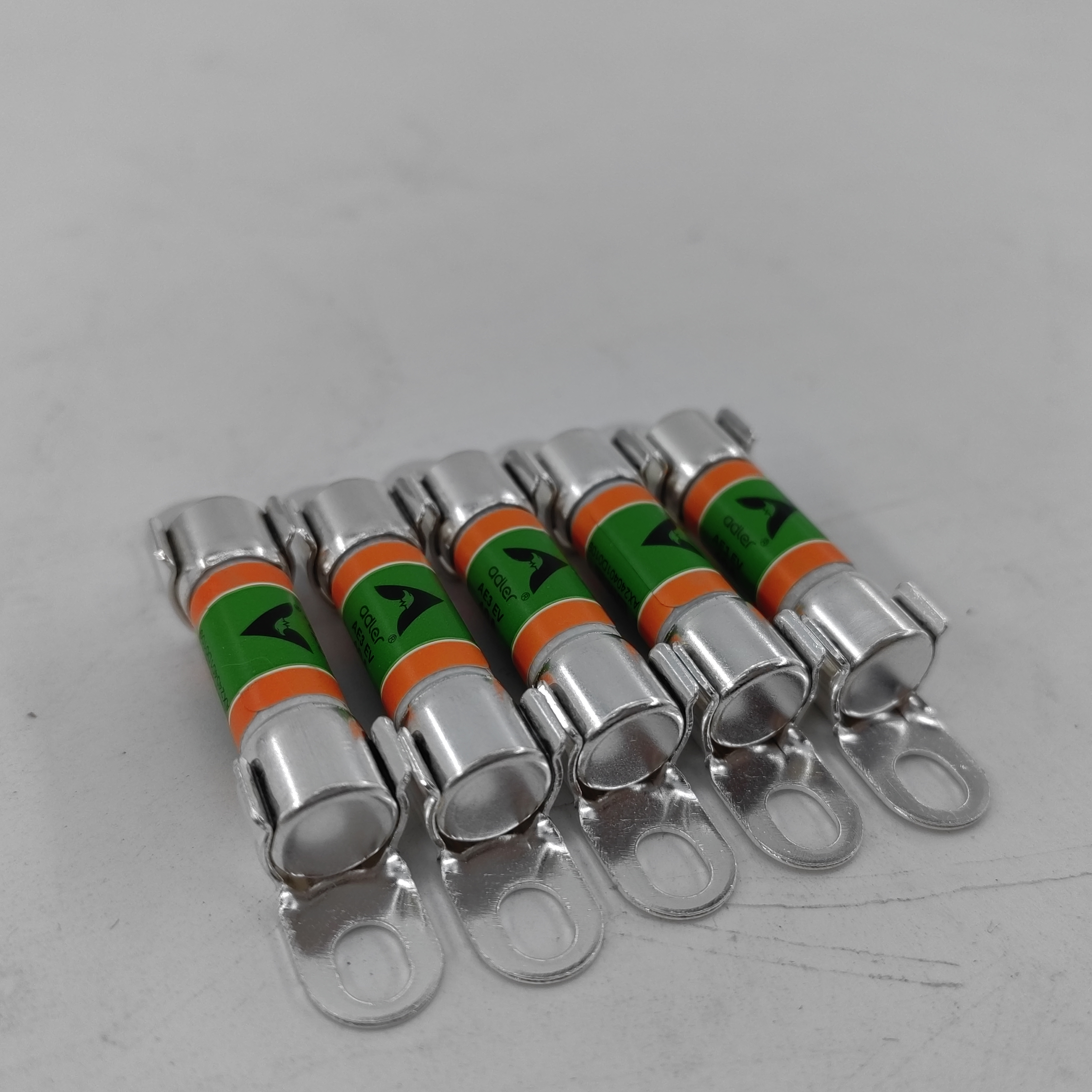

Alder AE2 500VDC 10-50A Series High-Voltage EV Fuse Detail
 | Features |
850 VDC automotive fuse
Rated Current: 5-50A
Max. BC: 20kA@850 VDC
Min. BC: 2ln@850 VDC
Time Constant: 1-3ms
Dimensions: 10x38mm
General purpose fuse for EV/HEV auxiliary protection
Ref. To UL 248-20; ISO 8820-8; GB-T 31465.6
Approval: TUV and UL
Recommended fuse holder: BH114
| Electrical Specifications |
| Part Number/Configuration | Rated Current | Ampere Code | Rated Voltage | Breaking Capacity | ||||
| Cartridge | Central Mount | Level Mount | PCB 2P Mount | PCB 3P Mount | ||||
| AE31500i07 | AE31500i04 | AE31500i05 | AE31500i06 | AE31500i08 | 5A | 1500 | 850 Vdc | 20kA@850VDC |
| AE31800i07 | AE31800i04 | AE31800i05 | AE31800i06 | AE31800i08 | 8A | 1800 | ||
| AE32100i07 | AE32100i04 | AE32100i05 | AE32100i06 | AE32100i08 | 10A | 2100 | ||
| AE32150i07 | AE32150i04 | AE32150i05 | AE32150i06 | AE32150i08 | 15A | 2150 | ||
| AE32200i07 | AE32200i04 | AE32200i05 | AE32200i06 | AE32200i08 | 20A | 2200 | ||
| AE32250i07 | AE32250i04 | AE32250i05 | AE32250i06 | AE32250i08 | 25A | 2250 | ||
| AE32300i07 | AE32300i04 | AE32300i05 | AE32300i06 | AE32300i08 | 30A | 2300 | ||
| AE32350i07 | AE32350i04 | AE32350i05 | AE32350i06 | AE32350i08 | 35A | 2350 | ||
| AE32400i07 | AE32400i04 | AE32400i05 | AE32400i06 | AE32400i08 | 40A | 2400 | ||
| AE32450i07 | AE32450i04 | AE32450i05 | AE32450i06 | AE32450i08 | 45A | 2450 | ||
| AE32500i07 | AE32500i04 | AE32500i05 | AE32500i06 | AE32500i08 | 50A | 2500 | ||
| Time VS Current Characteristic |
| Rated Current | 110% | 135% | 150% | 200% | 300% | 500% |
| 5 - 50A | >4h | 150s - 1h | 10-1000s | 0.5-100s | 0.1-15s | 0.05-1s |
| Part Number System |
| AE3 | 2500 | i | 07 | |
| Product Series: AE3 | ||||
| Ampere Code: 50A | ||||
| Rated Voltage: i=850V | ||||
Supplementary Code: 07=Cylindrical; 04=Central Mount; 05=Level Mount; 06=PCB 2P; 08=PCB 4P | ||||

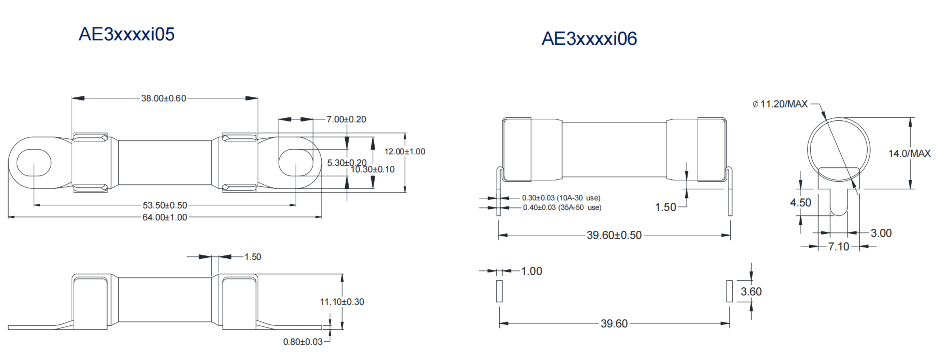

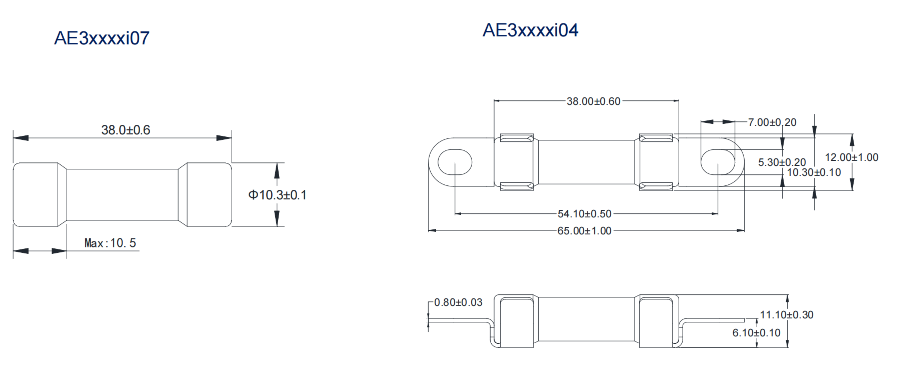

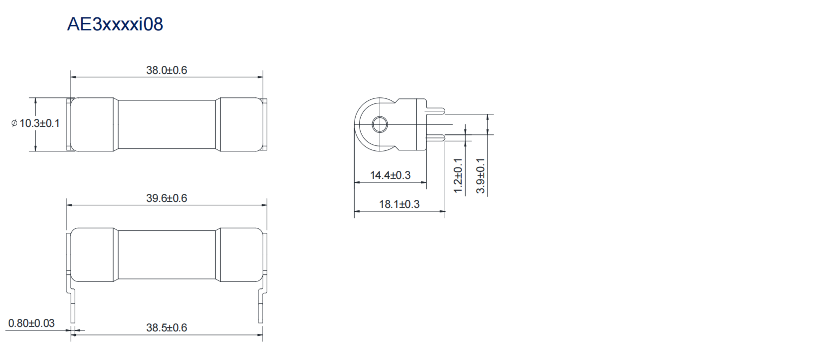

| Dimensions |
