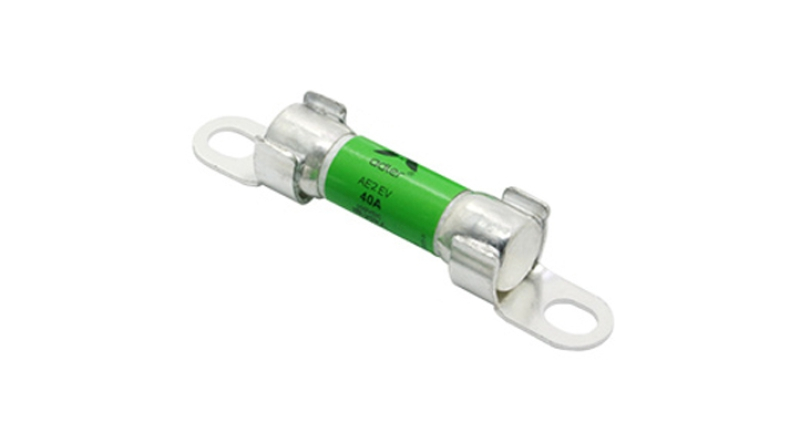

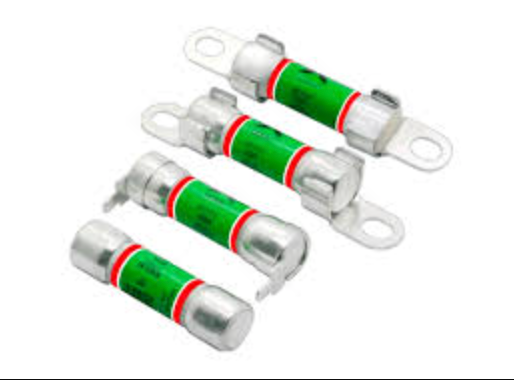

Alder AE2 500VDC 10-50A Series High-Voltage EV Fuse Detail
 | Features |
500 VDC automotive fuse
Rated Current: 10-50A
Max. BC: 20kA@500 VDC
Min. BC: 2ln@500 VDC
Time Constant: 1-3ms
Dimensions: 10x38mm
General purpose fuse for EV/HEV auxiliary protection
Ref. To UL 248-20; ISO 8820-8; GB-T 31465.6
Approval: TUV and UL
Recommended fuse holder: BH114
| Electrical Specifications |
| Part Number/Configuration | Rated Current | Ampere Code | Rated Voltage | Breaking Capacity | Certifications | ||||
| Cartridge | Central Mount | Level Mount | PCB Mount | TUV | UL | ||||
| AE22100607 | AE22100604 | AE22100605 | AE22100606 | 10A | 2100 | 500 Vdc | 20kA@500VDC | ○ | ● |
| AE22150607 | AE22150604 | AE22150605 | AE22150606 | 15A | 2150 | ● | ● | ||
| AE22200607 | AE22200604 | AE22200605 | AE22200606 | 20A | 2200 | ● | ● | ||
| AE22250607 | AE22250604 | AE22250605 | AE22250606 | 25A | 2250 | ● | ● | ||
| AE22300607 | AE22300604 | AE22300605 | AE22300606 | 30A | 2300 | ● | ● | ||
| AE22350607 | AE22350604 | AE22350605 | AE22350606 | 35A | 2350 | ● | ● | ||
| AE22400607 | AE22400604 | AE22400605 | AE22400606 | 40A | 2400 | ● | ● | ||
| AE22500607 | AE22500604 | AE22500605 | AE22500606 | 50A | 2500 | ● | ● | ||
| Time VS Current Characteristic |
| Rated Current | 110% | 135% | 150% | 200% | 300% | 500% |
| 10 - 50A | >4h | 150s - 1h | 10-1000s | 0.5-100s | 0.1-15s | 0.05-1s |
| Part Number System |
| AE2 | 2500 | 6 | 04 | |
| Product Series: AE2 | ||||
| Ampere Code: 50A | ||||
| Rated Voltage: 6=500V | ||||
Supplementary Code: 04=Central Mount; 05=Level Mount; 06=PCB Mount; 07=Cartridge | ||||

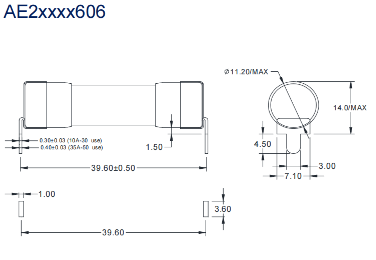

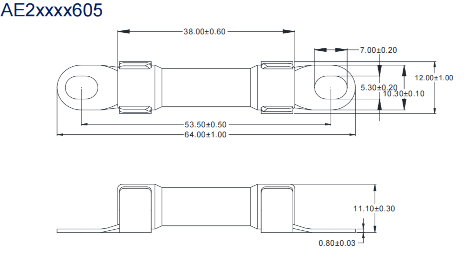

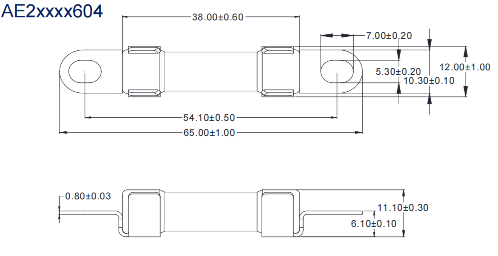

| Dimensions |
