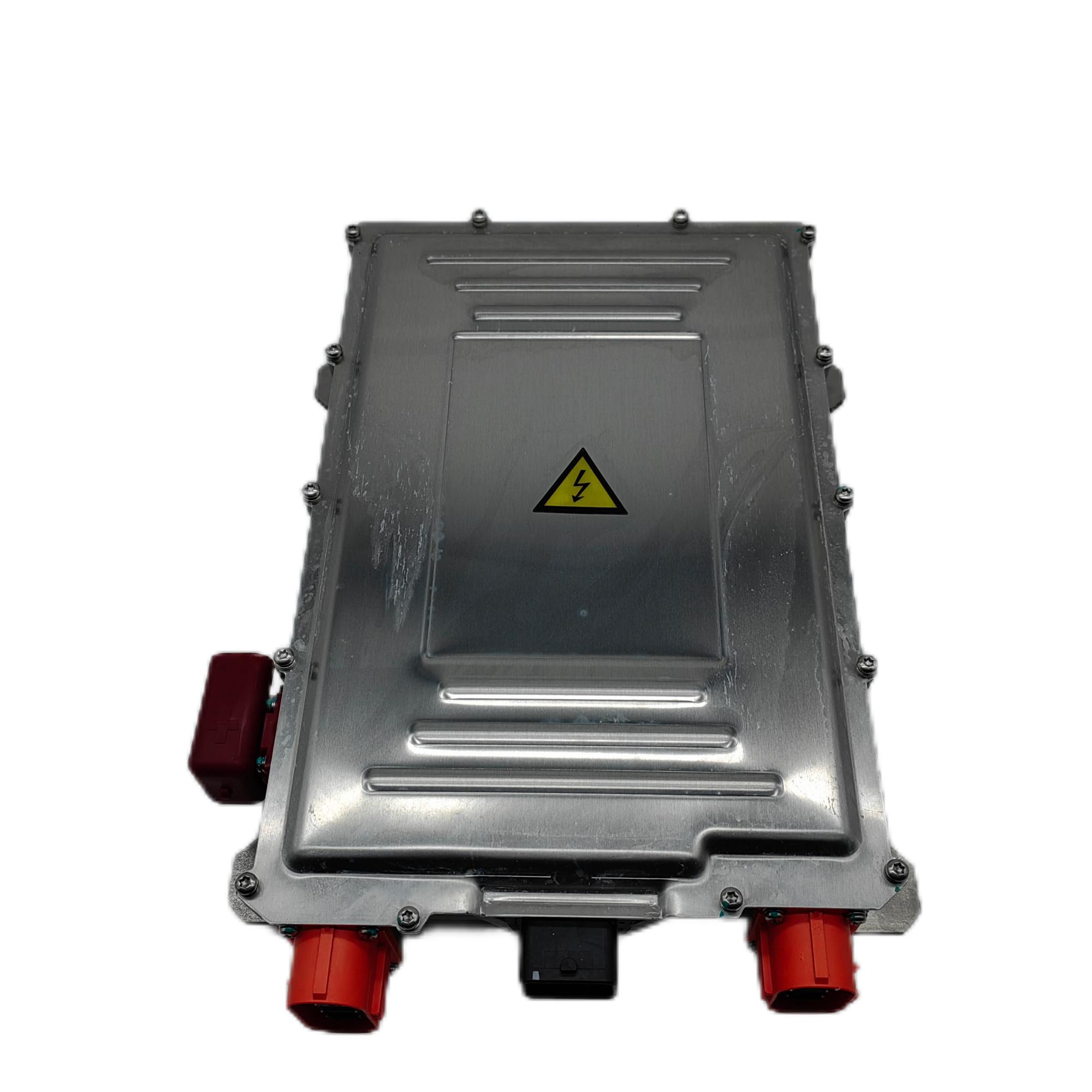

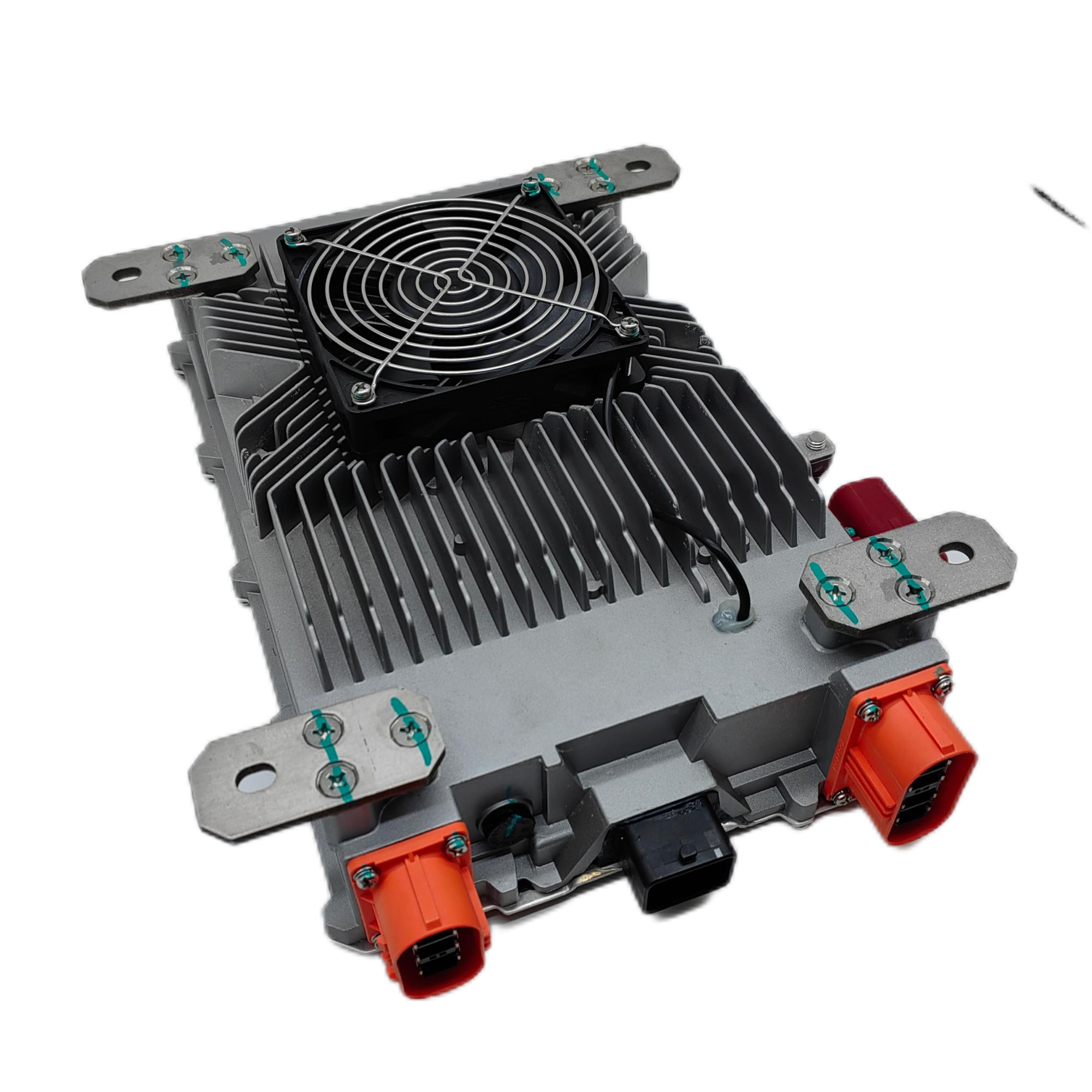

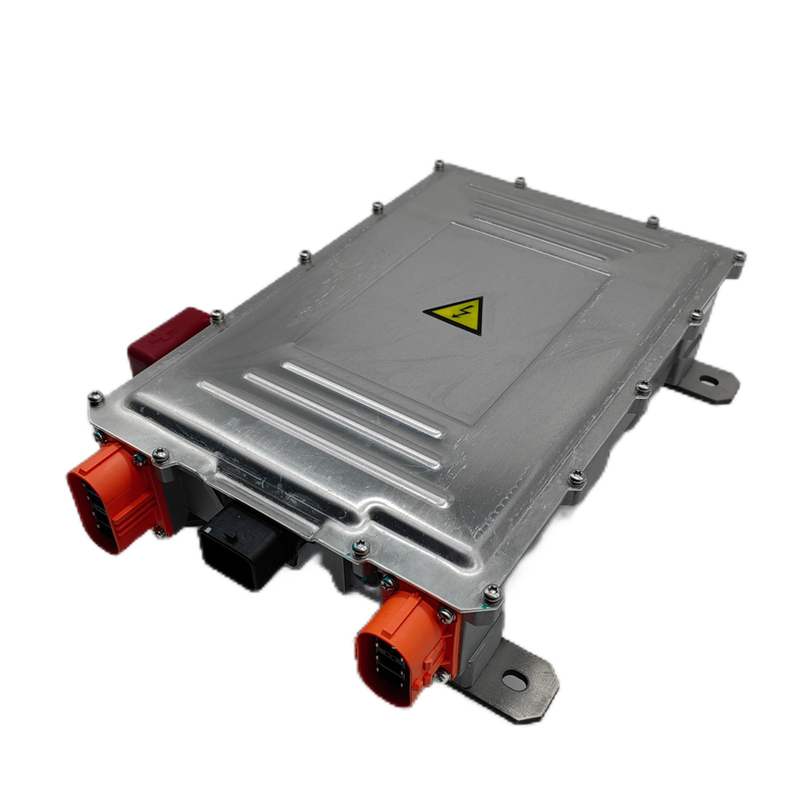

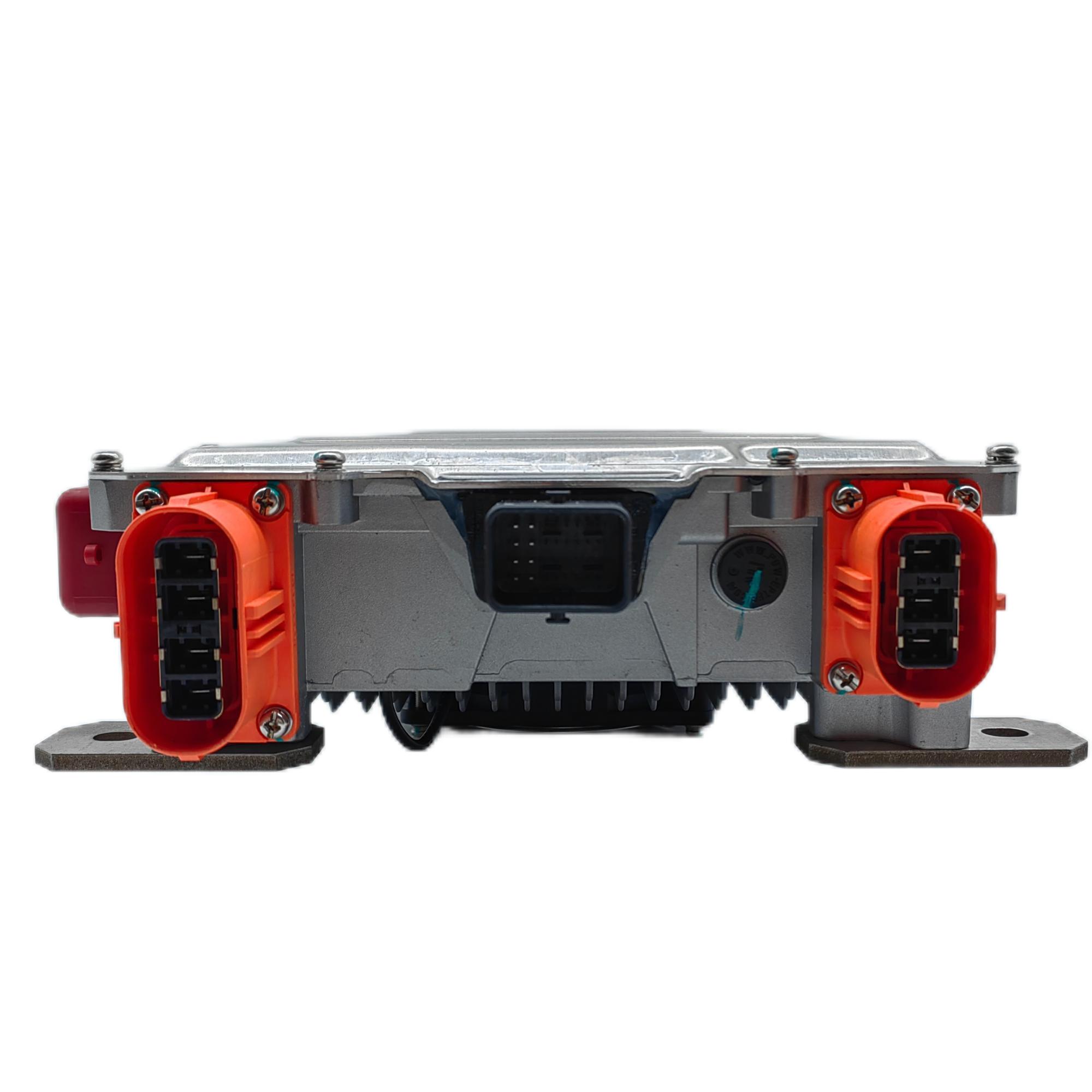

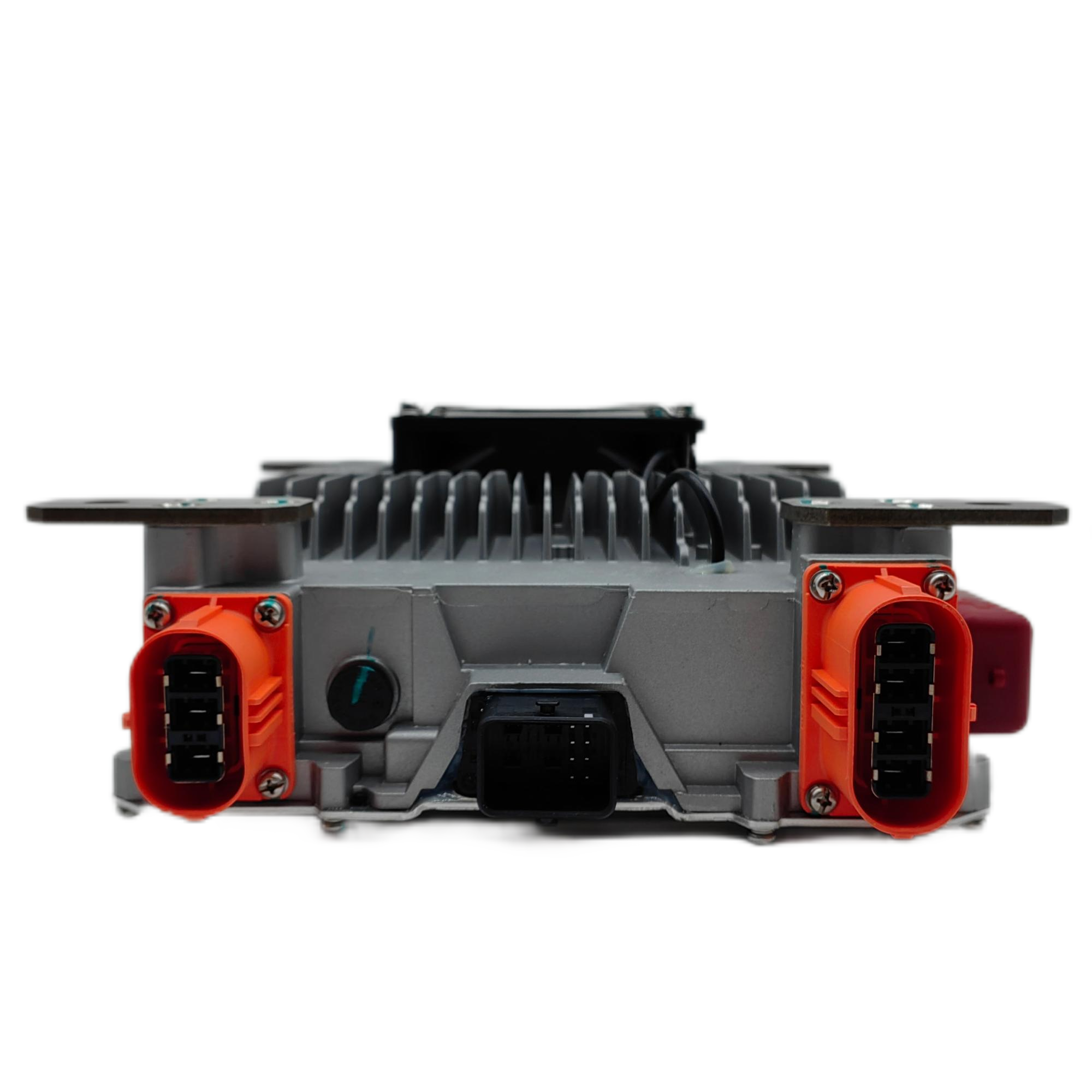

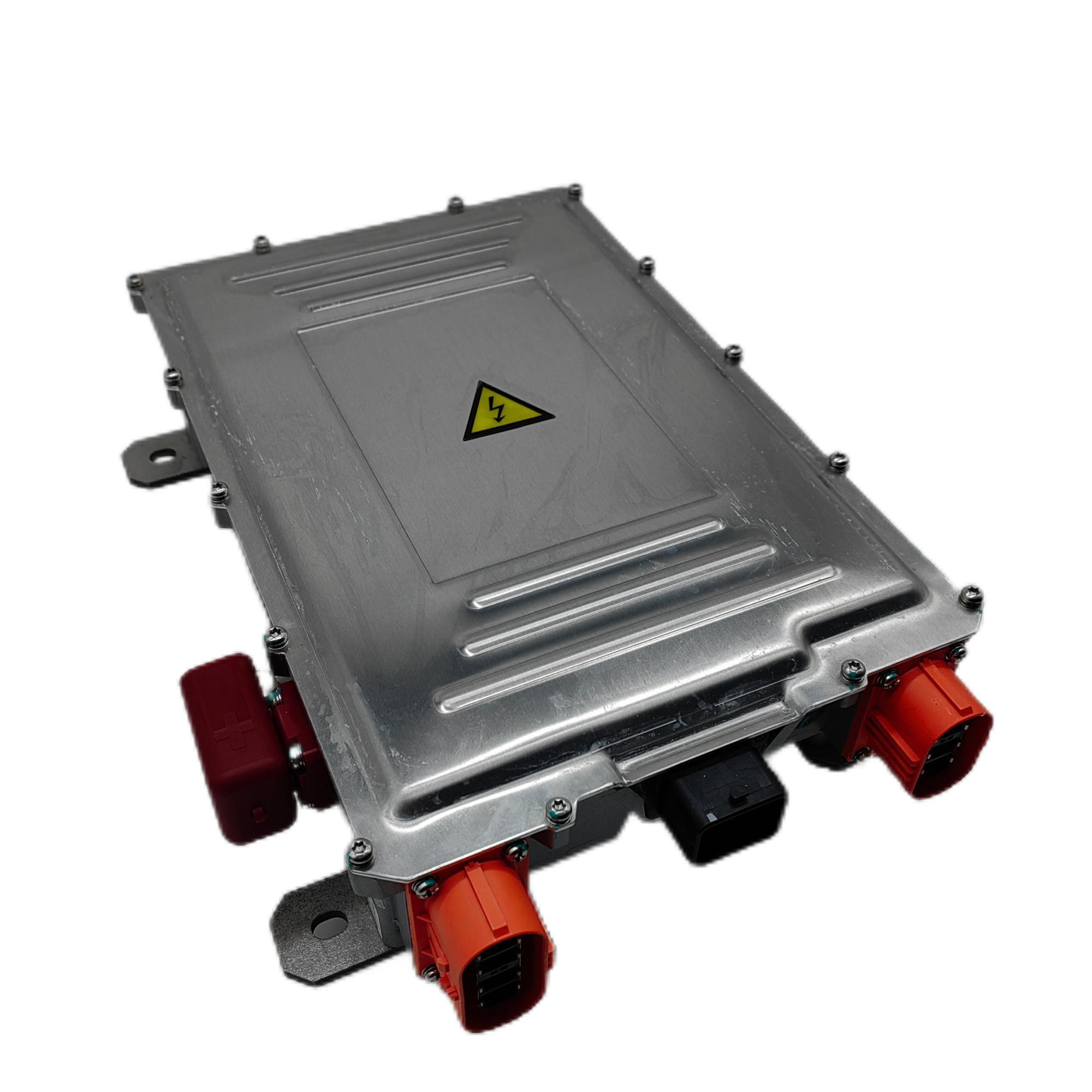

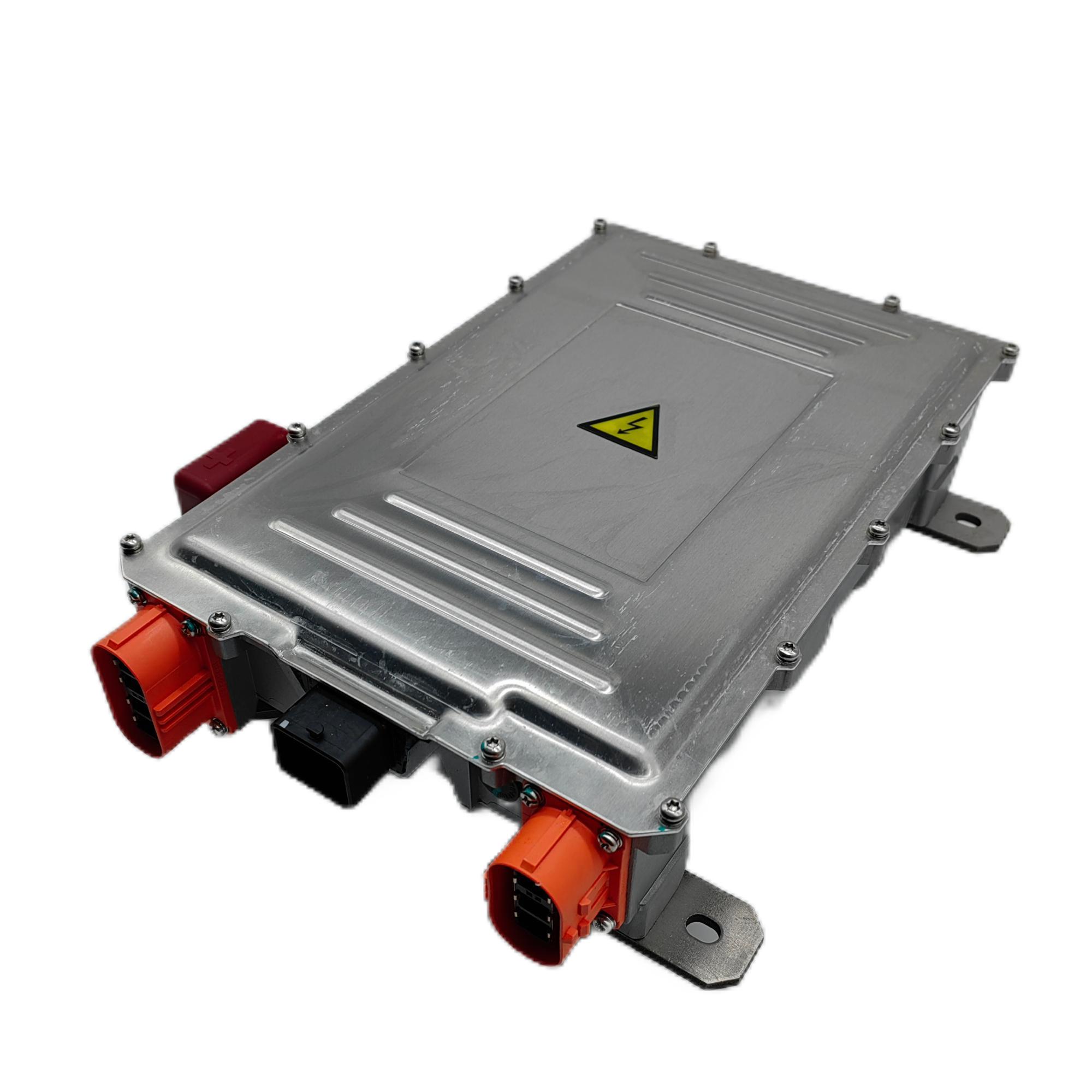

Introduction of 6.6KW OBC +2KW DCDC Converter 2 in 1 Combo Charger
 | Technical Data of 6.6KW OBC +2KW DCDC Converter 2 in 1 Combo Charger |
| OBC Technical Data: |
|
| DCDC Technical Data: |
|
| Nominal Voltage: | 144V, 312V; |
| Nominal Voltage: | 144V, 312V; |
| AC Input Voltage Range | AC90V~AC265V |
| Rated Power: | 2KW |
| AC Input Current: | 32A |
| Peak Power: | 2.2KW;(Continues Max 6 min) |
| AC Input Frequency | 45~65 Hz |
| Max Output Current(@14V): | 143A |
| AC Power Factor | ≥0.99 |
| Max Efficiency | ≥93％ |
| Full Load Efficiency | ≥93％ |
| Voltage Regulation | ≤1.5% |
| Standby Power Consumption | ≤5W |
| IP Standard: | IP67 |
| Cooling Method | Enforce Air Cooling; Liquid Cooling; |
| Operating Temperature: | -40℃~+60℃ |
| Environmental Enclosure | IP67 |
| Storage Temperature: | －45～105℃ |
| Operating Temperature | -40℃~+55℃ |
| Ambient Moisture: | In the environment of (23±2) ℃ and moisture at 80%-90% |
| Storage Temperature | -40℃~+100℃ |
| Noisy | Distance in 1.5m,Noisy≤50dB |
| Auxiliary Output: | 14V 5A |
| Cooling Method: | Enforce Air Cooling; |
| Control Method: | With CAN BUS |
| Control Method: | With CAN BUS; 12V Enable (Optional) |
| Model List of 6.6KW OBC + 2KW DCDC 2-in-1 Combo Charger Unit |
| Model | Nominal Voltage | OBC Vout Range | OBC Iout | DCDC Vin Range | DCDC Output | Cooling Method |
|
| CD-LFK01 | 144V | 110-200VDC | 46A | 110-202V | 14V 143A | Enforced Air Cooling |
| CD-LFK02 | 312V | 220-450VDC | 20A | 220-454V | 14V 143A | Enforced Air Cooling |

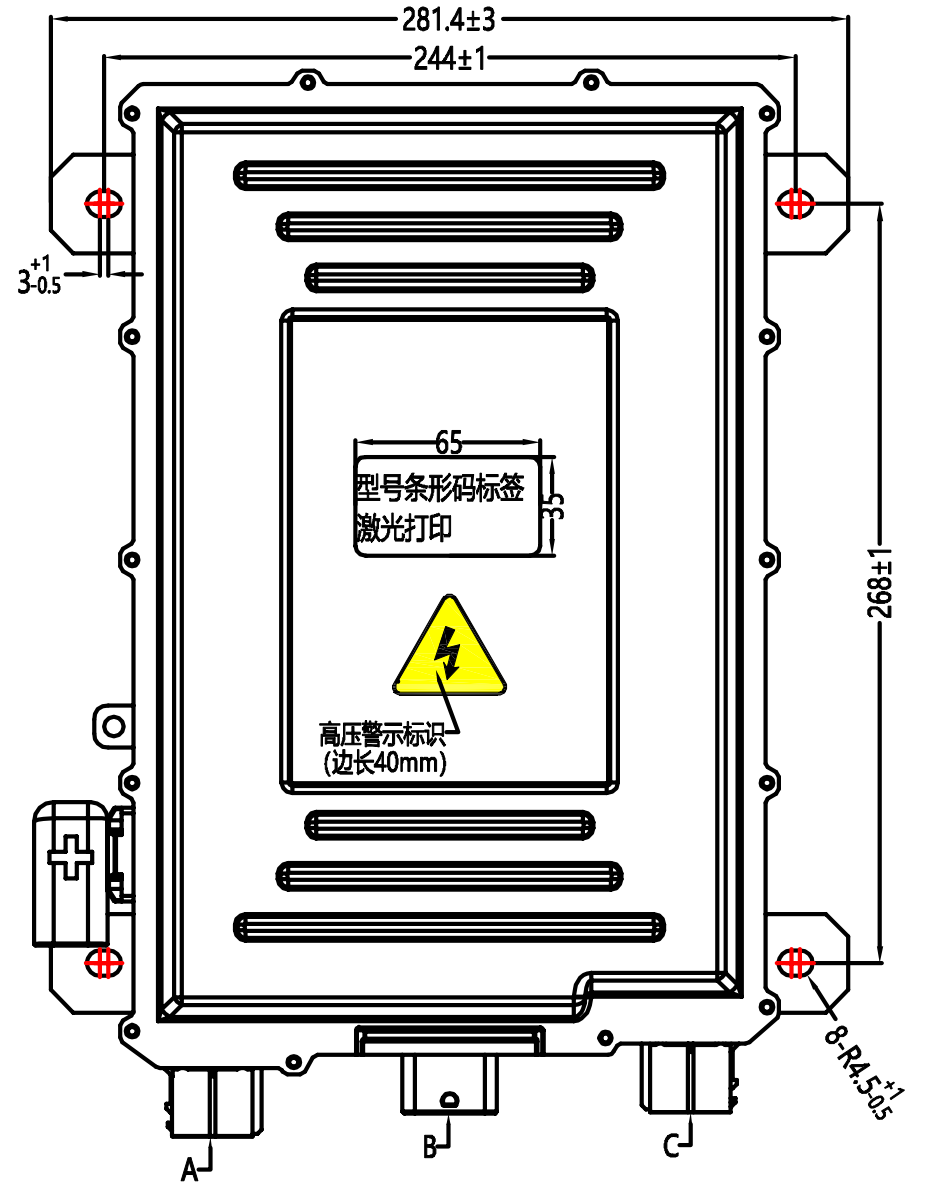

| Installation Dimension of 6.6KW OBC +2KW DCDC 2-in-1 Combo Charger Unit |
6.6KW OBC +2KW DCDC 2 IN 1 Combo Charger
Size (mm)：268(L) × 244(W) × 115(H)
Net Weight: 8.5kg
