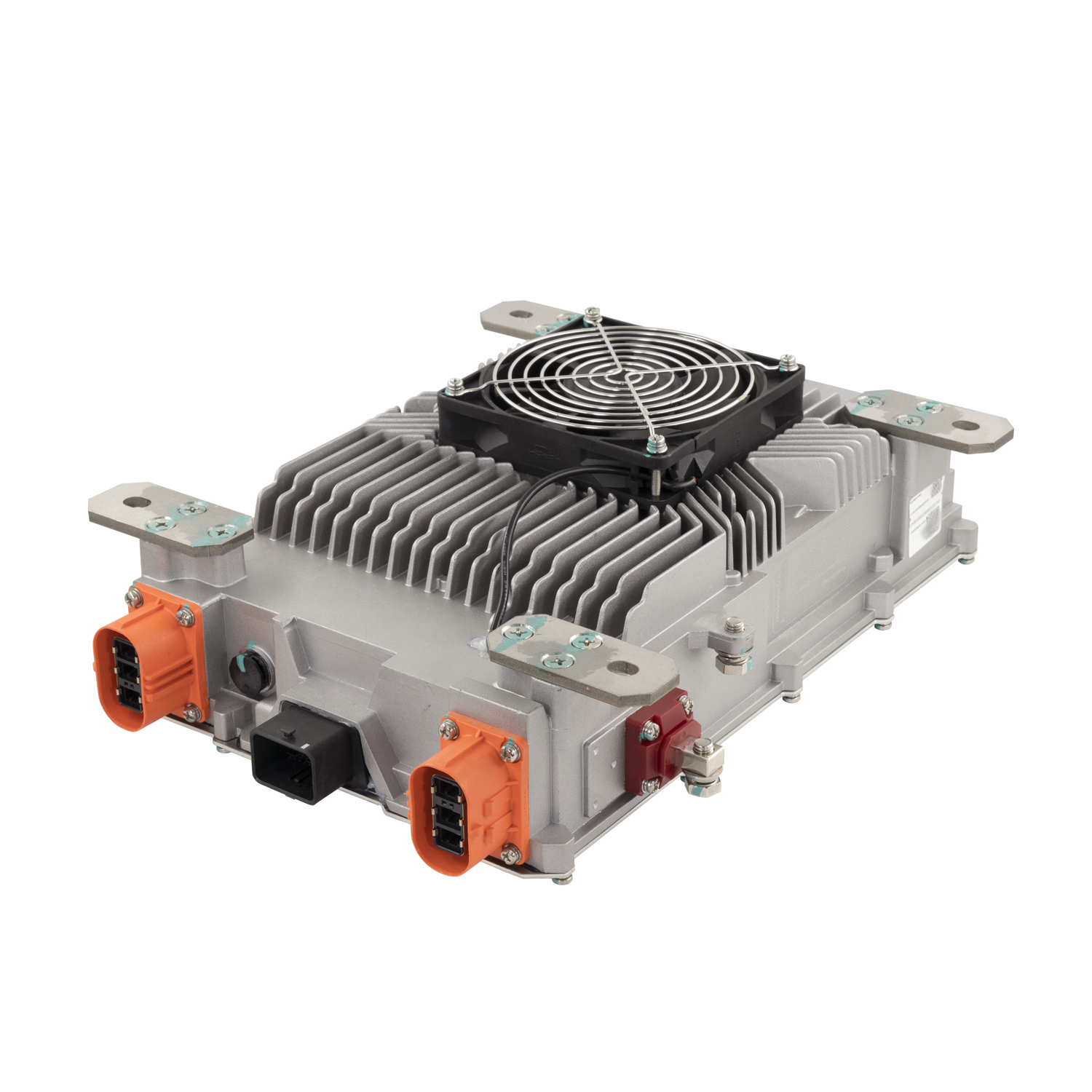

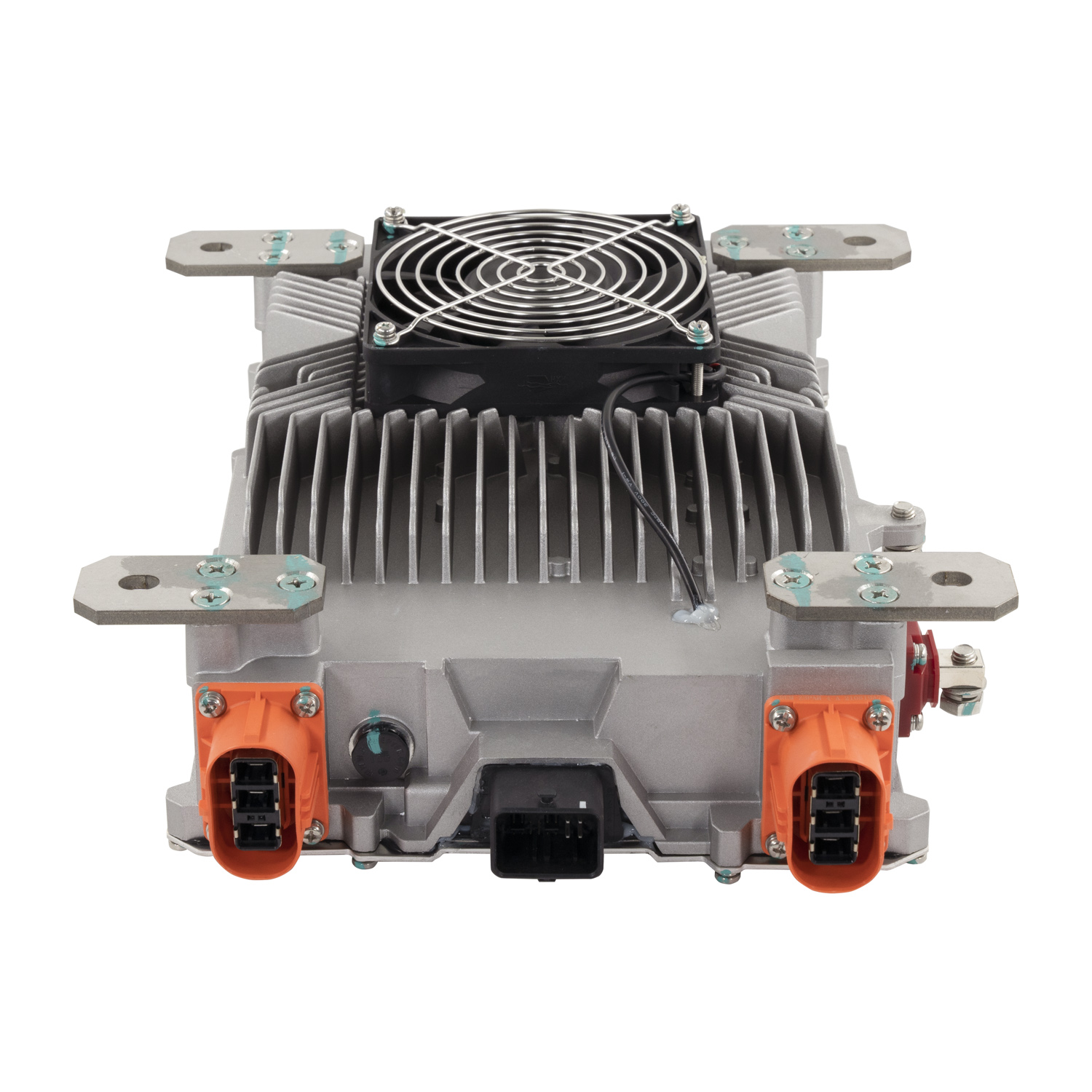

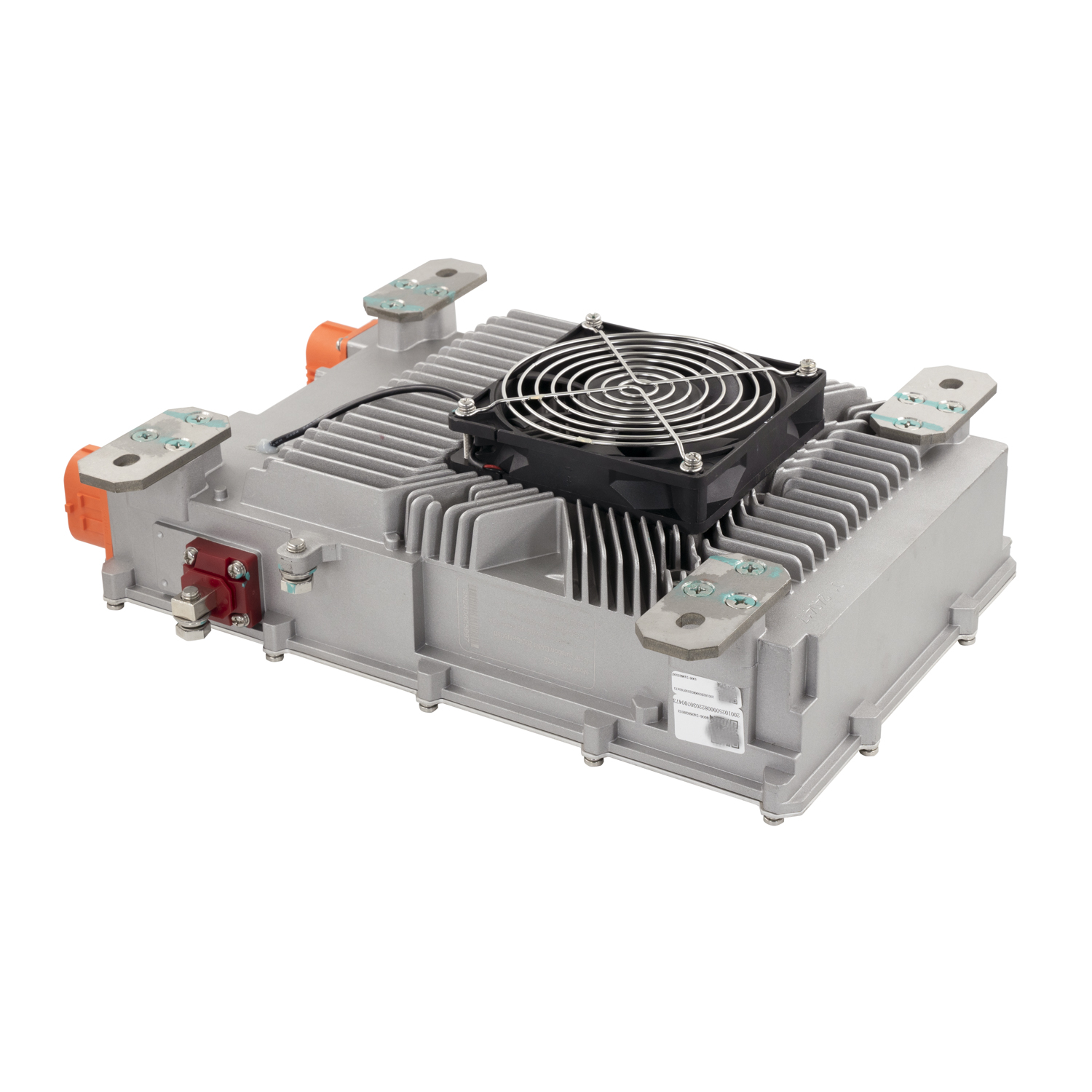

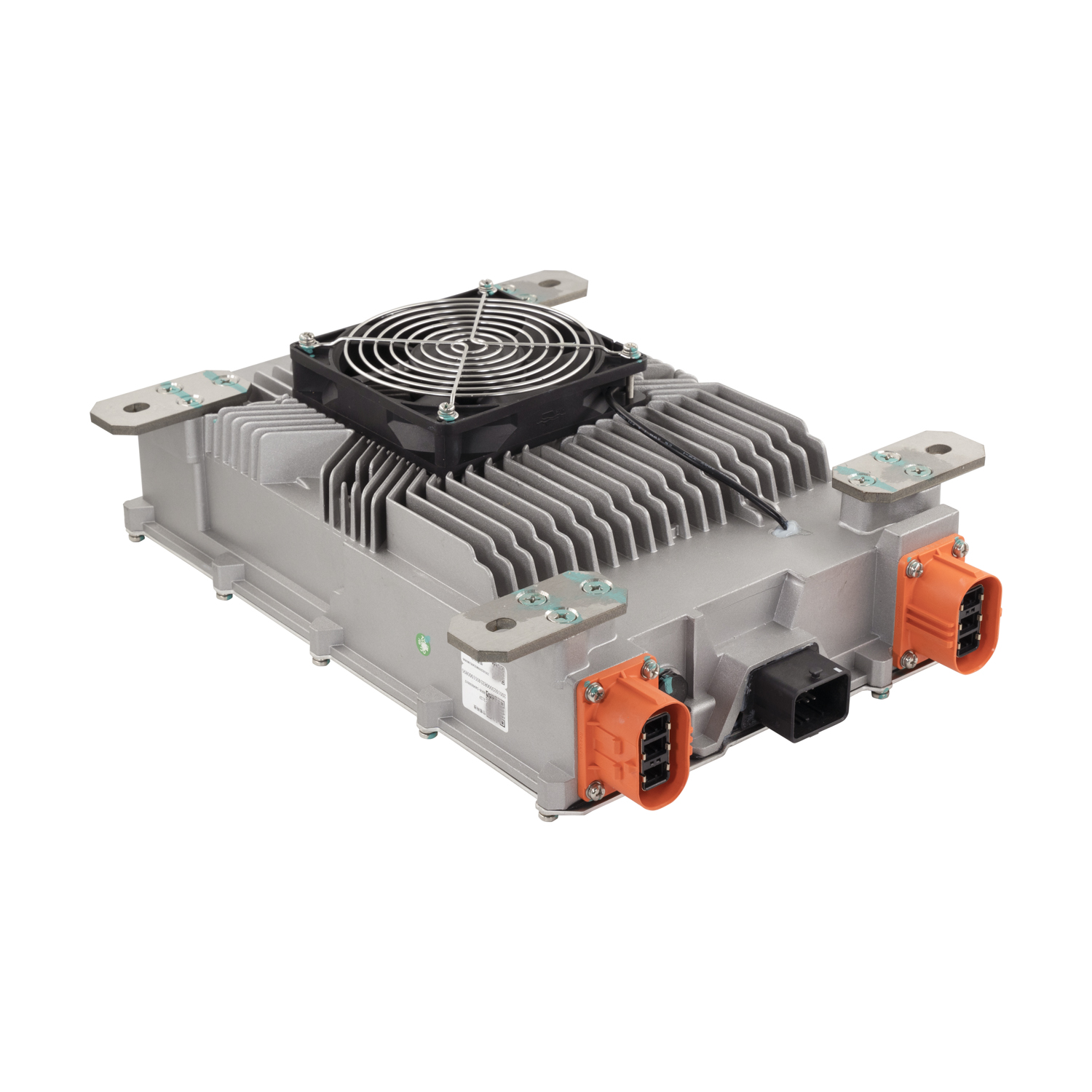

6.6KW KL-LF-108-60 108V 60A On Board Charger Air Cooling IP67 with CAN Bus / Enable

Introduction 6.6KW OBC /On Board Charger

Key Features:

Voltage and Current Output: Delivers a powerful 6.6KW, wide voltage rated 108V, 144V, 312V, 540V, ensuring rapid charging times and minimizing downtime for vehicles.

Superior Efficiency: Crafted for optimal performance, this charger boosts electrical conversion efficiency, making it a leader in its class for energy conservation and reducing operational costs.

Advanced Protection: With an IP67 rating, it is fully protected against dust ingress and water immersion, guaranteeing durability in various environmental conditions. Additionally, internal thermal protection mechanisms safeguard against overheating, further enhancing the charger's lifespan and safety.

Intelligent Communication: Incorporates CAN bus communication for seamless integration with vehicle management systems, allowing for smart charging processes and real-time monitoring of charging status and diagnostics.

Compact Design: Despite its powerful 6.6KW output, is designed to be lightweight and compact, ensuring easy installation and integration into various vehicle platforms without compromising on space or adding excessive weight.

Technical Data of 6.6KW OBC /On Board Charger with Air Cooling

Model Table of 6.6KW OBC /On Board Charger with Air Cooling

Description of 6.6KW OBC /On Board Charger

Liquid Version of 6.6KW OBC/ON BOARD CHARGER

Installation Dimension of 6.6KW OBC/ON Board Charger

Enforce Air Cooling and Liquid Cooling type, match the EV platform configured with liquid cooling system or not. Non enclosue installation cabinet is mandatory for enforce air cooling charger, proper air flow to assist the charger heating dissipation.

Enforced Air Cooling Charger Dimension（108V,144V）

Size (mm)：312(L) × 268(W) × 111(H)

Net Weight: 7.0 KG

Gross Weight: 8.0 KG

Enforced Air Cooling Charger Dimension（312V,540V）

Size (mm)：310(L) × 270(W) × 111(H)

Net Weight: 7.0 KG;

Gross Weight: 8.0 KG;

Liquid Cooling Charger Dimension（312V,540V,600V）

Size (mm)：310(L) × 270(W) × 111(H)

Net Weight: 8.0 KG;

Gross Weight: 9.0 KG;

Conclusion:

The KL-L series on-board charger is an exceptional solution for electric vehicles requiring high voltage inputs. It epitomizes the blend of technological advancement with practical efficiency, making it an indispensable asset for the electrification of transportation. With this charger, EV manufacturers and owners can expect not just a product, but a comprehensive charging solution that meets the needs of today's electric drive.
