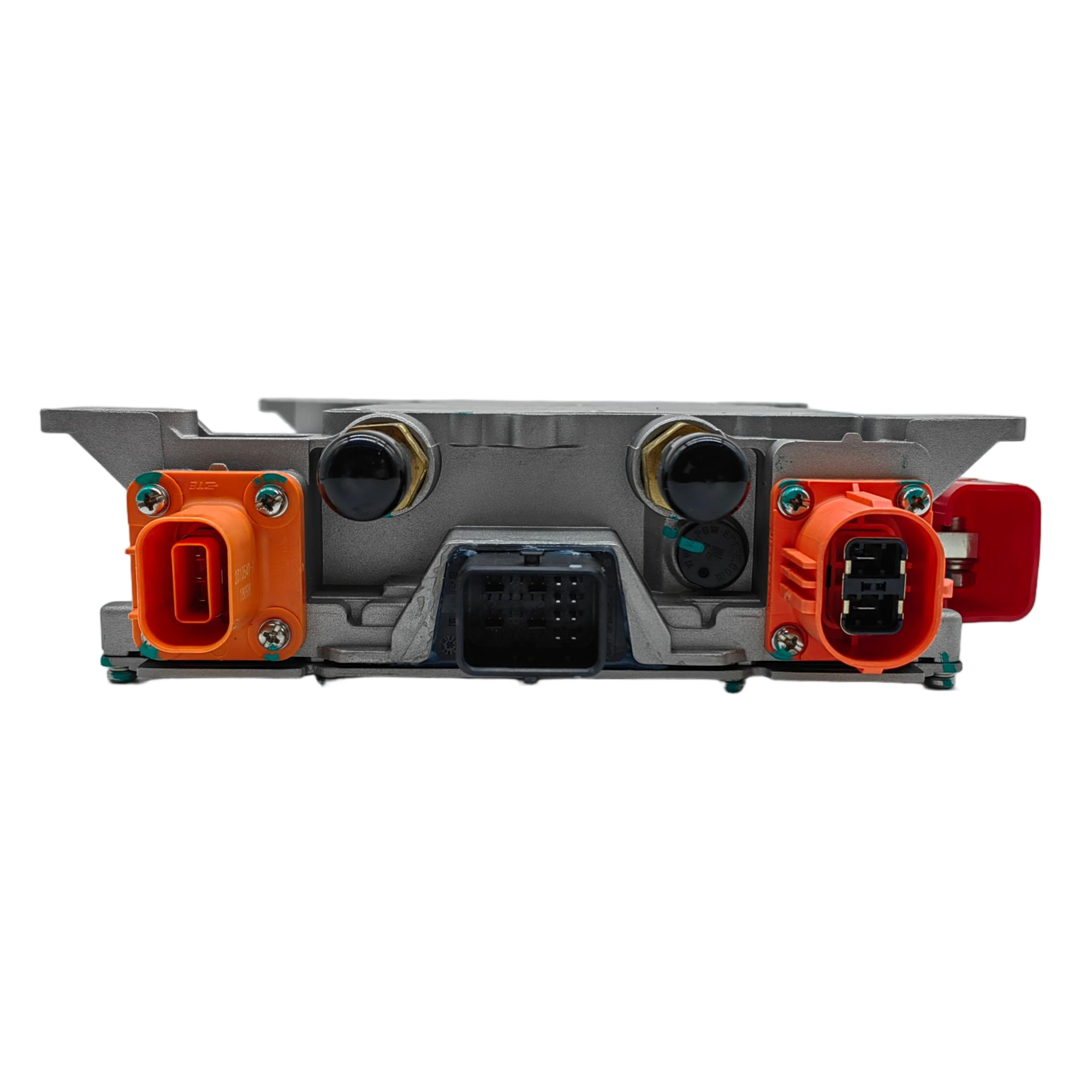

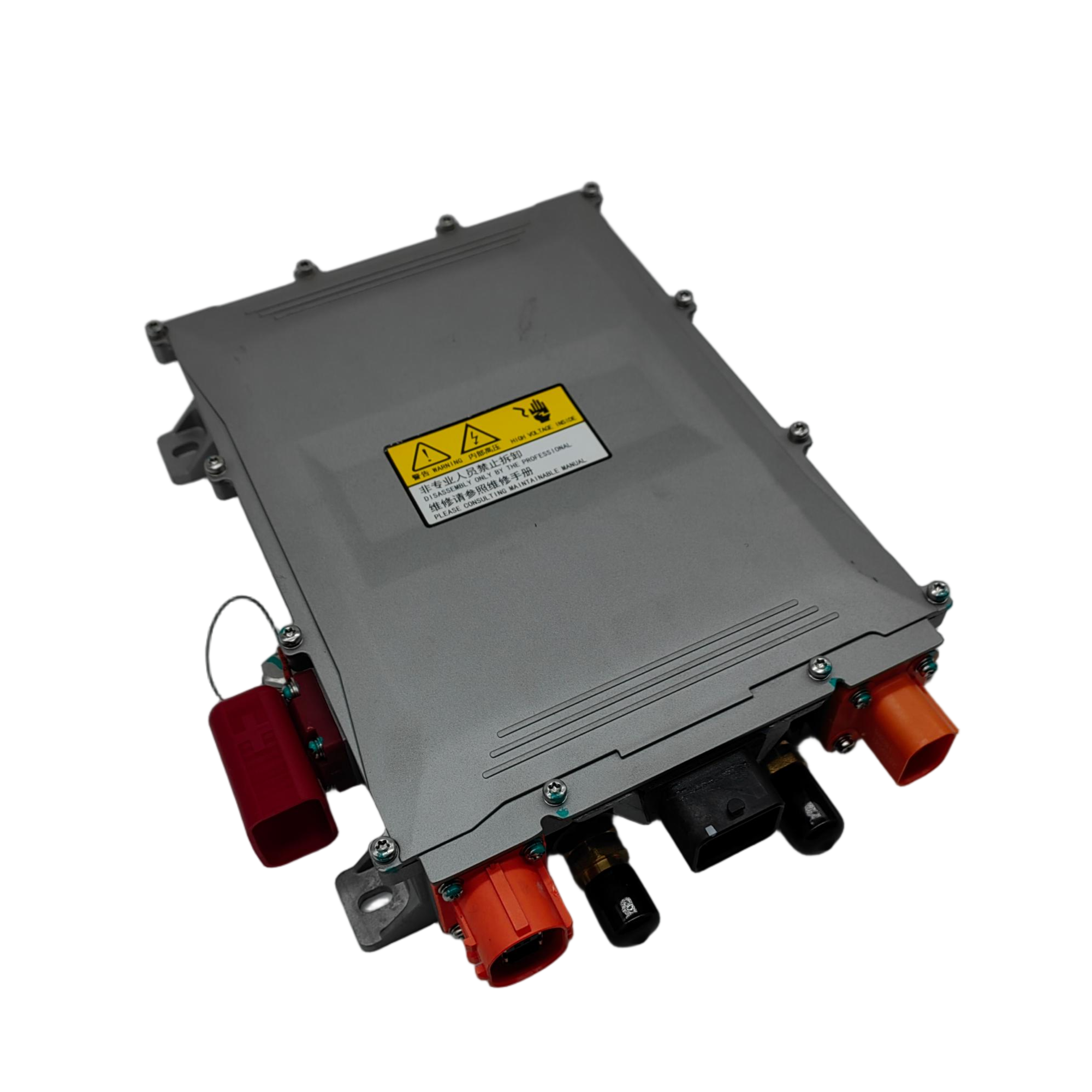

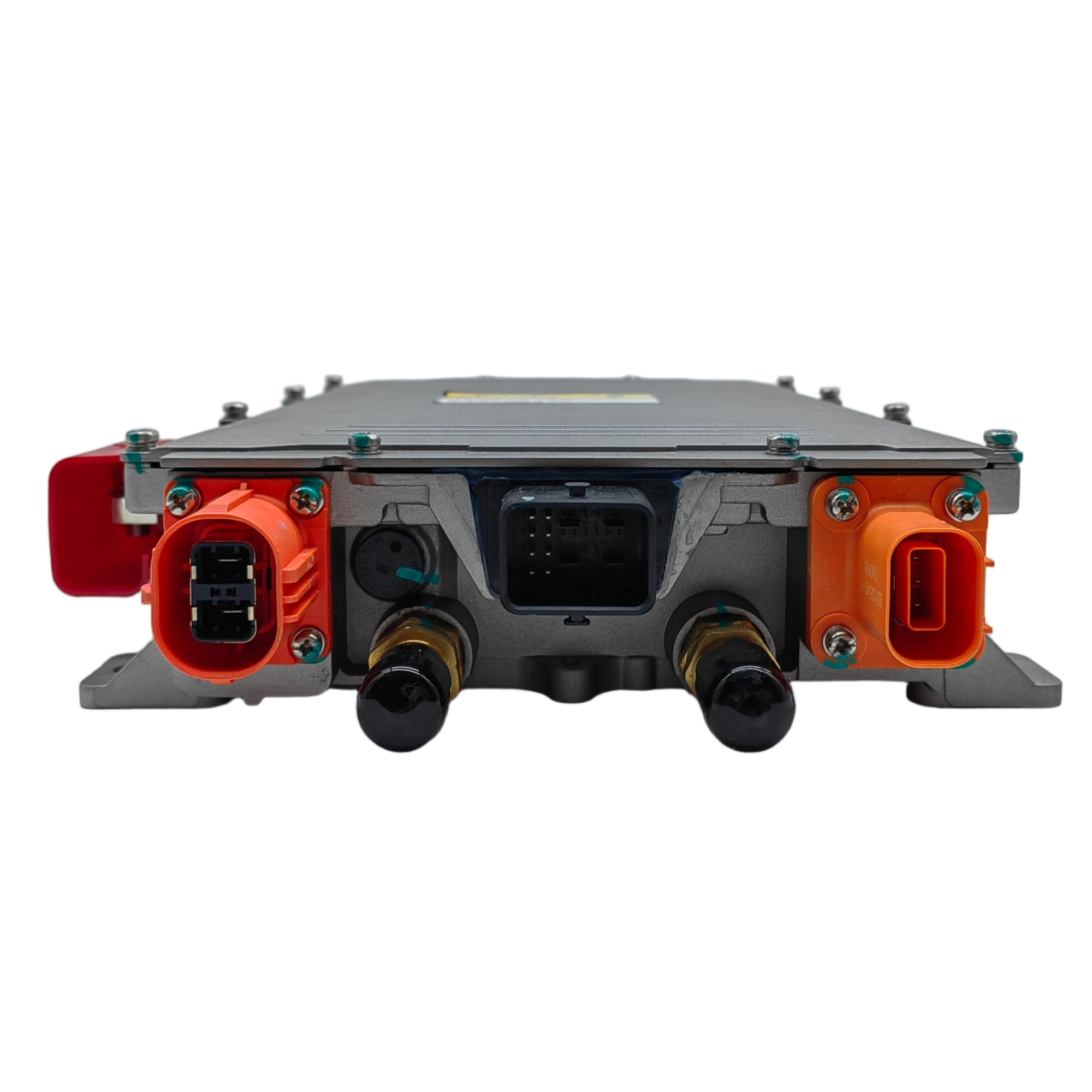

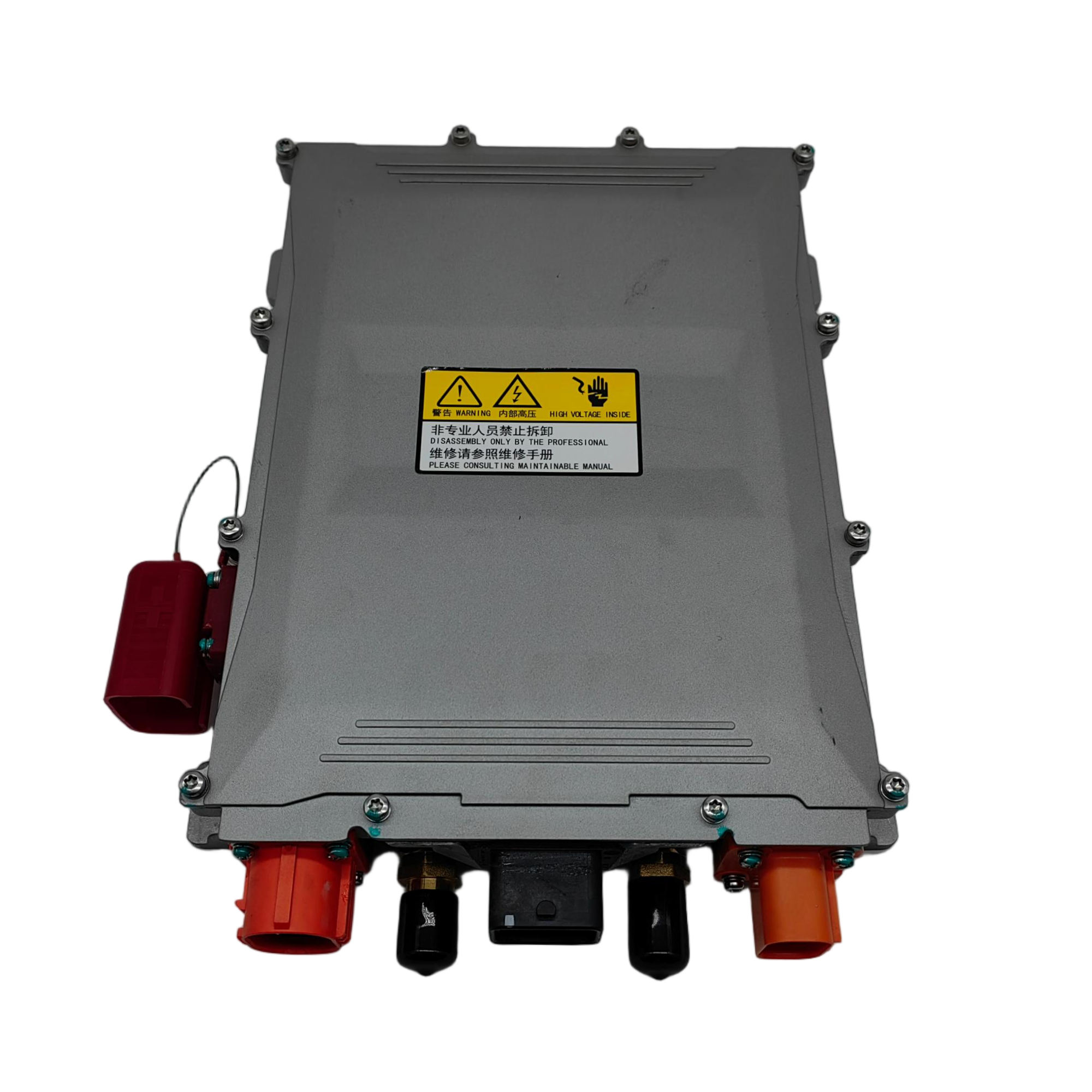

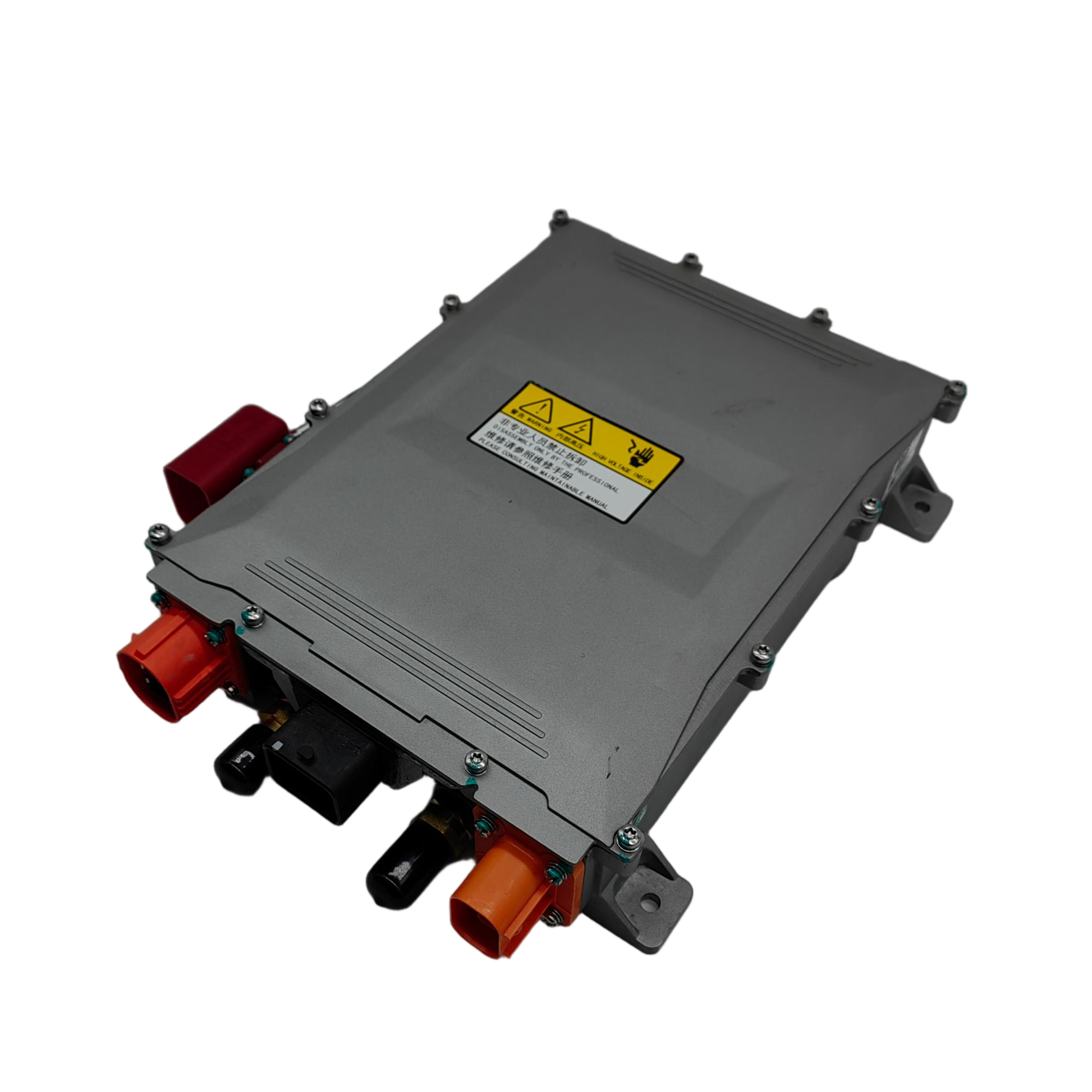

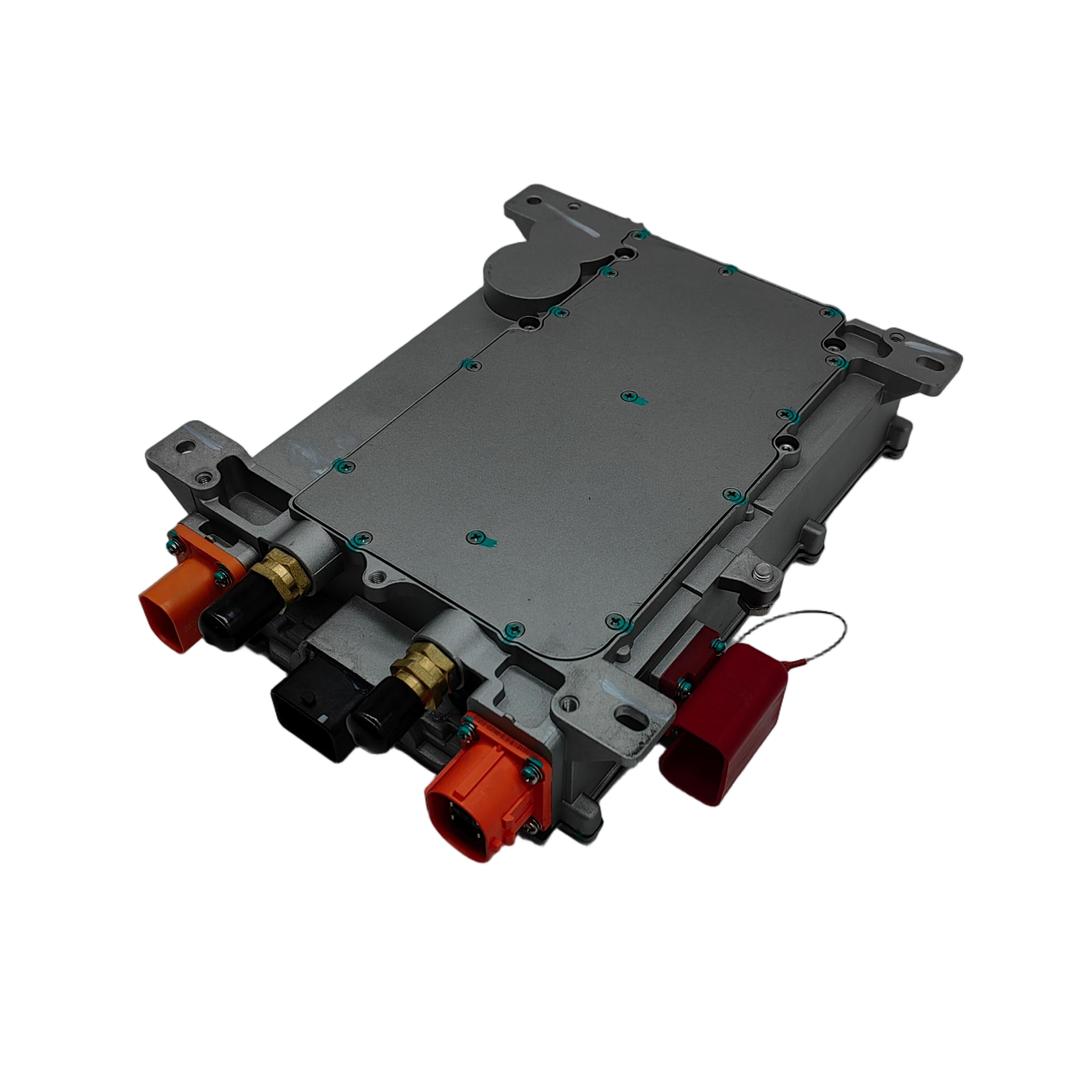

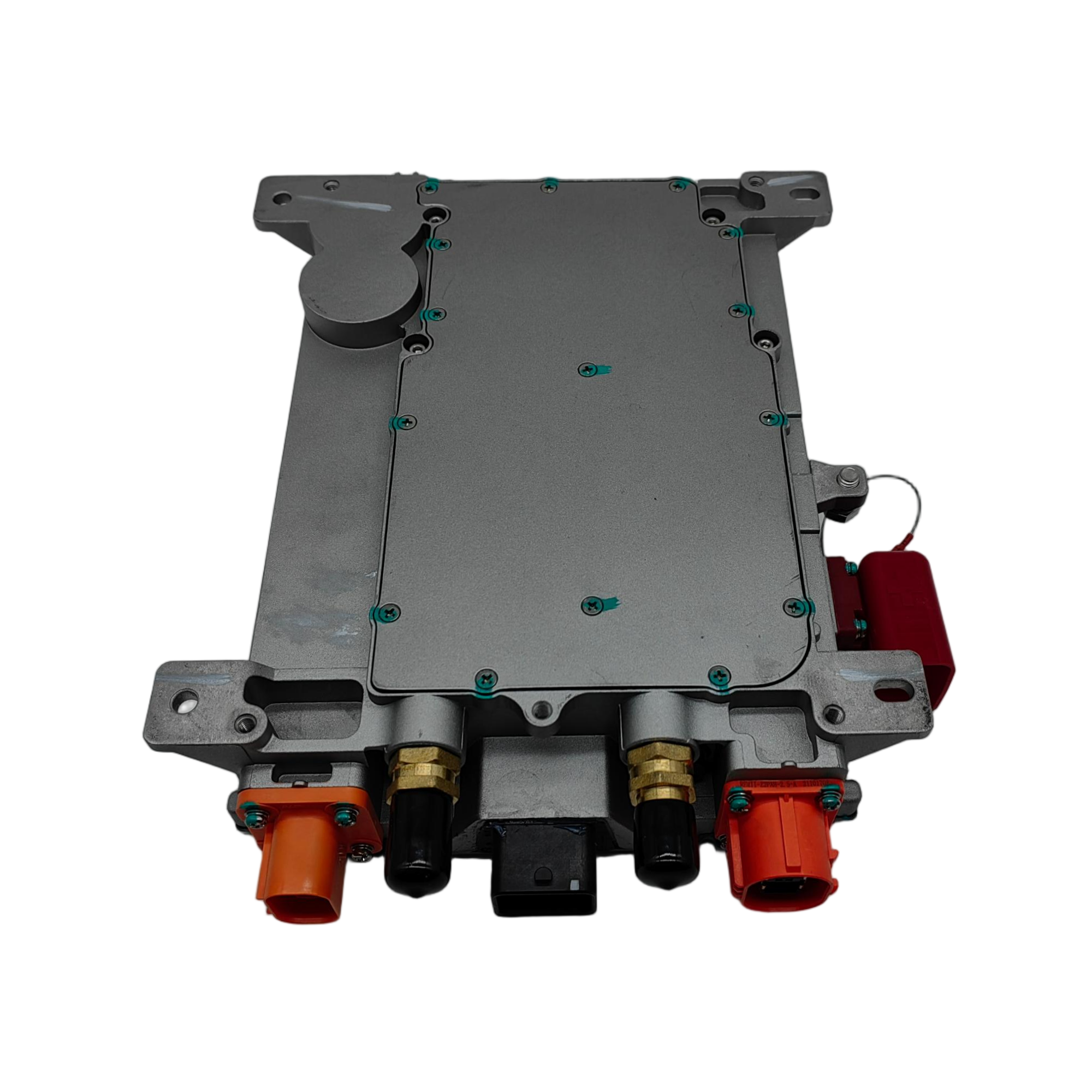

312V 10A 2 in 1 Combo Charger 3.3KW OBC+ 1.5KW 14V DCDC

Name: 312V 10A 2 in 1 Combo Charger 3.3KW OBC+ 1.5KW 14V DCDC
Brand: Keller
Rating: 5.0 (95 reviews)

3.3kw Combo chargers Series OBC&DC/DC Integration was specially designed for supplying the electricity for electric vehicle’s power
driven battery and supplying 12v LV DC power to auxiliary battery, according to QC/T895-2011 and GB/T24347-2009. The output terminals can be connected with 12V auxiliary battery. The charging management can be operated
automatically by DC/DC converter. The product not only has the advantages of high efficiency, small size, high stability,
long lifespan, but also high protection grade, high reliability as well as complete protection function, etc. It’s definitely an
ideal charging equipment relectric vehicles. The charger has been configured with the heat-sensing device internally, which can be automatic recovered through the
thermal protection. Fully sealed potting process with the protection grade of IP67 which ensure no fault caused in any
complicated environment.

Brand:
Keller

Availability:

Quantity:



Inquire Add to Basket

Product Description

Introduction of 2 in 1 Combo Charger 3.3KW OBC+1.5KW DCDC

Technical Data of 2 in 1 Combo Charger 3.3KW OBC+1.5KW DCDC

OBC Technical Data:		DCDC Technical Data:
Nominal Voltage:	144V, 312V;	Nominal Voltage:	144V, 312V;
AC Input Voltage Range	AC90V~AC265V	Rated Power:	1500W
AC Input Current:	16A	Peak Power:	1.8KW;(Continues Max 6 min)
AC Input Frequency	45~65 Hz	Max Output Current(@14V):	110A
AC Power Factor	≥0.99	Max Efficiency	≥93％
Full Load Efficiency	≥93％	Voltage Regulation	≤1.5%
Standby Power Consumption	≤5W	IP Standard:	IP67
Cooling Method	Force Air Cooling ;	Operating Temperature:	-40℃~+60℃
Environmental Enclosure	IP67	Storage Temperature:	－45～105℃
Operating Temperature	-40℃~+55℃	Ambient Moisture:	In the environment of (23±2) ℃ and moisture at 80%-90%
Storage Temperature	-40℃~+100℃	Noisy	Distance in 1.5m,Noisy≤50dB
Auxiliary Output:	14V 5A	Cooling Method:	Natural Air Cooling
Control Method:	With CAN BUS	Control Method:	With CAN BUS; 12V Enable (Optional)

Model List of 2 in 1 Combo Charger 3.3KW OBC+1.5KW DCDC

Model	Nominal Voltage	OBC Vout Range	OBC Iout	DCDC Vin Range	DCDC Output	Cooling Method

KL-MWH01	144V	100-200VDC	23A	110-200V	14V 110A	Liquid Cooling
KL-MWH02	312V	220-450VDC	10A	220-450V	14V 110A	Liquid Cooling
