CD-LF01, CD-LF02
| Quantity: | |
|---|---|

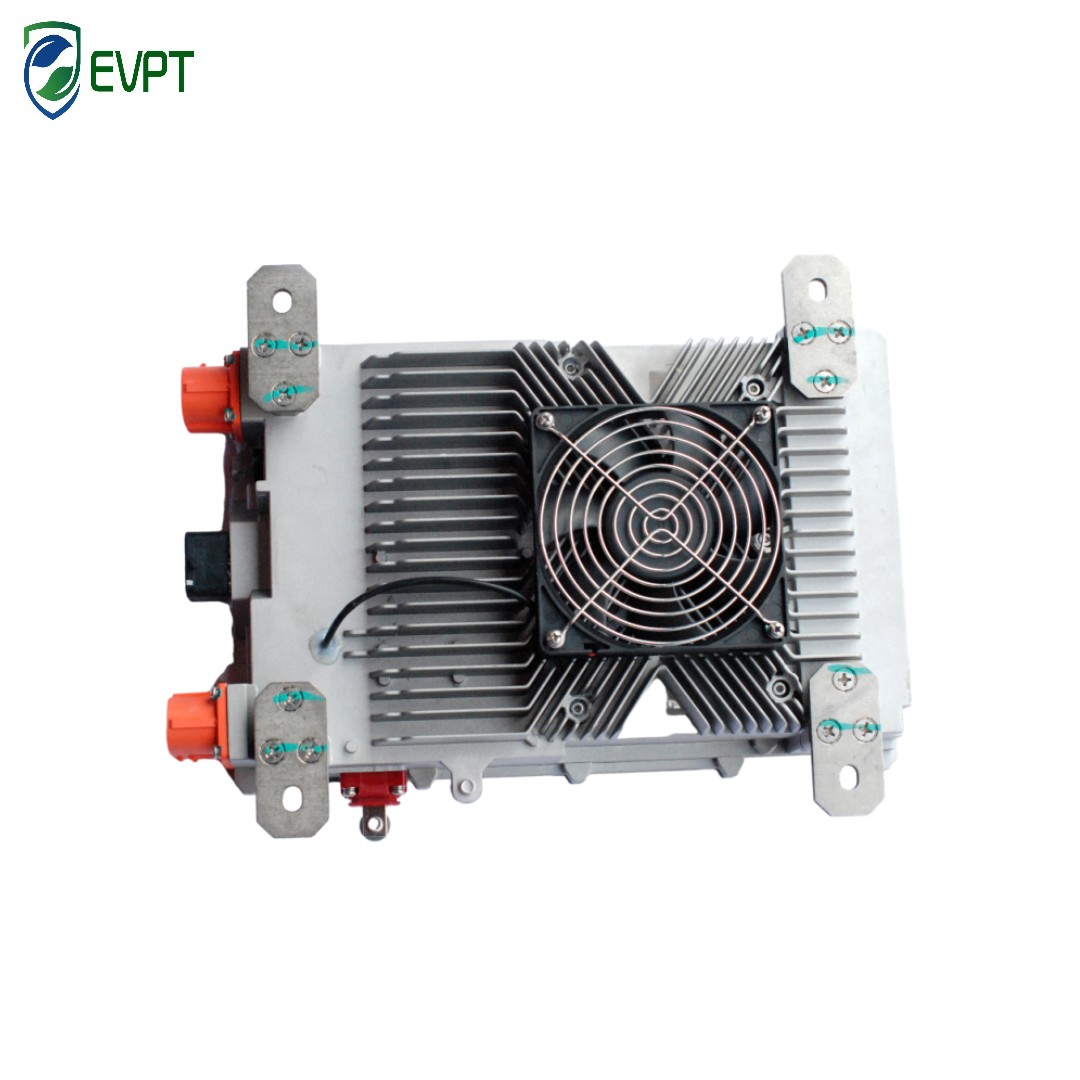

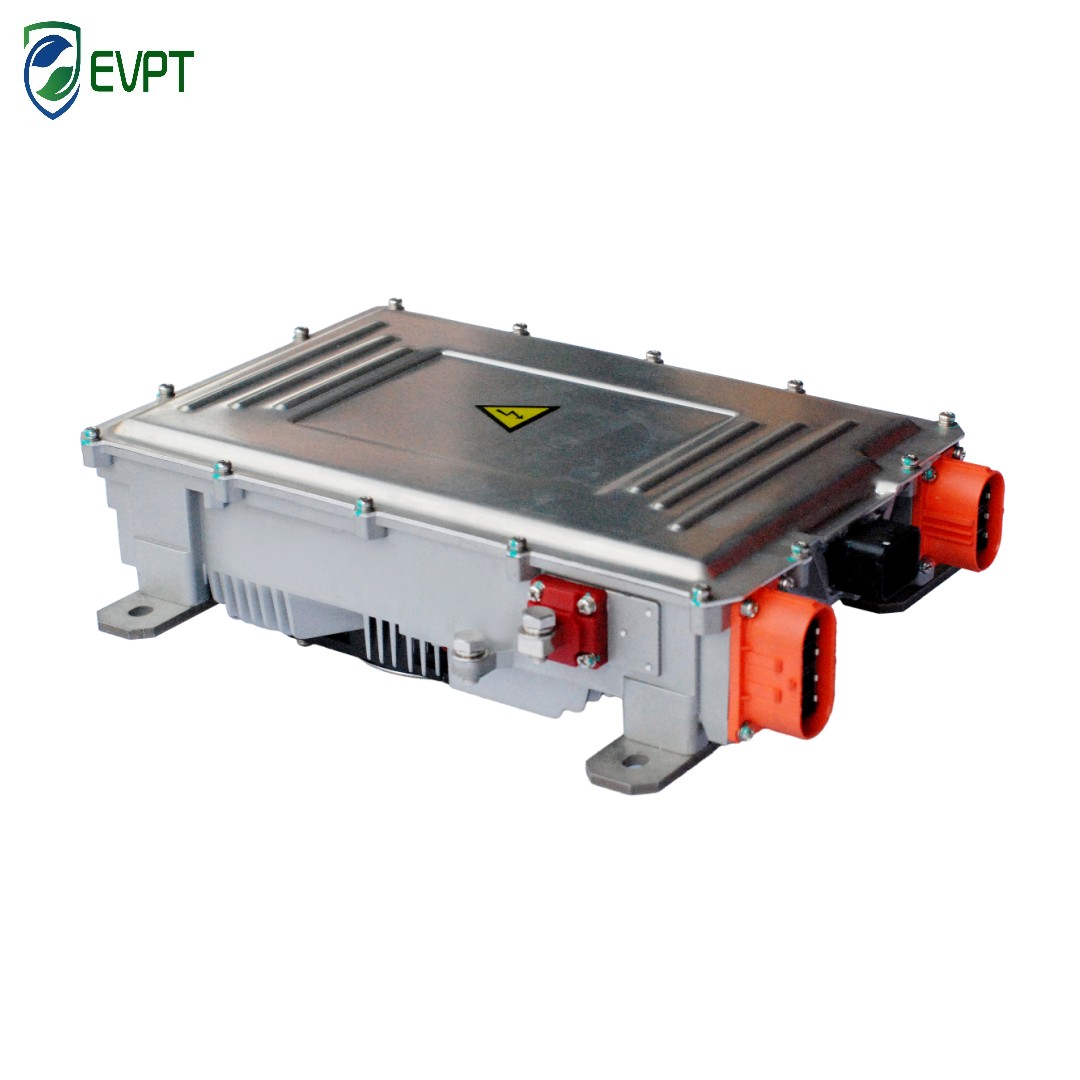

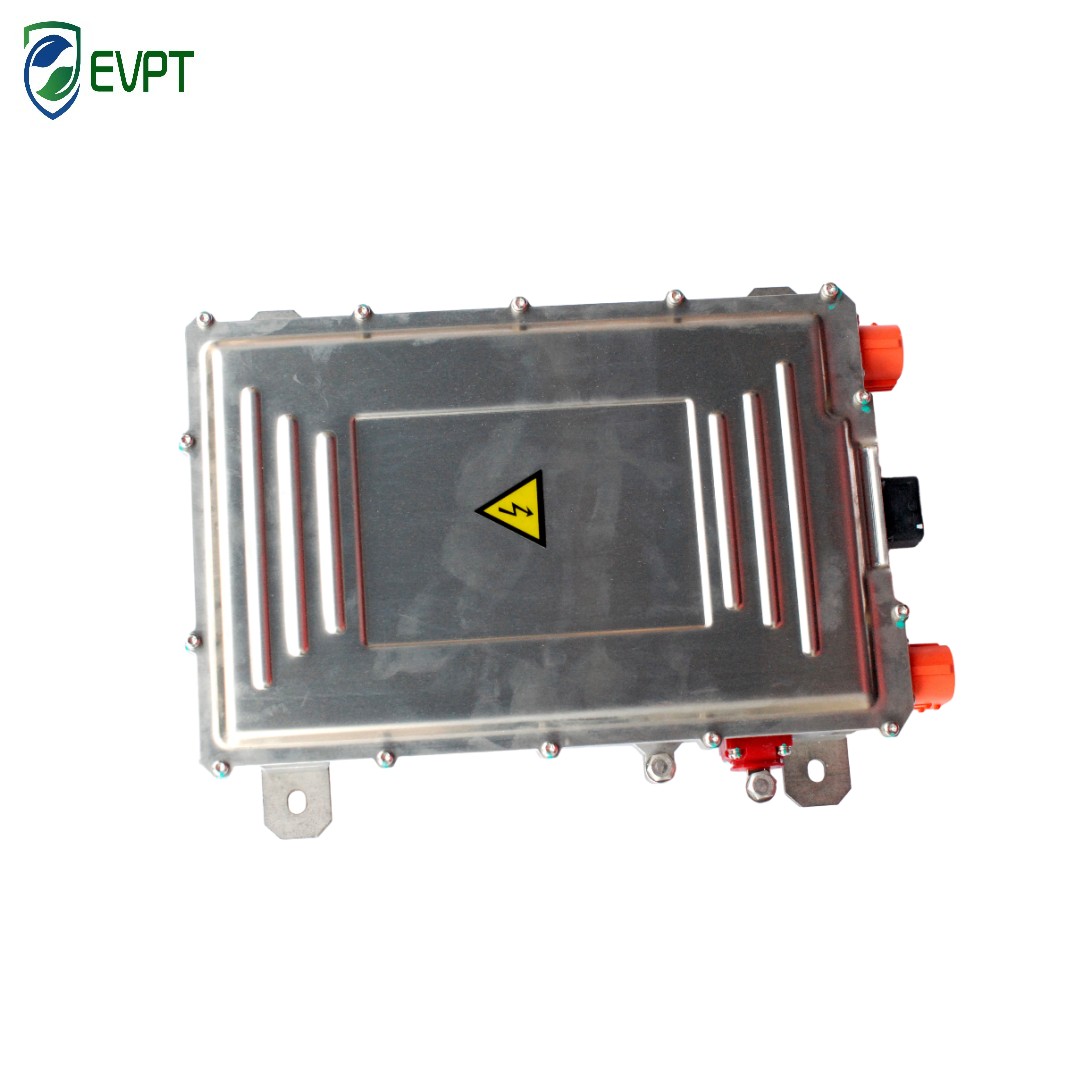

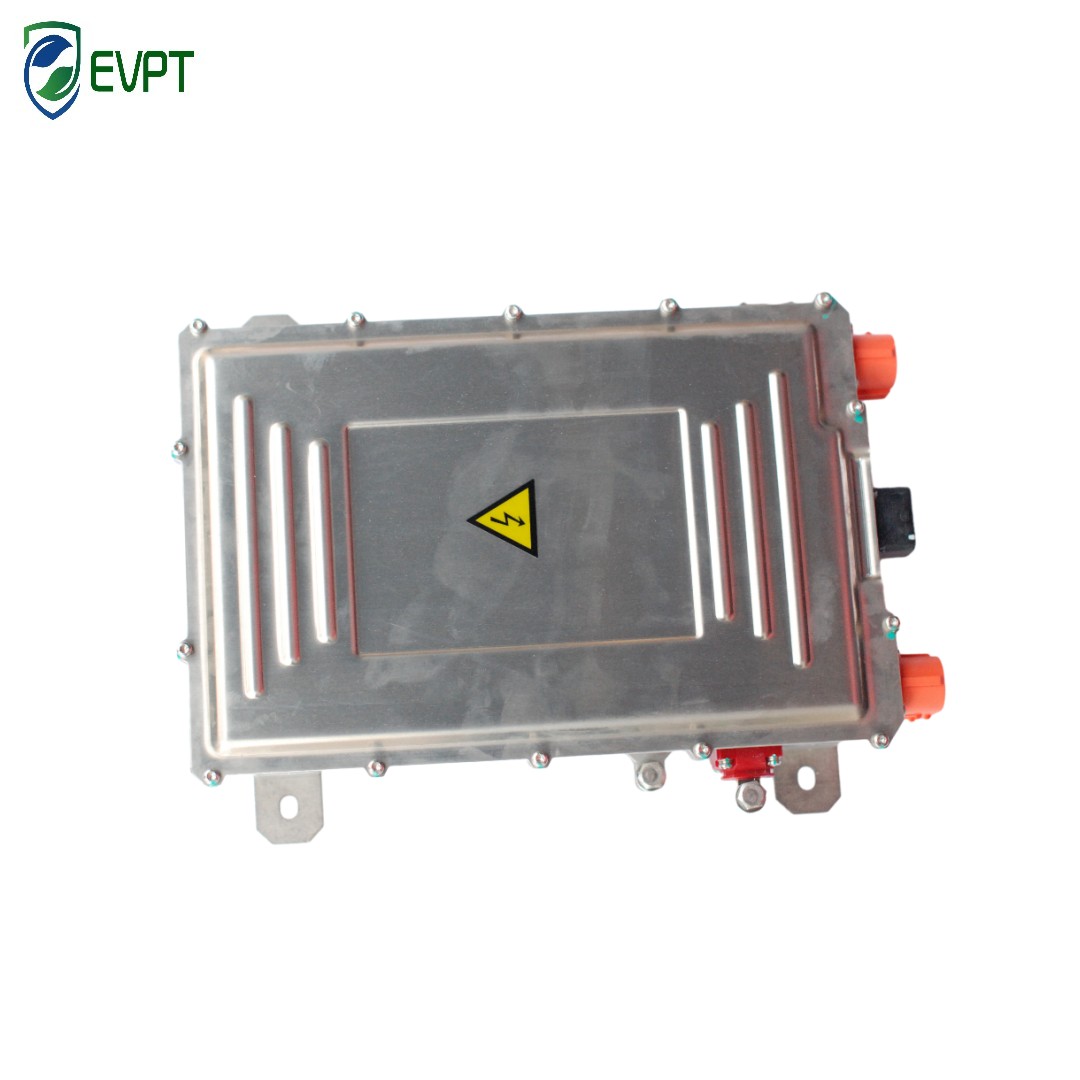

Introduction of 6.6KW OBC +1.5KW DCDC Converter 2 in 1 Combo Charger
Key Features:
The OBC DCDC 2IN1 Combo charging solution is a groundbreaking technology that offers a convenient and effective way to charge multiple devices simultaneously. This article will explore the features and benefits of this innovative charging solution.
Compatibility and Versatility:
Compatibility is a crucial aspect when it comes to charging solutions, and the OBC DCDC 2IN1 Combo charging solution excels in this area. It is compatible with a wide range of vehicles, including passenger car, logistic truck, construction machines, agricultural tractor, and more. Additionally, it supports various charging protocols of CANBUS, ensuring compatibility with the latest vehicles and technologies.
 | Technical Data of 6.6KW OBC +1.5KW DCDC Converter 2 in 1 Combo Charger |
| OBC Technical Data: | DCDC Technical Data: | |||
| Nominal Voltage: | 144V, 312V; | Nominal Voltage: | 144V, 312V; | |
| AC Input Voltage Range | AC90V~AC265V | Rated Power: | 1.5KW | |
| AC Input Current: | 32A | Peak Power: | 1.8KW;(Continues Max 6 min) | |
| AC Input Frequency | 45~65 Hz | Max Output Current(@14V): | 110A | |
| AC Power Factor | ≥0.99 | Max Efficiency | ≥93％ | |
| Full Load Efficiency | ≥93％ | Voltage Regulation | ≤1.5% | |
| Standby Power Consumption | ≤5W | IP Standard: | IP67 | |
| Cooling Method | Enforce Air Cooling; Liquid Cooling; | Operating Temperature: | -40℃~+60℃ | |
| Environmental Enclosure | IP67 | Storage Temperature: | －45～105℃ | |
| Operating Temperature | -40℃~+55℃ | Ambient Moisture: | In the environment of (23±2) ℃ and moisture at 80%-90% | |
| Storage Temperature | -40℃~+100℃ | Noisy | Distance in 1.5m,Noisy≤50dB | |
| Auxiliary Output: | 14V 5A | Cooling Method: | Enforce Air Cooling; | |
| Control Method: | With CAN BUS | Control Method: | With CAN BUS; 12V Enable (Optional) |
| Model List of 6.6KW OBC + 1.5KW DCDC 2-in-1 Combo Charger Unit |
| Model | Nominal Voltage | OBC Vout Range | OBC Iout | DCDC Vin Range | DCDC Output | Cooling Method |
| CD-LF01 | 144V | 110-200VDC | 46A | 110-200V | 14V 110A | Enforced Air Cooling |
| CD-LF02 | 312V | 220-450VDC | 20A | 220-450V | 14V 110A | Enforced Air Cooling |
| Installation Dimension of 6.6KW OBC +1.5KW DCDC 2-in-1 Combo Charger Unit |
